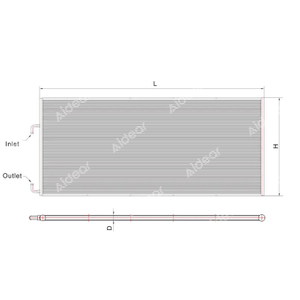

| Model | Core length | Core height | Flat tube thickness | Fin pitch | Fin height | Collector outer diameter |

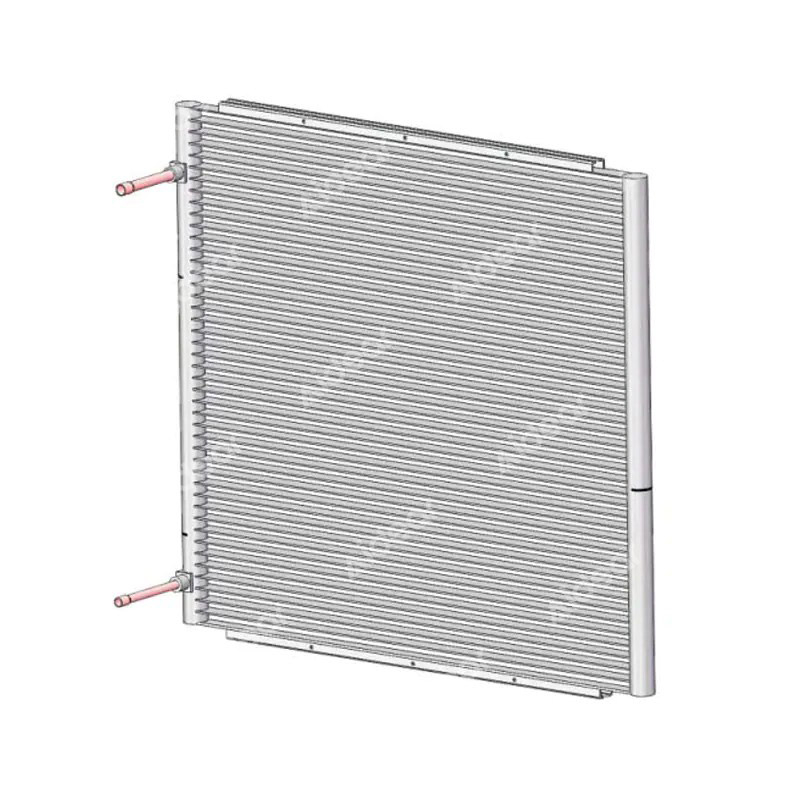

| SC-1200 | 460[mm] | 431.3[mm] | 1.1[mm] | 1.1[mm] | 8.1[mm] | 20[mm] |
| 18.11[in] | 16.98[in] | 23[in] | 23[FPI] | 0.32[in] | 0.79[in] |
| Model | Flat tube height | Number of flat tubes | loop | Internal volume | Inlet inner diameter | Outlet inner diameter |
| SC-1200 | 1.3[mm] | 43 | 14/12/10/7 | ≈0.31[L] | 7.94[mm] | 6.35[mm] |
| 0.05[in] | ≈19[in3] | 5/16[in] | 1/4[in] |
Side Panel Installation
Aluminum microchannel heat exchangers expand and contract at high temperatures, so bracket installation and other aspects must allow for a certain tolerance.
