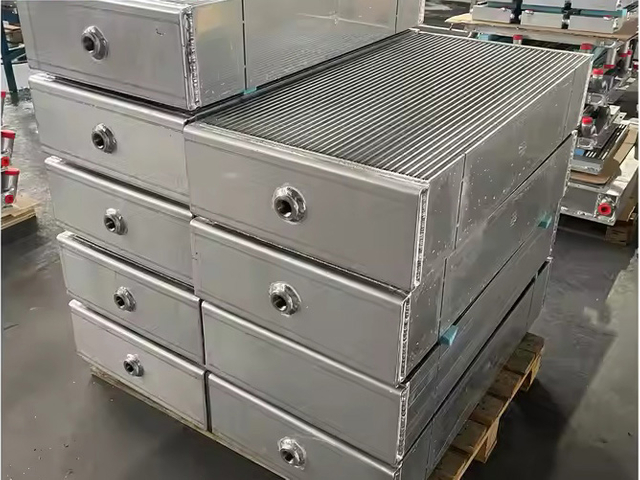

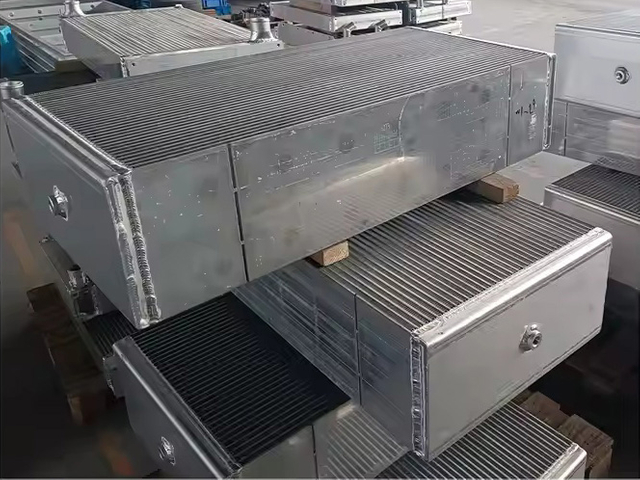

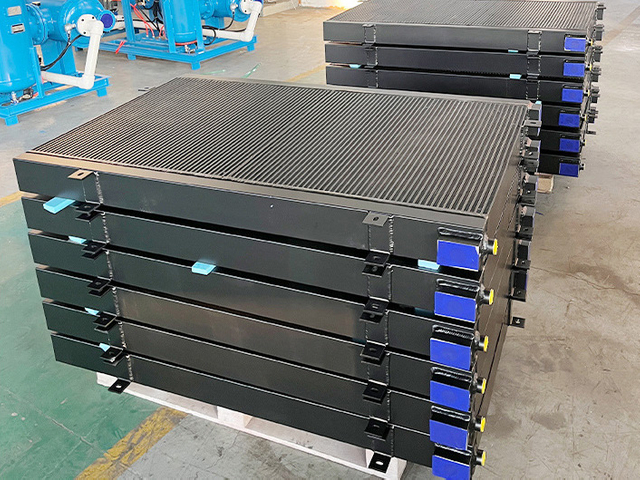

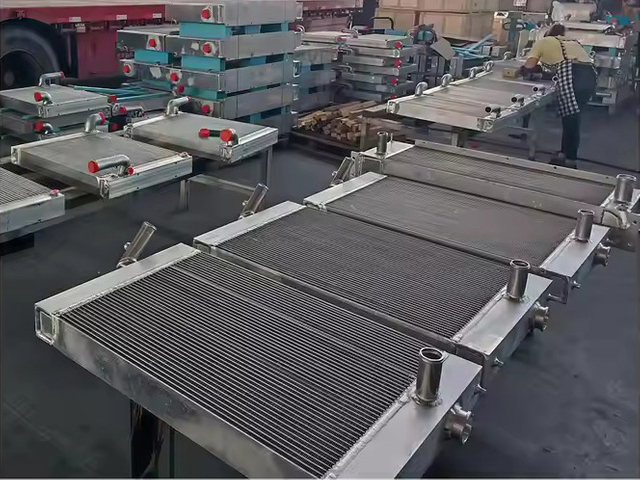

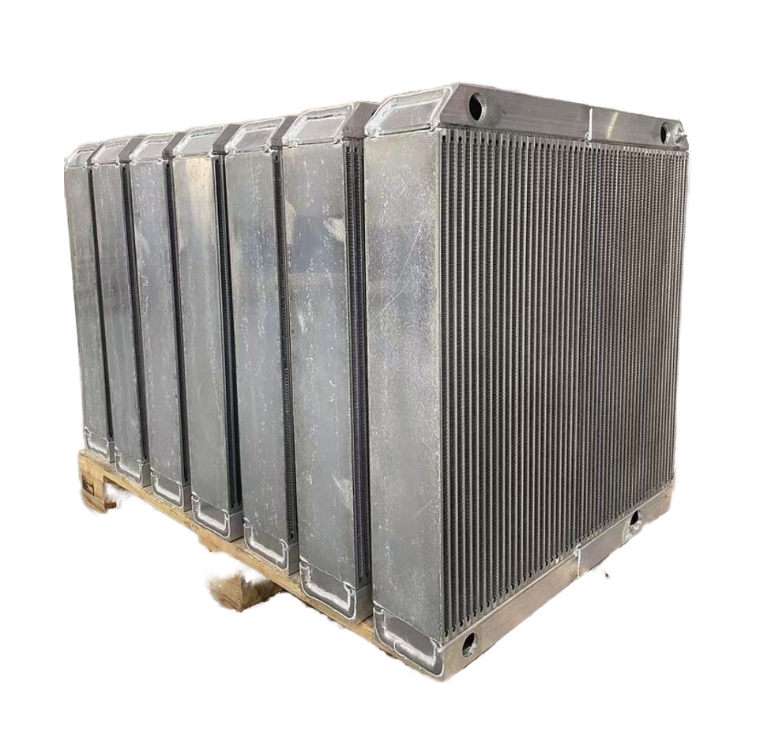

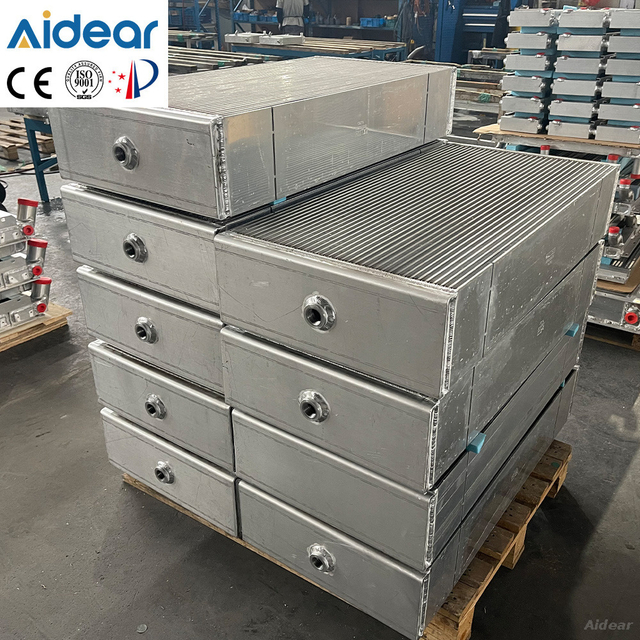

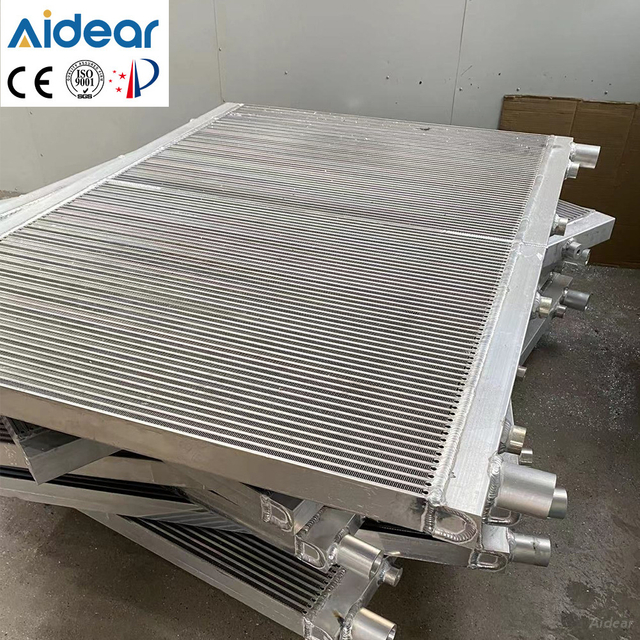

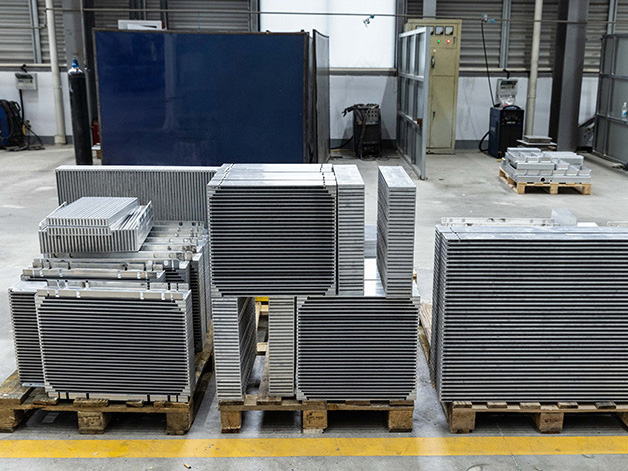

Plate-fin heat exchanger: a heat exchange device carefully constructed of plates and fins. Its key components include baffles, fins, seals and guide vanes. Fins, guide vanes and seals are cleverly placed between adjacent baffles to form a sandwich, which is called a channel. By stacking multiple such channels in different ways of fluid flow and connecting them into a whole using a brazing process, a plate bundle is formed. As the core part of the plate-fin heat exchanger, the plate bundle is equipped with necessary headers, pipes, supports and other components to complete the overall assembly of the plate-fin heat exchanger.
Plate fin heat exchangers have a wide range of applications, a few of which are:
A Plate-Fin Heat Exchanger (PFHE) is constructed from alternating layers of flat metal plates and corrugated fins, creating a series of parallel channels for fluid flow. Hot and cold fluids flow through adjacent channels in either a countercurrent (opposite directions) or crossflow (perpendicular directions) arrangement. Heat transfers through the metal plates and fins via conduction: the high-temperature fluid releases heat to the plates and fins, where the corrugated design—featuring shapes like triangular, sine, or sawtooth—increases surface area and induces turbulence to enhance heat transfer. The low-temperature fluid in the neighboring channel absorbs this heat, completing the exchange process. Diverters and sealing strips at the channel ends prevent fluid mixing, while headers or joints connect the inlets and outlets. Fin height and channel design can be optimized to improve heat exchange efficiency and minimize pressure loss.
Plate-fin heat exchangers offer distinct advantages for efficient thermal management. The corrugated fins boost surface area and turbulence, delivering 30%-50% higher heat transfer efficiency than traditional heat exchangers, making them ideal for gas-to-gas or gas-to-liquid applications. Their compact, lightweight design—typically 1/3 to 1/5 the size and weight of shell-and-tube exchangers—supports multi-fluid heat exchange (up to 10+ fluids) for complex systems. Constructed from aluminum alloy or stainless steel, PFHEs withstand high temperatures (up to 650°C) and pressures (up to 100 bar), with optimized channels reducing pressure drop for low-pressure scenarios. The brazed structure minimizes leaks, turbulence reduces fouling for less maintenance, and customizable fin shapes and materials ensure versatility across aerospace, petrochemical, and refrigeration industries.
Unmatched Performance and Durability

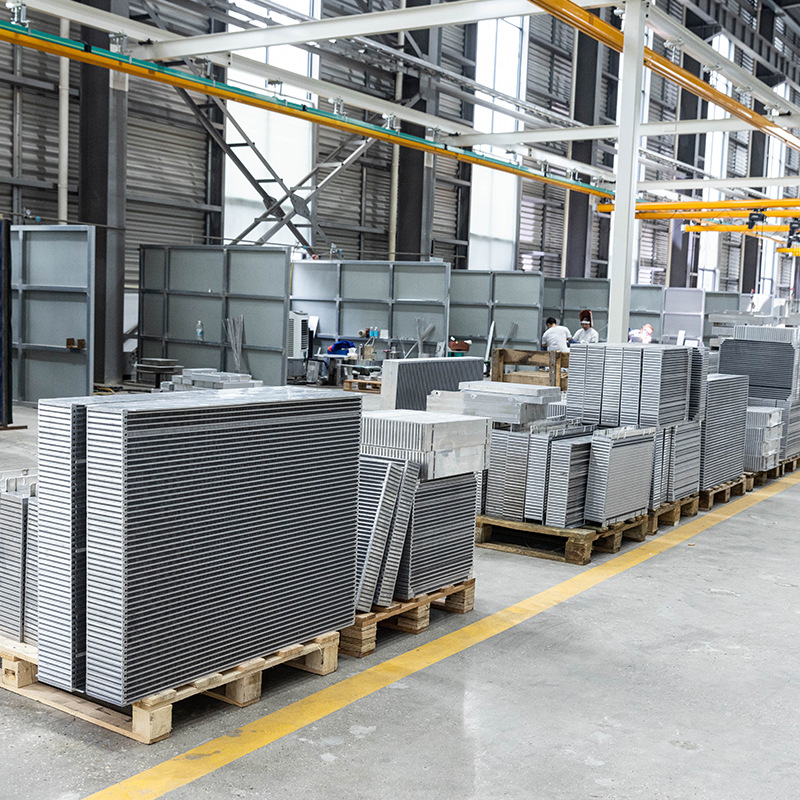

Our Plate Fin Heat Exchanger is designed for optimal thermal efficiency and long-term reliability, backed by 20 years of manufacturing expertise.
Outstanding heattransfer performance:
When the inner diameter of thetube is 0.5~1mm,convective heattransfer coefficient can be increasedby 50%~100%.
Durable and highly corrosion-resistant:
Made of SUS316 plate by copperor nickel welding. Provides highcorrosion resistance to variousfluids.
High Pressure Resistance:
Due to their compact structurethey occupy less space thangasketed heat exchangers.High resistance temperature MIN -180°C/MAX 250°C Can be used as super coolersand condensers.
Customizable Design:
Tailored to HVAC, refrigeration, and industrial cooling needs.
Customers submit inquiries via website, email, or phone, detailing application, specs, output, and conditions.
Step2: Design Confirmation
Manufacturer finalizes material, dimensions, and parameters with the customer, optimizing provided drawings or creating a new design.
Step3: Quotation & Negotiation
Manufacturer provides a detailed quote with specs and services. Terms like price and delivery are negotiated.
Step4: Sample Order & Payment
Customer approves design, pays sample fee, and manufacturer starts sample production.
Step 5: Sample Production & Delivery
Sample is produced to high standards, delivered, and feedback is collected for adjustments.
Step6: Contract & Payment
After sample approval, a contract is signed, and full payment is made for bulk production.
Step7: Production & Quality Control
Manufacturer follows the contract, ensures quality, and updates customer on progress.
Step 8: Pre-Shipment & Final Payment
Customer pays any remaining balance; manufacturer prepares shipping documents.
Step 9: Shipping & Tracking
Product is shipped via preferred method, with tracking details provided.
Step10: After-Sales
Manufacturer offers installation support, training, and regular follow-ups for feedback and improvements.
Preventive Maintenance
Scheduled inspections to extend equipment life and prevent downtime.
Emergency Repairs
Rapid on-site or remote repairs with 24/7 support availability.
Spare Parts Supply
Fast delivery of high-quality, compatible parts for all Aidear heat exchangers.
Technical Support
Expert troubleshooting and remote diagnostics for quick resolutions.
Can't Find Ideal Refrigeration System Solutions For Your Industries?
We are an excellent, specialized refrigeration system solutions provider for almost 20 years, our main products are various specifications of heat exchanges, air cooler, condenser and units, which are all covering a wide area of application.
