Common atmosphere of chillers Air-cooled chillers and water-cooled chillers Water-cooled chillers use water as a heat dissipation medium and discharge heat into the air through a cooling tower. It is generally more efficient and suitable for large buildings such as hospitals or factories, with an average lifespan of more than 25 years. But it requires water resources, is more complicated to install and maintain, and has a lower noise level (70s–low 90s dBA). Air-cooled chillers discharge heat directly into the air through a fan and do not require water, making them suitable for areas with water shortages or small facilities such as restaurants. It has lower efficiency, a lifespan of about 20 years, and higher noise (88–100+ dBA), but is simple to install and the overall system cost may be lower.
Chiller have a wide range of applications, a few of which are:

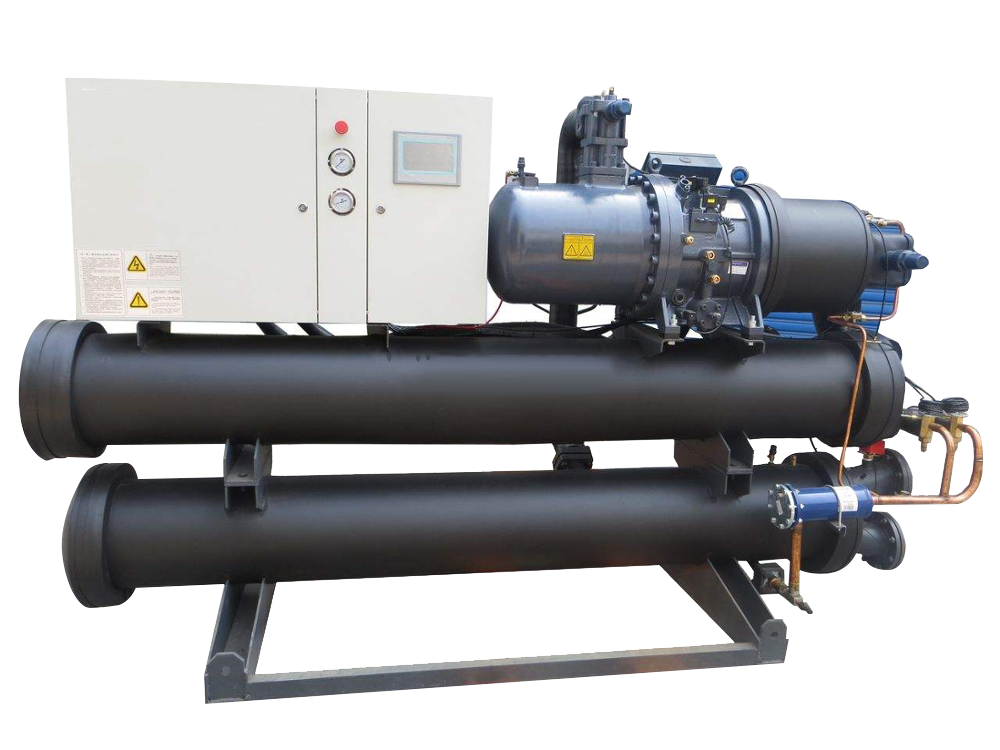

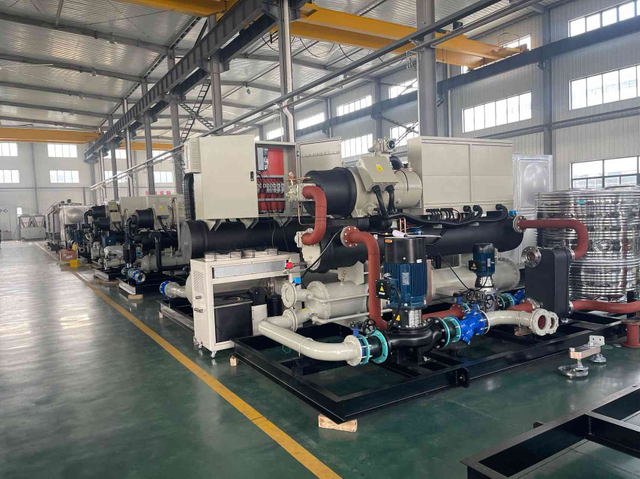

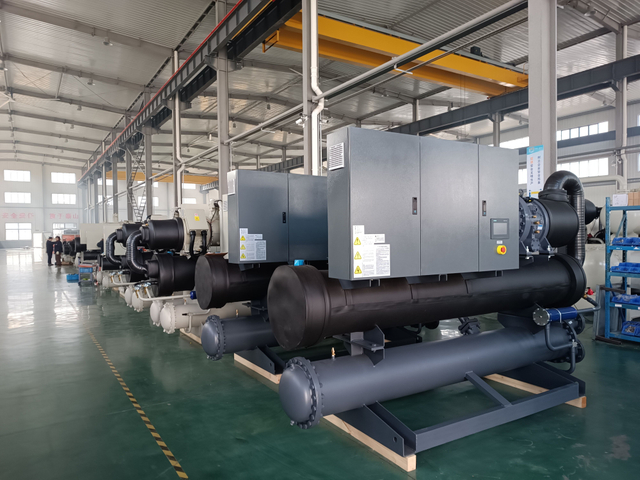

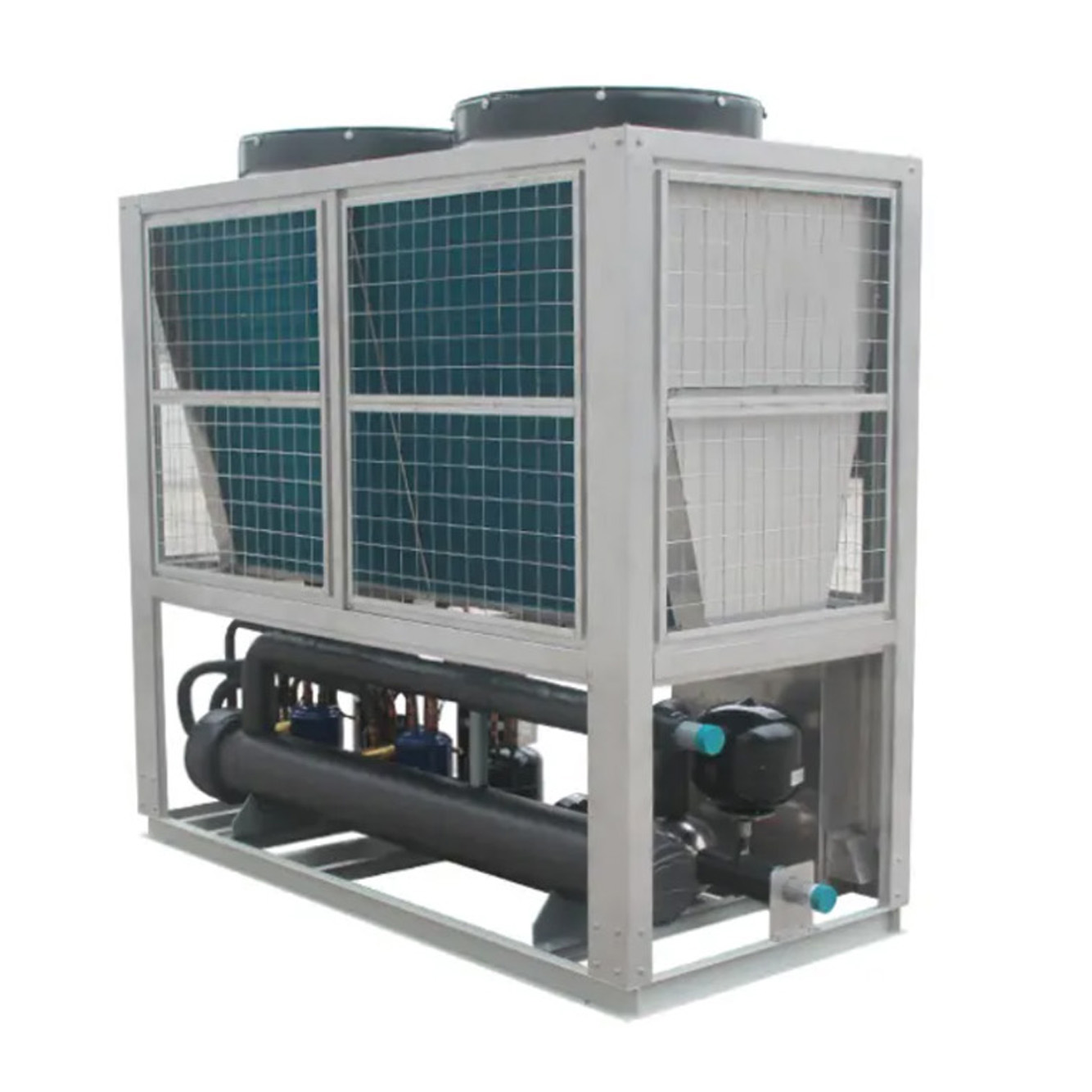

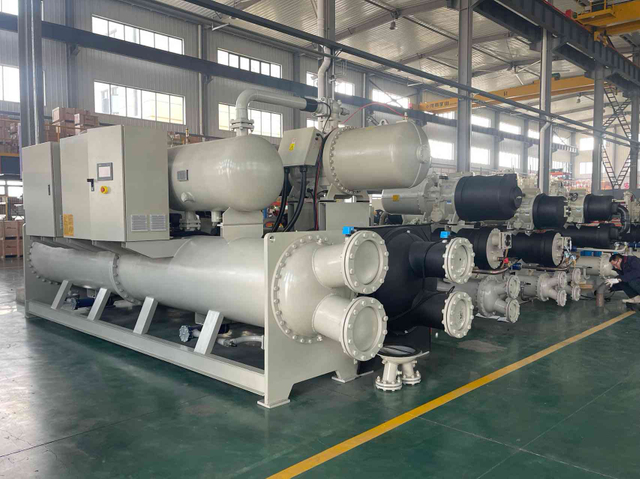

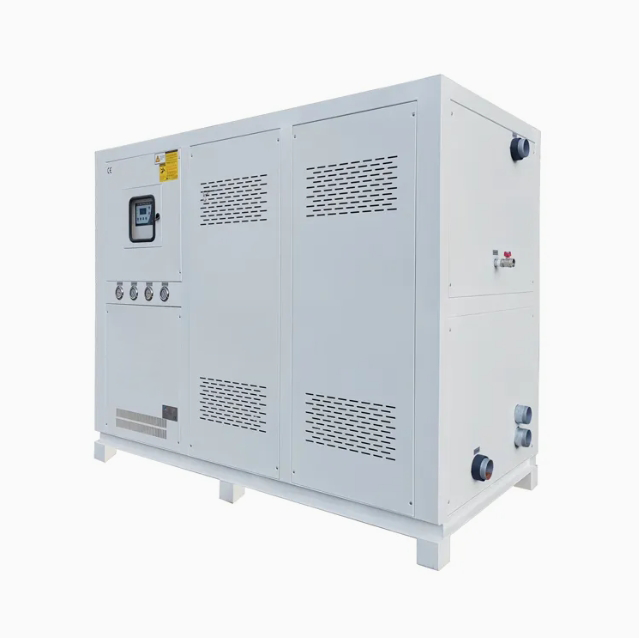

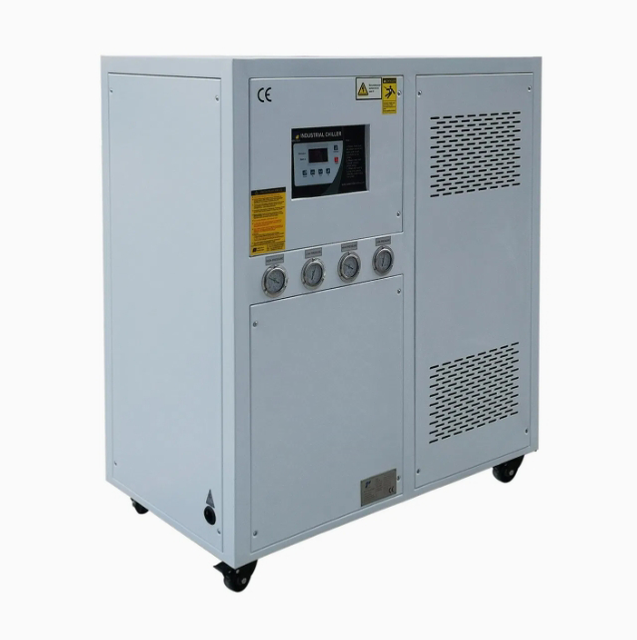

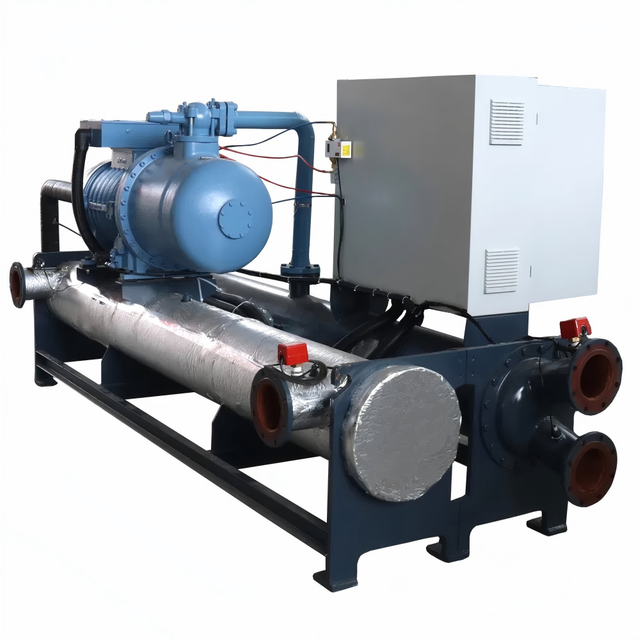

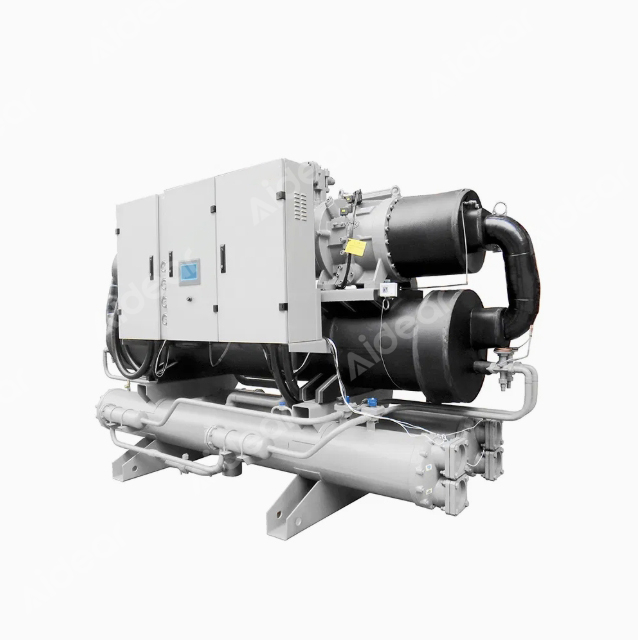

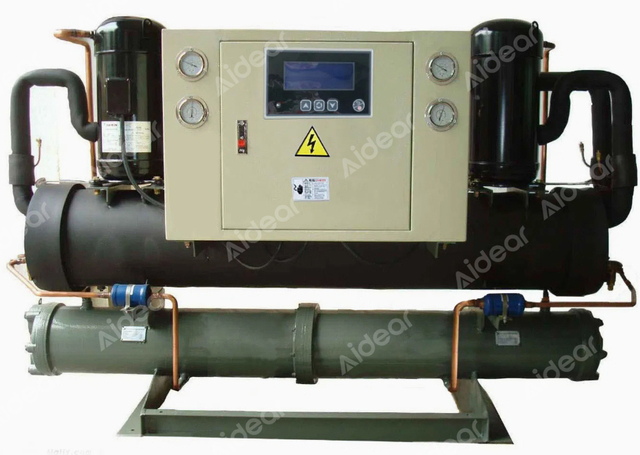

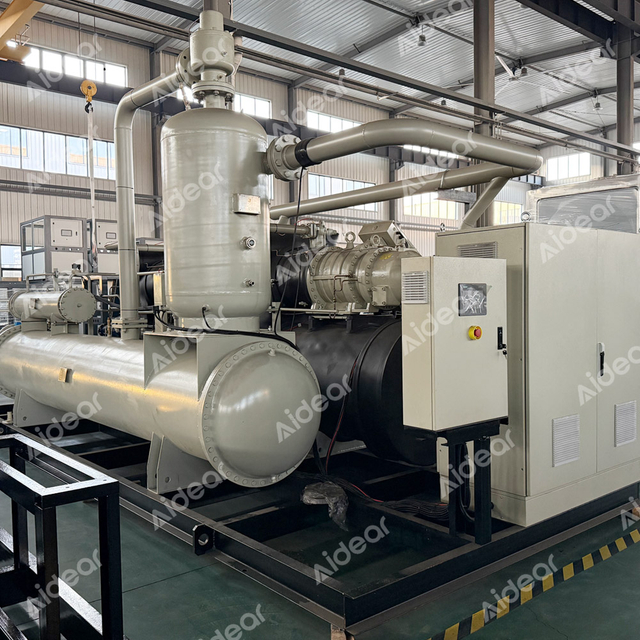

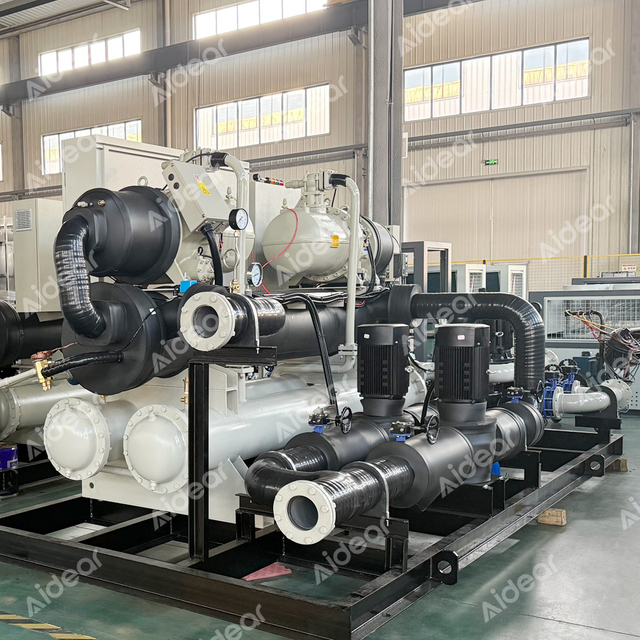

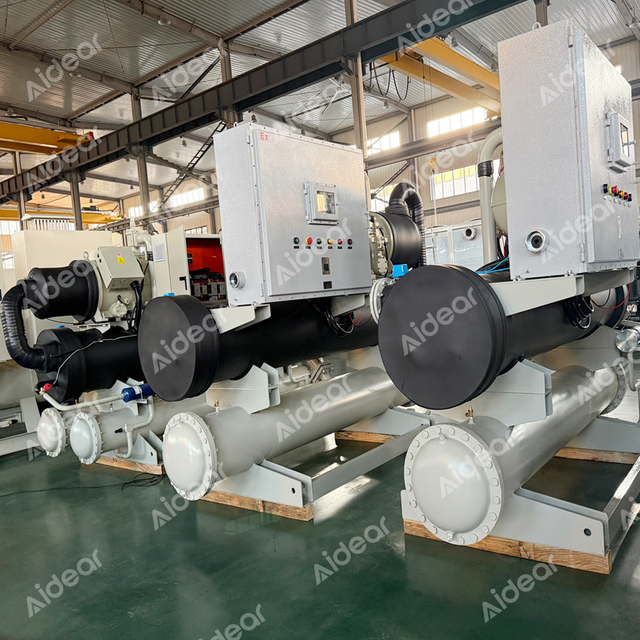

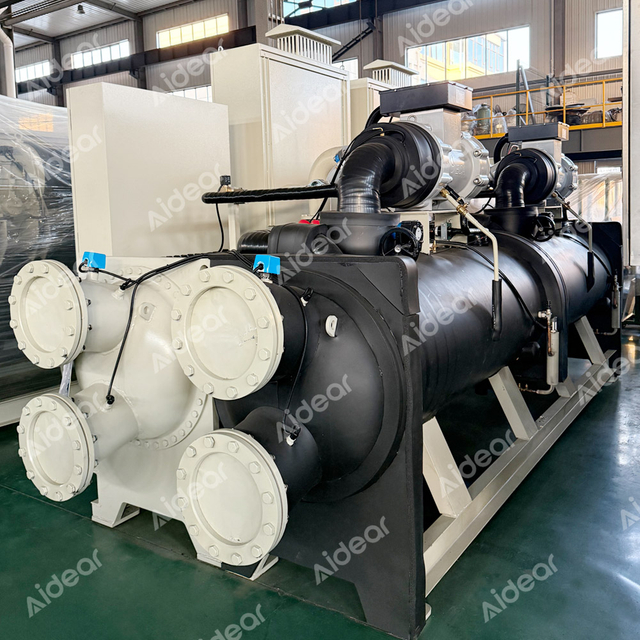

Water-cooled chillers remove heat from liquid coolant through a refrigeration cycle. They are suitable for medium-to-large facilities such as airports, hospitals and hotels, with a cooling capacity of 200-3,000 tons. The working principle is that the refrigerant absorbs heat in the evaporator, the compressor compresses it into a high-temperature and high-pressure gas, and releases heat to the circulating water in the condenser. The heated water exchanges heat with the outside air through the cooling tower and is cooled and recirculated. Because the condensation is based on the wet bulb temperature, the efficiency is higher than the system based on the dry bulb temperature, and the energy consumption is lower (lower kW/ton value). The system components include the chiller, cooling tower, condensate pump, make-up water pump and optional thermal energy storage (TES) tank. The average equipment life is over 25 years (50% can reach 30 years, 25% can reach 40 years), the pump and cooling tower life are 15 years and 20 years respectively, and may only need to be replaced once in 50 years, with low life cycle costs. Although the unit cost is low, the total system cost is high due to the need for additional equipment

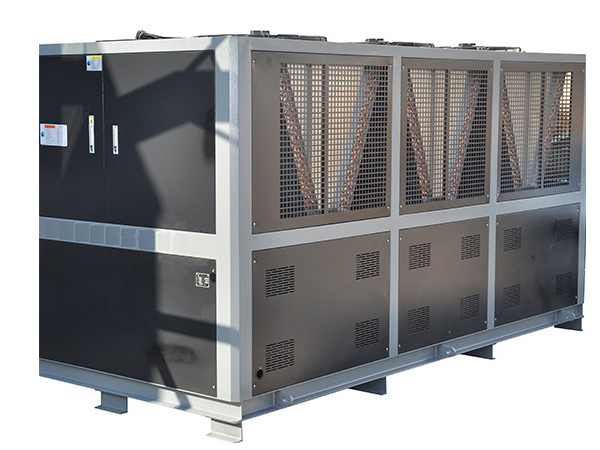

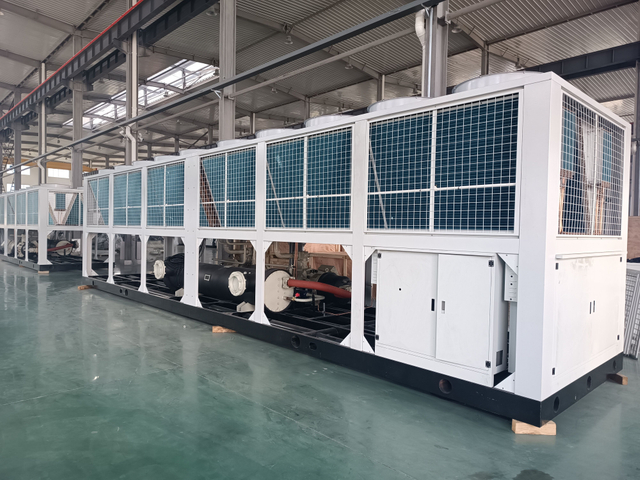

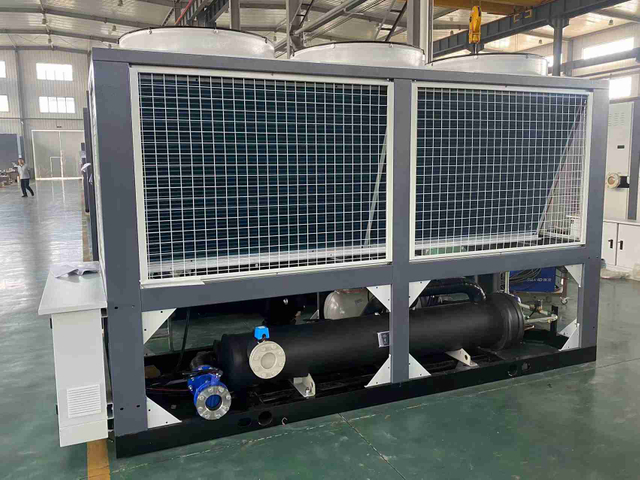

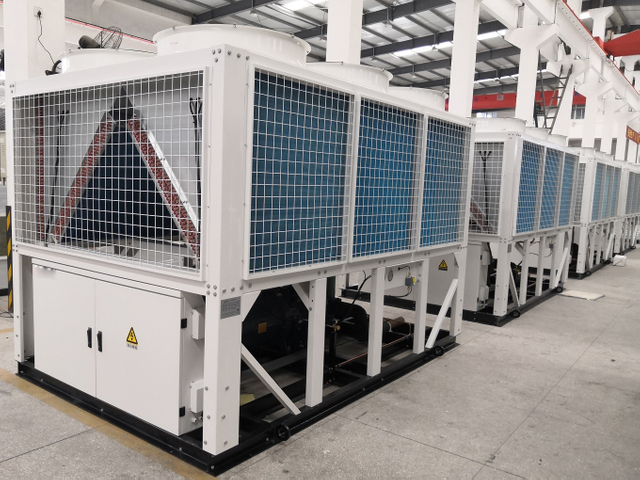

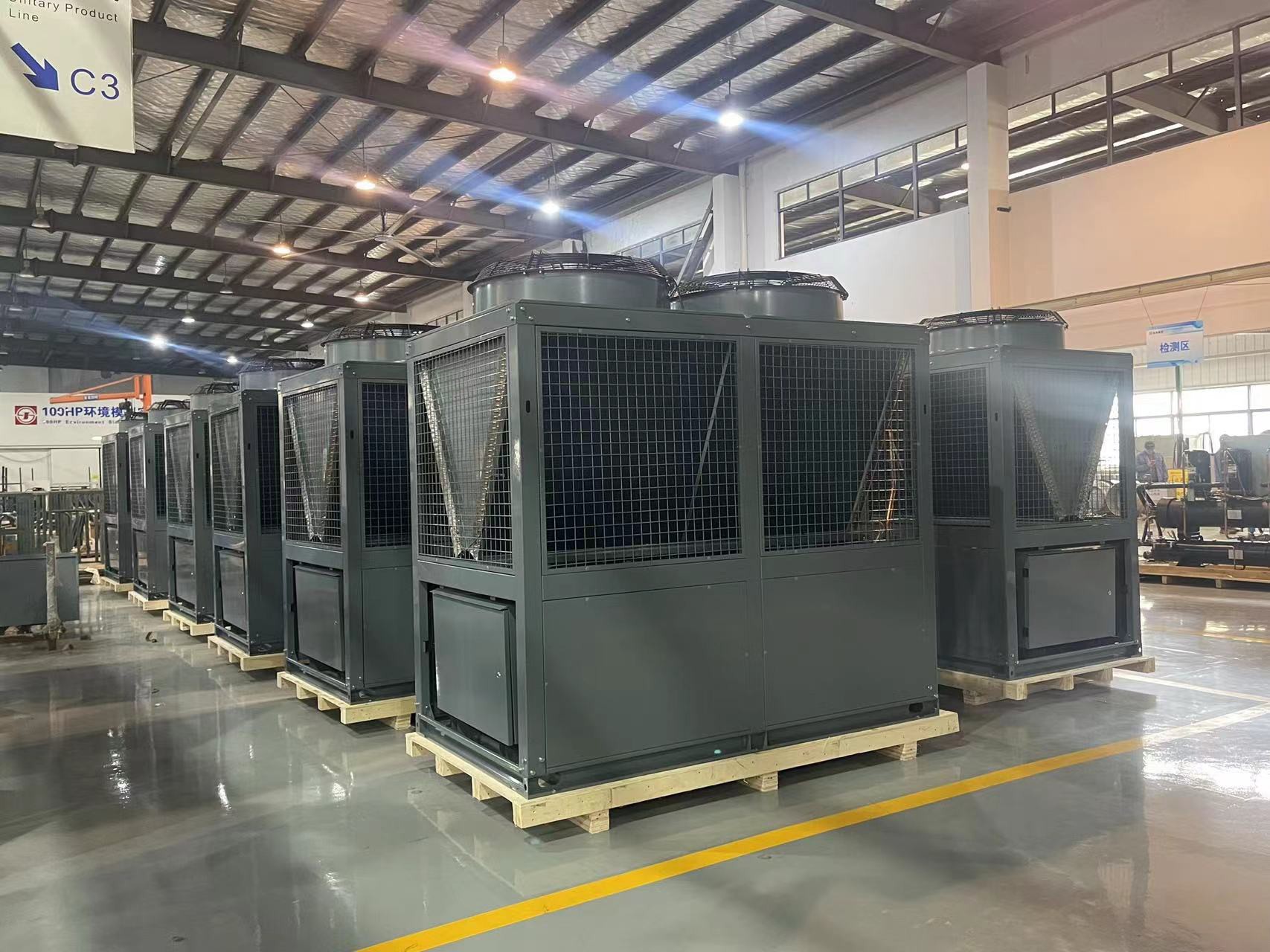

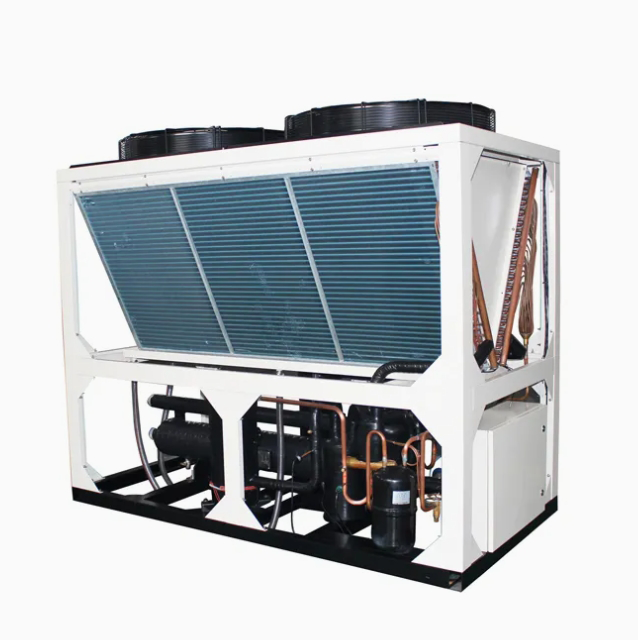

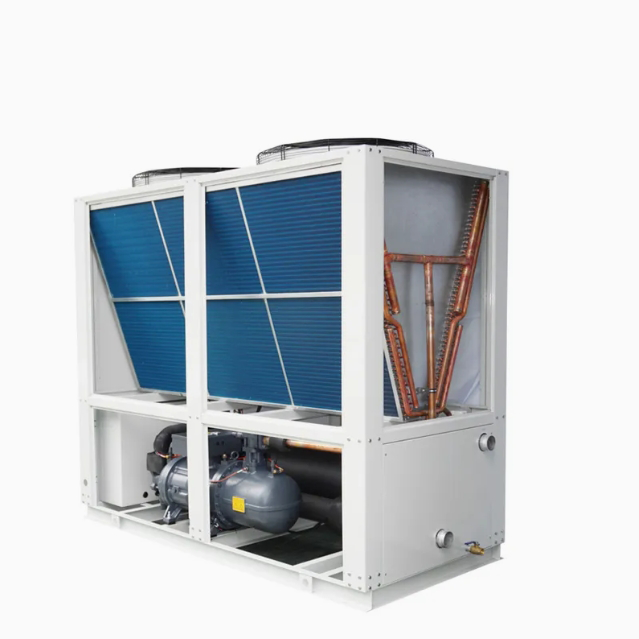

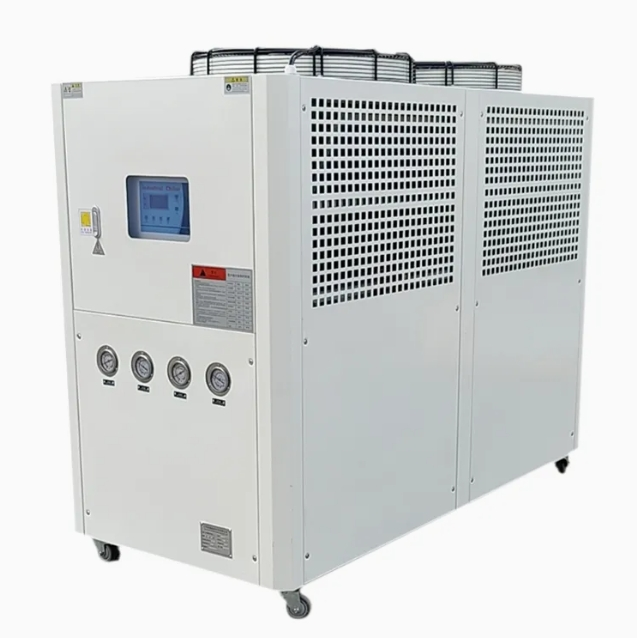

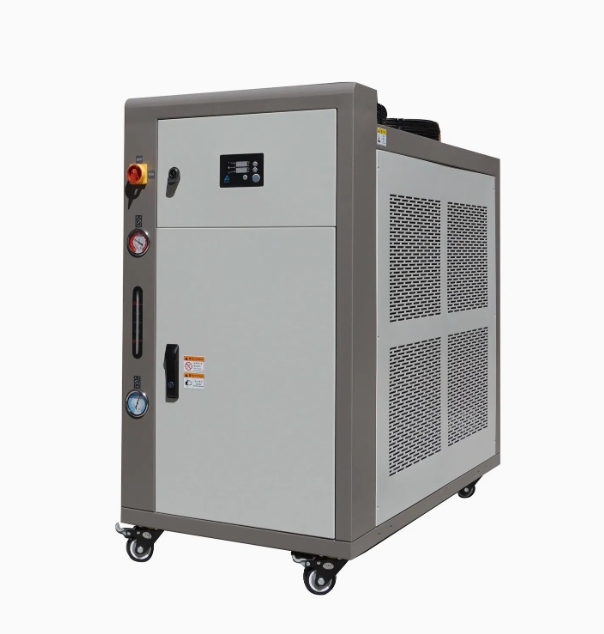

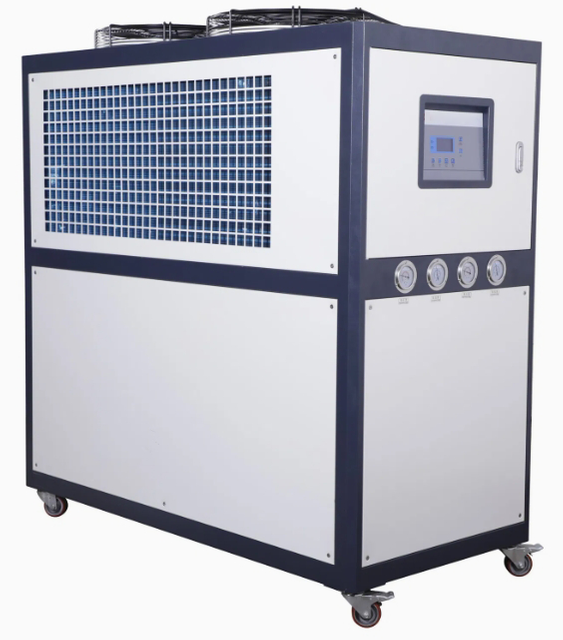

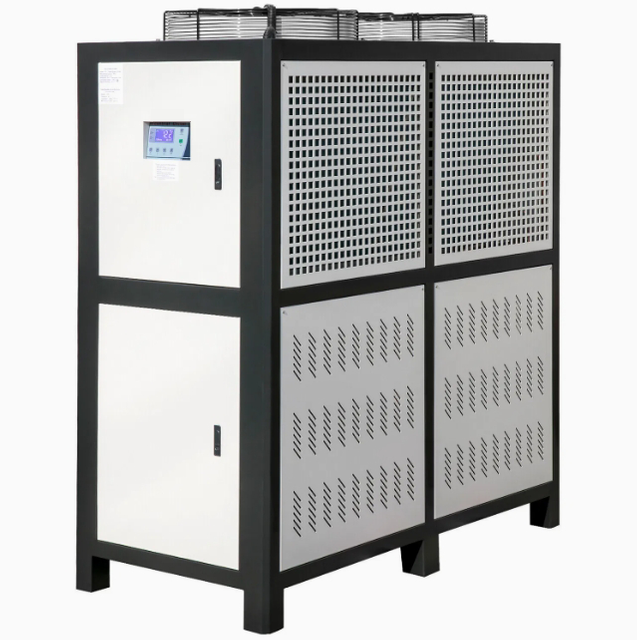

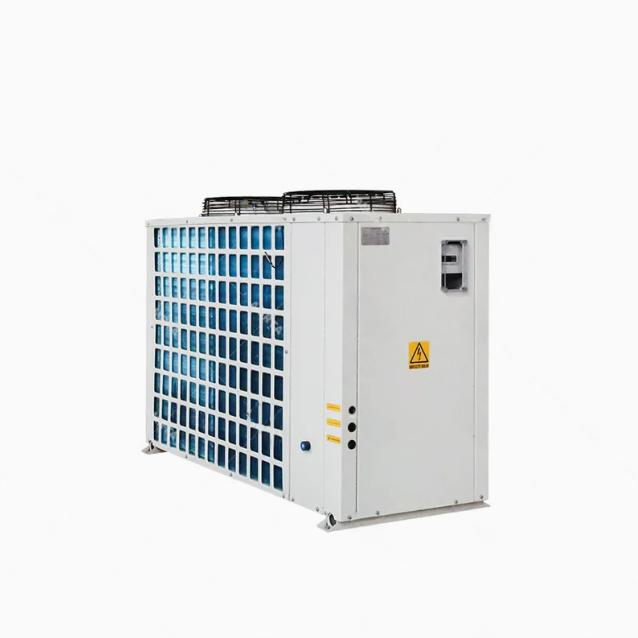

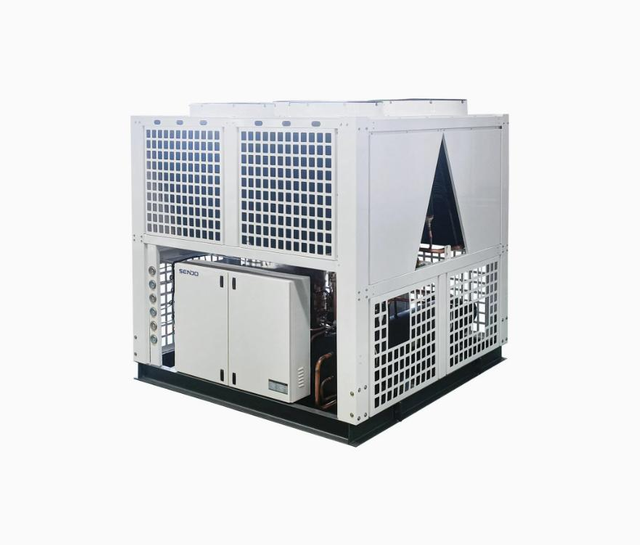

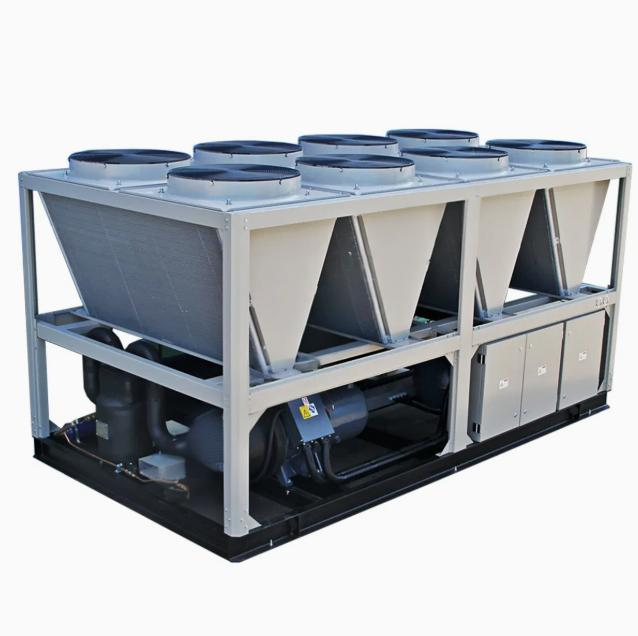

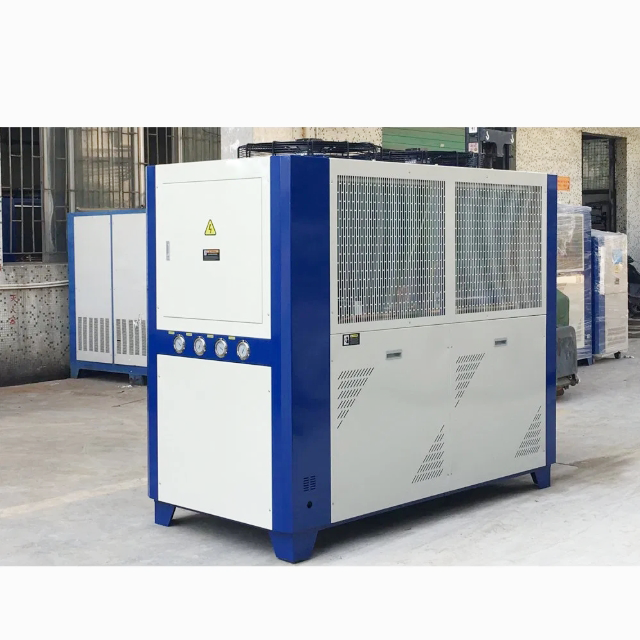

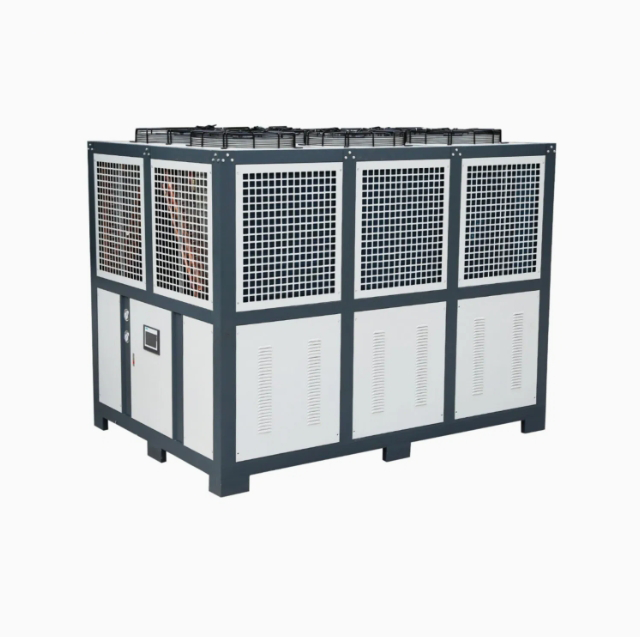

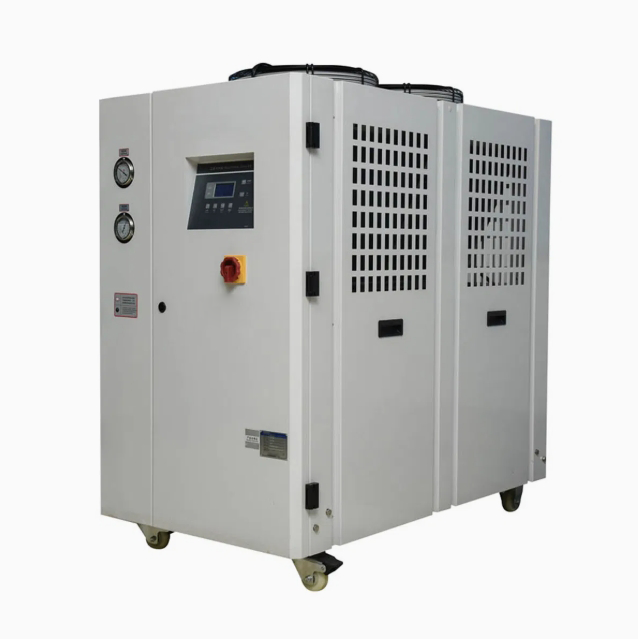

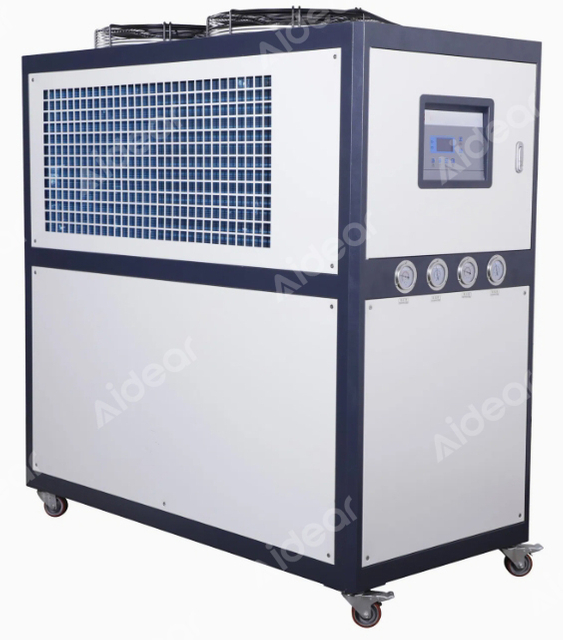

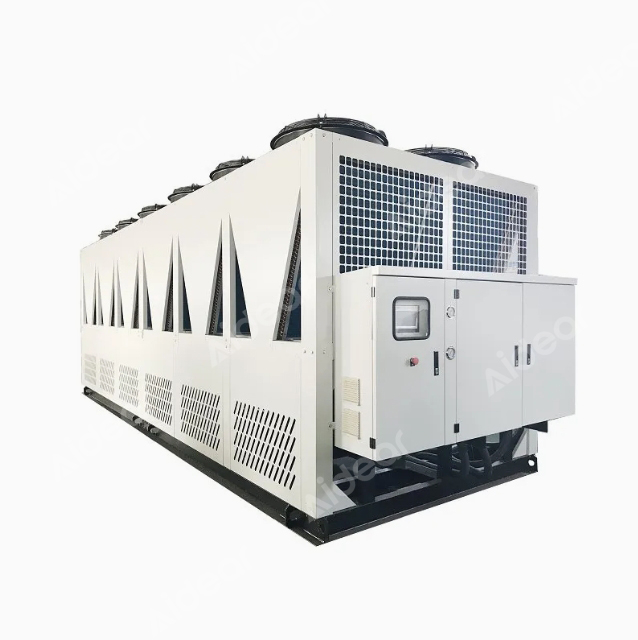

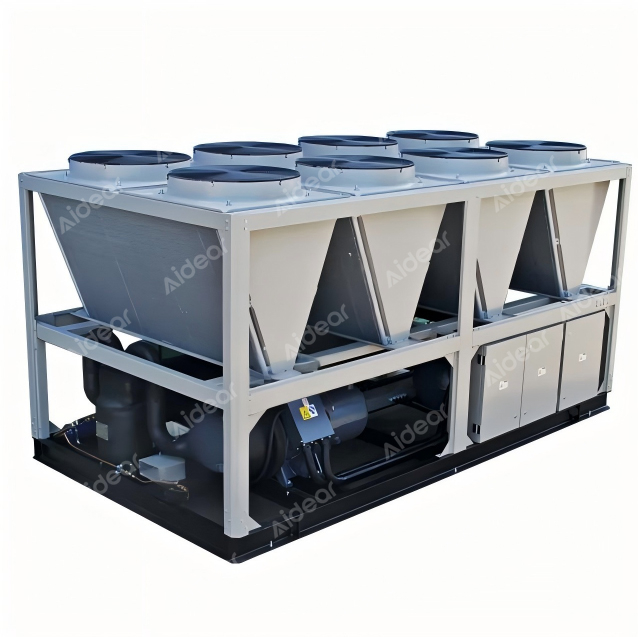

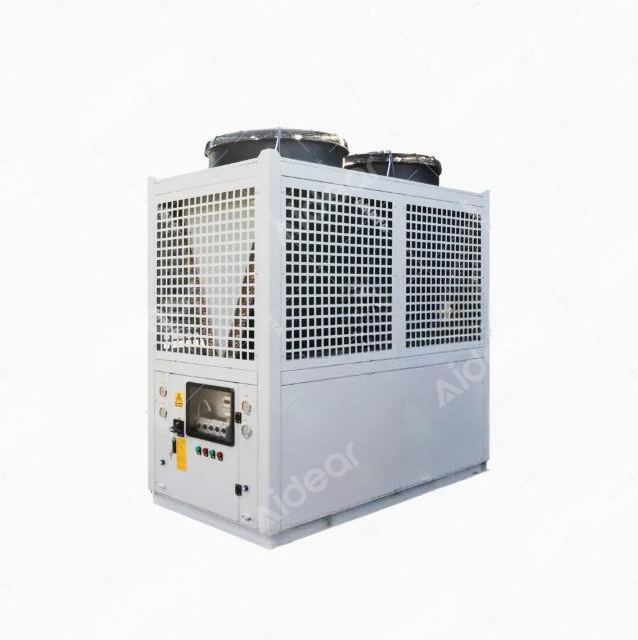

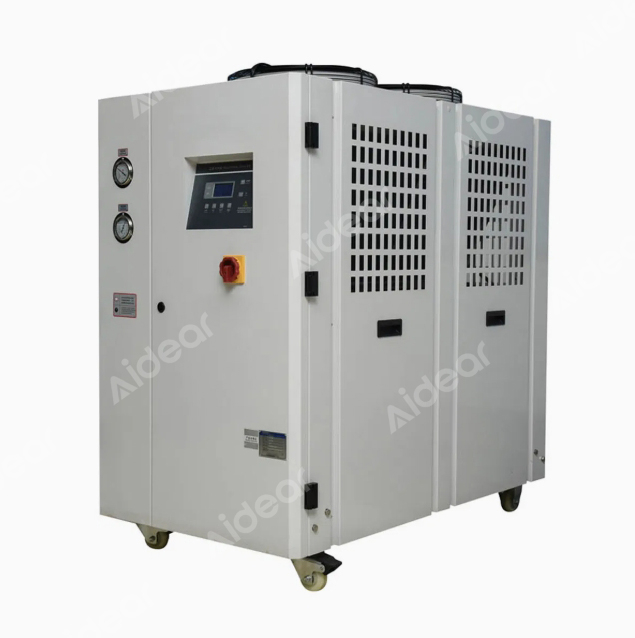

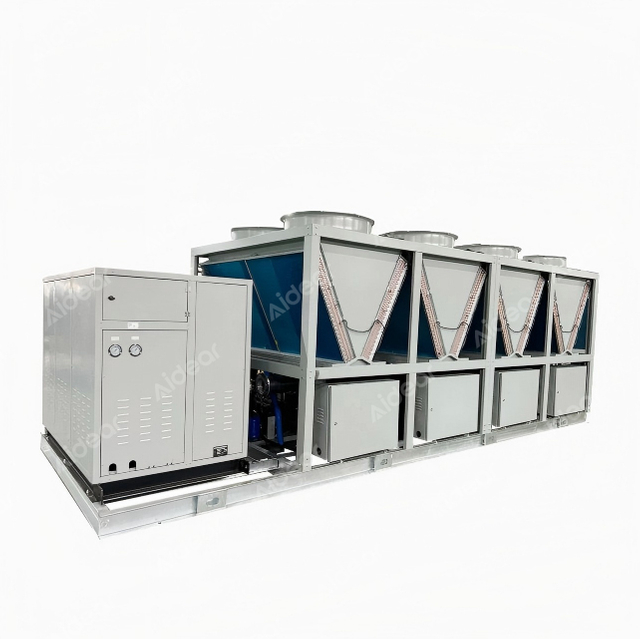

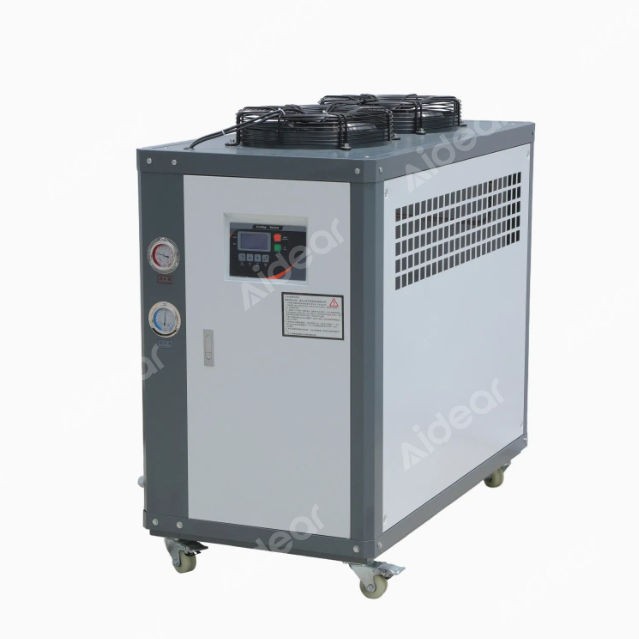

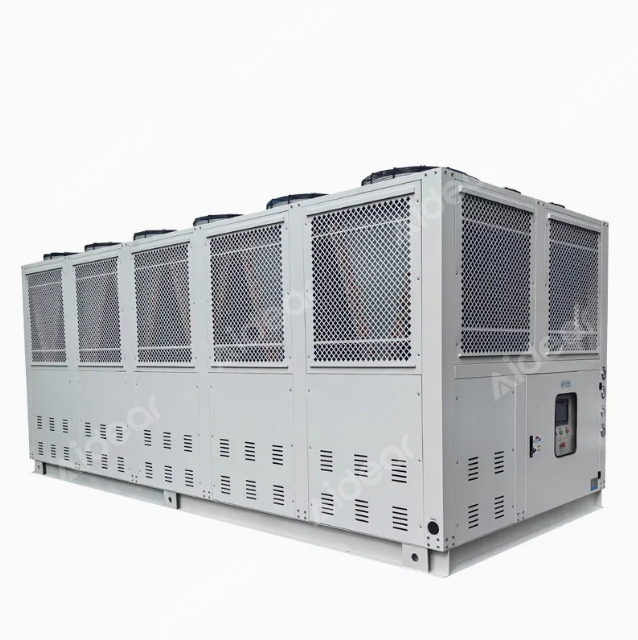

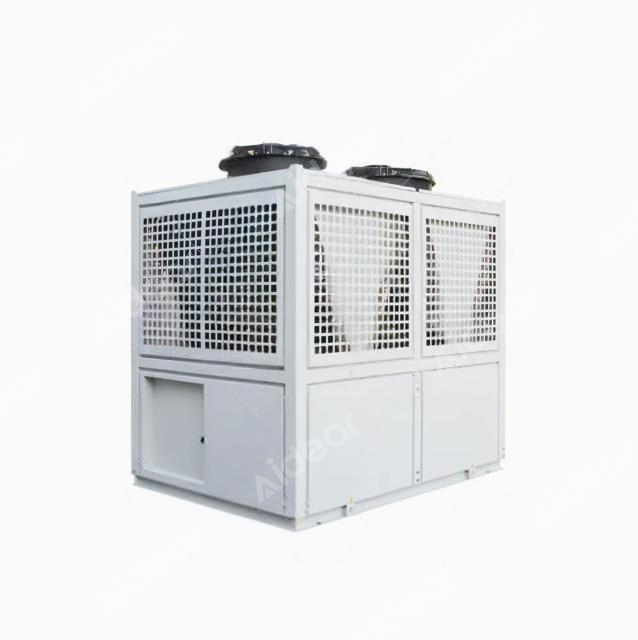

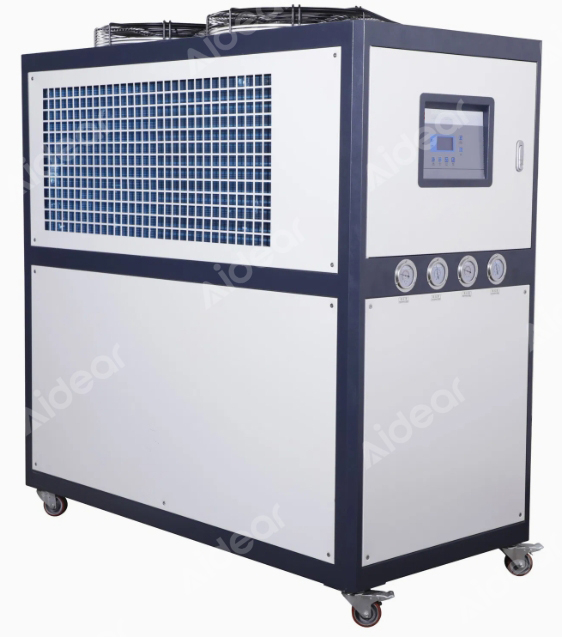

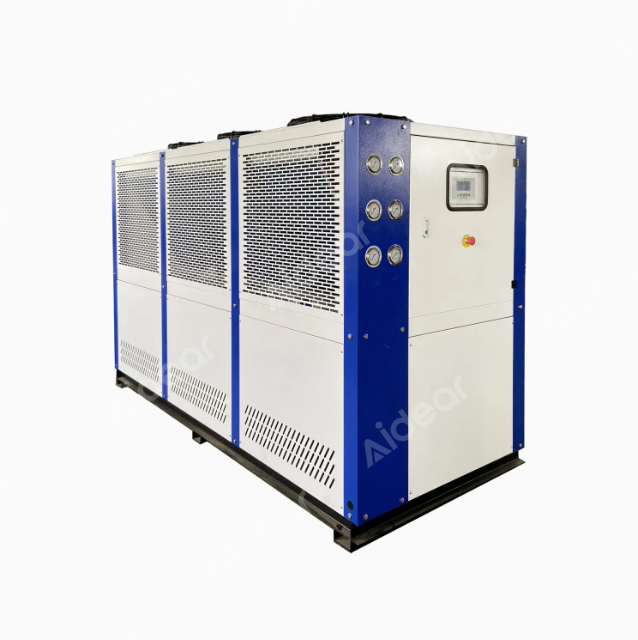

Air-cooled chillers remove heat from liquid coolant through a refrigeration cycle. They are suitable for small to medium-sized facilities such as restaurants and temporary buildings, and the cooling capacity is usually 20-500 tons. Its working principle is that the refrigerant absorbs heat in the evaporator, and the compressor compresses it into a high-temperature and high-pressure gas. The heat is directly discharged into the air through the fan in the condenser, and the refrigerant is reduced in pressure by the throttling device and the cycle continues. Because it is based on dry-bulb temperature condensation, its efficiency is low and energy consumption is high (high kW/ton value). The system components are simple, including only the chiller and cooling water pump, and no cooling tower or water treatment system is required. The average life of the chiller is about 20 years, and the pump life is about 15 years. It may need to be replaced twice in 50 years. Although the unit cost is high, the total system cost is low because no additional equipment is required.
Unmatched Performance and Durability
Our Chiller is designed for optimal thermal efficiency and long-term reliability, backed by 20 years of manufacturing expertise.
Outstanding heattransfer performance:
When the inner diameter of thetube is 0.5~1mm,convective heattransfer coefficient can be increasedby 50%~100%.
Durable and highly corrosion-resistant:
Made of SUS316 plate by copperor nickel welding. Provides highcorrosion resistance to variousfluids.
High Pressure Resistance:
Due to their compact structurethey occupy less space thangasketed heat exchangers.High resistance temperature MIN -180°C/MAX 250°C Can be used as super coolersand condensers.
Customizable Design:
Tailored to HVAC, refrigeration, and industrial cooling needs.
The use of a water chiller can dehumidify the air by condensing water vapor in the air during the cooling process, thereby controlling the indoor humidity and improving indoor comfort.
Industrial Refrigeration

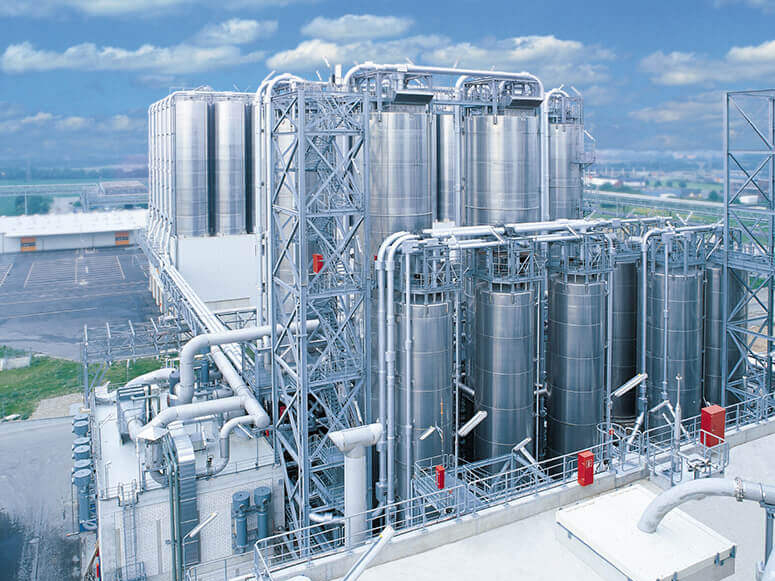

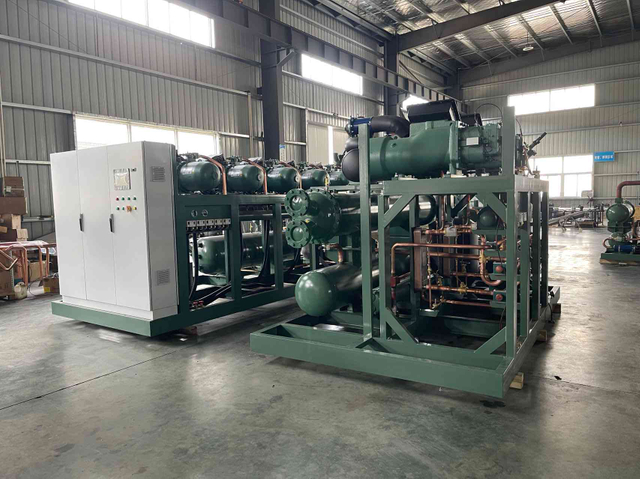

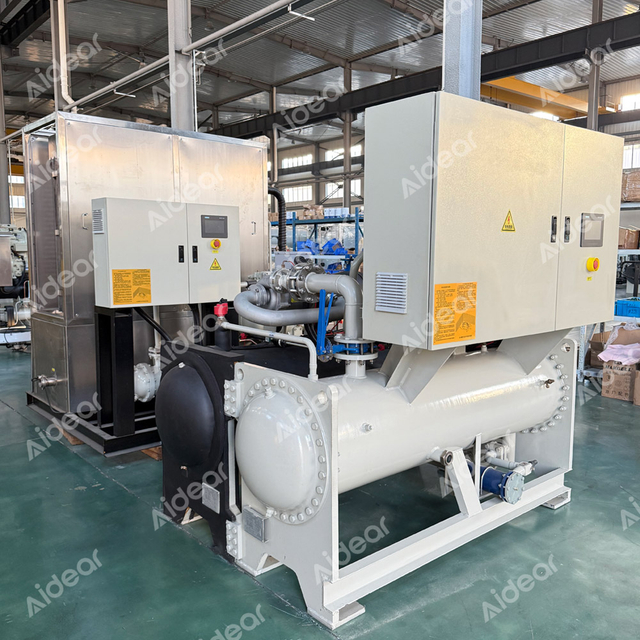

In industrial refrigeration, chillers are used to cool equipment and materials in production processes such as injection molding, metalworking, food processing, and pharmaceutical processes to prevent overheating damage and ensure product quality. They provide precise temperature control
Commercial Refrigeration

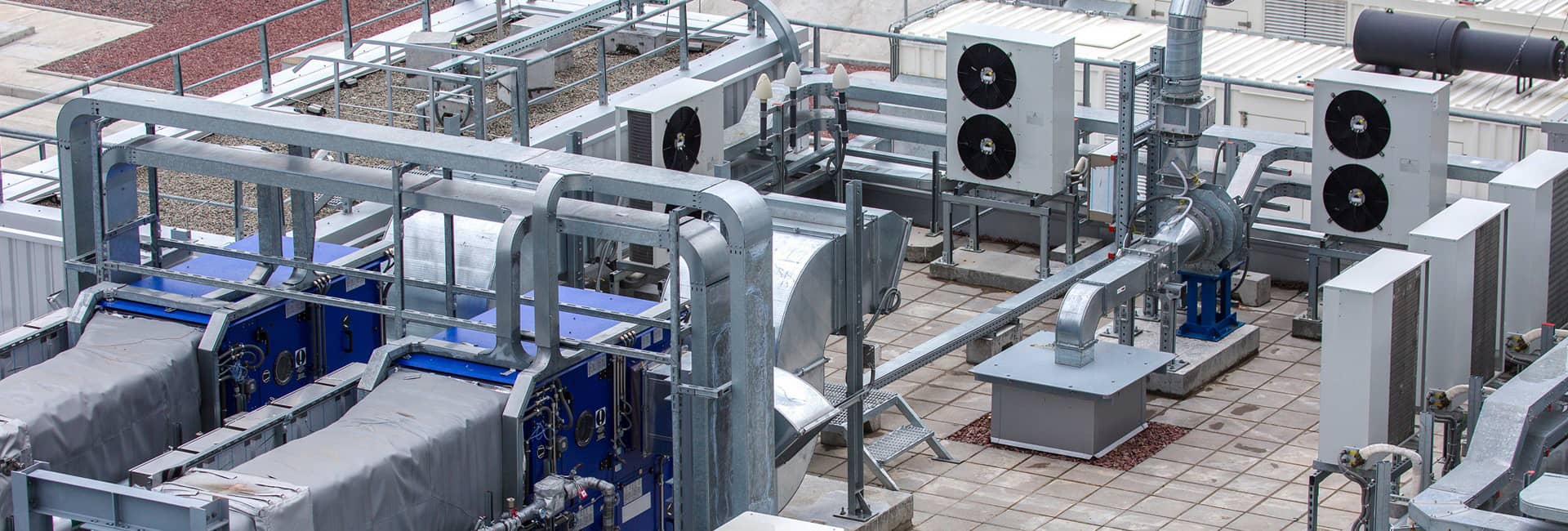

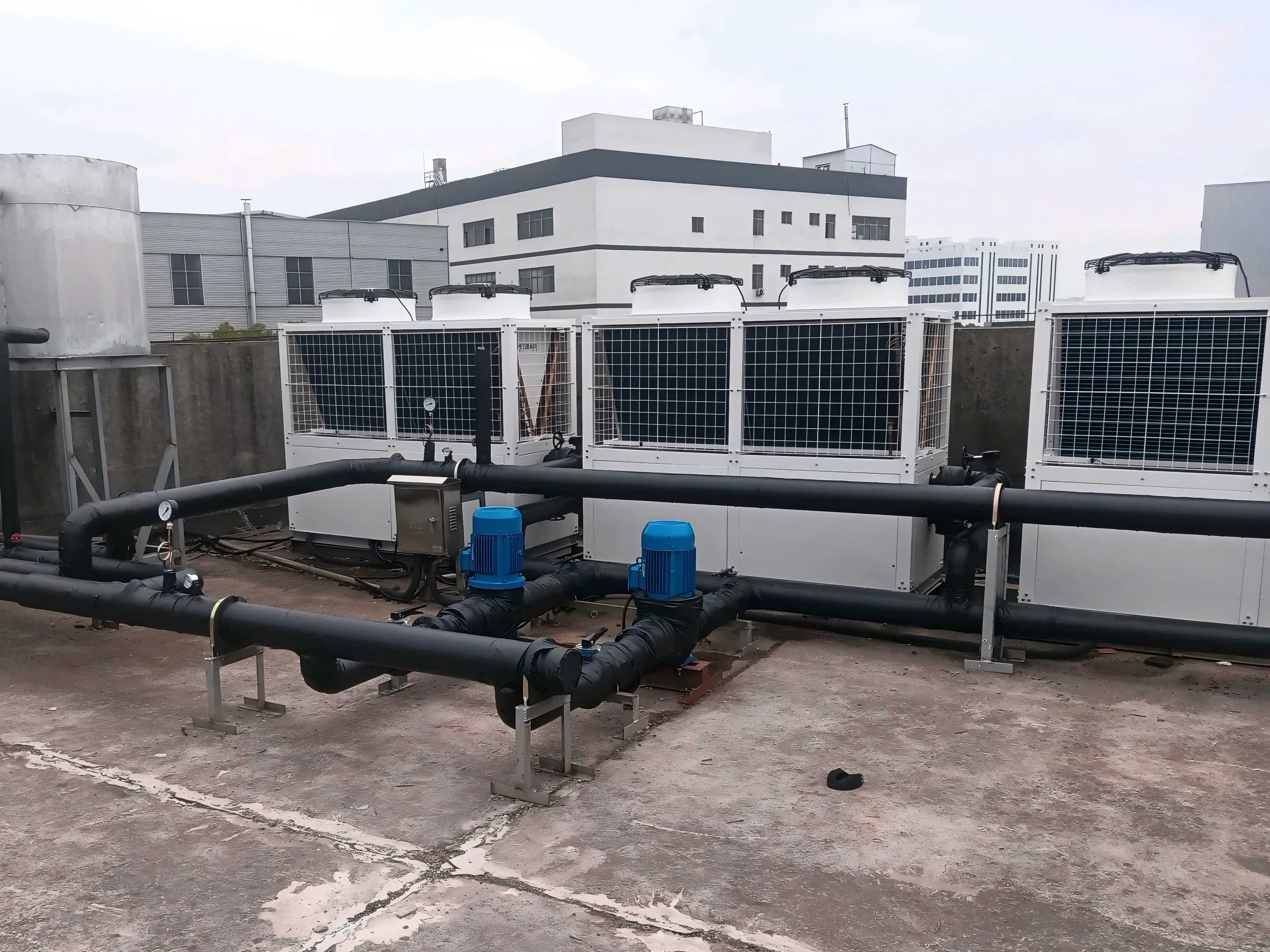

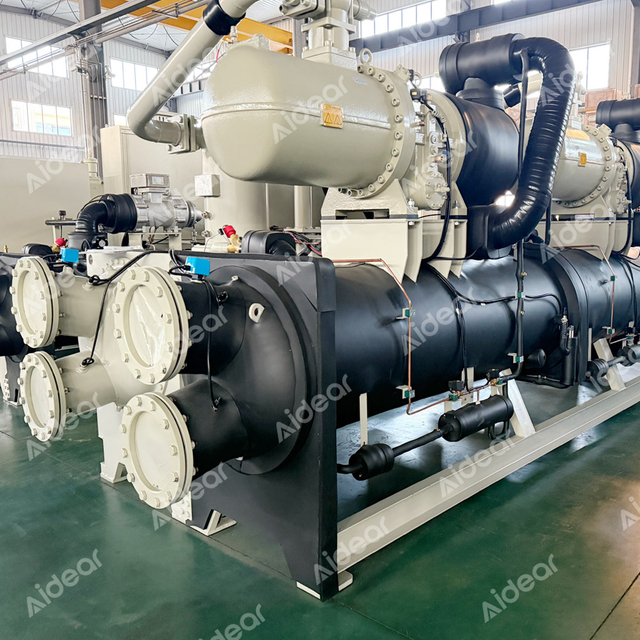

Commercial refrigeration provides central air conditioning for large buildings (such as hotels, shopping malls, and hospitals) to maintain a comfortable indoor temperature through cooling water circulation
Customers submit inquiries via website, email, or phone, detailing application, specs, output, and conditions.
Step2: Design Confirmation
Manufacturer finalizes material, dimensions, and parameters with the customer, optimizing provided drawings or creating a new design.
Step3: Quotation & Negotiation
Manufacturer provides a detailed quote with specs and services. Terms like price and delivery are negotiated.
Step4: Sample Order & Payment
Customer approves design, pays sample fee, and manufacturer starts sample production.
Step 5: Sample Production & Delivery
Sample is produced to high standards, delivered, and feedback is collected for adjustments.
Step6: Contract & Payment
After sample approval, a contract is signed, and full payment is made for bulk production.
Step7: Production & Quality Control
Manufacturer follows the contract, ensures quality, and updates customer on progress.
Step 8: Pre-Shipment & Final Payment
Customer pays any remaining balance; manufacturer prepares shipping documents.
Step 9: Shipping & Tracking
Product is shipped via preferred method, with tracking details provided.
Step10: After-Sales
Manufacturer offers installation support, training, and regular follow-ups for feedback and improvements.
Preventive Maintenance
Scheduled inspections to extend equipment life and prevent downtime.
Emergency Repairs
Rapid on-site or remote repairs with 24/7 support availability.
Spare Parts Supply
Fast delivery of high-quality, compatible parts for all Aidear heat exchangers.
Technical Support
Expert troubleshooting and remote diagnostics for quick resolutions.
Can't Find Ideal Refrigeration System Solutions For Your Industries?
We are an excellent, specialized refrigeration system solutions provider for almost 20 years, our main products are various specifications of heat exchanges, air cooler, condenser and units, which are all covering a wide area of application.
