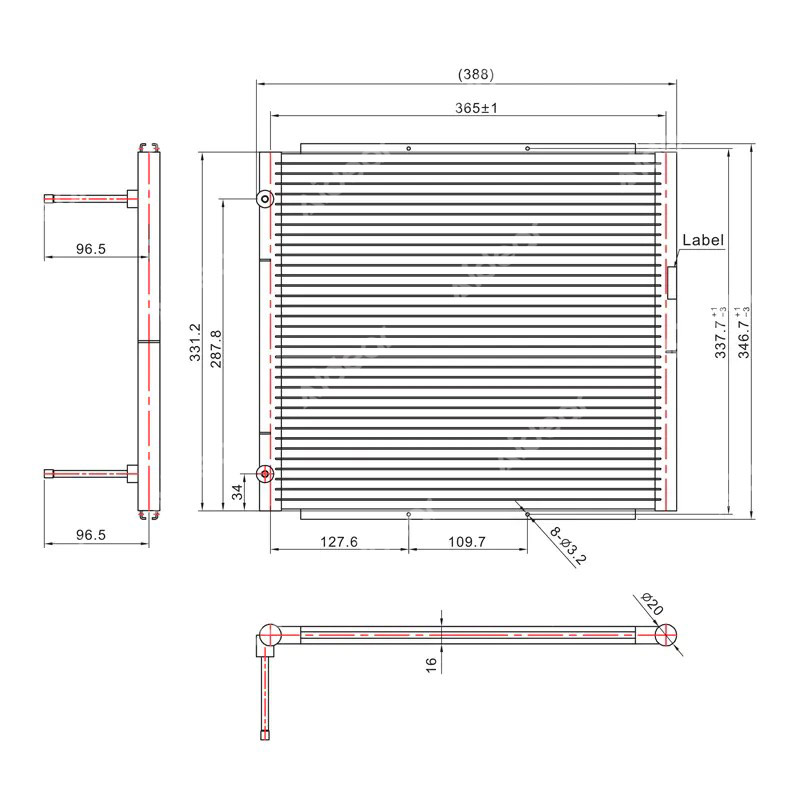

| Model | Core length | Core height | Flat tube thickness | Fin pitch | Fin height | Collector outer diameter |

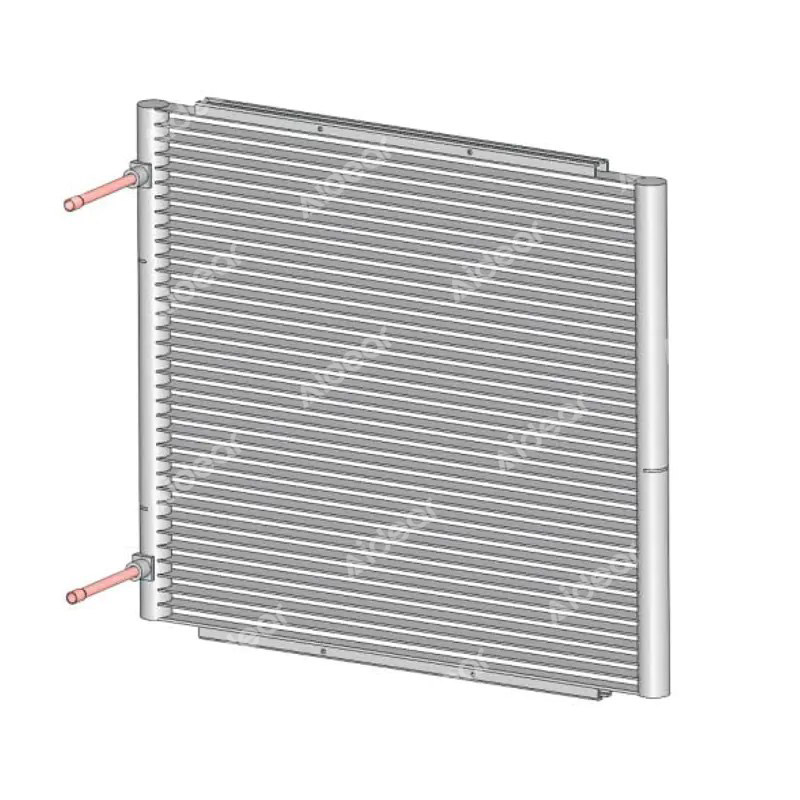

| SC-1100 | 388[mm] | 346.7[mm] | 16[mm] | 1.1[mm] | 8.1[mm] | 20[mm] |
| 15.28[in] | 13.65[in] | 0.63[in] | 23[FPI] | 0.32[in] | 0.79[in] |
| Model | Flat tube height | Number of flat tubes | loop | Internal volume | Inlet inner diameter | Outlet inner diameter |
| SC-1100 | 1.3[mm] | 34 | 10/9/8/7 | ≈0.21[Lift] | 6.35[mm] | 6.35[mm] |
| 0.05[in] | ≈12.79[in3] | 1/4[in] | 1/4[in] |
Side Panel Installation
Aluminum microchannel heat exchangers expand and contract at high temperatures, so bracket installation and other aspects must allow for a certain tolerance.
