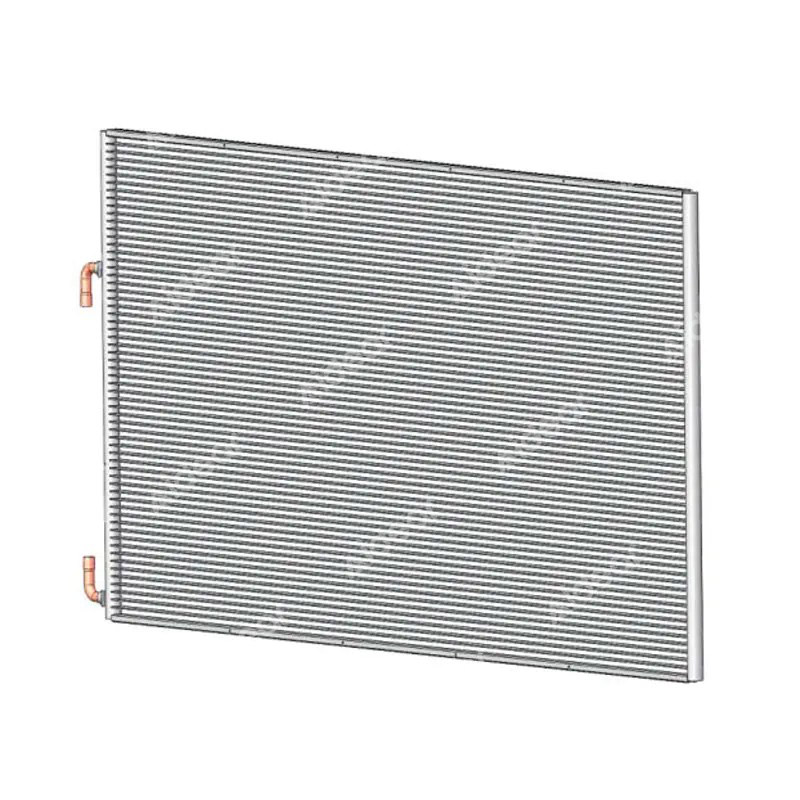

Product Description

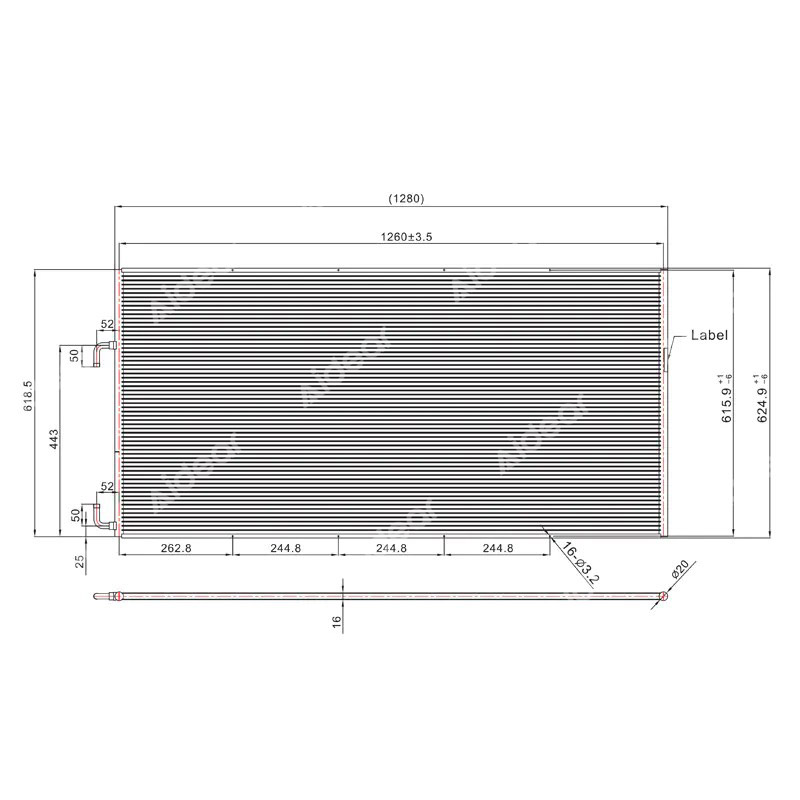

Technical Parameters
| Model | Core Length | Core Height | Flat Tube Thickness | Fin Pitch | Fin Height | Manifold Outer Diameter |
| SC-1600 | 1280[mm] | 618.5[mm] | 16[mm] | 1.1[mm] | 8[mm] | 20[mm] |
| 50.39[in] | 24.35[in] | 0.63[in] | 23[FPI] | 0.32[in] | 0.79[in] |
| Model | Flat Tube Height | Number of Flat Tubes | Circuit | Internal Volume | Inlet Inside Diameter | Outlet Inside Diameter |
| SC-1600 | 1.7[mm] | 61 | 42/19 | ≈1.24[L] | 12.7[mm] | 12.7[mm] |
| 0.066[in] | ≈75.64[in3] | 1/2[in] | 1/2[in] |
Side Panel Installation
Aluminum microchannel heat exchangers expand and contract at high temperatures, so certain tolerances must be allowed for bracket installation and other aspects.
Performance Parameters
| Air Velocity | Heat Transfer Performance [KW/Btu/h×1000] | ||||||||
| [m/s] | [ft/min] | R410A | R134a | ||||||
| △ =10K △ =18°F | △ =15K △ =27°F | △ =2K △ =36°F | △ =25K △ =45°F | △ =10K △ =18°F | △ =15K △ =27°F | △ =2K △ =36°F | △ =25K △ =45°F | ||
| 1 | 197 | 7.3/24.9 | 11.9/40.6 | 16.1/54.9 | 20.4/69.6 | 7.4/25.3 | 11.3/38.6 | 15.2/51.9 | 19.4/66.2 |
| 1.5 | 295 | 10.1/34.5 | 16.6/56.7 | 22.6/77.1 | 28.5/97.3 | 10.1/34.5 | 15.5/52.9 | 21.4/73.0 | 26.9/91.8 |
| 2 | 394 | 12.9/44.0 | 20.8/71.0 | 28.2/96.2 | 35.7/121.8 | 12.4/42.3 | 19.6/66.9 | 26.6/90.8 | 33.4/114.0 |
| 2.5 | 492 | 15.3/52.2 | 25.6/87.4 | 33.3/113.7 | 42.3/144.4 | 14.4/49.1 | 23.0/78.5 | 31.2/106.5 | 39.1/133.4 |
| 3 | 591 | 17.4/59.4 | 28.0/95.6 | 38.1/130.0 | 48.2/164.5 | 16.2/55.3 | 26.1/89.1 | 35.1/119.8 | 44.3/151.2 |
| Air Velocity | Heat Transfer Performance [KW/Btu/h×1000] | ||||||||
| [m/s] | [ft/min] | R404A | R407C | ||||||
| △ =10K △ =18°F | △ =15K △ =27°F | △ =2K △ =36°F | △ =25K △ =45°F | △ =10K △ =18°F | △ =15K △ =27°F | △ =2K △ =36°F | △ =25K △ =45°F | ||
| 1 | 197 | 7.5/25.6 | 12.0/41.0 | 16.2/55.3 | 20.40/69.6 | 5.0/17.1 | 9.5/32.4 | 13.8/47.1 | 18.1/61.8 |
| 1.5 | 295 | 10.7/36.5 | 16.7/57.0 | 22.5/76.8 | 28.50/97.3 | 6.8/23.2 | 13.0/44.4 | 19.3/65.9 | 25.3/86.3 |
| 2 | 394 | 13.4/45.7 | 20.7/70.6 | 28.1/95.9 | 35.60/121.5 | 8.3/28.3 | 16.6/56.7 | 24.1/82.3 | 31.5/107.5 |
| 2.5 | 492 | 15.7/53.6 | 24.4/83.3 | 35.60/121.5 | 42.00/143.3 | 9.6/32.8 | 19.5/66.6 | 28.4/96.9 | 37.1/126.6 |
| 3 | 591 | 17.9/61.1 | 27.7/94.5 | 37.7/128.7 | 47.70/162.8 | 10.7/36.5 | 22.2/75.8 | 32.2/109.9 | 42.3/144.4 |
Air-Side Pressure Drop
| Air Velocity | Pressure Drop | Air Volume | |||
| [m/s] | [ft/min] | [Pa] | [inch H2O] | [m3/h] | [cfm] |
| 1 | 197 | 11.7 | 0.05 | 2748.4 | 1617.7 |
| 1.5 | 295 | 18.4 | 0.07 | 4122.5 | 2426.4 |
| 2 | 394 | 27.8 | 0.11 | 5496.7 | 3235.3 |
| 2.5 | 492 | 35.1 | 0.14 | 6870.9 | 4044.1 |
| 3 | 591 | 41.3 | 0.17 | 8245.1 | 4852.9 |
