Industrial cooling systems are not designed to operate under a single set of environmental conditions. A dry cooler that performs reliably during summer must also respond to changing process loads, falling outdoor temperatures, freezing conditions, and unexpected equipment interruptions throughout the year.
For industrial facilities operating continuously, dry cooler design involves more than selecting sufficient cooling capacity at the highest ambient temperature. Engineers must also consider heat exchanger configuration, fluid properties, fan control, freeze protection, system redundancy, and long-term operating efficiency.
A system designed only for peak summer conditions may consume unnecessary energy during cooler months. Conversely, a design focused primarily on energy savings may fail to provide adequate cooling capacity or protection under demanding operating conditions.
The objective of year-round dry cooler design is to maintain the required cooling performance, protect equipment, and optimize energy consumption across the full annual operating range.
This guide explains how engineers can develop a reliable year-round dry cooler system for industrial process cooling, data centers, energy storage facilities, manufacturing plants, and other continuous-duty applications.
The first step in designing a dry cooler for year-round operation is to establish the heat rejection required by the industrial process.
Cooling loads may originate from:
Industrial manufacturing equipment
Hydraulic and lubrication systems
Data center liquid cooling systems
Energy storage thermal management systems
Power generation equipment
Industrial refrigeration systems
Process heat exchangers
The required cooling capacity should reflect the heat that must actually be rejected by the dry cooler, including relevant auxiliary heat gains where applicable.
Engineers should distinguish between the maximum design load and the cooling demand experienced during normal operation.
A plant may require its maximum cooling capacity only during certain production periods, while operating at substantially lower loads during the remainder of the year.
A reliable dry cooler design should account for seasonal changes in outdoor temperature and process demand.
The operating profile can be divided into four main conditions.
Operating Condition |
Main Design Concern |
Engineering Priority |
|---|---|---|
Summer peak operation |
High ambient temperature and maximum heat rejection |
Sufficient cooling capacity |
Spring and autumn operation |
Moderate ambient temperatures and variable loads |
Energy-efficient capacity control |
Winter operation |
Low ambient temperatures and possible overcooling |
Temperature control and freeze protection |
Shutdown or emergency conditions |
Loss of circulation, power, or cooling equipment |
Equipment protection and system recovery |
These operating conditions form the basis for equipment selection and control-system design.
The cooling capacity rated by the manufacturer is typically based on specified fluid temperature, air temperature, and flow rate conditions.
When these conditions change, actual performance will also vary.
For example, a dry cooler rated for a certain cooling capacity at moderate outdoor temperatures may not be able to provide the same cooling capacity during a summer heat wave.
Similarly, when the same unit is operated in a low-temperature environment, the cooling capacity it generates may exceed the process requirements.
Therefore, engineers should evaluate the unit’s performance at multiple operating points rather than relying solely on a single rated capacity value.
Summer operation usually establishes one of the most demanding thermal conditions for an industrial dry cooler.
The required heat rejection capacity depends on the circulating fluid's mass flow rate, specific heat capacity, and temperature difference.
For a single-phase fluid, the basic relationship is:
Q = m × Cp × ΔT
Where:
Q = Heat rejection capacity (kW)
m = Fluid mass flow rate (kg/s)
Cp = Specific heat capacity (kJ/kg·K)
ΔT = Fluid temperature difference (K)
This calculation establishes the thermal duty that the dry cooler must handle.
However, the result alone does not determine the required heat exchanger size.
The entering air temperature, required fluid outlet temperature, fluid properties, and heat-transfer characteristics must also be evaluated.
Consider an illustrative industrial cooling system with the following design parameters:
Parameter |
Design Value |
|---|---|
Required cooling capacity |
600 kW |
Entering fluid temperature |
47°C |
Leaving fluid temperature |
42°C |
Summer design ambient temperature |
35°C |
Fluid temperature difference |
5 K |
For water, using an approximate specific heat capacity of 4.18 kJ/kg·K:
Mass Flow Rate = 600 ÷ (4.18 × 5)
Mass Flow Rate ≈ 28.7 kg/s
This establishes the approximate water mass flow needed to remove 600 kW of heat with a 5 K temperature difference.
The calculations above use approximate physical properties of water for illustrative purposes.
If the installed system uses an ethylene glycol or propylene glycol solution, the specific heat capacity, density, viscosity, and thermal conductivity will differ.
Therefore, the required fluid flow rate, pressure drop, and heat exchanger performance must be recalculated based on the properties of the selected fluid and the relevant operating temperatures.
Calculation results based on water should not be used as the final equipment ratings for ethylene glycol systems.
Approach temperature is the difference between the leaving fluid temperature and the entering air dry-bulb temperature.
Approach Temperature = Leaving Fluid Temperature − Entering Air Temperature
Using the previous example:
Approach Temperature = 42°C − 35°C = 7 K
This means the dry cooler must cool the fluid to within 7 K of the entering outdoor air temperature.
A smaller approach temperature generally requires greater heat-transfer capability because the available temperature driving force is reduced.
The required approach should therefore be established before selecting the coil size, fan arrangement, and equipment configuration.
A conventional dry cooler operating through sensible heat transfer cannot continuously cool the process fluid below the temperature of its entering air.
If the required fluid temperature is lower than the available air temperature, engineers may need to consider supplementary refrigeration or an appropriate hybrid cooling solution.
The design ambient temperature should represent the actual project location and required operating reliability.
ASHRAE climatic design information includes annual cooling dry-bulb conditions based on statistical exceedance levels, commonly including 0.4%, 1%, and 2%.
These values provide a basis for equipment sizing, but the appropriate design condition depends on the project.
A facility that can tolerate occasional temporary cooling-capacity limitations may use different selection criteria from a critical process that cannot accept interruptions.
Engineers should also consider:
Site elevation and air density
Extreme outdoor temperatures
Nearby heat sources
Hot-air recirculation
Prevailing wind conditions
Future process-load expansion
For critical applications, additional analysis may be necessary to determine the equipment capacity required during extreme weather events.
At higher elevations, reduced air density may also affect fan and coil performance. For a detailed explanation, see our guide on how altitude affects dry cooler capacity.

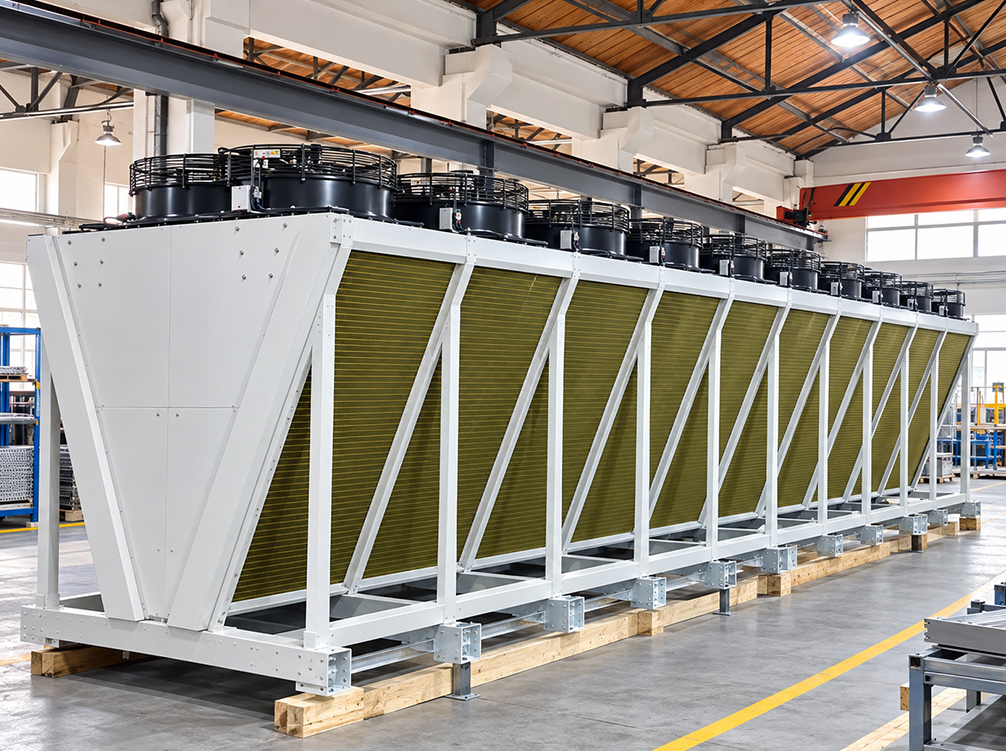

The heat exchanger coil is the central component responsible for transferring heat from the process fluid to the outdoor air.
Its configuration affects cooling capacity, airflow resistance, fluid pressure drop, and maintainability.
Important design variables include:
Tube material and diameter
Fin material and geometry
Fin spacing
Number of tube rows
Coil depth
Fluid circuit arrangement
Airflow distribution
Copper tubes with aluminum fins are commonly used in industrial dry cooler applications, while other materials or protective coatings may be considered for specific environments.
The appropriate design depends on thermal requirements, fluid compatibility, air quality, installation conditions, and lifecycle cost.
For a deeper understanding of how internal flow paths affect thermal performance and pressure drop, explore our guide on how coil circuit design influences dry cooler performance.
Increasing fin density can provide a larger heat transfer surface area within a limited equipment footprint.
However, excessively close fin spacing may increase the pressure drop on the air side and make the coil more prone to dust accumulation.
In industrial environments containing airborne particulate matter, engineers should consider the maintainability of the coil surface, appropriate fin spacing, and feasible cleaning procedures.
Even if a coil performs well when clean, its performance may still decline over time if its design makes maintenance difficult.
Fluid selection affects both thermal and hydraulic design.
Common circulating fluids include water and inhibited water-glycol solutions.
Water generally provides favorable heat-transfer properties, but exposed outdoor water circuits require particular attention to freezing conditions.
Glycol solutions provide freeze protection when correctly selected, although they typically introduce thermal and hydraulic penalties compared with water.
The final design should consider:
Required fluid flow rate
Maximum allowable pressure drop
Fluid viscosity at minimum temperature
Pump performance
Pipe and valve sizing
Expansion tank requirements
Fluid compatibility with system materials
When selecting a pump, the hydraulic resistance of the entire circulation loop should be considered, not just the coils of the dry cooler.
Relevant components may include piping, valves, filters, heat exchangers, fittings, and control devices.
Due to variations in fluid viscosity, pressure drop may vary with fluid temperature.
This is particularly important in ethylene glycol systems operating in cold weather.
The pump must maintain the required flow rate under specified operating conditions without exceeding acceptable energy consumption or equipment limitations.
Dry coolers require an unobstructed supply of fresh air to maintain their heat rejection capacity.
Improper equipment layout may cause warm exhaust air to recirculate back to the coil inlet, thereby increasing the effective supply air temperature.
Installation planning should take into account equipment spacing, airflow direction, roof structure, walls, nearby exhaust vents, and maintenance access.
Verify the manufacturer’s recommended spacing requirements for the selected model and installation layout.
In environments exposed to high temperatures and airborne dust, coil fouling and hot-air recirculation require additional attention. Our guide on how to select a dry cooler for hot and dusty climates explains these design considerations in greater detail.
During high ambient temperatures and maximum process loads, the dry cooler may require most or all of its available fan capacity.
The control system should respond to the actual process-fluid temperature and adjust airflow to maintain the required outlet temperature.
If the outdoor conditions exceed the equipment's design capability, the control system should provide appropriate alarms or initiate the project's defined load-management strategy.
During moderate outdoor temperatures, a dry cooler may have more available heat-transfer capability than the process requires.
Running every fan continuously at full speed can waste electrical energy.
Variable-speed fans or suitable fan staging allow the system to adjust cooling capacity to the actual demand.
To understand how airflow modulation affects electricity consumption under different operating conditions, read our guide on how fan speed control reduces dry cooler energy consumption.
A simplified control sequence may operate as follows:
Monitor the leaving fluid temperature.
Compare the measured temperature with the required setpoint.
Increase fan speed when additional heat rejection is needed.
Reduce fan speed when the fluid temperature approaches or falls below the target.
Stage additional fans on or off according to the approved control logic.
This approach can reduce unnecessary fan operation while maintaining process temperature stability.
Extremely low fan speeds may not be suitable for all installation environments.
The fan-and-motor assembly has operating limits specified by the manufacturer.
The controller must comply with the permitted speed range, fan startup requirements, minimum fluid flow rate, and necessary temperature control stability.
Frequent switching between operating modes should also be avoided.
Cold ambient air increases the potential temperature difference between the fluid and the air.
As a result, the dry cooler may reject more heat than the process requires if fan operation is not properly controlled.
A winter control strategy may reduce fan speed, stop fans, or adjust flow through the cooling equipment when appropriate.
However, reduced fan operation does not eliminate the risk of freezing.
The hydraulic circuit must remain adequately protected whenever exposed to temperatures below the fluid's safe operating range.
A bypass valve may help control the process temperature by reducing the amount of fluid passing through the dry cooler.
However, water remaining inside an isolated outdoor coil can still freeze.
Any bypass strategy must account for the protection of stagnant fluid inside the coil, headers, and connected piping.
A year-round control strategy must also define what happens when normal cooling operation stops.
Possible conditions include:
Planned shutdown
Loss of process heat load
Pump failure
Fan failure
Control-system malfunction
Power interruption
Low-fluid-temperature alarm
The response to each condition should be documented in the control sequence and verified during commissioning.
Freeze protection should be designed around the lowest credible temperature the outdoor circuit may experience, including conditions during an extended shutdown.
A system that normally circulates warm process fluid can still be damaged if circulation stops and exposed fluid cools toward ambient temperature.
Common protection strategies include:
An appropriately selected inhibited glycol solution
Complete and verified drainage
Active heating or heat tracing
Controlled circulation where reliable heat and power are available
The selected strategy must be compatible with the operating requirements of the entire system.
Continuous circulation may help protect a water-based system while the fluid remains sufficiently warm.
However, it cannot provide guaranteed freeze protection if the circulation pump stops or electrical power is lost.
For critical applications, designers should evaluate passive protection, backup power, and fault-response arrangements.
Anti-freeze measures are designed to prevent ice formation, which could impair fluid circulation and equipment operation.
Anti-freeze measures focus on preventing mechanical damage caused by freeze-thaw cycles; under strictly controlled conditions, a certain degree of ice formation may be permitted.
Systems required to operate and circulate continuously in extremely cold weather should not rely solely on anti-freeze measures.
The appropriate strategy to be adopted must follow the fluid manufacturer’s recommendations and the system’s operational requirements.
Some industrial processes require water in the primary cooling loop but also need reliable protection against outdoor freezing temperatures.
One possible arrangement separates the indoor water circuit from the outdoor glycol circuit using a liquid-to-liquid heat exchanger.
This can reduce the amount of glycol required throughout the facility.
However, the isolation heat exchanger introduces additional temperature difference, pressure drop, pumping requirements, and equipment cost.
These effects must be included in the overall system selection.
Anti-freeze protection measures must remain effective at all times during normal operation, low-load operation, standby, maintenance, and related emergency situations.
Insulation alone cannot indefinitely protect stationary water at temperatures below freezing.
To ensure reliable operation in cold weather, engineers must protect the entire exposed hydraulic circuit, rather than focusing solely on the coils of dry-type coolers.
Industrial facilities with critical cooling requirements may need redundancy to maintain operation during equipment failure or maintenance.
Depending on the application, possible arrangements include duty/standby units, multiple parallel dry coolers, or an N+1 configuration.
However, redundancy should be evaluated at the actual design conditions.
For example, three dry coolers cannot automatically be described as an N+1 system unless the remaining units can collectively meet the required cooling duty after one unit becomes unavailable.
Redundant equipment does not eliminate every risk.
Multiple dry coolers may share:
Electrical distribution
Circulation pumps
Control panels
Common fluid headers
Installation airflow paths
A failure in a shared component can affect the entire cooling system.
Engineers should therefore review the reliability of the supporting systems as well as the dry cooler units.
Year-round outdoor operation exposes equipment to changing weather and environmental conditions.
Depending on the location, the design may need to account for corrosion, dust, ultraviolet exposure, rain, snow, ice, or strong winds.
Material selection, suitable electrical enclosure protection, structural design, and maintenance accessibility should reflect the actual site requirements.
Noise limits may also influence fan selection and operation, particularly at facilities near occupied buildings or property boundaries.
Fan electricity consumption is a significant consideration in dry cooler operation.
Variable-speed control can reduce energy consumption when full airflow is unnecessary.
However, annual system efficiency depends on more than fan power.
A hydraulic arrangement with excessive pressure drop can increase pump energy consumption, offsetting some of the benefits obtained through fan control.
Engineers should evaluate the combined electrical demand of fans, pumps, and auxiliary equipment.
A practical annual energy evaluation considers the expected number of hours the system operates at different ambient temperatures and cooling loads.
For each operating condition:
Electrical Energy (kWh) = Electrical Power (kW) × Operating Hours (h)
Annual energy consumption is calculated by summing the energy use across the operating conditions.
Comparing alternative designs using an identical annual load profile helps identify whether a larger coil, different fan arrangement, or revised control strategy provides a meaningful lifecycle benefit.
Year-round operation requires a maintenance strategy that accounts for the installation environment and equipment duty.
Typical activities include:
Inspecting and cleaning heat exchanger coils
Checking fan and motor condition
Inspecting electrical connections and controls
Verifying fluid quality and glycol concentration
Checking strainers and circulation-system components
Inspecting for leakage and corrosion
Testing sensors, alarms, and safety functions
Maintenance intervals should follow manufacturer instructions and actual site conditions.
A monitoring system can help identify changes in performance before they cause major operating problems.
Useful operating data may include entering and leaving fluid temperatures, ambient air temperature, fluid flow, fan speed, electrical power, and alarm history.
These measurements can be used to compare actual performance with the expected operating conditions.
For meaningful comparisons, engineers should account for changes in ambient temperature, cooling load, and flow rate rather than interpreting a single temperature measurement in isolation.
Consider an illustrative industrial facility requiring continuous process cooling.
The preliminary design requirements are:
Design Parameter |
Illustrative Value |
|---|---|
Maximum heat rejection |
600 kW |
Summer entering fluid temperature |
47°C |
Summer leaving fluid temperature |
42°C |
Summer design ambient temperature |
35°C |
Required summer approach |
7 K |
Minimum winter ambient temperature |
−15°C |
Operating schedule |
Continuous, 24 hours per day |
Cooling control |
Variable-speed fans |
Freeze protection |
To be engineered for the selected fluid circuit |
These values are hypothetical design inputs and do not represent tested performance data for a particular Aidear dry cooler.
The engineering team should assess the system under the following operating scenarios.
Scenario |
Thermal Requirement |
Design Verification |
|---|---|---|
Summer peak |
600 kW at 35°C ambient |
Confirm full-load cooling capacity |
Moderate weather |
Reduced process load |
Verify fan modulation and efficiency |
Winter operation |
Cooling demand continues |
Verify temperature control and freeze protection |
Emergency shutdown |
Circulation or power may stop |
Verify protection of exposed fluid |
The dry cooler must first be thermally selected for the summer design point.
Its coil arrangement and fan capacity should be capable of rejecting the required heat at the stated entering air temperature and fluid conditions.
Next, the engineer should calculate performance at representative reduced-load conditions.
The seasonal control sequence must then be developed to avoid unnecessary fan operation while maintaining the required process temperature.
For winter conditions, the fluid protection strategy should be verified against the minimum design temperature and credible failure scenarios.
Finally, the system should be reviewed for maintainability, redundancy, electrical consumption, and commissioning requirements.
This example demonstrates an important design principle:
Year-round performance is achieved by coordinating thermal sizing, hydraulic design, control logic, and equipment protection rather than optimizing each component independently.
Yes. A properly designed dry cooler system can operate throughout the year, provided it meets the required thermal conditions and has suitable controls and protection for its operating environment.
Continuous operation is not guaranteed by the dry cooler alone. Pumps, piping, electrical systems, controls, and protection measures must also be appropriately designed.
No. Glycol is one option for protecting an outdoor hydraulic circuit against freezing.
In suitable applications, alternatives may include fully drainable systems, active heating, or appropriately engineered circulation strategies.
The correct choice depends on climate, operating conditions, shutdown requirements, fluid compatibility, and reliability expectations.
Lower outdoor temperatures can allow the dry cooler to maintain the required fluid temperature with less fan operation.
Variable-speed control or fan staging can reduce unnecessary electrical consumption.
However, winter controls must also prevent overcooling and maintain adequate freeze protection.
This depends on the required fluid temperature and outdoor conditions.
Conventional dry coolers rely solely on sensible heat cooling and cannot consistently reduce the fluid temperature below its inlet dry-bulb temperature.
If an industrial process requires lower temperatures during hot weather, mechanical refrigeration or other cooling methods may still be necessary.
No single component determines system reliability.
The most important consideration is whether the complete system has been designed and verified for its expected operating and failure conditions.
This includes thermal capacity, fluid circulation, winter protection, control reliability, and appropriate maintenance access.
Designing a dry cooler for year-round industrial operation requires a comprehensive understanding of the process load, seasonal ambient conditions, fluid properties, and operating requirements.
Summer thermal performance establishes an essential capacity requirement, but reliable annual operation also depends on effective fan control, suitable coil and hydraulic design, freeze protection, and fault management.
For facilities operating continuously, these elements should be evaluated as part of a coordinated cooling-system design.
An effective year-round dry cooler system should:
Meet the required cooling duty under summer design conditions
Maintain stable fluid temperatures during changing process loads
Reduce unnecessary energy consumption during favorable weather
Protect exposed fluid circuits against freezing
Provide appropriate reliability and maintenance provisions
Before requesting a technical proposal, customers should prepare the following information:
Required cooling capacity in kW
Entering and leaving fluid temperatures
Fluid type and glycol concentration
Required fluid flow rate
Summer design ambient temperature
Minimum winter ambient temperature
Site location and altitude
Annual operating schedule and load profile
Electrical supply and control requirements
Installation space and noise limitations
Reliability and redundancy requirements
Providing complete operating data enables a more accurate thermal and hydraulic evaluation.
Aidear provides dry cooler and heat exchanger solutions for industrial cooling applications.
Our team can discuss equipment configurations based on project requirements, including cooling capacity, operating temperatures, fluid properties, environmental conditions, and available installation space.
Whether your application involves continuous manufacturing, industrial process cooling, data center thermal management, or energy storage systems, selecting the right dry cooler begins with defining the complete operating requirements.
Looking for a customized dry cooler for year-round industrial operation?
Explore our Industrial Dry Cooler Solutions and submit your cooling duty, fluid temperatures, ambient conditions, and application requirements to request a technical quotation.
