Fixed Tubesheet Vs Floating Head Vs U-Tube Heat Exchangers: A Practical Selection Guide

Choosing between a fixed tubesheet, floating head and U-tube heat exchanger is not simply a matter of comparing purchase prices. The right design depends on where fouling is expected, how the exchanger will be cleaned, how much differential thermal expansion must be accommodated and whether the maintenance team has enough space to remove the tube bundle.

A fixed tubesheet exchanger is usually the simplest and most economical option when the shell-side fluid is relatively clean and thermal expansion can be safely controlled. A U-tube exchanger accommodates differential expansion and offers a removable bundle, but its bends limit tube-side mechanical cleaning. A floating head exchanger provides straight tubes, thermal flexibility and extensive cleaning access, although it is normally the most complex and costly of the three.

The practical rule is simple: select the construction around the most difficult fluid and the most difficult maintenance task—not around the lowest initial quotation.

Quick Answer: Which Design Should You Choose?

Use this initial screening table before moving to detailed thermal and mechanical design.

This table is a screening tool, not a final specification. Design pressure, temperature, materials, cyclic operation, allowable pressure drop and applicable codes must still be evaluated.

Why the Mechanical Arrangement Matters

All three designs fall within the broader category of shell-and-tube heat exchangers. In such units, one fluid flows through the tubes, while a second fluid circulates over the tube exterior—within the shell. Heat transfer occurs conductively across the tube walls, with no intentional mixing between the two process streams.

The primary distinction among these designs lies in the configuration of the tubesheets and rear head assembly. This structural choice governs three critical operational characteristics: (1) whether the tube bundle can expand independently of the shell under thermal cycling, (2) whether the entire tube bundle is removable for maintenance or replacement, and (3) which internal surfaces remain accessible during mechanical or chemical cleaning procedures.

For a foundational overview of the principal components and underlying heat-transfer mechanism, refer to “What Is a Shell-and-Tube Heat Exchanger?”

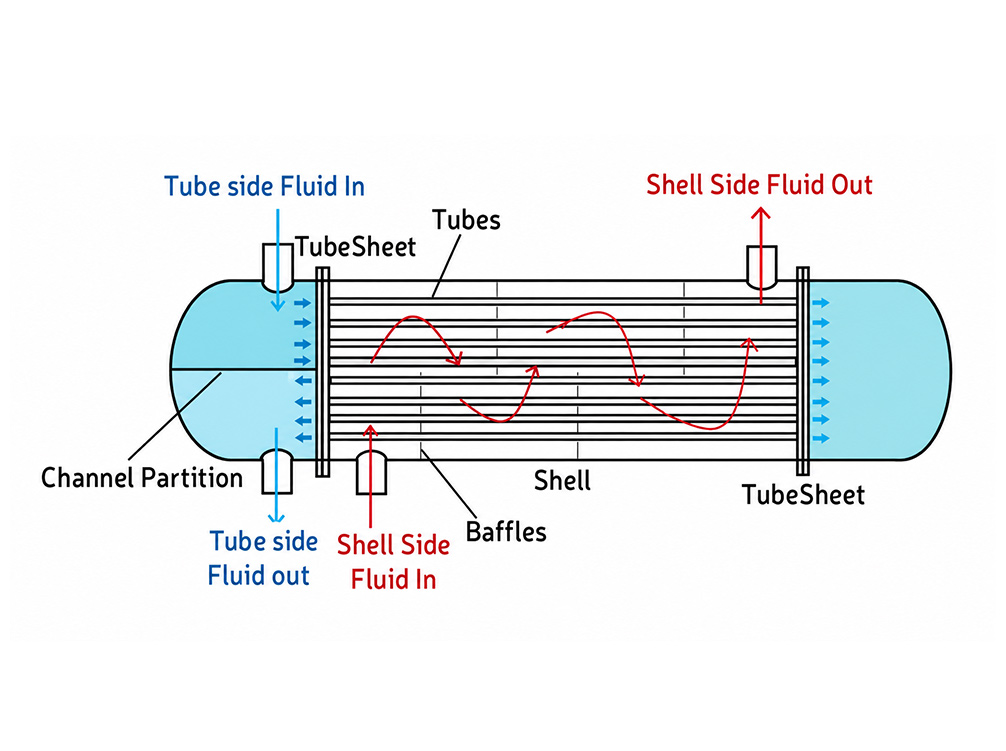

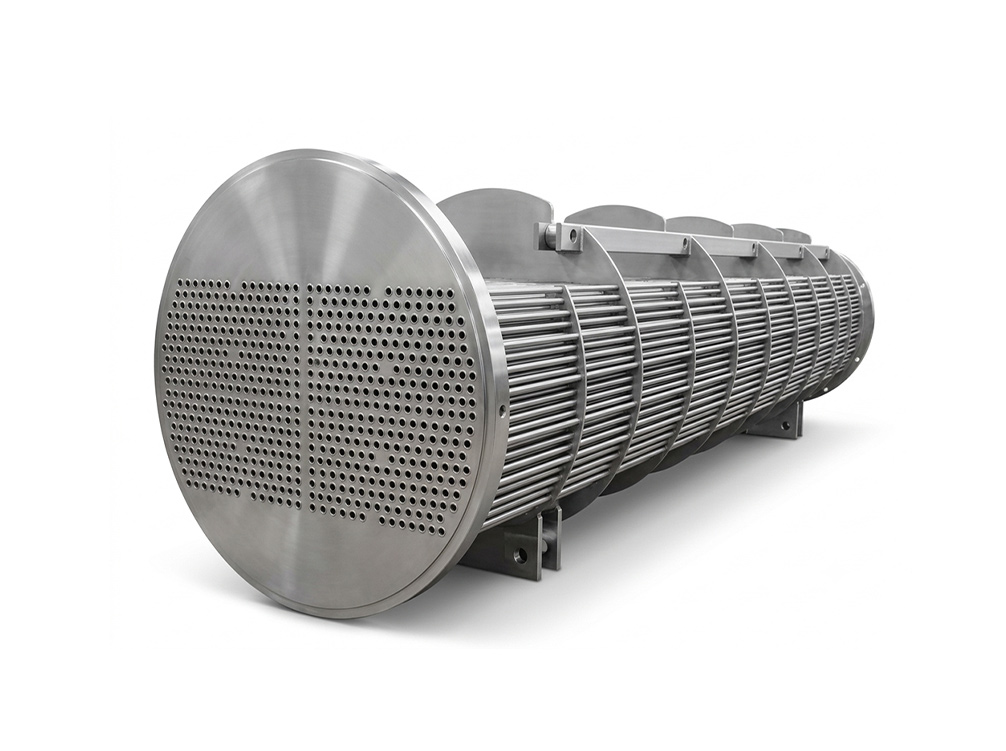

Fixed Tubesheet Heat Exchanger

In a fixed tubesheet exchanger, the tubes are expanded, welded or otherwise secured into tubesheets at both ends. The tubesheets are fixed to the shell, so the shell, tubes and tubesheets form a rigid assembly.

The heads or covers may be removable, allowing access to the entrances of the straight tubes. However, the entire tube bundle cannot normally be pulled out of the shell.

Main Advantages

Simple and economical construction

A fixed tubesheet design has fewer internal parts than a floating head exchanger. This usually means a lower initial manufacturing cost and a compact overall arrangement.

Straight-tube access

When the selected head arrangement provides suitable access, the inside of the tubes can be inspected and cleaned using brushes, rods, water jetting or other appropriate methods.

No floating-head sealing assembly

There is no floating rear-head gasket or packing arrangement inside the exchanger. This simplifies construction and removes one category of internal joint that would otherwise need inspection.

Efficient use of the shell diameter

Because no clearance is required to withdraw a floating head through the shell, more of the shell cross-section may be available for tubes. The actual tube count still depends on tube diameter, pitch, pass arrangement and mechanical design.

Main Limitations

The tube bundle is not removable

The outside surfaces of the tubes cannot be exposed by pulling the bundle. Shell-side cleaning is therefore generally limited to flushing, chemical cleaning or cleaning methods compatible with the fixed construction.

This makes the design less attractive when the shell-side fluid contains solids, forms hard scale or creates deposits that cannot be removed chemically.

Differential thermal expansion must be checked

The shell and tubes may operate at differing mean metal temperatures and may be fabricated from materials exhibiting distinct coefficients of thermal expansion. As both ends are rigidly fixed, differential thermal expansion induces stress in the tubes, shell, and tube sheets.

A shell expansion joint may be considered, but it should not be specified using an arbitrary temperature-difference rule. A qualified mechanical calculation must determine whether the resulting stresses are acceptable.

Shell-side inspection is restricted

The inability to remove the tube bundle limits direct visual inspection of the shell interior, baffles and tube outer surfaces.

When a Fixed Tubesheet Design Makes Sense

Consider a fixed tubesheet heat exchanger when:

• The shell-side fluid is clean or can be cleaned effectively in place.

• Tube-side mechanical cleaning is more important than shell-side access.

• The expected differential thermal expansion is within calculated limits.

• Operating cycles are predictable.

• A simple and cost-conscious solution is required.

• The project does not require regular tube-bundle removal.

Typical duties may include selected HVAC, refrigeration, clean-water, oil-cooling and industrial utility services. Suitability must be confirmed using the actual fluid and operating data.

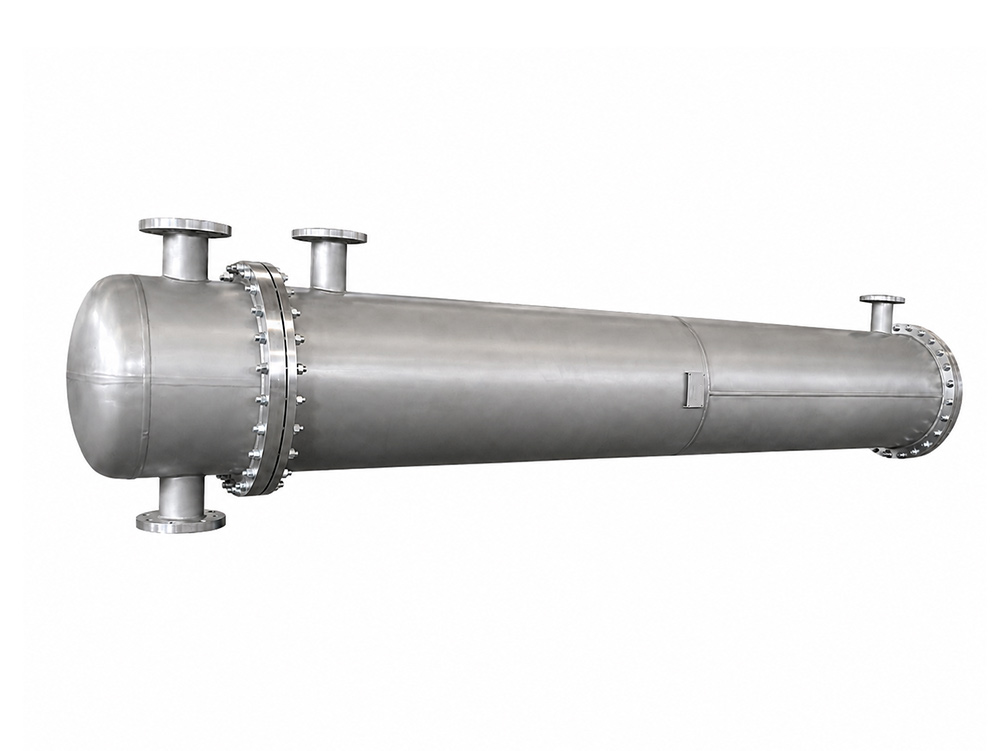

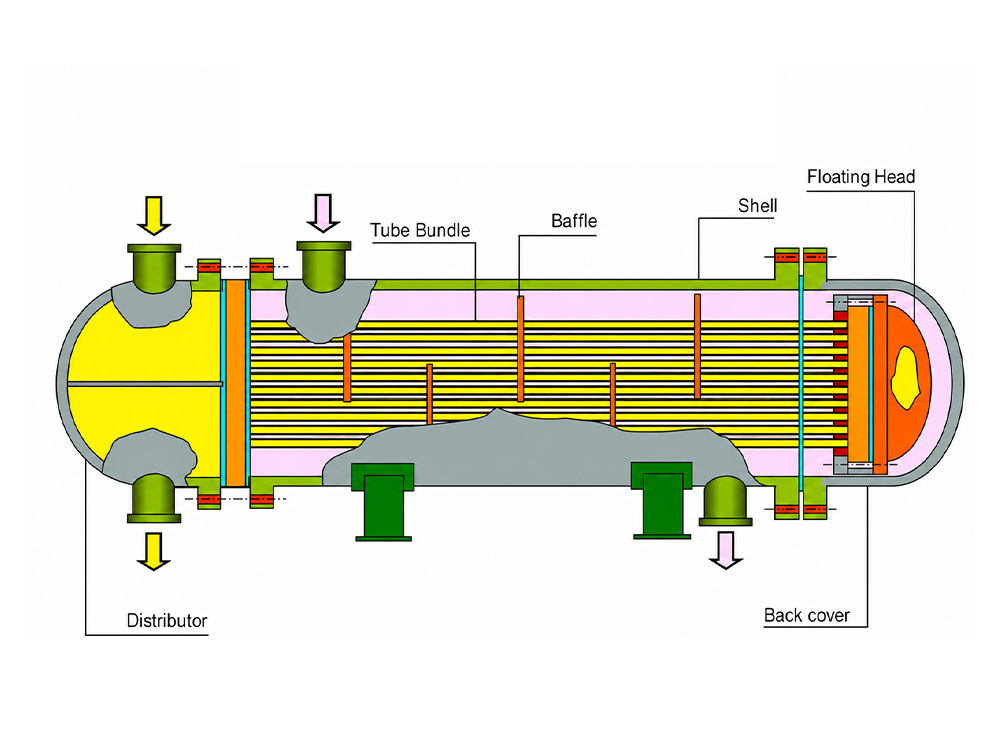

Floating Head Heat Exchanger

A floating head exchanger uses straight tubes secured between two tubesheets. One tubesheet is stationary, while the rear tubesheet can move axially relative to the shell.

This movement accommodates differential thermal expansion between the shell and tube bundle. Depending on the rear-head configuration, the bundle can also be removed for inspection, cleaning or replacement.

Main Advantages

Accommodates differential expansion

The floating end allows the tube bundle and shell to expand at different rates without locking both ends into one rigid assembly. This is valuable when mean metal temperatures differ significantly or the exchanger experiences repeated heating and cooling cycles.

Removable tube bundle

Removing the bundle exposes the shell interior, baffles and tube outer surfaces. This supports more complete inspection and shell-side mechanical cleaning.

Straight tubes support internal cleaning

Unlike U-tubes, straight tubes allow cleaning tools to pass through the tube bore, provided that the selected front and rear heads offer sufficient access.

Individual tube repair is more practical

Straight tubes are generally more accessible for inspection, plugging and, depending on the detailed design and repair procedure, replacement.

Main Limitations

Higher initial cost

The floating tubesheet, rear-head components, sealing surfaces and additional machining make the design more complex than fixed tubesheet or many U-tube arrangements.

More demanding maintenance

“Removable bundle” does not necessarily mean “easy maintenance.” Some floating-head arrangements require removal of the shell cover, floating-head cover and backing components before the bundle can be extracted.

Additional sealing considerations

Packed, gasketed and internal floating-head configurations do not have identical leakage characteristics. Fluid toxicity, volatility, pressure, temperature and cross-contamination risk must be considered when choosing the rear-head design.

Bundle-pulling space is required

The plant layout must provide approximately the exchanger bundle length, plus working clearance, in front of the extraction end. Lifting capacity and bundle-pulling equipment must also be considered.

When a Floating Head Design Makes Sense

Consider a floating head exchanger when:

• Shell-side mechanical cleaning is essential.

• Both shell-side and tube-side inspection are important.

• The exchanger handles a significant differential thermal expansion duty.

• Straight tubes are needed for internal mechanical cleaning.

• Maintenance access justifies the additional initial cost.

• The cost of extended shutdowns is higher than the cost of a more serviceable exchanger.

Floating head exchangers are often considered for demanding chemical processing, refining, heat recovery and heavily fouling industrial duties. The correct floating-head subtype depends on the service and project specification.

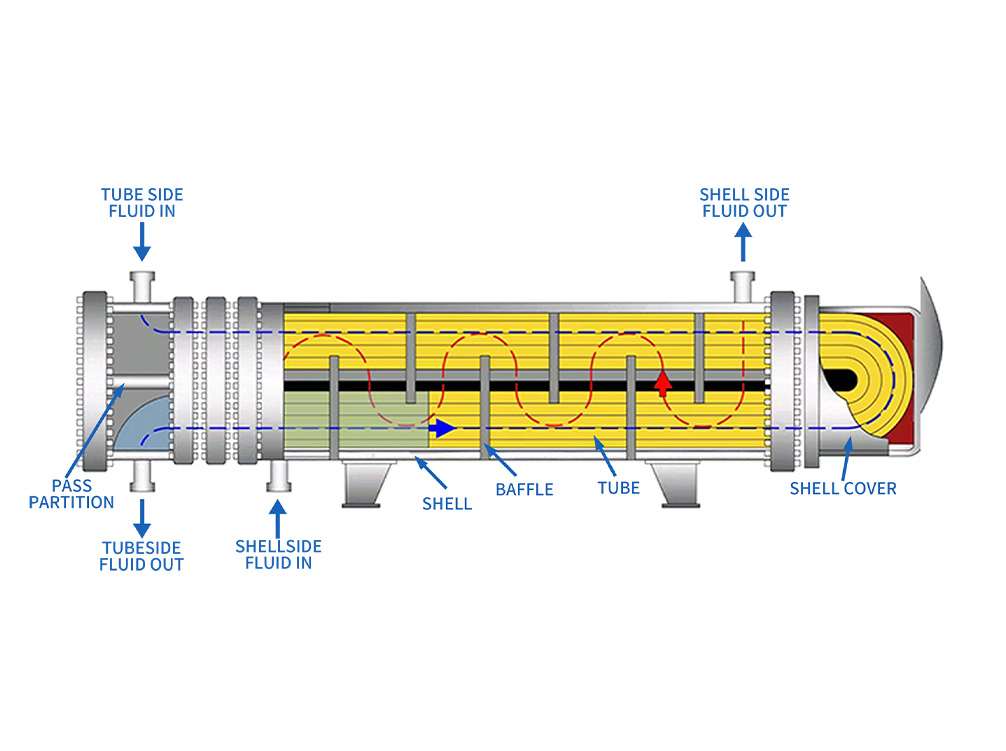

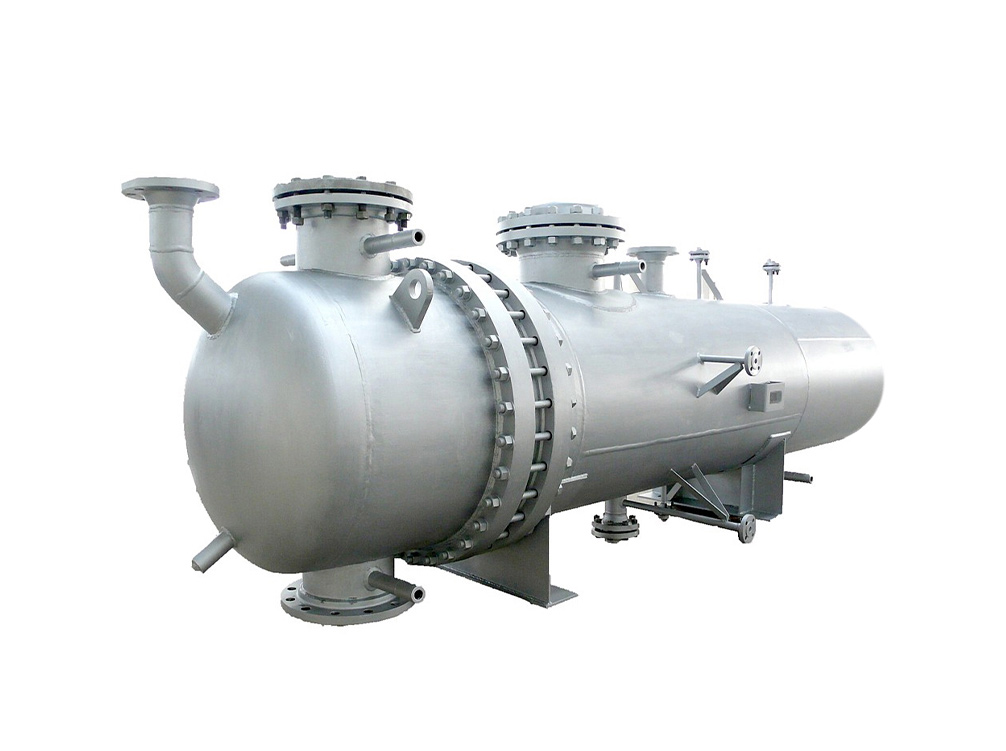

U-Tube Heat Exchanger

A U-tube exchanger uses tubes bent into a U shape and secured into a single tubesheet. Both tube-side connections are located at the same end of the exchanger.

The curved end of each tube is free to expand inside the shell. The tube bundle can generally be removed from the shell for inspection and shell-side cleaning.

Main Advantages

Inherent thermal flexibility

Each U-tube can respond to thermal expansion without requiring a second tubesheet or a floating rear-head assembly. This makes the construction suitable for duties involving appreciable differential expansion.

Removable bundle

The tube bundle can be extracted, giving maintenance personnel access to the shell interior, baffles and outside surfaces of the tubes.

Only one tubesheet

Using one tubesheet can reduce material and fabrication requirements compared with a straight-tube floating-head design, especially when expensive tubesheet materials are needed.

No floating-head sealing mechanism

The exchanger avoids a floating rear-head packing or gasket system inside the shell.

Main Limitations

U-bends restrict tube-side mechanical cleaning

Conventional straight brushes and rigid cleaning rods cannot pass through the bends. Chemical cleaning and specially selected cleaning methods may be possible, but a U-tube should not be treated as equivalent to a straight-tube exchanger when hard tube-side deposits are expected.

Inspection of the bend region is more difficult

The inner U-bends can be harder to inspect than straight tubes. Tube integrity and the available inspection method should be considered during specification.

Tube replacement is less convenient

Replacing an individual inner U-tube may be difficult or impractical because of the nested tube geometry. Damaged tubes are often plugged according to an approved repair procedure.

Tube layout is constrained

Minimum bend radius and bundle geometry affect the number and arrangement of tubes. U-tube exchangers also normally use an even number of tube passes.

When a U-Tube Design Makes Sense

Consider a U-tube heat exchanger when:

• Differential thermal expansion is a major design concern.

• The tube-side fluid is relatively clean.

• Shell-side bundle removal and cleaning are required.

• A lower-complexity alternative to a floating head is desired.

• One-end piping access suits the equipment layout.

• The tube-side cleaning plan is compatible with U-bends.

Common applications include selected steam heating, oil cooling, process heating, refrigeration and heat-recovery duties.

Fixed Tubesheet vs Floating Head vs U-Tube Comparison

Seven Factors That Should Drive the Selection

1. Differential Thermal Expansion

Do not select an exchanger by looking only at the inlet-temperature difference between the fluids. Mechanical expansion depends on factors including:

• Mean metal temperatures of the tubes and shell

• Material coefficients of thermal expansion

• Tube and shell lengths

• Startup and shutdown conditions

• Temperature transients

• Pressure loading

• Restraint from tubesheets and supports

• Expected number of operating cycles

A fixed tubesheet design may be completely suitable for one apparently high-temperature duty and unsuitable for another lower-temperature but highly cyclic duty. The decision must come from the applicable mechanical design calculation.

2. Location and Severity of Fouling

The phrase “fouling service” is not specific enough. The supplier needs to know which fluid fouls, what type of deposit forms and how the deposit can be removed.

If hard shell-side scale must be scraped or hydroblasted, a removable bundle is normally advantageous. If most fouling occurs inside the tubes and straight mechanical cleaning is required, a floating head or accessible fixed tubesheet arrangement may be more practical than a U-tube.

The selected tube pitch also matters. A square or rotated-square pitch may provide cleaning lanes around straight tubes, while triangular pitch can improve tube density but restrict shell-side mechanical access.

3. Tube-Side Cleaning Requirements

Consult the maintenance team to determine the specific equipment they routinely employ for cleaning.

If the established cleaning procedure relies on rigid rods, brushes, or straight-through lances, U-bends may be incompatible with that methodology. Conversely, if chemical cleaning has been demonstrated to be both effective and validated for the specific deposit type, a U-tube configuration may remain a practical and viable option.

Cleaning access provisions must be designed explicitly around the actual, implemented maintenance method—not merely based on a generic assertion that the heat exchanger is “cleanable.”

4. Fluid Allocation

Choosing which fluid goes through the tubes can change the preferred exchanger arrangement.

A high-pressure fluid is often considered for the tube side because the smaller tube diameter can be more economical to contain. A corrosive fluid may also be placed inside the tubes when this reduces the quantity of expensive alloy required. A heavily fouling fluid may be placed in straight tubes to simplify mechanical cleaning.

However, these are guidelines rather than universal rules. Phase change, viscosity, pressure drop, velocity limits, erosion, corrosion and safety requirements can lead to a different allocation.

5. Pressure Drop and Thermal Performance

Mechanical configuration is only one part of the selection. Thermal design must also consider:

• Required heat duty

• Inlet and outlet temperatures

• Flow rates

• Fluid properties

• Allowable pressure drop

• Fouling resistance

• Tube size, length and wall thickness

• Tube pitch and layout

• Baffle type, cut and spacing

• Shell and tube passes

• Flow-induced vibration risk

A design with easier maintenance is not useful if it cannot achieve the required duty within the allowable pressure drop.

For background, see How Does a Heat Exchanger Work? and What Is Heat Transfer?.

6. Maintenance Space and Bundle Removal

A removable bundle provides little benefit if the facility cannot pull it out.

Before choosing a floating head or U-tube design, verify:

• Available axial removal space

• Crane or lifting access

• Bundle weight

• Foundation and structural restrictions

• Piping disconnection requirements

• Access to covers and fasteners

• Space for cleaning and inspection

• Safe handling of residual process fluids

For brownfield replacement projects, obtain verified nozzle locations, overall dimensions, support positions and maintenance clearances before finalizing the new exchanger.

7. Lifecycle Cost

Initial purchase price represents only part of the cost.

A practical lifecycle assessment should include:

• Equipment purchase price

• Installation and piping modifications

• Expansion-joint cost, if required

• Cleaning frequency

• Labor needed for disassembly

• Expected shutdown duration

• Gasket and spare-part requirements

• Bundle-removal equipment

• Tube inspection and repair costs

• Production losses during maintenance

• Expected replacement strategy

A floating-head heat exchanger has a higher initial cost but is more economical for applications requiring frequent shell-side cleaning—especially when cleaning avoids extended process shutdowns. Conversely, it adds unnecessary cost and complexity for clean, stable utility services, with no operational benefit.

Practical Selection by Application

Clean Water or Utility Cooling

A fixed tubesheet exchanger may be appropriate when both fluids are controlled, the shell-side stream remains clean and thermal stresses are acceptable.

If untreated water is likely to scale, consider placing it in accessible straight tubes. Water chemistry, velocity and cleaning practices should be reviewed before selection.

Steam Heating

U-tube exchangers are commonly considered where condensing steam is on the shell side and a clean liquid flows through the tubes. Their thermal flexibility is useful during heating and cooling cycles.

If the tube-side product forms deposits that require mechanical cleaning, a straight-tube construction may be more maintainable.

Lubricating or Hydraulic Oil Cooling

Fixed tubesheet and U-tube arrangements may both be suitable, depending on oil viscosity, fouling, operating temperatures and the cooling-water quality.

The cooling-water side often determines the cleaning strategy and should not be treated as a secondary consideration.

Chemical and Process Cooling

A floating head may be justified where both sides require inspection, thermal cycles are severe or shell-side deposits demand mechanical cleaning.

Hazardous or volatile fluids require particular attention to the floating-head sealing arrangement. “Floating head” alone is not a complete mechanical specification.

Waste Heat Recovery

Waste streams can contain particulates, condensed material or temperature fluctuations. The fouling location and shutdown cost should be evaluated before choosing the lowest-cost construction.

A removable bundle may improve maintainability, but erosion, vibration, corrosion and fluid distribution must also be addressed.

HVAC and Refrigeration Systems

Fixed tubesheet and U-tube exchangers are frequently evaluated for industrial HVAC and refrigeration duties because they can provide compact, robust construction. Refrigerant distribution, oil return, water quality, freezing risk and tube-side velocity can be as important as the mechanical arrangement.

For alternative technologies, see Plate Heat Exchanger vs Shell and Tube.

Common Selection Mistakes

Mistake 1: Selecting Only by Initial Price

The lowest quotation may become the most expensive option if the exchanger cannot be cleaned without a long shutdown.

Mistake 2: Treating All Fouling as the Same

Soft biological deposits, mineral scale, polymerized product and solid particles require different cleaning methods. Identify the deposit and its location before selecting the structure.

Mistake 3: Assuming Every Removable Bundle Is Easy to Remove

Bundle weight, rear-head disassembly, pulling clearance and lifting access can make maintenance difficult even when the design is technically removable.

Mistake 4: Applying an Arbitrary Temperature Rule

There is no universal temperature-difference threshold that automatically decides whether a fixed tubesheet exchanger needs an expansion joint. Mechanical analysis is required.

Mistake 5: Putting a Dirty Fluid Inside U-Tubes

If tube-side deposits require rigid mechanical cleaning, the U-bends may prevent the planned cleaning method from reaching the entire tube length.

Mistake 6: Specifying Only “TEMA Type”

A three-letter TEMA designation identifies important construction features, but it does not define the complete thermal and mechanical design. Materials, design conditions, corrosion allowance, tube geometry, baffles, nozzles, testing and documentation must also be specified.

TEMA Designations and the 2026 Update

A TEMA designation normally contains three letters:

1. The first letter identifies the front-end stationary head.

2. The second identifies the shell configuration.

3. The third identifies the rear-end head.

Common examples include:

• BEM: bonnet front head, E-type shell and fixed rear tubesheet.

• AES: channel with removable cover, E-type shell and floating head with backing device.

• AET: channel with removable cover, E-type shell and pull-through floating head.

• BEU: bonnet front head, E-type shell and U-tube bundle.

These examples explain the nomenclature only. They do not mean that one arrangement is automatically suitable for a particular pressure, temperature or fluid.

The official TEMA Standards page confirms that the 2026 Edition has now been introduced. TEMA states that it became effective on August 1, 2026, with a six-month grace period during which the Eleventh Edition remains current for work already in progress.

Purchasers should therefore identify the required edition in the inquiry and purchase order instead of writing only “according to the latest TEMA standard.”

For petroleum, petrochemical or natural-gas projects, determine whether API 660 and other owner specifications also apply. For pressure-containing equipment, the legally applicable pressure-vessel code and local regulatory requirements must be stated separately.

Information to Include in a Heat Exchanger RFQ

A supplier cannot select the correct exchanger from heat duty alone. Include the following information in your request for quotation.

Process Data

• Fluid names and compositions

• Mass or volume flow rates

• Inlet and required outlet temperatures

• Operating and design pressures

• Operating and design temperatures

• Vapor fraction or phase-change information

• Density, viscosity, thermal conductivity and specific heat

• Allowable pressure drop on each side

• Fouling resistance or available operating history

Mechanical Requirements

• Required design code and edition

• TEMA class and preferred configuration, if specified

• Materials for shell, tubes, tubesheets and heads

• Corrosion allowance

• Tube-to-tubesheet joint requirements

• Nozzle sizes, ratings and orientations

• Support type and installation orientation

• Insulation requirements

• Design life and expected operating cycles

Maintenance Requirements

• Which side is expected to foul

• Deposit type and cleaning method

• Required inspection method

• Whether tube-bundle removal is necessary

• Available bundle-pulling clearance

• Maximum allowable equipment dimensions and weight

• Required spare gaskets or replacement-bundle strategy

Documentation and Testing

• Required inspection and test plan

• Pressure-test requirements

• Material certificates

• Welding and nondestructive-examination requirements

• Drawing and data-book requirements

• Third-party inspection requirements

• Packaging and shipping conditions

Working With Aidear on a Shell and Tube Heat Exchanger Project

Aidear supplies heat exchangers and refrigeration equipment for applications including industrial HVAC, refrigeration, process cooling and heat recovery.

For a custom project, start with Aidear’s shell and tube heat exchanger page and provide the operating data, fluid properties, fouling information and maintenance requirements listed above.

The final recommendation should be based on the complete duty. Depending on the application, the engineering review may evaluate the mechanical arrangement, material compatibility, pressure drop, cleaning access, installation space and required documentation before confirming the design.

If you are still comparing exchanger technologies, visit Aidear’s broader heat exchanger range or review the brazed plate heat exchanger option for compact, relatively clean-fluid duties.

Frequently Asked Questions

What is the main difference between fixed tubesheet, floating head and U-tube heat exchangers?

A fixed tubesheet exchanger has straight tubes fixed at both ends and a non-removable bundle. A floating head exchanger has straight tubes and a movable rear tubesheet, allowing differential expansion and usually bundle removal. A U-tube exchanger uses tubes bent back to a single tubesheet, allowing thermal expansion without a floating rear head.

Which shell and tube heat exchanger is easiest to clean?

A floating head exchanger generally provides the most complete access because the bundle can be removed and the straight tubes can be mechanically cleaned internally. Actual access still depends on the selected head and bundle design.

Can a fixed tubesheet heat exchanger be mechanically cleaned?

The straight tube interiors can normally be mechanically cleaned if the heads provide access. The bundle cannot be removed, so the shell side is generally limited to flushing, chemical cleaning or other in-place methods.

Can a U-tube heat exchanger be mechanically cleaned?

The outside of a removable U-tube bundle can be cleaned after extraction. Conventional straight cleaning tools cannot pass through the U-bends, so tube-side mechanical cleaning is limited.

Which design is best for a large temperature difference?

Floating head and U-tube arrangements inherently accommodate differential expansion. However, exchanger selection should be based on calculated mean metal temperatures, materials, operating cycles and mechanical stresses—not inlet-temperature difference alone.

When does a fixed tubesheet exchanger need an expansion joint?

An expansion joint may be required when mechanical analysis shows that differential expansion produces unacceptable stress. There is no universal temperature-difference threshold that applies to every exchanger.

Is a floating head heat exchanger always suitable for hazardous fluids?

No. Floating-head subtypes use different sealing arrangements. Packed or externally sealed designs may be unsuitable for certain toxic, volatile or hazardous services. The detailed rear-head type must be reviewed.

Which design has the lowest initial cost?

A fixed tubesheet exchanger is generally the lowest-cost construction, followed by many U-tube arrangements. Floating head exchangers are normally more expensive because of their additional components and machining.

Which design has the lowest lifecycle cost?

There is no universal answer. A fixed tubesheet may have the lowest lifecycle cost in clean service, while a floating head may be more economical when frequent cleaning and short shutdowns are important.

What information does a manufacturer need for selection?

At minimum, provide fluid properties, flow rates, inlet and outlet temperatures, operating and design pressures, allowable pressure drops, fouling information, materials, applicable codes, cleaning method and installation constraints.

Conclusion

The best shell and tube heat exchanger is the one that balances thermal duty, mechanical integrity and realistic maintenance requirements.

Choose a fixed tubesheet design when service is relatively clean, calculated thermal stresses are acceptable and initial cost is a major priority. Choose a U-tube design when thermal flexibility and shell-side bundle removal are important but the tube-side fluid does not require straight-through mechanical cleaning. Choose a floating head design when differential expansion, shell-side fouling, straight-tube cleaning and long-term serviceability justify the additional complexity.

Most importantly, identify where fouling will occur and how the exchanger will actually be maintained. Those two questions often lead to a better decision than comparing equipment prices alone.
