Microchannel vs Fin-and-Tube Coils: Which Is Better for an Outdoor Condenser?

Choosing between a microchannel coil and a fin-and-tube coil is not simply a choice between “new” and “traditional” technology. It affects condenser size, refrigerant charge, fan power, corrosion strategy, maintenance work, replacement logistics, and total ownership cost.

For an outdoor condenser, neither design is automatically better in every project. A properly selected microchannel condenser can be compact, lightweight, and low-charge. A properly selected fin-and-tube condenser can offer broad design flexibility and familiar field service. The right answer depends on what your site and operating duty demand.

Quick Answer: Which Condenser Coil Is Better?

Microchannel is often the better fit when low refrigerant charge, compact dimensions, low weight, and reduced coil depth are top priorities. Fin-and-tube is often the safer fit when field repairability, material flexibility, wide fin-spacing options, and service familiarity matter more.

For coastal or chemically aggressive sites, do not select either technology by base metal alone. Define the contaminants, coating system, exposed edges and connections, cleaning method, inspection frequency, and expected service life first.

The most defensible comparison is a supplier selection at the same:

• heat-rejection duty;

• design ambient dry-bulb temperature;

• refrigerant and condensing temperature;

• airflow or maximum fan power;

• allowable air-side and refrigerant-side pressure drop;

• fouling and corrosion exposure;

• sound and dimensional limits.

Without those common conditions, a statement such as “10% more efficient” or “50% less refrigerant” may describe one design comparison but not your condenser.

How the Two Condenser Coil Designs Differ

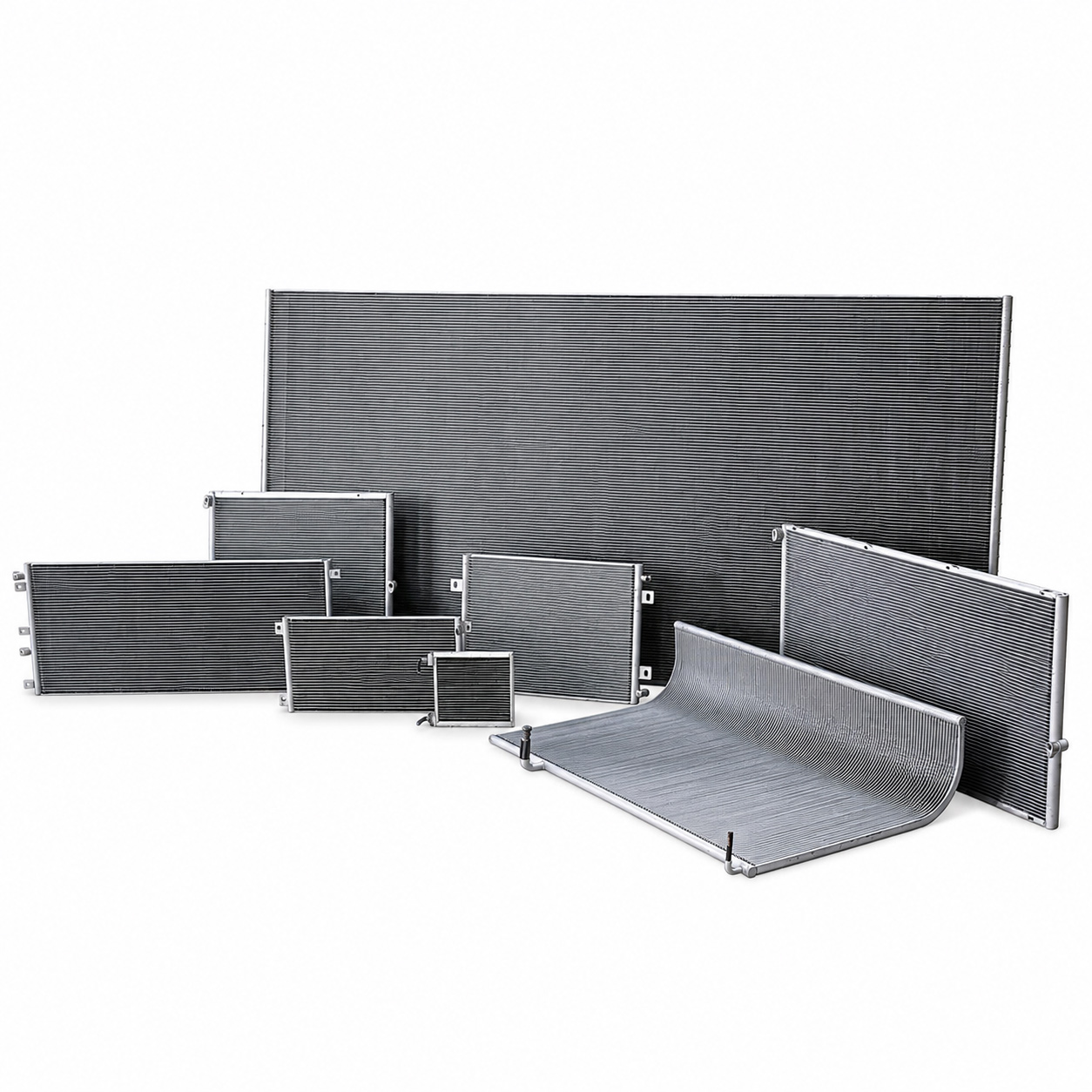

Microchannel Coil Construction

A microchannel heat exchanger, or MCHE, normally uses flat aluminum multiport tubes joined to aluminum fins and headers by controlled-atmosphere brazing. Refrigerant travels through several small parallel ports while ambient air crosses the finned surface.

The flat tubes create a large contact area between the refrigerant passages, tube walls, fins, and air stream. Because the internal volume can be low and the coil can be relatively shallow, MCHE technology is widely considered for air-cooled condensers, chillers, rooftop units, condensing units, and transport cooling.

An all-aluminum design also removes the copper-to-aluminum galvanic couple found in a conventional copper-tube/aluminum-fin coil. That does not make bare aluminum immune to every corrosion mechanism. Alloy selection, brazing residues, drainage, coating coverage, salt, sulfur compounds, cleaning chemicals, and installation details still matter.

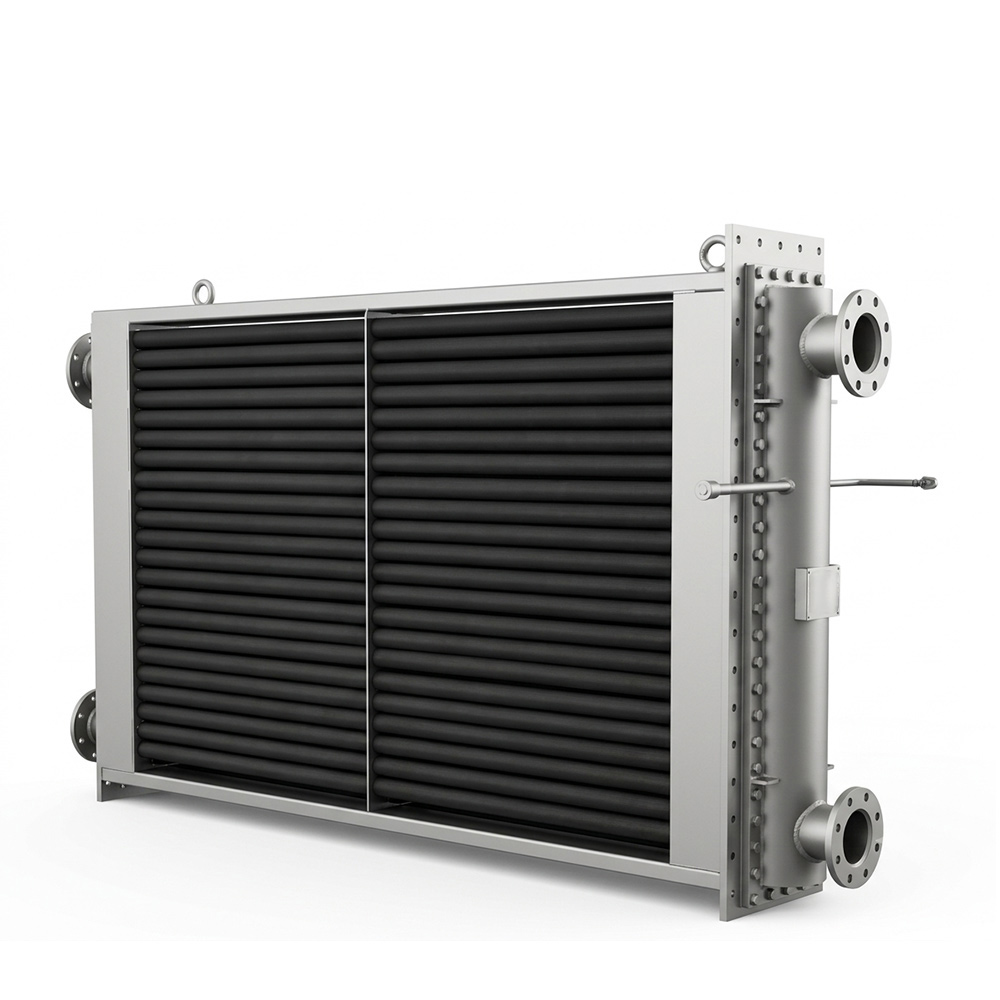

Fin-and-Tube Coil Construction

A conventional fin-and-tube coil—also called round-tube plate-fin or RTPF—uses rows of round tubes mechanically expanded or bonded into thin fins. A common condenser configuration combines copper tubes with aluminum fins, although stainless-steel tubes, copper fins, hydrophilic aluminum fins, and protective coatings may be specified for particular fluids or environments.

The mature architecture gives designers many choices for tube diameter, tube rows, circuiting, fin spacing, fin type, materials, casing, and connection arrangement. Technicians are also generally more familiar with cleaning, pressure testing, and repairing copper-tube coils.

However, a deep multi-row coil can increase air resistance and can trap debris between rows if access is poor. Copper/aluminum construction also creates a dissimilar-metal interface that requires careful environmental assessment.

Microchannel vs Fin-and-Tube Coils at a Glance

Eight Factors That Should Decide the Selection

1. Heat-Rejection Performance and System Efficiency

Microchannel geometry can provide strong refrigerant-side and air-side heat transfer in a compact core. For example, Danfoss reports 10% higher efficiency and 30% lower refrigerant charge for its MCHE comparison under the same conditions versus fin-and-tube technology. Carrier likewise reports improved thermal performance and lower air-pressure loss for its own NOVATION microchannel products.

Those figures show what optimized commercial designs can achieve; they are not a rule for every coil. Condenser performance is controlled by the complete design: frontal area, tube and fin geometry, refrigerant distribution, airflow, fan selection, ambient temperature, condensing temperature, subcooling, fouling, and control strategy.

Compare Like for Like

Ask each supplier to provide capacity, pressure drop, leaving condition, refrigerant hold-up, airflow, and fan power at the same project duty. If one quotation uses a lower ambient temperature or a higher condensing temperature, its smaller coil may look cheaper while increasing compressor power in operation.

For packaged equipment, compare verified unit-level performance rather than assuming that the coil type alone determines seasonal efficiency. AHRI maintains standards and certified-product programs so that HVAC/R performance can be evaluated on a consistent basis.

2. Refrigerant Charge

Lower internal volume is one of the most valuable microchannel advantages. Less charge can reduce refrigerant cost, limit the amount lost during a leak, and help system designers manage charge-related safety or environmental constraints.

Published reductions vary because the baseline and system architecture vary. Carrier states up to 50% charge reduction for its microchannel design versus traditional copper/aluminum coils, while Danfoss publishes 30% under its stated comparison conditions.

Do not use a percentage alone in a purchasing decision. Request the estimated coil hold-up and total system charge in kilograms for the exact selected model. A receiver, piping length, subcooling target, and operating mode can change the system-level result.

3. Size, Weight, and Air-Side Pressure Drop

Microchannel coils are frequently shallower and lighter than equivalent traditional coils. This can reduce cabinet size, transport weight, roof loading, and installation effort. A short air path may also lower pressure drop, allowing lower fan power or more airflow within the same sound limit.

Fin-and-tube coils can close the gap by using larger face area, optimized fins, smaller-diameter tubes, or fewer rows. A low initial pressure drop is not enough, however. Buyers should also compare performance after realistic fouling and confirm whether both coil faces can be inspected and cleaned after installation.

4. Corrosion Resistance Outdoors

“All aluminum” and “copper tube” are not complete corrosion specifications.

An all-aluminum MCHE avoids galvanic corrosion between copper tubes and aluminum fins within the core. Yet aluminum can still suffer pitting or attack in salt-laden, acidic, alkaline, or industrial atmospheres. Tube-to-header joints, cut edges, mounting points, connections, residual flux, and coating damage can become local weak points.

A copper-tube/aluminum-fin coil has long field experience and repair familiarity, but the dissimilar metals can form a galvanic couple when moisture and electrolytes are present. Aluminum fins may deteriorate even while copper tubes remain intact. Copper tubes can also experience pitting or formicary corrosion under specific contaminants.

Coastal and Industrial Sites Need an Exposure Specification

For marine, fertilizer, wastewater, food-processing, mining, chemical, or heavy-industrial sites, specify:

• distance from the coast and direct salt-spray exposure;

• prevailing wind, humidity, wet-dry cycling, and drainage;

• chlorides, sulfur compounds, ammonia, cleaning vapors, or process chemicals;

• coating chemistry, application method, coverage, thickness, UV resistance, and repair procedure;

• corrosion test method and duration relevant to the actual product;

• freshwater rinse access and maintenance frequency;

• protection of headers, bends, connections, frames, fasteners, and cut edges—not only the fin face.

Carrier's current guidance explicitly separates standard microchannel coils for non-corrosive environments from coated options for corrosive and extreme-corrosion environments. That distinction is more useful than a universal “microchannel is corrosion-proof” claim.

5. Fouling and Cleaning

Outdoor condenser fouling raises air-side resistance and condensing temperature, which can increase compressor and fan energy while reducing capacity. The relevant contaminants may include dust, cottonwood, insects, grease, fibers, sand, salt, or process deposits.

A microchannel core's shallow depth and parallel layout can make debris easier to flush through. Johnson Controls states that its microchannel coils tend to collect less dirt internally and provide a shorter cleaning-water path than conventional round-tube fin coils. The same guidance warns against high-pressure water, hard contact, and unapproved acidic or caustic cleaners because they can damage fins and protective coatings.

Fin-and-tube coils are familiar to service teams, and wider fin spacing can be selected for dirty environments. Deep or closely spaced multi-row coils, however, may retain debris where it is difficult to see or rinse.

The practical question is not “Which coil is easier to clean?” It is:

• Can technicians reach both sides safely?

• Can panels be removed without dismantling the unit?

• Is the fin spacing appropriate for the contaminant?

• What water pressure and cleaning chemistry does the manufacturer permit?

• How often must salt or process residue be removed?

6. Leak Repair and Serviceability

Fin-and-tube coils—especially copper-tube models—usually have the advantage in field-service familiarity. An accessible copper tube can often be brazed by a qualified refrigeration technician. Depending on the circuit and damage location, a tube may also be isolated temporarily, although any change can reduce capacity or alter refrigerant distribution.

Microchannel repair is more location-dependent. Some manufacturers provide approved kits or procedures for limited damage in a flat-tube area. Leaks at headers, manifolds, inaccessible joints, or heavily corroded areas may make full replacement more practical. Aluminum repair requires the correct filler, temperature control, surface preparation, and trained personnel.

Before purchase, ask the supplier:

• Which leak locations are field-repairable?

• Is an approved repair kit available locally?

• What tools and technician qualifications are required?

• Can the circuit be isolated or pumped down?

• What is the replacement-coil lead time?

• Will a field repair affect the warranty?

For a remote mine, data center, cold-storage hub, or production line where downtime dominates cost, these answers may outweigh a small efficiency difference.

7. Refrigerant and Operating Envelope

Confirm compatibility with the exact refrigerant, design pressure, condensing temperature, subcooling requirement, ambient range, and capacity-control strategy. Lower-GWP refrigerants may introduce different pressure, temperature, flammability, or oil-return considerations.

Microchannel circuiting and header design must distribute refrigerant correctly across many parallel passages. Fin-and-tube circuiting also needs careful design to balance pressure drop, velocity, heat transfer, oil return, and capacity control. Neither technology should be selected from face dimensions alone.

If the outdoor coil will reverse between condenser and evaporator operation in a heat pump, drainage, frost formation, defrost, and two-phase distribution require a separate evaluation. A design proven as a condenser is not automatically optimized as a reversible coil.

8. Initial Cost and Total Cost of Ownership

Coil purchase price is only one line in the lifecycle calculation. Compare:

Lifecycle cost = initial coil and fan cost + refrigerant charge + transport and installation + energy + cleaning + repairs + expected downtime + replacement logistics

Microchannel may reduce material, charge, cabinet, and shipping costs, but a highly customized or coated design can change the first cost. Fin-and-tube may cost more in copper and refrigerant yet reduce service risk where local technicians and repair materials are readily available.

Use scenario analysis instead of an unsupported service-life assumption. Calculate at least a normal case and a harsh-environment case. For critical equipment, include the financial impact of one extended outage and the cost of holding a spare coil.

Which Coil Is Better for Each Outdoor Condenser Application?

Choose Microchannel When…

Microchannel is often a strong candidate when:

• refrigerant-charge reduction is a primary design target;

• the unit must be compact and lightweight;

• roof loading, shipping weight, or cabinet depth is restricted;

• the condenser is factory-optimized for one defined refrigerant and duty;

• lower air-side pressure drop can reduce fan power or sound;

• cleaning access supports the manufacturer's approved rinse procedure;

• an exposure-appropriate coating and maintenance plan are available.

Typical candidates include packaged air-cooled chillers, rooftop units, compact condensing units, transport cooling, and other OEM equipment produced around a controlled coil design.

Choose Fin-and-Tube When…

Fin-and-tube is often a strong candidate when:

• local field repair and technician familiarity are critical;

• the project needs unusual tube, fin, or casing materials;

• wide fin spacing is needed for fibers, dust, or heavy airborne debris;

• capacity, geometry, connections, or circuiting will be highly customized;

• the equipment must support future recircuiting or easier component-level repair;

• replacement lead time and downtime risk dominate the lifecycle decision.

Typical candidates include industrial refrigeration, process cooling, remote installations, replacement coils, dirty-air applications, and projects requiring copper, stainless steel, copper fins, or specialized coatings.

What About Coastal Condensers?

There is no responsible one-word answer. A bare standard coil of either type may be a poor specification in severe salt exposure.

For a coastal project, compare complete protected systems. An all-aluminum microchannel coil with a validated, fully covering coating and correct maintenance may be suitable. A fin-and-tube coil may instead use copper tubes with coated aluminum fins, copper fins, or another project-specific material system. Drainage, frame materials, fasteners, electrical protection, coating damage during installation, and frequent freshwater rinsing can be just as important as the core.

Ask for test documentation on the offered construction—not a generic coating brochure—and check whether the test covers bends, headers, edges, and production joints.

A Five-Step B2B Selection Method

1. Define the design duty. State heat rejection, design ambient, condensing temperature, subcooling, refrigerant, airflow, pressure-drop limits, power supply, sound limit, and available envelope.

2. Classify the site. Record salt, dust, fibers, process chemicals, humidity, elevation, cleaning-water quality, and safe maintenance access.

3. Request two comparable selections. Where practical, ask the supplier to model both microchannel and fin-and-tube at the same boundary conditions.

4. Compare system effects. Review charge, fan power, compressor impact, controls, weight, coating, cleaning, repair, warranty, and replacement lead time.

5. Validate before volume purchase. Approve drawings, material specifications, performance data, pressure and leak-test requirements, coating documentation, and a sample or prototype test plan.

What to Include in Your Condenser Coil RFQ

Send the following information to shorten the selection cycle and receive quotations that can actually be compared:

How Aidear Supports Coil Selection

Aidear supplies both microchannel heat exchangers and tube-fin heat exchangers. This allows the engineering discussion to begin with the application rather than forcing every project into one coil architecture.

For a useful technical review, send Aidear your refrigerant, heat-rejection duty, air conditions, allowable pressure drops, dimensional limits, site contaminants, coating requirement, and target quantity. The project team can then discuss material, circuiting, dimensions, and manufacturability before quotation and sample confirmation.

Avoid sending only a photograph or overall dimensions when replacing an existing coil. Nameplate data, connection locations, tube or channel layout, airflow direction, operating conditions, and clear dimensional drawings materially improve selection accuracy.

Frequently Asked Questions

Is the microchannel finned tube more efficient than the fin tube type finned tube?

Under the same operating conditions and design specifications, they may have the same performance, especially due to their compact geometry which can reduce the air-side pressure drop and refrigerant charge. However, efficiency is the result of the system as a whole, rather than an inherent characteristic of the fin tube type. Please compare the suppliers' product selections under the same ambient temperature, condensing pressure, airflow, pressure drop and fouling conditions.

Do microchannel condenser finned tubes always use less refrigerant?

They usually have a smaller internal volume than similar traditional finned tubes, but the actual refrigerant savings of the system depend on the selected finned tube, accumulator, piping, control system and operating load. Please provide the weight of the finned tubes (in kilograms) and the total refrigerant volume of the entire system, rather than relying on a general percentage.

Which finned tube is more suitable for outdoor use?

There is no unified ranking of service life. Factors such as alloy material, wall thickness, joints, coatings, contaminants, drainage method, vibration, cleaning chemicals and maintenance frequency all affect the service life. Please obtain detailed technical documents related to the specific product structure and exposure environment.

Are microchannel finned tubes suitable for HVAC equipment in coastal areas?

Even so, severe coastal areas usually require a proper protection system and maintenance plan. Please confirm the coating coverage of the fins, tubes, header, edges and joints; freshwater flushing requirements; re-coating procedures; and relevant corrosion test evidence.

Which coil is easier to clean?

Microchannel coils have a relatively shallow internal volume, providing a shorter cleaning path. The fins and tube type coils are more familiar to technicians and can use larger fin spacing in dirty air environments. However, if the maintenance conditions are poor, both types may be difficult to maintain. Be sure to follow the pressure and chemical restrictions specified by the equipment manufacturer.

Can microchannel coils be repaired on-site?

Some limited flat tube damages can be repaired using approved materials and processes by the manufacturer. While header pipes, joints, difficult-to-reach or large-scale corrosion damage may require replacing the entire coil. Before purchasing, please confirm the repairable locations and warranty terms.

Are fins and tube type coils always more suitable for industrial sites?

No. The flexibility of the material, wide fin spacing options and familiar maintenance characteristics are important, but when charge, size or weight dominate, an optimized microchannel design may still have an advantage. The final decision should include the type of contaminants, maintenance capabilities, downtime costs and supplier's design.

What are the most important data to compare when quoting?

Use the same heat dissipation load, design ambient temperature, condensing temperature, refrigerant, airflow, allowable pressure drop, fouling benchmark and corrosion exposure conditions. Then compare charge, fan power, size, weight, coating, service plan, warranty period and replacement cycle.

Final Verdict

For outdoor condensers, when low charge, compactness and weight are the main limiting factors, microchannels are usually the better choice. However, when material selection, dirt resistance, routine on-site maintenance and customization requirements are more important, finned tube structures usually have more advantages.

The best heat exchanger is not the one with the most general advantages, but the one whose performance, coating, maintenance method and service plan match your usage task and on-site conditions, and is fully recorded in the selection of the supplier.

Planning a new condenser or replacing an existing heat exchanger? Please provide Aidear with your design task, refrigerant type, environmental conditions, airflow situation, size limitations, on-site exposure conditions and drawings. Before production, a comparative analysis of the microchannel and finned tube options for specific projects can be requested.
