How to Select a Dry Cooler for Hot and Dusty Climates: An EPC Guide

Selecting a dry cooler for Dubai, Riyadh, Doha or another hot and dusty location is not simply a matter of adding a safety percentage to a catalogue capacity. Extreme dry-bulb temperature reduces the available temperature difference for heat transfer, while airborne sand and dust gradually increase air-side resistance. If both effects are ignored, a unit that looks adequate on the selection sheet may miss the required leaving-fluid temperature during the hours when cooling is most critical.

This guide explains how EPC contractors and industrial buyers should select a dry cooler for desert service. It covers the thermal design point, dust-resistant coil design, fans and motors, corrosion protection, layout, controls, maintenance and the information that should appear in a supplier's technical submittal.

Quick Answer: What Should You Specify?

For a hot and dusty climate, select the dry cooler at the project's peak design dry-bulb tem

perature—not the annual average—and confirm that the required leaving-fluid temperature is thermodynamically feasible. Then specify an air-side design that balances heat-transfer area with resistance to fouling: an appropriate fin pitch, manageable coil depth, robust fins, accessible coil faces and a documented cleaning method.

The selection should also include:

• Fan performance corrected for site temperature and altitude;

• Motors and electrical enclosures rated for the actual ambient and dust exposure;

• Capacity control and fan redundancy appropriate to process criticality;

• Materials and coatings matched to sand, industrial contaminants and any coastal salt exposure;

• Layout clearances that prevent hot-air recirculation;

• Clean and dirty operating criteria, or at least a defined inspection and cleaning trigger;

• Guaranteed capacity, fluid pressure drop, absorbed fan power and sound data at the stated design point.

If the target leaving-fluid temperature is at or below the entering-air dry-bulb temperature, a conventional dry cooler cannot meet it. The project must raise the fluid temperature, accept reduced peak-day capacity, add mechanical refrigeration, or consider adiabatic pre-cooling.

Why Dry Cooler Selection Is Harder in Desert Conditions

The standard dry cooling system rejects sensible heat from a closed fluid circuit to ambient air—offering key advantages in water-scarce regions: the process loop remains sealed, no evaporative water is consumed during normal dry operation, and water treatment demands are far lower than for open cooling towers.

However, its performance is limited by dry-bulb temperature: conventional dry coolers cannot cool the process fluid below intake air temperature. Industry guidelines further require the dry-bulb temperature to be substantially lower than the fluid temperature; thus, hot weather raises fluid temperature, increasing energy use and footprint.

Dust forms a second constraint. Accumulation on fin surfaces reduces effective heat-transfer area, increases air-side pressure drop, and lowers airflow velocity—degrading heat rejection capacity and potentially forcing fans to run at higher power or full speed. Contamination severity varies widely with dust type (e.g., fine desert dust, fibrous debris, oily industrial particles, or salt-laden coastal dust), so “dusty sites” do not constitute a single, uniform design condition.

The correct selection must solve the thermal and fouling problems together.

Step 1: Establish the Real Design Conditions

Use the Project Design Dry-Bulb Temperature

Start with approved climatic design data for the exact location and the project's required exceedance criterion. Do not size the unit at the annual average temperature, a nearby city's marketing weather data or an arbitrary “Middle East” value.

The owner or consultant should define:

• Site location and elevation above sea level;

• Summer design dry-bulb and coincident wet-bulb temperatures;

• Required capacity at that design point;

• Whether duty must be maintained during a more extreme emergency temperature;

• Maximum allowed temporary reduction in capacity, if any;

• Daily and seasonal load profile.

The design dry-bulb is used for normal dry-cooler sizing. Coincident wet-bulb becomes relevant when adiabatic assistance is being evaluated. Hourly weather data can also support lifecycle analysis because a unit optimized only for the single peak point may use unnecessary fan energy during most of the year.

Account for Altitude, Wind and Air Recirculation

Air density drops at high altitudes, so fans and coils must be selected with altitude corrections—sea-level catalog data cannot be used directly.

Coil inlet air temperature may exceed ambient due to recirculation (e.g., from dense equipment, enclosures, or overhead obstructions) or local heat sources (e.g., solar-heated roofs or nearby exhausts). Key influencing factors include unit spacing, prevailing wind direction, and altitude.

Where recirculation or local heat sources exist, require the supplier to rate equipment based on the expected “coil inlet temperature”—not weather station readings.

Step 2: Check Thermal Feasibility Before Selecting a Model

Understand Approach Temperature

For a dry cooler, the air-side approach is commonly expressed as:

Approach = leaving fluid temperature − entering air dry-bulb temperature

A smaller approach means a smaller thermal driving force. Achieving it usually requires more coil surface, more airflow, or both. That increases footprint, fan power and cost, and it can make the unit more sensitive to fouling. Industry guidance commonly discusses dry-cooling approaches in the approximate 6–10 K range, while noting that closer approaches are possible only in certain applications and with suitable equipment. This is a planning reference, not a universal design guarantee.

For dusty desert service, the engineer should be cautious about selecting an extremely close approach with no allowance for coil fouling or air recirculation. The “best” approach is the one that balances process temperature, equipment size, fan energy, dust tolerance and peak-day risk.

Calculate the Required Heat Rejection

For a single-phase liquid loop, the basic heat-load check is:

Q = ṁ × cp × (Tin − Tout)

where:

• Q is heat rejection duty;

• ṁ is mass flow rate;

• cp is the fluid's specific heat at the relevant concentration and temperature;

• Tin and Tout are the fluid inlet and outlet temperatures.

Do not calculate a glycol system as if it contained pure water. Glycol concentration changes specific heat, density, viscosity, heat transfer and pressure drop. The supplier should use the actual fluid formulation and concentration in its selection software.

The required heat rejection may also be higher than the nominal process load. Pump heat, compressor heat, electrical losses or another upstream heat source may need to be included depending on the system boundary. State clearly what the quoted kilowatts include.

Worked Example at 50°C Ambient

Consider an industrial loop requiring 500 kW of heat rejection, with fluid entering the dry cooler at 65°C and leaving at 55°C. If the coil entering air is 50°C, the leaving-fluid approach is:

55°C − 50°C = 5 K

This is thermodynamically possible, but it is a demanding selection. The supplier may need a large coil, high airflow or multiple modules, and the design will have limited tolerance for dust fouling or recirculation. The EPC should request performance at both the clean condition and a defined degraded-airflow condition.

Now change the required leaving-fluid temperature to 48°C while keeping entering air at 50°C. A standard dry cooler cannot deliver that condition because the target fluid temperature is below the entering-air dry bulb. Increasing fan quantity or coil area does not remove this physical limitation.

The project would need to do one or more of the following:

• Raise the acceptable loop temperature;

• Use a chiller or another lower-temperature heat sink;

• Add adiabatic pre-cooling and verify coincident wet-bulb conditions and water quality;

• Allow load shedding or reduced capacity during peak hours;

• Store thermal capacity for short extreme-temperature periods.

This feasibility check should happen before manufacturers spend time optimizing a model.

Step 3: Design the Coil for Dust, Cleaning and Corrosion

Select Fin Spacing and Face Velocity Together

Tightly spaced fins provide more heat-transfer area in a compact coil, but narrow passages can foul quickly. Wider spacing improves tolerance to coarse particles and makes cleaning easier, although it may require a larger coil or different geometry to provide the same duty.

There is no single “desert fin spacing” that is correct for every site. A refinery near the coast, a cement plant and a remote solar project present different contaminants. Instead of copying one fins-per-inch value, ask bidders to explain:

• Proposed fin pitch and why it suits the stated dust;

• Clean-coil face velocity and airflow;

• Expected air-side pressure drop;

• Effect of a partially fouled or restricted coil on capacity;

• Minimum fin thickness and resistance to handling or cleaning damage;

• Cleaning access from both the entering and leaving sides.

Face velocity matters because air volume, coil area and dust behavior are connected. An oversized face area can reduce velocity and pressure drop, but the final choice should be validated using the manufacturer's coil and fan data rather than a standalone rule of thumb.

Avoid an Unnecessarily Deep Coil

Adding tube rows boosts surface area, but deep coils are hard to clean—dust lingers in deep fin passages even when surfaces look clean. For heavily contaminated applications, larger frontal areas, segmented/split coils, or inter-coil channels outperform compact deep coils long-term.

Ask whether the enclosure allows panel removal without disassembling pipes, fan discs, or adjacent modules. If efficient coils can’t be safely inspected or cleaned, they’re not ideal.

Treat Filters as an Engineered System, Not a Free Upgrade

Inlet screens or filters can intercept debris, but they also add pressure drop and can clog faster than the coil. A fine filter placed in an exposed desert airstream may require frequent attention and could starve the unit of airflow if maintenance is delayed.

If filtration is proposed, the submittal should show:

• Clean and final pressure drop;

• Fan operating point with the filter installed;

• Alarm or inspection trigger;

• Access and safe replacement method;

• Bypass risk during high wind or dust storms;

• Availability and cost of replacement media.

For many sites, an accessible, appropriately spaced coil with a disciplined cleaning plan may be more reliable than high-efficiency filtration. The right answer depends on dust characteristics and maintenance capability.

Match Materials and Coatings to the Actual Exposure

Dry sand abrasion and coastal salt corrosion are different failure mechanisms. Industrial sulfur compounds, fertilizer dust and cleaning chemicals introduce still other risks.

Specify tube, fin, header, casing, fastener and coating materials separately. Do not accept the phrase “anti-corrosion coating” without a named system, preparation method, thickness or relevant test evidence. Also ask the supplier to account for any thermal-performance penalty caused by a coating.

For coastal desert projects, corrosion resistance may be as important as dust tolerance. For inland dry sites, cleanability, fin robustness and abrasion may dominate. Stainless-steel casing or fasteners may improve durability in some locations, but material compatibility and galvanic couples still require review.

Step 4: Select Fans, Motors and Controls for Extreme Heat

Verify Fan Performance at Site Conditions

Fans must overcome the resistance of the coil, guards, optional screens and the installation itself. The operating point is the intersection of the fan curve and system resistance—not simply the fan's free-air volume.

Require the supplier to state:

• Airflow and external/static resistance at the design point;

• Absorbed electrical power, not only motor nameplate power;

• Fan speed and reserve margin;

• Correction for air density at design temperature and altitude;

• Maximum permitted motor and electronics ambient temperature;

• Sound power data at full and reduced speed;

• Performance with all fans running and with one fan unavailable, if redundancy is required.

High ambient temperature can reduce the allowable output or service life of motors, variable-frequency drives and EC fan electronics. Do not assume that a motor described as “outdoor” is automatically suitable for 50°C or higher ambient operation. Ask for the component manufacturer's temperature limits and any derating.

Specify Dust and Water Ingress Protection

The IP code defined by IEC 60529 classifies enclosure protection against dust and liquids . The project specification should state the required protection for motors, terminal boxes, isolators, control panels and sensors based on actual exposure and cleaning method.

An IP rating alone does not establish high-temperature capability, corrosion resistance, UV resistance or suitability for hazardous areas. Those requirements must be specified and verified separately.

Choose Capacity Control for Peak and Part Load

A desert unit may be sized for a few extreme hours but operate at lower ambient temperatures for much of the year. Fan staging, EC speed control or variable-frequency control can reduce fan energy and stabilize leaving-fluid temperature at part load.

For critical industrial service, consider:

• Independent fan isolation so one fan can be serviced without stopping the entire cooler;

• N+1 modules or fans where process continuity justifies the cost;

• Automatic speed control from leaving-fluid temperature;

• High-temperature override and alarm logic;

• Rotation of lead fans to balance running hours;

• BMS or plant-control communication requirements.

Instrumentation Worth Specifying

Useful monitoring points include entering and leaving fluid temperature, ambient or coil-entering air temperature, fluid pressure or differential pressure, fan status, motor current and vibration alarm where justified. A differential-pressure measurement across the air path can also help identify progressive fouling, provided the sensing arrangement is suitable for outdoor dust.

Trending is more valuable than a single alarm. Rising fan speed or power at the same load, combined with worsening approach, can indicate a dirty coil before the process temperature limit is exceeded.

Step 5: Choose the Configuration and Site Layout

Dry coolers are commonly arranged as horizontal/table units, vertical units or V-bank units. V-bank units can provide a large coil area per unit footprint, while horizontal units may offer straightforward upward discharge and particular maintenance advantages. The best configuration depends on available area, structural loading, crane access, wind, recirculation risk and cleaning access—not appearance alone.

Step 6: Decide Whether Pure Dry Cooling Is Enough

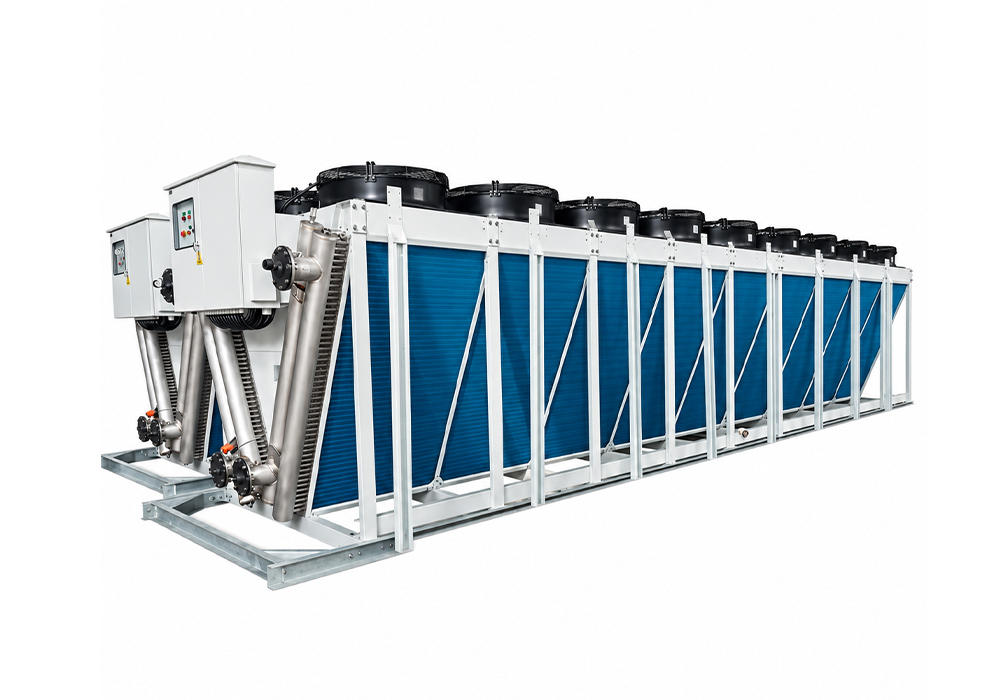

A standard dry cooler is usually attractive when water use must be minimized and the required leaving-fluid temperature remains sufficiently above peak dry bulb. It also avoids routine evaporative water use and the associated water-treatment system.

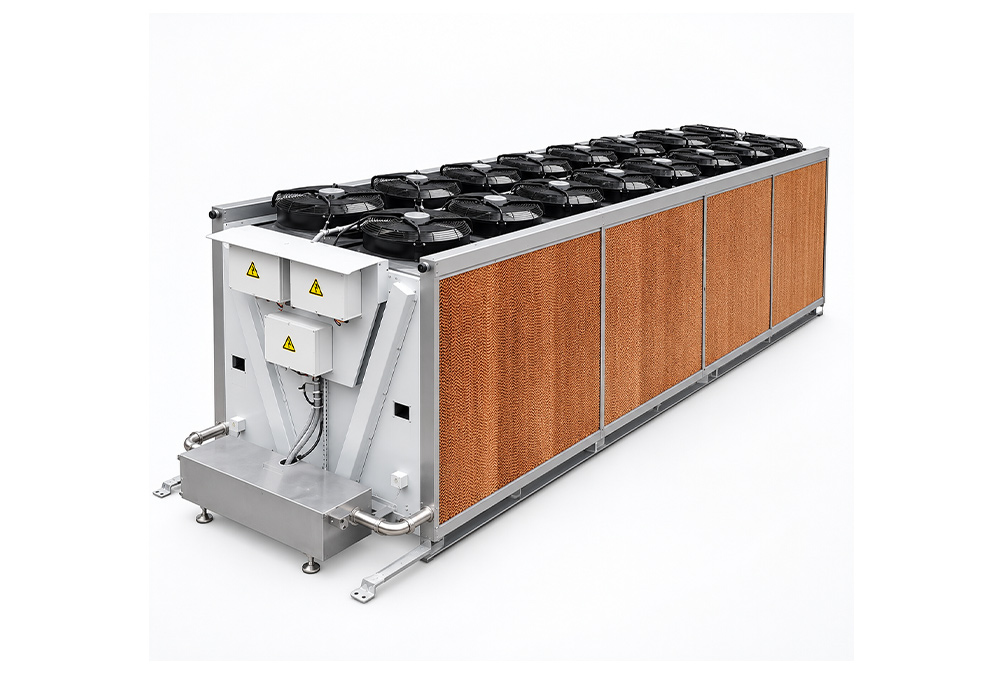

Adiabatic assistance becomes worth evaluating when the dry-bulb approach is too tight during a limited number of peak hours. In an adiabatic unit, water pre-cools the inlet air, allowing performance to move toward wet-bulb conditions. A standard dry cooler cannot deliver fluid below entering-air dry bulb, while an adiabatic system may do so when psychrometric conditions and equipment effectiveness permit.

For Middle East projects, “hot and dry” can favor adiabatic pre-cooling thermodynamically, but water availability, water quality, scaling, drift or aerosol risk, maintenance capability and local requirements must be reviewed. Pad systems and direct spray systems should not be treated as identical. The EPC should request annual water consumption, peak water demand, control sequence and maintenance requirements for the proposed design.

Step 7: Design the Maintenance Plan Before Purchase

Dust loading is inevitable; accessibility determines whether it becomes a controlled maintenance task or an operational failure.

The design should provide:

• Safe access to both faces of every coil;

• Removable guards and panels;

• Space for vacuuming, brushing or low-pressure cleaning;

• Drainage and protection of electrical equipment when wet cleaning is allowed;

• Isolation of individual fans or modules;

• A method for inspecting the middle of deep coil banks;

• Baseline commissioning records for temperature, airflow proxy, pressure drop and fan current.

Coils require regular cleaning to maintain heat transfer, and excessive cleaning pressure can damage delicate fins. Manufacturer guidance commonly recommends removing loose debris first and cleaning against the normal airflow direction; the exact method and chemical compatibility must follow the equipment supplier's instructions.

EPC Technical Submittal Review Checklist

Before approving a dry cooler, verify that the supplier's selection sheet and drawings include all of the following.

Thermal Performance

• Guaranteed net heat rejection at stated fluid inlet/outlet temperatures;

• Fluid type, concentration and property basis;

• Fluid flow rate and pressure drop;

• Coil entering-air dry-bulb temperature;

• Altitude correction;

• Leaving-fluid approach;

• Capacity at the emergency ambient condition, if required;

• Performance with one fan or one module out of service;

• Any fouling, airflow or recirculation allowance.

Coil and Mechanical Construction

• Tube, fin, header, casing and fastener materials;

• Fin pitch, fin thickness, coil rows and face area;

• Coil design pressure, test pressure and applicable test procedure;

• Coating system and supporting test documentation where specified;

• Dry and operating weights, dimensions and center of gravity;

• Lifting points, support reactions and wind/seismic design inputs;

• Access panels, guards, drainage and cleaning clearances.

Fans, Electrical and Controls

• Fan manufacturer/model, quantity, diameter, speed and operating point;

• Motor or EC fan maximum ambient rating and derating statement;

• Absorbed power at design and part-load points;

• Voltage, phase, frequency and permitted variation;

• IP ratings for exposed components;

• Control philosophy, sensors, alarms and communication protocol;

• Sound power level and stated test/rating basis.

Documentation and Quality

• Dimensioned general arrangement drawing;

• Wiring and control diagrams;

• Fluid connection details;

• Inspection and test plan;

• Pressure/leak test records required by the purchase order;

• Installation, operation and maintenance manual;

• Recommended spare-parts list;

• Defined performance guarantees, tolerances and exclusions.

RFQ Data Checklist for Faster, More Accurate Selection

Send bidders complete design data instead of asking only for a “500 kW dry cooler.” At minimum, include:

1. Application and process description;

2. Required heat rejection in kW at normal and peak load;

3. Fluid name, glycol type and concentration;

4. Fluid inlet and required outlet temperatures;

5. Flow rate, or enough data to calculate it;

6. Maximum acceptable fluid pressure drop;

7. Site city, country and elevation;

8. Design dry-bulb and coincident wet-bulb temperatures;

9. Emergency ambient condition and required capacity at that point;

10. Dust source, severity, particle information and seasonal pattern;

11. Coastal salt or industrial chemical exposure;

12. Available footprint, height and weight limits;

13. Unit arrangement and airflow restrictions;

14. Power supply and control/BMS requirements;

15. Sound limit and measurement location;

16. Redundancy requirement;

17. Material, coating, IP and hazardous-area requirements;

18. Available cleaning method and maintenance interval;

19. Water availability and quality if adiabatic assistance is allowed;

20. Required codes, inspections, tests and documentation.

Common Dry Cooler Selection Mistakes

Using Average Temperature Instead of Design Temperature

An average condition may be useful for annual energy analysis, but it does not demonstrate peak-day capacity. Always show both peak-point performance and part-load energy behavior.

Assuming More Fans Can Overcome an Impossible Temperature Target

More airflow can reduce approach, but a pure dry cooler cannot produce leaving fluid below entering-air dry bulb. Perform the feasibility check first.

Selecting the Densest Coil for the Smallest Footprint

A compact, high-fin-density coil may perform well when clean and become difficult to maintain after dust loading. Evaluate lifecycle capacity, not only initial catalogue capacity.

Adding a Fine Filter Without Fan Recalculation

Filters add resistance and their pressure drop rises as they collect dust. The fan curve, alarm threshold and replacement access must be included in the design.

Treating All Coatings as Equivalent

Coatings differ in corrosion resistance, adhesion, thermal penalty, abrasion resistance and repairability. Match the coating to identified contaminants and require supporting documentation.

Ignoring Hot-Air Recirculation

A correctly selected unit can still underperform if discharge air returns to its inlet. Coordinate equipment spacing and airflow paths with architectural, civil and structural layouts.

Approving Only Nominal Motor Power

The EPC needs absorbed power at the selected operating point, motor/electronics temperature limits and performance after altitude and temperature corrections.

Frequently Asked Questions

Can a dry cooler operate at 50°C ambient temperature?

Yes, if its fans, motors, electronics, materials and thermal selection are rated for that condition and the required leaving-fluid temperature remains above the actual entering-air dry bulb. “Operates at 50°C” is not the same as “delivers full nominal capacity at 50°C,” so require a selection sheet at the exact duty.

What is a suitable approach temperature for a desert dry cooler?

There is no universal number. A small approach increases coil area, airflow, energy use and sensitivity to fouling. Published industry guidance often uses approximately 6–10 K as a planning range for dry cooling, but the final value must be selected from process requirements and verified for the specific unit, site and dust allowance.

What fin spacing is best for dusty conditions?

The fin pitch should reflect particle type, fouling rate, cleaning method, available footprint and required duty. Wider spacing is generally more tolerant of dust than a tightly packed coil, but prescribing one value without site data can lead to an oversized or still-unmaintainable design. Ask the manufacturer to justify fin pitch and show how the coil will be cleaned.

Should an inlet filter be installed?

Only after evaluating its clean and dirty pressure drop, maintenance interval and effect on the fan operating point. A filter that is not serviced can reduce airflow more severely than the coil it protects.

Are EC fans always better in very hot climates?

EC fans can provide efficient speed control and useful monitoring, but their electronics must be rated for the actual high ambient and discharge-air temperature. In some projects, AC motors with VFD control or staged fans may better match local service capabilities. Compare efficiency, temperature rating, redundancy, spare availability and lifecycle cost.

Is a protective coating necessary in the desert?

Not always for the same reason. Dry inland sand may make abrasion and cleaning durability the main concerns, while coastal Middle East sites can combine sand with chloride exposure. Industrial sites may contain more aggressive chemicals. Select the coating from an environmental assessment rather than from the word “desert” alone.

When should adiabatic pre-cooling be considered?

Consider it when the peak dry-bulb approach is too small for an economical pure-dry selection and coincident wet-bulb conditions provide useful pre-cooling potential. Confirm water supply, quality, treatment, annual consumption, controls and maintenance before approval.

What should be guaranteed in the purchase order?

At minimum, state heat rejection, leaving-fluid temperature, flow and pressure drop, entering-air condition, altitude, absorbed power, sound, materials and agreed redundancy at the named design point. Also define required tests, tolerances and remedies for non-compliance.

Final Recommendation

The best dry cooler for a hot and dusty climate is not necessarily the unit with the highest nominal capacity or the smallest footprint. It is the unit that can maintain the required duty at the real coil-entering temperature, tolerate predictable dust loading, be cleaned safely and provide verifiable performance without excessive fan energy.

Use four gates before approval: confirm thermal feasibility, design the air side for dust, verify site reliability and demand a complete technical submittal. If any gate fails, revise the loop temperature, equipment size, redundancy or cooling method before issuing the purchase order.

Explore Aidear dry cooler options, including standard and adiabatic configurations. For a project-specific selection, contact the Aidear team with your heat load, fluid temperatures and flow, site design conditions, dust information, layout drawing and electrical requirements.
