Why Approach Temperature Matters in Plate Heat Exchanger Design

Introduction

In industrial cooling, HVAC, refrigeration, and heat recovery systems, selecting a plate heat exchanger involves more than determining its heat transfer capacity. One of the most important design parameters is approach temperature, which influences how closely the outlet temperature of one fluid can approach the inlet temperature of the other.

A smaller approach temperature can improve heat recovery, support more precise temperature control, and reduce the demand for additional heating or cooling. However, achieving a closer temperature approach may require greater heat transfer area, different plate configurations, and careful consideration of pressure drop.

For engineers and industrial buyers, understanding approach temperature is essential when evaluating thermal performance, equipment sizing, operating costs, and long-term reliability.

This guide explains how approach temperature affects plate heat exchanger design, how it relates to the log mean temperature difference (LMTD), and what factors should be considered before selecting a suitable configuration.

1. What Is Approach Temperature in a Plate Heat Exchanger?

Approach temperature describes the temperature difference between two fluid streams at a particular end of a heat exchanger.

In a typical liquid-to-liquid cooling application, it is often expressed as the difference between the hot fluid outlet temperature and the cold fluid inlet temperature.

Cold-end approach temperature = Hot fluid outlet temperature − Cold fluid inlet temperature

For example, if a process fluid leaves a plate heat exchanger at 35°C while the cooling water enters at 30°C, the cold-end approach temperature is:

35°C − 30°C = 5°C (5 K)

This indicates that the process fluid exits 5°C above the incoming cooling water temperature.

A smaller difference generally indicates a closer thermal approach under comparable operating conditions. However, it does not independently determine the exchanger's heat transfer capacity or overall efficiency.

1.1 Understanding Cold-End and Hot-End Temperature Differences

In a countercurrent plate heat exchanger, hot and cold fluids move in opposite directions through adjacent channels.

Two terminal temperature differences are important:

• Cold-end temperature difference: Hot fluid outlet temperature minus cold fluid inlet temperature.

• Hot-end temperature difference: Hot fluid inlet temperature minus cold fluid outlet temperature.

For a simple single-phase countercurrent heat exchanger with approximately constant fluid heat capacities, the smaller of these two differences represents the minimum terminal temperature approach.

In more complex applications involving phase change or significantly varying fluid properties, the minimum temperature difference may occur inside the exchanger rather than at an end.

1.1.1 How Countercurrent Flow Supports a Close Temperature Approach

Counter-current flow can maintain a temperature driving force between the two fluids along the heat transfer surface.

Under comparable operating conditions, this configuration typically achieves a higher heat recovery rate than co-current flow and can achieve a closer temperature difference.

Corrugated plates also promote mixing within the fluid channels, which can increase the heat transfer coefficient when the geometry and operating conditions are appropriately selected.

1.1.1.1 Why Both Terminal Temperatures Must Be Checked

If only the temperature difference at one end is evaluated, an important thermal constraint at the other end may be overlooked.

Both temperature differences must be considered simultaneously to determine whether the specified inlet and outlet temperatures are thermodynamically feasible.

For conventional single-phase counter-current conditions, the temperature differences at both ends must remain positive so that heat can flow from the hot side to the cold side through the heat exchanger.

1.1.1.1.1 An Important Note About Temperature Cross

When the outlet temperature of the cold stream is higher than that of the hot stream, a temperature crossover will occur.

This phenomenon can happen in counter-flow plate heat exchangers and does not violate the principles of thermodynamics.

The hot fluid from one end does not directly exchange heat with the cold fluid from the other end. Local temperature driving forces still need to support the heat transfer process throughout the entire heat exchanger.

Therefore, temperature crossover should be evaluated using the complete temperature distribution curve, rather than just comparing the outlet temperatures.

2. How Approach Temperature Affects Heat Transfer Performance

Temperature changes will affect the available temperature driving force, thereby influencing the required heat transfer area under specific operating conditions.

2.1 Relationship Between Approach Temperature and LMTD

The log mean temperature difference, or LMTD, represents the effective temperature driving force across a heat exchanger.

For an ideal countercurrent arrangement with appropriate single-phase assumptions:

Q = U × A × LMTD

Where:

• Q = Heat transfer rate (W)

• U = Overall heat transfer coefficient (W/m²·K)

• A = Effective heat transfer area (m²)

• LMTD = Log mean temperature difference (K)

The LMTD is calculated as:

LMTD = (ΔT₁ − ΔT₂) / ln(ΔT₁ / ΔT₂)

Where:

ΔT₁ = Hot fluid inlet temperature − Cold fluid outlet temperature

ΔT₂ = Hot fluid outlet temperature − Cold fluid inlet temperature

If ΔT₁ and ΔT₂ are equal, the LMTD equals their common value.

For other flow arrangements, appropriate correction factors or detailed thermal calculations may be necessary.

2.2 Practical Calculation Example

Consider a hypothetical countercurrent plate heat exchanger operating with the following temperatures:

The LMTD is:

LMTD = (30 − 20) / ln(30 / 20)

LMTD ≈ 24.7 K

The minimum terminal approach temperature is 20 K.

Although the cold fluid leaves at 50°C and the hot fluid leaves at 40°C, this temperature cross is physically possible because the fluids move in opposite directions.

The example assumes compatible fluid flow rates and heat capacities that satisfy the energy balance.

2.3 Why a Smaller Approach Can Require More Heat Transfer Area

Rearranging the heat transfer equation gives:

A = Q / (U × LMTD)

For a fixed heat duty and overall heat transfer coefficient, reducing the effective temperature driving force increases the required heat transfer area.

As the required terminal approach becomes very small, additional surface area may deliver progressively smaller temperature improvements.

This relationship explains why a heat exchanger designed for an extremely close approach can become larger or more expensive than a design with a less demanding outlet temperature target.

The actual relationship depends on fluid properties, flow rates, plate geometry, thermal configuration, and fouling allowances.

3. Why Approach Temperature Matters in Plate Heat Exchanger Design

3.1 Heat Exchanger Sizing and Plate Quantity

The plate heat exchanger achieves heat transfer through multiple corrugated metal plates arranged in independent flow channels.

The required surface area depends on the heat load, fluid properties, flow mode, temperature profile, and allowable pressure drop.

When a more compact arrangement is needed, the designer may need to increase the effective heat transfer area or choose a more suitable plate arrangement.

For the gasketed plate heat exchanger, additional plates can be added if the frame capacity and hydraulic design permit.

However, increasing the number of plates is not always the best solution. The fluid distribution, channel flow rate, thermal performance, and pressure drop resulting from this should also be evaluated.

3.2 Pressure Drop and Pumping Energy

The proximity temperature cannot be considered independently of the hydraulic performance.

The plate-like corrugated structure can enhance the heat transfer effect by promoting fluid mixing and turbulence. However, depending on the channel geometry and flow rate, these improvements may also lead to an increase in pressure drop.

An excessively high pressure drop will increase the power requirement of the pump and may affect the hydraulic performance of the entire system.

Designers should therefore balance:

• Required heat transfer capacity

• Target approach temperature

• Maximum allowable pressure drop

• Plate channel geometry

• Fluid velocity and flow distribution

• Pumping energy and operating conditions

A lower approach temperature is valuable only when its system-level benefits justify the required equipment and operating costs.

3.3 Energy Recovery and Operating Costs

In heat recovery applications, the proximity of temperatures directly affects the useful heat that can be recovered from the process flow.

A closer temperature relationship can enable the cold-side process flow to reach a higher outlet temperature, or the hot-side process flow to reach a lower outlet temperature, depending on the operating conditions.

This helps to reduce the additional heating or cooling requirements in other parts of the process.

However, higher heat recovery does not necessarily mean that the total operating cost is lower in all applications.

The economic effect depends on factors such as energy prices, heat exchanger investment, pumping requirements, annual operating hours, and maintenance costs.

3.4 Fouling, Scaling, and Long-Term Reliability

Fouling introduces additional thermal resistance between the fluid and the heat transfer surface.

Deposits such as scale, biological growth, or suspended solids can reduce the overall heat transfer coefficient and alter the operating temperature profile.

Under otherwise comparable conditions, reduced thermal performance may increase the observed approach temperature in a cooling application.

Designers should consider realistic fluid quality, filtration, cleaning requirements, and fouling allowances.

An excessively demanding clean-condition design that does not account for expected fouling may fail to maintain its target temperatures during long-term operation.

4. How Approach Temperature Influences Plate Heat Exchanger Selection

Different thermal requirements lead to different exchanger configurations.

The following table summarizes important selection considerations.

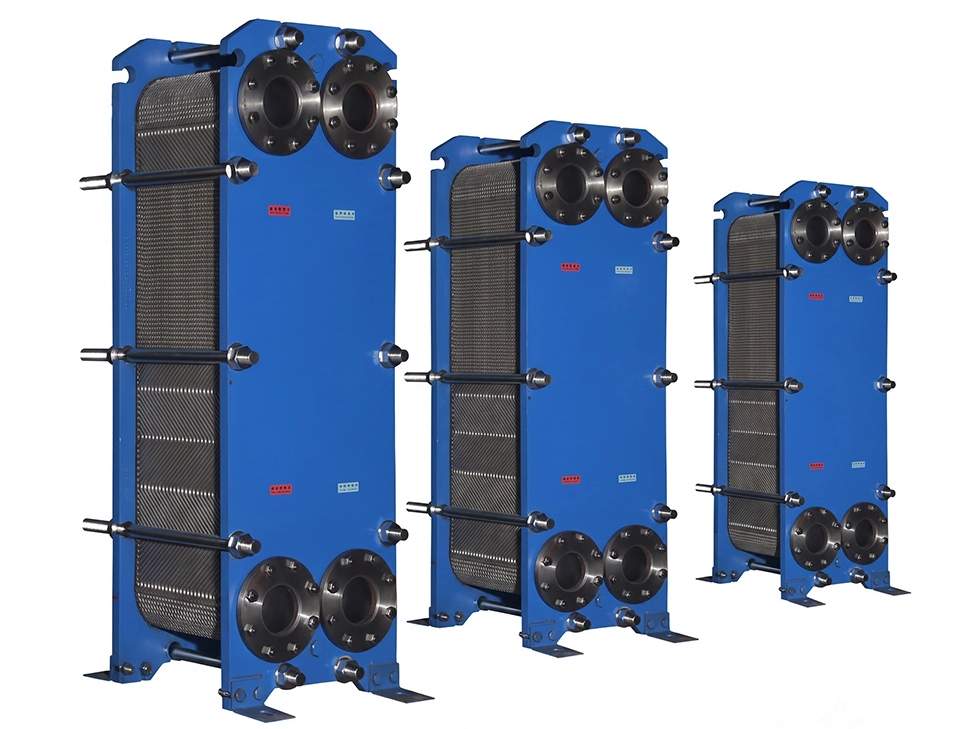

4.1 Gasketed Plate Heat Exchangers

Gasketed plate heat exchangers are commonly considered for industrial liquid-to-liquid heat transfer applications where accessibility and maintenance are important.

Their removable plate arrangements can allow inspection, cleaning, and, within equipment limitations, adjustments to heat transfer surface area.

For projects requiring a close approach temperature, engineers can evaluate plate geometry, channel arrangements, and available plate area to meet the specified thermal duty.

Material compatibility, gasket selection, operating pressure, and service conditions must also be verified.

For additional purchasing considerations, read our gasketed plate heat exchanger buyer's guide.

4.2 Brazed Plate Heat Exchangers

Brazed plate heat exchangers use permanently bonded metal plates to create compact heat transfer channels without removable elastomeric gaskets.

They are commonly used in refrigeration, heat pumps, hydronic systems, and other applications where compact equipment is beneficial.

Their thermal performance depends on plate design, fluid properties, flow configuration, and operating conditions.

Unlike gasketed units, brazed plate heat exchangers cannot generally be opened to add plates or mechanically clean individual channels.

Consequently, required approach temperature, fouling risk, filtration, and cleaning methods should be addressed during initial selection.

To understand the structural differences, see our comparison of brazed and gasketed plate heat exchangers.

4.3 Why There Is No Universal Ideal Approach Temperature

There is no single approach temperature that is optimal for every plate heat exchanger.

An appropriate target depends on the available temperature levels, process requirements, fluid characteristics, heat transfer technology, and project economics.

For example, a heat recovery system operating for thousands of hours annually may justify a closer approach if the recovered energy provides sufficient savings.

A system with limited operating hours or strict pressure drop constraints may benefit from a different design balance.

Rather than specifying the lowest possible temperature difference, engineers should identify the smallest approach that is technically feasible and economically justified for the application.

5. Practical Applications in Industrial Systems

5.1 HVAC and Chilled Water Systems

In HVAC applications, plate heat exchangers are used to transfer heat between separate water circuits, such as building cooling loops and central plant systems.

Approach temperature affects the relationship between the supply and return temperatures of these circuits.

A close approach may help transfer cooling capacity while limiting the additional temperature difference introduced by the heat exchanger.

However, the selected approach must remain compatible with available chilled water temperatures, flow rates, control conditions, and allowable pressure drops.

5.2 Industrial Process Cooling

Industrial production processes often require controlled fluid temperatures to support stable operations.

Plate heat exchangers may be used to cool circulating process water, hydraulic fluids, or other compatible liquids.

The target outlet temperature and available cooling medium temperature establish the thermal requirements.

If the cooling medium enters at a temperature too close to the desired process outlet temperature, achieving that outlet temperature may require more heat transfer area or a change in system conditions.

5.3 Waste Heat Recovery

Heat recovery applications can benefit significantly from countercurrent plate heat exchanger designs.

By transferring heat from a warm process stream to a cooler incoming stream, the exchanger may reduce the demand for external heating or cooling.

A closer temperature approach can increase the amount of useful heat recovered, provided that the temperature profile and heat capacity balance permit it.

The optimum design should be evaluated using both the expected recovered energy and the cost of the additional heat transfer surface.

5.4 Refrigeration and Heat Pump Systems

Plate heat exchangers are also used in refrigeration and heat pump equipment.

For liquid-to-liquid applications, approach temperature is evaluated using the inlet and outlet temperatures of the relevant fluid circuits.

For refrigerant evaporators and condensers, the temperature profile may involve evaporation, condensation, superheating, or subcooling.

In such cases, a simple terminal temperature difference may not adequately represent the minimum thermal driving force.

Detailed thermal calculations should consider refrigerant properties, pressure-dependent saturation temperatures, phase-change regions, and the required pressure drop.

6. Common Design Mistakes to Avoid

6.1 Specifying an Unrealistically Small Approach Temperature

The seemingly small temperature difference seems beneficial as it can lead to better thermal performance.

However, setting overly high targets may result in an excessively large heat transfer area or cause unfavorable operational economy.

The target should be determined based on the actual system requirements rather than following general empirical rules.

6.2 Ignoring Allowable Pressure Drop

Only designing the heat capacity may result in unacceptable hydraulic resistance.

Before finalizing the selection of the equipment, the allowable pressure drops on both the hot and cold sides should be provided simultaneously.

6.3 Using Incomplete Temperature Data

A single temperature difference is not sufficient to accurately determine the size of the heat exchanger.

Engineers need the inlet and outlet temperatures of the fluid, the flow rate, as well as the thermal physical properties to determine the actual heat transfer load and heat driving force.

6.4 Overlooking Part-Load Operation

When the fluid flow rate or inlet temperature changes, the performance of the plate heat exchanger may vary.

Partial load operation will affect the heat transfer coefficient, outlet temperature, pressure drop, and control stability.

Therefore, when selecting the model, representative operating conditions should be considered, rather than being limited to the maximum design load only.

6.5 Neglecting Maintenance and Water Quality

Scaling and deposits can gradually reduce effective thermal performance.

Appropriate filtration, compatible materials, fluid treatment, and maintenance planning help preserve the intended heat transfer performance.

For further guidance, see our article on cleaning and maintaining brazed plate heat exchangers.

7. What Information Should Buyers Provide for Accurate Sizing?

Before requesting a quotation, engineers and procurement teams should prepare the following information:

1. Fluid types: Identify the hot-side and cold-side media, including glycol concentrations or other relevant compositions.

2. Inlet temperatures: State the expected temperatures entering both sides of the heat exchanger.

3. Required outlet temperatures: Specify target process and service fluid temperatures.

4. Flow rates: Provide mass or volumetric flow rates with clearly identified units.

5. Heat transfer duty: Include the required heating or cooling capacity, if known.

6. Allowable pressure drop: Define the maximum acceptable pressure loss on each side.

7. Operating pressure and temperature limits: Provide normal, maximum, and minimum design conditions.

8. Fluid quality and fouling risk: Identify suspended solids, scaling tendencies, and cleaning requirements.

9. Operating profile: Indicate annual operating hours, part-load conditions, and expected fluctuations.

10. Installation requirements: Include connection sizes, available space, material preferences, and maintenance accessibility.

Providing this information allows the supplier to evaluate thermal performance and hydraulic conditions together.

If some outlet temperatures are not yet defined, the project team should identify which values are fixed requirements and which may be optimized during selection.

8. Frequently Asked Questions

Q1. Is a lower approach temperature always better?

No. A lower feed method can support better heat recovery or more precise control of the outlet temperature, but it may require a larger heat transfer area and additional investment.

The best choice depends on the technical feasibility and the overall economic viability of the project.

Q2. Can a plate heat exchanger achieve a 1°C approach temperature?

A very close approach may be technically achievable in suitable applications, but a 1°C approach should never be treated as a universal product capability.

Feasibility depends on fluid properties, temperature profiles, required duty, configuration, available heat transfer area, and allowable pressure drop.

A manufacturer should verify such a requirement through an application-specific thermal calculation.

Q3. What is the difference between approach temperature and LMTD?

The approach temperature describes the specific temperature difference between two fluids, usually occurring at one end of the heat exchanger.

LMTD represents the effective temperature driving force within the heat exchanger when a certain flow pattern is applied.

Both are important, but they describe different aspects of the thermal performance respectively.

Q4. Does increasing the number of plates always reduce approach temperature?

Not necessarily.

Adding suitable heat transfer surface may improve thermal performance under a given set of operating conditions, but the outcome depends on flow distribution, plate geometry, channel velocity, and available temperature driving force.

Increasing plate count without checking the hydraulic and thermal configuration may not produce the desired result.

Q5. How does fouling affect approach temperature?

Fouling increases thermal resistance and can reduce the heat transferred under comparable operating conditions.

In a cooling application, this may cause the process fluid outlet temperature to increase, resulting in a larger measured cold-end approach.

The exact effect depends on the operating conditions and control response of the system.

Q6. What is the most important information when specifying approach temperature?

Clearly identify the fluids, all four inlet and outlet temperatures, flow rates, and allowable pressure drops.

The supplier should also understand whether the target approach is a mandatory process requirement or a value that can be optimized.

9. Conclusion: Design for the Right Approach, Not Simply the Smallest

Approach temperature is a critical parameter in plate heat exchanger design because it connects thermal performance with equipment size, energy recovery, operating costs, and long-term reliability.

A closer approach can provide meaningful benefits, particularly in applications requiring efficient heat recovery or accurate process temperature control. However, selecting the smallest possible temperature difference without considering pressure drop, fouling, and equipment cost may lead to an inefficient overall design.

For engineers and industrial buyers, the most reliable approach is to evaluate the complete thermal and hydraulic requirements before selecting the heat exchanger configuration.

Request a Custom Plate Heat Exchanger Solution from Aidear

Changzhou Aidear Refrigeration Technology Co., Ltd. provides heat exchanger solutions for industrial refrigeration, HVAC, process cooling, and heat recovery applications.

Whether your project requires a gasketed or brazed plate heat exchanger, proper selection begins with accurate operating conditions and a clear understanding of the required thermal performance.

Explore our plate heat exchanger product range or contact Aidear to discuss your application requirements.

Request a Custom Quote — Share your operating conditions to evaluate a suitable plate heat exchanger configuration for your project.
