Dry Cooler Installation Guide: Clearance, Airflow and Recirculation Explained

A dry cooler can be correctly sized for an industrial cooling system and still fail to deliver its expected performance after installation. One of the most common reasons is poor equipment placement.

When a dry cooler is installed too close to walls, surrounded by other equipment, or positioned where hot discharge air returns to the coil inlet, its effective cooling capacity can be reduced. Restricted airflow can also affect fan operation, energy consumption, noise, and maintenance accessibility.

For industrial facilities, data centers, HVAC systems, and energy storage applications, dry cooler installation clearance, airflow management, and hot-air recirculation prevention should be considered during the initial system design.

This guide explains how dry cooler airflow works, what influences installation clearances, how recirculation develops, and how engineers can evaluate different site layouts.

1. Why Proper Dry Cooler Installation Matters

A dry cooler transfers heat from a circulating liquid, usually water or a water-glycol mixture, to the surrounding air.

The fluid flows through a heat exchanger coil, while axial fans move air across its finned surfaces. Heat is transferred from the fluid to the air and discharged into the surrounding environment.

The process depends on three essential conditions:

1. Sufficient airflow through the heat exchanger coil.

2. An adequate temperature difference between the fluid and entering air.

3. An unrestricted path for heated discharge air to leave the installation area.

If any of these conditions is compromised, actual performance may differ from the manufacturer's rated capacity.

For example, a dry cooler installed in an open area may have an unobstructed supply of ambient air. The same model installed between tall building walls could experience greater airflow resistance and increased hot-air recirculation.

1.1 How Poor Installation Affects Performance

Improper installation can contribute to:

• Reduced effective heat rejection capacity.

• Higher leaving-fluid temperatures.

• Increased fan operating time or speed.

• Greater noise and vibration concerns.

• Uneven airflow distribution across the coil.

• More difficult inspection and maintenance.

• Increased risk of process temperature alarms during peak loads.

These problems do not necessarily indicate defective equipment.

In some cases, the dry cooler is operating as designed, but the surrounding installation conditions are different from those assumed in the original selection.

2. Understanding Airflow Through a Dry Cooler

Before determining equipment spacing, engineers should understand the specific airflow arrangement of the selected dry cooler.

2.1 Air Inlet and Air Discharge

A dry cooler has two main air paths.

Air inlet: Outdoor air enters the unit and passes through the heat exchanger coil.

Air discharge: After absorbing heat from the process fluid, the warmer air leaves the equipment.

Depending on the design, air may enter from the sides, below the unit, or through inclined coil faces. Discharge may be upward or in another direction.

The airflow configuration must be confirmed from the manufacturer's technical drawings rather than assumed from the external appearance of the equipment.

2.2 Airflow Differences Between Dry Cooler Configurations

Different dry cooler designs require different installation considerations.

These are common arrangements, not universal specifications.

For example, a horizontal dry cooler requiring air intake beneath its heat exchanger may need adequate supporting-frame height. A V-type unit may require special attention to the spacing between neighboring coil banks.

2.3 Why Unrestricted Airflow Is Important

The fan must overcome the resistance generated by the heat exchanger coils, protective covers, and other components.

Nearby walls, partitions, restrictive enclosures, or improper accessories may cause additional resistance.

If system resistance increases, the fan’s operating point may change.

Depending on the fan’s design and control system, the result may include reduced airflow or increased operating load.

Therefore, the installation design should maintain the intended airflow path, rather than merely providing sufficient physical space for the equipment to meet installation requirements.

3. How Much Clearance Does a Dry Cooler Need?

One of the most frequently asked installation questions is:

How far should a dry cooler be installed from a wall or another cooling unit?

There is no universally applicable minimum clearance for every dry cooler.

The required distance depends on:

• Unit dimensions and airflow arrangement.

• Coil inlet location.

• Fan discharge direction.

• Fan performance characteristics.

• Nearby walls and structural obstructions.

• Number and arrangement of cooling units.

• Support-frame height.

• Maintenance and component-removal requirements.

• Wind exposure and surrounding equipment.

The manufacturer's installation manual and project-specific layout drawing should determine the final spacing.

3.1 Four Important Clearance Zones

When planning an installation, engineers should evaluate four different clearance areas.

These clearances address different requirements.

A layout that provides adequate airflow may still be unsuitable if maintenance personnel cannot access the fan assemblies or clean the coil surfaces.

3.2 Clearance Around Air Inlets

The area supplying air to the coil must remain sufficiently unobstructed.

If the air intake is too close to a solid wall, the available airflow path may be restricted.

A similar problem may also occur when multiple units are positioned facing each other across a narrow maintenance aisle.

The required clearance depends not only on the physical distance from obstacles; the size, height, and layout of nearby structures are also critical.

3.2.1 Evaluate the Complete Inlet Air Path

Engineers should inspect the path of outdoor airflow across the surfaces of each operating coil.

This includes any gaps beneath the unit, openings between adjacent equipment, and passages between the dry cooler and nearby walls.

For Horizontal Dry Coolers

Please confirm whether the selected unit model uses bottom coil air intake or another type of air intake.

If the air intake is located at the bottom of the unit, the height of the support frame and the available opening area must meet the manufacturer’s requirements.

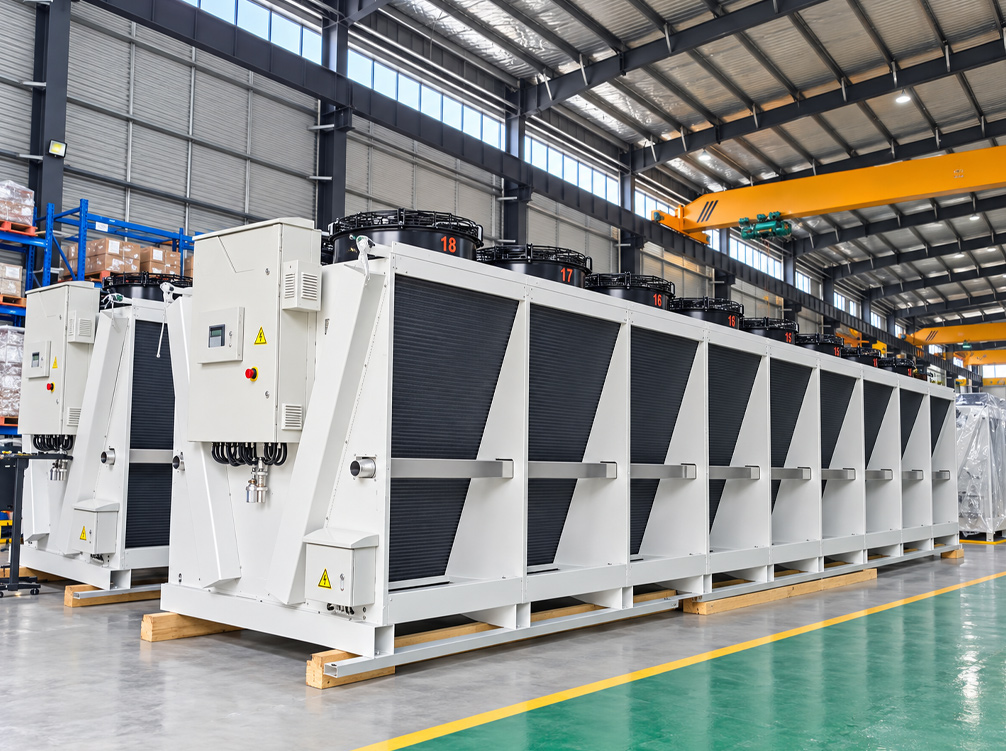

For V-Type Dry Coolers

Both sides of the inclined coil and the gaps between adjacent units should be evaluated simultaneously.

Even if the upward air outlets on each unit are unobstructed, the narrow passage between the opposing intake sides may still limit the shared air supply.

3.3 Clearance Above Air Discharge

Many industrial dry coolers use upward-blowing axial fans.

In such designs, the heated exhaust air must be properly routed away from the equipment.

Roofs, canopies, platforms, or structural beams may obstruct the exhaust airflow.

In partially enclosed installation environments, heated air may also accumulate or be redirected toward the coil inlet.

For projects with overhead obstructions, the manufacturer should review the exhaust layout plan before the layout is approved.

3.4 Maintenance Clearance Is Different From Airflow Clearance

Service access should be evaluated independently.

For example, sufficient space may be required to:

• Clean the finned heat exchanger surfaces.

• Inspect fan motors and guards.

• Remove or replace electrical components.

• Access fluid connections and valves.

• Repair or replace serviceable assemblies.

• Carry out maintenance safely.

A design should not use the minimum possible airflow spacing if that prevents necessary servicing.

The final installation envelope should satisfy both airflow requirements and maintenance access.

4. What Is Hot-Air Recirculation in a Dry Cooler?

Hot-air recirculation occurs when a portion of the heated air discharged from a dry cooler returns to its air inlet instead of dispersing into the surrounding environment.

This phenomenon is sometimes called air short-circuiting.

A simplified airflow sequence is:

Fresh ambient air → Heat exchanger coil → Heated discharge air

Under suitable installation conditions, the heated air moves away from the equipment.

Under unfavorable conditions:

Heated discharge air → Nearby obstruction or airflow interaction → Coil air inlet

The dry cooler then receives air that is warmer than the surrounding ambient air.

4.1 Common Causes of Hot-Air Recirculation

Hot-air recirculation may be encouraged by several installation conditions.

Nearby walls: Building surfaces can alter discharge airflow patterns, particularly under unfavorable wind conditions.

Tall enclosures: High surrounding walls may limit the dispersal of heated air.

Closely spaced cooling units: Air discharged by one unit may reach the inlet of another.

Unfavorable wind: Wind direction and speed can redirect heated air toward the equipment.

Overhead obstructions: Canopies and other structures may prevent upward discharge air from dispersing normally.

Nearby heat sources: Industrial exhausts, generators, and other heat-rejection equipment can increase the temperature of incoming air, even when the mechanism is not recirculation from the dry cooler itself.

4.2 How Recirculation Affects Cooling Capacity

The performance of a dry cooler is closely related to the temperature difference between the circulating fluid and the inlet air.

If the inlet air temperature rises while other operating conditions remain roughly the same, the available temperature difference will decrease.

This may reduce the heat rejection capacity and cause the temperature of the recirculating fluid to rise.

4.2.1 Example: The Effect of Warmer Entering Air

Consider a dry cooler design with the following conditions:

• Outdoor design dry-bulb temperature: 35°C.

• Required leaving-fluid temperature: 40°C.

• Nominal leaving-fluid approach: 5 K.

The approach temperature is defined here as:

Approach Temperature = Leaving Fluid Temperature − Entering Air Temperature

Under the original design condition:

40°C − 35°C = 5 K

Now suppose local hot-air recirculation causes the coil entering-air temperature to rise to 38°C.

If the leaving-fluid requirement remains 40°C, the required approach becomes:

40°C − 38°C = 2 K

The unit must now meet a substantially tighter approach.

This does not mean its capacity has fallen by a fixed percentage. The actual capacity change depends on the coil, airflow, fluid conditions, and fan performance.

However, the example illustrates why even a modest increase in entering-air temperature can create a significant thermal design challenge.

A unit originally selected for a 5 K approach may not be capable of maintaining the same leaving-fluid temperature when its actual entering-air temperature increases.

4.3 How to Identify Hot-Air Recirculation

Possible symptoms include:

• Coil entering-air temperature exceeding the local outdoor-air temperature.

• Higher fluid outlet temperature during particular wind conditions.

• Performance deteriorating when neighboring units are operating.

• Temperature differences between inlet faces or individual fan sections.

• Cooling performance improving when certain neighboring heat sources are switched off.

These symptoms are indicators rather than definitive proof.

For example, high leaving-fluid temperature can also result from insufficient fluid flow, coil fouling, unexpectedly high heat load, or a control problem.

4.4 How to Verify Recirculation

A practical investigation should compare:

1. Outdoor ambient dry-bulb temperature measured away from local heat sources.

2. Air temperature at representative coil inlet locations.

3. Leaving-fluid temperature.

4. Fluid flow rate and process heat load.

5. Fan operating status and speed.

6. Wind direction and speed.

7. Operating status of nearby cooling equipment.

Where measurements are taken across multiple locations, care should be taken to avoid misleading readings caused by direct sunlight or sensor placement.

A consistent increase in coil inlet temperature relative to the local ambient temperature provides useful evidence of hot-air contamination.

For complicated installations, an airflow simulation or specialist site assessment may be needed to determine the cause.

5. Dry Cooler Installation in Different Site Layouts

Installation requirements vary significantly between open industrial sites, rooftops, enclosed yards, and multi-unit cooling installations.

5.1 Rooftop Dry Cooler Installation

Rooftops are often selected because they provide outdoor space and separation from indoor operations.

However, a rooftop should not automatically be considered an unrestricted airflow environment.

Engineers should evaluate:

• Building parapet walls.

• Nearby mechanical equipment.

• Roof-level air intakes and exhaust outlets.

• Structural load capacity.

• Required support height.

• Wind exposure.

• Maintenance access and safe lifting routes.

• Noise transmission into occupied spaces.

A parapet wall can influence both the incoming and outgoing airflow.

For example, a low-mounted unit surrounded by tall parapets may experience different air conditions from a unit located in an open area at the same elevation.

The final arrangement should be reviewed using the actual parapet heights and the selected equipment geometry.

5.2 Installation Near Building Walls

Installing a dry cooler beside a building may appear convenient because piping and electrical connections can be shorter.

However, the wall can influence the airflow available to the unit.

Potential problems include restricted air intake, redirected discharge air, and wind-driven recirculation.

The solution is not always to move the unit a small arbitrary distance farther from the building.

Engineers should consider the relationship between:

• Wall height.

• Equipment height.

• Distance from the wall.

• Position of coil inlets.

• Fan discharge elevation.

• Prevailing and seasonal winds.

Where the layout is highly constrained, the manufacturer should evaluate an alternative arrangement or equipment configuration.

5.3 Multiple Dry Coolers Installed Side by Side

Large-scale refrigeration systems typically require multiple dry coolers to operate in tandem.

This may be essential for data center cooling, industrial manufacturing, or high-capacity process cooling.

When multiple units are operating simultaneously, the available airflow becomes a design factor that must be considered collectively.

5.3.1 Unit Spacing and Shared Inlet Areas

If the intake vents of adjacent units face the same narrow passageway, these units may compete for air.

Therefore, the layout of the entire system should be reviewed as a whole, rather than treating individual units as independent entities.

5.3.2 Avoiding Interaction Between Discharge Plumes

The exhaust plume from one piece of equipment may affect adjacent equipment, particularly when wall layouts and wind conditions are unfavorable.

Designers should evaluate the placement and orientation of equipment, rather than focusing solely on the center-to-center spacing between units.

5.3.3 Planning for Different Operating Conditions

An installation may perform differently when:

• All fans are operating.

• Only part of the cooling equipment is running.

• Fan speeds differ between adjacent units.

• Wind direction changes.

• A neighboring unit is isolated for maintenance.

A suitable design should consider the expected operating modes, especially for facilities requiring continuous cooling.

5.4 Installation Inside Screened or Partially Enclosed Areas

Architectural partitions and equipment cabinets are sometimes used to reduce visibility or meet on-site design requirements.

However, partitions may affect airflow resistance and air recirculation.

Solid barriers, louvers spaced too closely together, and limited openings may impede adequate airflow to the coils.

Louvered screens should not automatically be considered equivalent to open-air installation.

Their ventilation area, pressure drop, height, distance from the unit, and impact on airflow should be evaluated.

Any barriers or ductwork systems connected to the equipment must also comply with the manufacturer’s approved installation procedures.

6. How to Plan Dry Cooler Airflow Before Installation

A practical layout review should begin before foundation construction and piping installation.

Step 1: Obtain the Manufacturer's Installation Drawings

Request the relevant information for the exact equipment model:

• Overall dimensions.

• Air inlet and discharge direction.

• Minimum installation clearances.

• Required support height.

• Service-access requirements.

• Maintenance and component-removal space.

• Approved equipment orientation.

Do not transfer clearance values from a different model or manufacturer without verification.

Step 2: Prepare a Site Layout Drawing

Show the dry cooler together with surrounding structures.

The drawing should include the equipment footprint, nearby walls, parapets, adjacent cooling units, air intakes, exhaust outlets, and access routes.

Both plan and elevation views are important.

A plan view alone may not reveal that a nearby wall extends above the fan discharge level.

Step 3: Evaluate Local Airflow Conditions

Examine prevailing wind patterns and seasonal conditions.

Pay special attention to locations where wind could push hot air toward nearby buildings or blow it back toward the coil air inlets.

For sites with complex building geometries, consider conducting a project-specific airflow study.

Step 4: Check the Worst Expected Thermal Condition

The manufacturer's nominal performance should be evaluated against the project design conditions.

These include:

• Required heat rejection.

• Entering and leaving fluid temperatures.

• Fluid type and concentration.

• Flow rate.

• Design outdoor-air temperature.

• Site elevation.

• Expected coil entering-air conditions.

If hot-air recirculation is possible, its effect should be assessed rather than assuming that the coil always receives the same temperature as a distant outdoor weather station.

Step 5: Review Maintenance and Structural Requirements

Airflow design is only part of the installation process.

The structure and mounting arrangement must also be suitable for the selected equipment.

Check:

• Operating weight and support loads.

• Anchorage and structural design.

• Wind and applicable seismic requirements.

• Vibration isolation where specified.

• Pipe flexibility and mechanical loading.

• Electrical isolation and maintenance access.

• Safe personnel access.

These requirements should be reviewed by appropriately qualified project personnel.

Step 6: Verify the Final Layout Before Installation

Before approving construction, please compare the final site plans with the equipment layout drawings provided by the manufacturer.

Any changes involving walls, baffles, support heights, or adjacent equipment should be reviewed for their potential impact on airflow.

This is particularly important when modifying the equipment layout late in the project.

7. Common Dry Cooler Installation Mistakes

These issues should be addressed during the engineering and layout stages rather than after installation.

8. Checking Airflow During Commissioning

Once the dry cooler has been installed, commissioning should verify both equipment operation and the surrounding air conditions.

8.1 Inspect the Equipment and Site

Confirm that:

• The unit is mounted in accordance with approved drawings.

• Air inlets and outlets are unobstructed.

• Temporary packaging and construction debris have been removed.

• Fans rotate in the correct direction.

• Electrical and control connections are properly installed.

• Required access space remains available.

8.2 Measure Operating Conditions

Record:

• Local ambient temperature.

• Coil entering-air temperature at representative locations.

• Fluid inlet and outlet temperatures.

• Fluid flow rate.

• Fan status, speed, and power where available.

• Process load and operating conditions.

Where reliable fluid flow and temperature measurements are available, approximate fluid-side heat rejection can be evaluated using:

Q = ṁ × cp × (Tin − Tout)

Where:

• Q = heat rejection rate.

• ṁ = fluid mass flow rate.

• cp = specific heat capacity of the fluid.

• Tin = entering-fluid temperature.

• Tout = leaving-fluid temperature.

The appropriate thermophysical properties should be used for the actual heat transfer fluid.

This calculation provides a useful performance check, but it must be compared with the manufacturer's rating at equivalent operating conditions.

8.3 Review Performance Under Relevant Wind Conditions

A brief commissioning test cannot account for all possible seasonal wind conditions and load conditions.

For critical equipment, it may be necessary to monitor the inlet air temperature, fluid temperature, fan operating conditions, and cooling performance over an extended period.

This helps identify operating conditions that did not arise during the initial acceptance testing.

9. When Should Engineers Consider CFD Analysis?

Computational fluid dynamics, or CFD, can be used to investigate airflow behavior in complicated installation environments.

It may be particularly useful for:

• Rooftops surrounded by high parapets.

• Dense installations with many cooling units.

• Equipment yards with restricted openings.

• Sites with nearby large exhaust systems.

• Projects where wind-driven recirculation is a concern.

• Installations where the available clearance is significantly constrained.

CFD can help estimate airflow distribution, hot-air plume interaction, and changes in coil entering-air temperature.

However, the results depend on boundary conditions, equipment representation, and model assumptions.

CFD should support engineering judgment and manufacturer recommendations rather than replace them.

For an open site with generous space and a standard approved equipment arrangement, detailed simulation may not be necessary.

10. Frequently Asked Questions

How Far Should a Dry Cooler Be From a Wall?

The correct distance depends on the equipment model, inlet arrangement, wall height, airflow requirements, and surrounding layout.

There is no reliable universal distance for all dry coolers.

Use the manufacturer's installation instructions and obtain a project-specific assessment if the site is restricted.

Can a Dry Cooler Be Installed on a Rooftop?

Yes. Rooftop installation is common where the roof structure, mounting arrangement, maintenance access, and airflow conditions are suitable.

Parapets, nearby equipment, building air intakes, wind exposure, and noise requirements should all be considered.

What Happens if a Dry Cooler Is Installed Too Close to Another Unit?

Closely spaced units may experience restricted inlet airflow or interaction between discharge air and neighboring inlets.

The resulting performance impact depends on the installation geometry and operating conditions.

Can Hot-Air Recirculation Reduce Dry Cooler Efficiency?

Yes.

When heated discharge air returns to the inlet, the higher entering-air temperature reduces the available temperature difference for heat rejection.

The dry cooler may then deliver less cooling capacity or a higher leaving-fluid temperature than expected.

Can Increasing Fan Speed Solve a Recirculation Problem?

Not necessarily.

Increasing fan speed may increase airflow under suitable operating conditions, but it does not automatically eliminate the underlying cause of hot-air recirculation.

Fan speed changes may also affect energy consumption and noise.

The installation geometry should be evaluated first.

Is an Architectural Screen Acceptable Around a Dry Cooler?

A screen may be acceptable if the resulting arrangement meets the equipment manufacturer's airflow and access requirements.

Its free area, resistance, height, and distance from the equipment must be considered.

Is CFD Required for Every Dry Cooler Installation?

No.

CFD is most useful for complex or constrained layouts where airflow and thermal interactions cannot be evaluated adequately using standard installation guidance.

11. Working With Aidear on Dry Cooler Installation Planning

Choosing the correct dry cooler involves more than matching a nominal cooling capacity to an industrial application.

The installation environment should be considered alongside the heat exchanger coil, fan arrangement, required fluid temperature, and project operating conditions.

For an Aidear dry cooler project, customers can provide the following information for equipment selection and technical discussion:

• Required cooling capacity.

• Entering and leaving fluid temperatures.

• Fluid type and concentration.

• Installation location and design ambient temperature.

• Available equipment footprint.

• Roof or ground installation arrangement.

• Nearby walls and equipment.

• Available inlet and discharge space.

• Noise restrictions.

• Maintenance-access requirements.

For hot and dusty locations, our article How to Select a Dry Cooler for Hot and Dusty Climates provides additional guidance on environmental conditions and equipment selection.

For projects involving variable-speed fans, see How Fan Speed Control Reduces Dry Cooler Energy Consumption.

Where freezing conditions are possible, the exposed fluid circuit should also be considered. Our Dry Cooler Freeze Protection Guide discusses the related design considerations.

Request a Custom Dry Cooler Quote

Planning an industrial dry cooler installation?

Share your cooling requirements, site layout, and installation restrictions with Aidear. These details can help our technical team evaluate an appropriate equipment configuration and identify issues requiring further engineering review.

Contact Aidear to discuss your project.

12. Conclusion

Successful dry cooler installation requires more than selecting a suitable location for the equipment.

Engineers must consider how air enters the heat exchanger, how heated air leaves the installation area, and whether nearby structures could cause airflow restrictions or recirculation.

The key principles are straightforward:

• Provide sufficient fresh air to the coil inlets.

• Preserve the intended discharge airflow path.

• Follow model-specific installation clearances.

• Consider walls, rooftops, wind, and adjacent equipment.

• Allow adequate space for maintenance.

• Verify site conditions during commissioning.

A properly selected dry cooler can only achieve its intended performance when the installation supports the airflow conditions on which its selection is based.

Plan the airflow first, confirm the clearances, and verify the installation before commissioning.
