How Fan Speed Control Reduces Dry Cooler Energy Consumption

Energy efficiency is a major consideration when selecting industrial cooling equipment. For facilities operating dry coolers continuously, electricity consumption can significantly affect long-term operating costs.

Although dry coolers use ambient air to reject heat without a mechanical refrigeration cycle inside the unit, their fans still require electrical power. Operating these fans at maximum speed regardless of cooling demand can result in unnecessary energy consumption.

Fan speed control offers a practical way to reduce this energy use while maintaining the required fluid temperature.

By adjusting airflow according to actual cooling requirements, variable-speed fan systems can improve part-load efficiency, reduce unnecessary high-speed operation, and provide more precise temperature control.

However, the actual energy savings depend on several factors, including fan characteristics, ambient temperature, cooling load, heat exchanger design, and control strategy.

This article explains how fan speed control works, why it can significantly reduce dry cooler energy consumption, and what engineers should consider when designing an energy-efficient cooling system.

1. Why Does Fan Speed Affect Dry Cooler Energy Consumption?

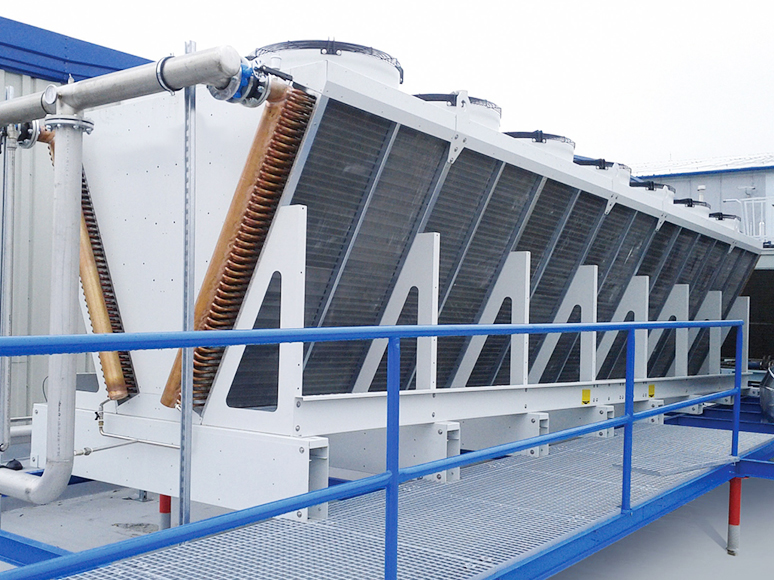

A dry cooler is an air-to-liquid heat exchanger that transfers heat from a circulating fluid to the surrounding air.

The system typically consists of:

• A finned-tube heat exchanger coil

• Axial cooling fans

• Fluid inlet and outlet connections

• A supporting frame and casing

• Electrical equipment and control components

During operation, warm water or a water-glycol mixture enters the heat exchanger. Fans draw or push ambient air across the finned coil, transferring heat from the circulating fluid to the outdoor environment.

1.1 The Relationship Between Airflow and Cooling Capacity

Dry cooler performance is influenced by the interaction between liquid flow, airflow, and temperature difference.

The heat removed from the circulating fluid can be expressed as:

Q = ṁ × Cp × ΔT

Where:

• Q = Heat rejection capacity (kW)

• ṁ = Fluid mass flow rate (kg/s)

• Cp = Specific heat capacity of the fluid (kJ/kg·K)

• ΔT = Fluid inlet-to-outlet temperature difference (K)

Increasing airflow generally improves air-side heat transfer and allows the dry cooler to reject more heat under otherwise similar conditions.

However, increasing airflow also requires additional fan power.

The resulting improvement in thermal capacity is not necessarily proportional to the additional airflow or electrical consumption.

This creates an important design challenge:

How can a dry cooler provide sufficient cooling without operating its fans faster than necessary?

1.2 Why Constant-Speed Fans Can Waste Energy

Traditional fixed-speed fans may operate at a constant rotational speed whenever they are switched on.

Their performance is often selected to satisfy demanding design conditions, such as:

• Maximum outdoor design temperature

• Peak industrial heat load

• Required minimum fluid outlet temperature

• Maximum expected operating conditions

However, the peak operating state does not necessarily represent the majority of the annual operating time.

For instance, a dry cooler may require the maximum airflow during the hot afternoons of summer, while in cooler evenings or periods of lower production, the required airflow can be significantly reduced.

If the fan continues to run at full speed when the cooling demand decreases, it may consume more electricity than is actually necessary.

Variable frequency control addresses this issue by adjusting the fan's operating speed according to the actual system requirements.

2. The Science Behind Fan Speed Control: Fan Affinity Laws

One of the most important engineering principles behind the energy-saving of variable-frequency fans is the fan similarity law.

These relationships describe how the airflow, pressure and shaft power of the fan change with the rotational speed under appropriate similarity conditions.

2.1 Airflow Changes Approximately in Proportion to Fan Speed

For the same fan operating under comparable conditions:

Q₂ / Q₁ = N₂ / N₁

Where:

• Q = Volumetric airflow

• N = Fan rotational speed

• Subscripts 1 and 2 represent two operating conditions

If fan speed decreases from 100% to 80%, the theoretical airflow decreases to approximately 80% of its original value.

2.2 Fan Pressure Changes with the Square of Speed

The second affinity law states:

ΔP₂ / ΔP₁ = (N₂ / N₁)⊃2;

Therefore, reducing fan speed to 80% results in a theoretical pressure ratio of:

0.8⊃2; = 0.64

The fan develops approximately 64% of its original pressure under comparable conditions.

2.3 Fan Shaft Power Changes with the Cube of Speed

The third affinity law is particularly important for energy efficiency:

P₂ / P₁ = (N₂ / N₁)⊃3;

Where:

• P = Fan shaft power

• N = Fan rotational speed

For example, reducing fan speed to 80% gives:

P₂ / P₁ = 0.8⊃3; = 0.512

This means the theoretical fan shaft power decreases to 51.2% of its original value.

The corresponding theoretical reduction is:

100% − 51.2% = 48.8%

In other words, a 20% reduction in fan speed can produce an approximately 48.8% reduction in fan shaft power under the assumptions of the affinity laws.

2.4 Fan Speed vs. Theoretical Power Consumption

Note: These values represent idealized fan affinity-law relationships. They are not guaranteed electrical energy savings for an installed dry cooler.

Actual electrical consumption also depends on:

• Fan and motor efficiency

• Variable-frequency drive losses

• EC motor characteristics

• Fan operating points

• Air resistance through the coil

• Air density and installation conditions

• Minimum operating speed restrictions

Furthermore, reducing fan speed also changes the dry cooler's heat rejection capacity.

Therefore, only when the equipment can still maintain the required cooling performance, reducing the fan speed will be beneficial.

When choosing the equipment, engineers should refer to the performance curves and actual operation data provided by the manufacturer, rather than relying solely on theoretical similarity laws for calculation.

3. How Does Variable Fan Speed Control Work in a Dry Cooler?

The modern dry cooling system control system can continuously adjust the fan speed according to temperature changes and cooling requirements.

A typical control system consists of a temperature sensor, a controller, and compatible variable-frequency fan motor or drive unit.

3.1 Step 1: Monitor the Fluid Outlet Temperature

The temperature sensor is used to measure the fluid temperature at the outlet of the dry cooling system.

This temperature is an important indicator for determining whether the required cooling performance has been achieved.

For example, suppose the design goal of a dry cooling system is to maintain the outlet fluid temperature at 30°C.

If the measured outlet temperature is higher than the set value, the control system may increase the fan speed;

If the outlet temperature is lower than the target value, the fan speed may be reduced.

3.2 Step 2: Compare the Measured Temperature with the Setpoint

The controller will continuously compare the actual fluid temperature with the set temperature.

Many industrial systems employ proportional-integral-differential (PID) or proportional-integral (PI) control methods.

These methods adjust the fan operation status based on the temperature error and its changes over time.

A well-configured control system helps maintain the fluid temperature stable and avoids unnecessary changes in fan speed.

3.3 Step 3: Adjust Fan Speed Automatically

Depending on the system configuration, the controller may communicate with the fan equipment using:

• 0–10 V analog control signals

• PWM control signals

• Compatible industrial communication protocols

• Building management system interfaces

The available control methods depend on the selected fan motor and controller.

For example:

Higher outlet temperature → Increased fan speed → Greater airflow and heat rejection

Lower outlet temperature → Reduced fan speed → Lower fan electricity consumption

The controller must operate within the fan manufacturer's permitted speed and operating limits.

3.4 Step 4: Maintain Stable Cooling Performance

As conditions change, the controller continues adjusting fan operation to maintain the desired fluid temperature.

A well-designed control sequence should also include:

• Minimum and maximum fan speed limits

• Temperature control deadbands

• High-temperature alarms

• Low-temperature protection

• Sensor fault detection

• Appropriate startup and shutdown logic

This allows the system to respond to changing thermal conditions without sacrificing safe operation.

4. How Fan Speed Control Reduces Energy Consumption in Real Operating Conditions

The primary advantage of fan speed control is that it allows cooling output to follow actual operating demand.

Several operating conditions create opportunities for reducing fan power.

4.1 Reduced Cooling Demand During Partial-Load Operation

The industrial cooling load often varies throughout the day.

Factors such as manufacturing processes, production schedules, equipment usage, and facility occupancy rates all affect the amount of heat that needs to be removed.

When the heat load demand decreases, the dry cooler may no longer require the maximum airflow.

Variable frequency control enables the system to reduce the fan speed while maintaining the required process temperature.

This is particularly useful in facilities where the cooling demand varies significantly between peak and off-peak periods.

4.2 Lower Ambient Temperatures

The performance of the dry cooler largely depends on the temperature difference between the circulating fluid and the surrounding air.

When the outdoor air gets colder, the temperature difference usually increases.

In such cases, the dry cooler may only require a smaller airflow to provide the required cooling capacity.

For example, a device designed for a summer design temperature of 35°C can still operate normally in other seasons when the outdoor temperature is lower.

If the required fluid outlet temperature and cooling load can still be achieved, the controller can reduce the fan speed.

This creates energy-saving opportunities during night, cooler weather, and winter operation periods.

However, without the assistance of evaporation, traditional dry coolers cannot lower the fluid temperature below the dry bulb temperature of the intake air environment. Therefore, the required intake air temperature and the capacity of the heat exchanger must always be considered.

4.3 Reduced Unnecessary Full-Speed Operation

The fixed-speed system usually regulates the cooling capacity by switching the fans on and off.

This enables effective temperature control, but the running fans generally operate at the set fixed speed.

The variable-frequency speed control system offers a wider range of airflow adjustment.

The controller no longer solely relies on the intermittent operation of the fans, but can continuously adjust the speed of the running fans.

This helps to reduce unnecessary full-speed operation time and improve temperature stability.

4.4 Improved Multi-Fan Operation

Large industrial dry coolers often contain several axial fans.

Different fan control strategies can be used, including:

1. Switching individual fans on and off

2. Operating fans in separate speed-control groups

3. Controlling multiple fans simultaneously

4. Combining fan staging with variable-speed operation

Operating several fans at lower speeds can sometimes offer energy or airflow-distribution advantages compared with operating fewer fans at higher speeds.

However, there is no universally optimal strategy.

At very low loads, stopping some fans may be preferable to operating every fan near its minimum permissible speed.

The correct operating sequence should be determined using fan performance data, heat exchanger behavior, motor efficiency, and actual cooling requirements.

5. EC Fans vs. AC Fans with VFD Control: Which Is Better for Dry Coolers?

Two common approaches to variable-speed control are electronically commutated (EC) fans and AC induction motors equipped with variable-frequency drives (VFDs).

Both can reduce fan energy consumption by matching rotational speed to cooling demand.

However, their electrical designs and integration requirements differ.

5.1 EC Fans: Integrated Electronic Speed Control

Electronically commutated fans use brushless motor technology with electronic commutation and integrated control electronics.

Depending on the manufacturer and model, EC fans may offer:

• Integrated variable-speed control

• Efficient motor operation across a range of speeds

• Digital or analog control interfaces

• Motor monitoring and diagnostic functions

• Reduced external drive requirements

EC fans are often considered for new dry cooler installations where flexible control and efficient part-load operation are important.

However, actual performance depends on the complete fan assembly, not simply the EC motor designation.

5.2 AC Fans with Variable-Frequency Drives

A VFD controls the frequency and voltage supplied to a compatible AC motor, allowing its rotational speed to change.

This makes VFD technology useful for many industrial fan applications.

Potential advantages include:

• Adjustable motor speed

• Integration with industrial control systems

• Flexible control for multi-fan installations

• Possible retrofit applications where existing motors are compatible

However, engineers must verify motor insulation, cooling requirements, operating limits, electrical compatibility, and drive configuration.

A conventional fixed-speed fan motor should not automatically be assumed suitable for VFD operation.

5.3 Comparison of Fan Control Technologies

Neither EC nor VFD technology is automatically the best choice for every application.

The most useful comparison is electrical input power at the required airflow, pressure, and operating conditions—not motor type alone.

For new installations, fan selection should be based on the complete expected operating profile.

For retrofits, the cost of replacing motors, fans, drives, and control equipment should also be included.

6. How Much Electricity Can a Dry Cooler Save with Fan Speed Control?

Fan affinity laws explain the theoretical relationship between speed and power, but real electricity savings should be calculated using operating data.

6.1 Example: Calculating Annual Fan Energy Savings

Consider a hypothetical industrial dry cooler with the following measured operating conditions:

Assume the dry cooler can maintain the same required fluid temperature and heat rejection duty during these hours at the reduced fan speed.

Step 1: Calculate full-speed electricity consumption

10 kW × 2,000 hours = 20,000 kWh

Step 2: Calculate reduced-speed electricity consumption

6 kW × 2,000 hours = 12,000 kWh

Step 3: Calculate annual electricity savings

20,000 − 12,000 = 8,000 kWh

Step 4: Calculate annual cost savings

8,000 kWh × $0.15/kWh = $1,200

Under these hypothetical conditions, reducing fan electrical input from 10 kW to 6 kW for 2,000 annual operating hours would save 8,000 kWh and $1,200 in fan electricity costs.

This is an illustrative calculation, not a measured Aidear product performance result or a guaranteed saving.

Actual savings depend on the equipment configuration and operating profile.

6.2 Why Annual Energy Consumption Matters More Than Peak Power

Two dry coolers may provide the same rated cooling capacity but consume different amounts of electricity throughout the year.

For accurate comparison, the evaluation should consider:

• Hours at different ambient temperatures

• Annual cooling demand

• Fan electrical power at different speeds

• Required fluid outlet temperature

• Minimum stable fan operating conditions

• Control system behavior

Annual fan electricity consumption can be estimated as:

Annual Fan Energy (kWh) = Σ [Fan Input Power (kW) × Operating Hours (h)]

This calculation should be performed across the expected operating conditions rather than assuming that the fan always operates at one fixed speed.

6.3 Consider Total Cooling System Energy Consumption

Optimizing fan power alone does not necessarily minimize the electricity consumption of the complete cooling system.

For example, if a dry cooler is integrated with a chiller, reducing airflow too far may increase fluid temperature and cause the chiller to work harder.

Any reduction in fan electricity consumption could then be partially or completely offset by additional compressor energy.

For a complete assessment, engineers should consider:

Total System Power = Fan Power + Pump Power + Associated Cooling Equipment Power + Auxiliary Power

The optimization objective should be to minimize total energy consumption while satisfying process temperature and reliability requirements.

7. What Factors Determine the Actual Energy Savings?

The effectiveness of fan speed control depends on both equipment design and operating conditions.

7.1 Heat Exchanger Surface Area

Larger or more effectively designed heat transfer surfaces may allow the required cooling capacity to be achieved at a lower airflow under certain conditions.

This can create more opportunities for reducing fan speed.

However, coil design must balance heat transfer area, air-side resistance, fluid-side pressure drop, equipment dimensions, and cost.

7.2 Ambient Temperature and Installation Location

Outdoor temperature directly influences the available temperature difference for heat rejection.

Sites with long periods of relatively cool weather may offer more part-load fan energy-saving opportunities.

In hot climates, higher fan speeds may be required for longer periods.

Installation altitude, hot-air recirculation, and nearby obstructions can also influence performance.

For related engineering considerations, see How Altitude Affects Dry Cooler Capacity.

7.3 Required Approach Temperature

The approach temperature is the difference between the dry cooler's leaving fluid temperature and entering ambient air temperature.

A smaller approach temperature usually requires a more demanding heat exchanger selection at a given heat rejection duty.

If the selected approach temperature is too small for the available coil area and airflow, the fans may need to operate at high speed more frequently.

This can reduce the potential energy savings from variable-speed control.

7.4 Fan Selection and Motor Efficiency

Fan diameter, blade design, rotational speed, motor efficiency, and the required operating point all affect electrical consumption.

Two fan assemblies with similar nominal airflow may have different electrical power requirements.

Therefore, engineers should compare manufacturer performance data at the actual design and part-load operating points.

7.5 Coil Fouling and Airflow Restrictions

Dust, dirt, and debris can increase airflow resistance and reduce heat exchanger performance.

As coil fouling increases, the control system may require higher fan speeds to maintain the same fluid outlet temperature.

This can increase energy consumption even when variable-speed control is installed.

Regular inspection and cleaning are therefore important for maintaining energy efficiency.

For challenging environments, see How to Select a Dry Cooler for Hot and Dusty Climates.

8. Additional Benefits of Variable Fan Speed Control

Although energy savings are the main objective, effective fan speed control may provide additional operational advantages.

8.1 Lower Noise During Part-Load Operation

Reducing fan rotational speed can lower aerodynamic noise under suitable conditions.

This is particularly valuable for dry coolers installed near:

• Commercial buildings

• Residential areas

• Data centers

• Industrial facility boundaries

• Noise-sensitive equipment

However, actual sound performance depends on the fan design, operating conditions, installation, and acoustic characteristics.

8.2 More Precise Fluid Temperature Control

Continuous fan modulation can provide finer temperature adjustment than simple on/off control.

This can help reduce temperature fluctuations when cooling demand changes gradually.

Stable fluid temperature is particularly important for industrial processes requiring controlled operating conditions.

8.3 Improved Operational Flexibility

Variable-speed control allows the dry cooler to operate across a wider range of cooling requirements.

A properly designed controller can adapt to different seasons, production loads, and operating modes without relying solely on manual fan switching.

8.4 Reduced Risk of Overcooling

During cold-weather operation, excessive fan speed can cause fluid temperatures to fall below the required operating range.

Reducing fan speed or stopping fans when appropriate can help prevent unnecessary heat rejection.

However, fan control alone is not a complete freeze-protection strategy.

For outdoor water and glycol systems, engineers should also evaluate antifreeze concentration, circulation requirements, pump failure, and power-loss conditions.

Read more in How to Design Freeze Protection for a Dry Cooler System.

9. Applications That Benefit from Variable-Speed Dry Coolers

9.1 Data Center Cooling

Data centers require reliable heat rejection for cooling infrastructure.

Depending on the facility design, dry coolers may support liquid cooling loops, free-cooling systems, or other heat rejection arrangements.

Variable-speed fans can adjust airflow as outdoor conditions and cooling loads change.

For facilities operating throughout the year, evaluating annual fan power consumption is especially important.

9.2 Industrial Process Cooling

Manufacturing equipment frequently experiences variable thermal loads.

Examples include:

• Industrial machinery cooling

• Plastic processing equipment

• Power electronics cooling

• Production equipment temperature control

Fan speed modulation can help maintain the required process fluid temperature while reducing unnecessary airflow during lighter production periods.

9.3 Energy Storage Systems

Battery energy storage installations often require temperature-controlled cooling systems to support safe equipment operation.

Where dry coolers are incorporated into the thermal management system, variable fan speed can allow heat rejection to respond to changing operating loads and ambient conditions.

The control strategy must remain compatible with the battery system's thermal management and safety requirements.

9.4 HVAC and Free-Cooling Systems

Dry coolers may be integrated into HVAC installations and free-cooling arrangements.

During favorable outdoor conditions, these systems can reject heat using ambient air rather than relying entirely on mechanical refrigeration.

Variable-speed fan control provides a method of adjusting heat rejection capacity as conditions change.

The best control sequence should account for the efficiency of the entire HVAC system rather than minimizing fan power independently.

10. How to Select an Energy-Efficient Dry Cooler with Fan Speed Control

Choosing a variable-speed dry cooler requires more than selecting a high-efficiency fan motor.

The coil, fans, controls, and hydraulic system must work together.

10.1 Define the Required Cooling Capacity

Start by determining the actual heat rejection requirement.

Typical design information includes:

• Required cooling capacity in kW

• Fluid inlet temperature

• Required fluid outlet temperature

• Fluid flow rate

• Fluid type and glycol concentration

• Maximum outdoor design temperature

These parameters determine whether the dry cooler can achieve the required thermal performance.

10.2 Evaluate Annual Operating Conditions

The maximum summer temperature is important for equipment sizing, but it does not describe the complete annual operating profile.

Engineers should also evaluate seasonal temperatures and expected load variation.

This information helps determine the amount of time the fans may operate at reduced speed.

10.3 Select Suitable Fans and Controls

The selected fan system should meet the required airflow, sound, electrical, and control requirements.

Important considerations include:

• Fan and motor efficiency

• Variable-speed operating range

• Minimum permitted operating speed

• Control interface compatibility

• Electrical supply requirements

• Fan redundancy requirements

• Operating environment and protection ratings

For installations involving multiple fans, the control strategy should also consider fan staging and airflow distribution.

10.4 Verify Thermal and Electrical Performance Together

Ask the manufacturer to provide thermal performance information and available fan electrical input data for relevant operating conditions.

Where possible, compare several operating points rather than relying only on a full-speed rating.

A dry cooler with a low nominal fan power is not necessarily the most efficient choice if it requires substantially more operating hours at maximum speed to satisfy the actual cooling duty.

10.5 Consider Maintenance and Long-Term Operation

Energy efficiency can deteriorate if the heat exchanger becomes dirty or the control system is incorrectly configured.

A practical maintenance strategy should include:

• Coil cleaning and inspection

• Fan inspection

• Temperature sensor verification

• Controller parameter checks

• Electrical power monitoring

• Review of operating alarms

Maintaining the original design performance helps preserve the benefits of variable-speed control.

11. Aidear Dry Cooler Solutions for Energy-Efficient Cooling

At Aidear, dry cooler selection focuses on matching heat exchanger performance with the operating requirements of each project.

Different applications may require different combinations of coil dimensions, materials, airflow arrangements, and control systems.

For customers evaluating energy-efficient dry cooler solutions, important project considerations include:

• Required heat rejection capacity

• Design ambient temperature

• Fluid temperatures and properties

• Fan configuration and speed-control requirements

• Site space limitations

• Permitted operating noise

• Environmental exposure and corrosion protection

• Expected annual operating conditions

By considering these parameters during equipment selection, a dry cooler can be configured to balance thermal performance, electrical consumption, and long-term operating requirements.

Explore Aidear Dry Cooler Solutions to learn more about available cooling equipment and customization options.

12. Frequently Asked Questions

Q1: Does reducing fan speed always save energy in a dry cooler?

Reducing fan speed generally reduces the power required by the fan, provided the equipment operates within its permitted range.

However, the dry cooler must still provide sufficient heat rejection.

If lower airflow causes unacceptable fluid temperatures or increases the energy consumption of other cooling equipment, the overall system benefit may be reduced.

Q2: How much electricity can variable-speed dry cooler fans save?

There is no universal percentage that applies to every installation.

Under ideal fan affinity-law conditions, reducing speed to 80% reduces theoretical fan shaft power to approximately 51.2% of its full-speed value.

Actual electrical energy savings depend on motor and drive efficiency, hours at reduced speed, fan operating characteristics, and cooling requirements.

Annual energy savings should be calculated from measured electrical input or suitable manufacturer performance data.

Q3: Are EC fans more energy-efficient than traditional AC fans?

EC fans can offer high motor efficiency and integrated variable-speed control.

However, a fair comparison should consider the complete fan assembly and operating point.

An efficient AC fan motor with a suitable VFD may also provide strong part-load performance.

The preferred option depends on the required airflow, electrical input, control requirements, operating range, and project cost.

Q4: What controls the fan speed in a dry cooler?

Fan speed is often controlled using the measured fluid outlet temperature and a defined temperature setpoint.

A controller can increase or decrease fan speed using compatible analog or digital signals.

More advanced installations may combine fluid temperature, ambient conditions, operating schedules, and building management system commands.

Q5: Can existing dry coolers be upgraded with variable-speed fans?

Some existing dry coolers can be retrofitted with compatible variable-speed equipment.

Possible approaches include installing suitable VFDs or replacing fixed-speed fan assemblies with compatible EC fans.

However, retrofit feasibility depends on the existing motor design, electrical system, fan arrangement, controls, and mechanical compatibility.

A technical assessment is necessary before modification.

Q6: Is a variable-speed dry cooler suitable for continuous operation?

Yes, when the selected fans, motors, controllers, and cooling equipment are rated for the intended duty.

Continuous-operation systems may benefit from variable-speed control because they can accumulate substantial operating hours under changing load and ambient conditions.

Reliability, maintenance access, control stability, and fault protection remain important selection criteria.

Conclusion: Optimize Fan Speed Without Compromising Cooling Performance

Fan speed control is an effective approach to improving dry cooler energy efficiency.

By reducing airflow when full cooling capacity is unnecessary, variable-speed fans can reduce electrical power demand and help maintain more stable fluid temperatures.

The fan affinity laws explain why even moderate speed reductions can produce substantial reductions in fan shaft power.

However, achieving meaningful annual energy savings requires more than simply reducing rotational speed.

Engineers must evaluate actual heat rejection requirements, part-load performance, motor efficiency, ambient conditions, and the behavior of the complete cooling system.

The most energy-efficient dry cooler is not necessarily the one with the lowest fan speed. It is the one that meets the required cooling duty with the lowest practical total energy consumption.

For industrial cooling projects, selecting the heat exchanger and fan control system together provides a stronger foundation for reliable, energy-efficient operation.

Request a Custom Dry Cooler Solution from Aidear

Are you planning a new industrial cooling installation or evaluating ways to reduce dry cooler operating costs?

Aidear can help review your project requirements and explore suitable dry cooler configurations.

Share your cooling capacity, fluid inlet and outlet temperatures, ambient design conditions, fluid specifications, and fan control requirements.

Our team can discuss appropriate heat exchanger and fan configuration options for your application.

Request a Custom Quote
