How to Prevent Heat Exchanger Corrosion in Coastal Environments

Heat exchangers installed near coastlines face a combination of salt-laden air, high humidity, condensation and, in some locations, industrial pollution. Without suitable protection, these conditions can attack fins, tubes, headers, casings, fasteners and electrical components.

The most effective way to prevent coastal heat exchanger corrosion is to combine appropriate materials, a compatible protective coating, corrosion-conscious equipment design, suitable installation and regular salt removal. A coating alone cannot compensate for poor drainage, damaged surfaces, incompatible metals or neglected maintenance.

This guide explains how engineers and industrial buyers can build a complete corrosion-control strategy for fin-and-tube heat exchangers, microchannel coils, dry coolers and other heat-transfer equipment.

Why Do Heat Exchangers Corrode Faster Near the Coast?

Sea spray contains chloride salts. Wind, mist and fog can carry these salts beyond the immediate shoreline and deposit them on exposed equipment.

When a salt-containing droplet evaporates, chloride residue remains on the metal. Because this residue can attract moisture from the air, it may keep the surface electrically conductive even when the equipment appears dry. This thin electrolyte layer supports electrochemical corrosion.

The risk becomes more severe when several conditions occur together:

• High relative humidity

• Frequent condensation

• Direct exposure to sea spray

• Prevailing onshore winds

• High operating temperatures

• Limited natural rainfall or manual washing

• Industrial pollutants mixed with marine salts

• Dirt accumulation that traps moisture

• Crevices where water cannot drain

Distance from the coast matters—but not alone. Wind direction, equipment orientation, shading, rainfall, and cleaning frequency can cause major corrosion-rate differences, even between nearby sites.

ISO 9223 classifies atmospheric corrosivity (C1–CX) by corrosion rate, chloride deposition, and contaminant levels. Yet decisions must be based on site-specific conditions—not just maps or coastal distance. As Outokumpu notes, chloride exposure and cleaning practices critically affect metal surfaces.

What Types of Corrosion Affect Coastal Heat Exchangers?

Pitting Corrosion

Pitting creates small, localized cavities rather than uniform surface loss. Chlorides are particularly effective at damaging the protective oxide film on aluminum and some stainless steels.

A fin or tube may look acceptable overall while a small pit continues penetrating the material. In refrigerant coils, this can eventually produce a pinhole leak.

Galvanic Corrosion

Galvanic corrosion can occur when two dissimilar metals are electrically connected and exposed to moisture containing salt.

For example, copper tubes paired with aluminum fins in traditional finned-tube heat exchangers corrode rapidly—seawater residues act as an electrolyte, accelerating corrosion of the less noble metal.

Using similar metals reduces—but does not eliminate—corrosion. Even all-aluminum microchannel heat exchangers remain vulnerable to chloride pitting, coating degradation, and brazed-joint corrosion.

Crevice Corrosion

Crevice corrosion develops where moisture and salt become trapped, including:

• Tube-to-fin interfaces

• Bolted joints

• Flanges and gasket areas

• Overlapping sheet-metal sections

• Poorly drained base frames

• Deposits between closely spaced fins

The restricted space develops a different chemical environment from the open surface, accelerating localized attack.

Underfilm Corrosion

If the protective coating shows signs of scratches, poor adhesion or incomplete coverage, chloride ions may penetrate beneath the coating. Subsequently, corrosion may spread beneath what appears to be a complete layer of the coating.

Therefore, surface treatment, edge coverage, curing, and damage control after installation are just as important as the chemical composition of the coating.

Atmospheric Corrosion of Casings and Supports

The heat-transfer surface is not the only vulnerable component. Carbon-steel panels, galvanized frames, fan guards, mounting feet, bolts and electrical cabinets can fail before the coil itself.

A coastal specification should address the entire unit rather than simply stating “coated coil.”

Start With a Coastal Corrosion Risk Assessment

Before selecting a material or coating, collect information about the installation.

Environmental Information

Ask the project team to provide:

• Distance and direction from the coastline

• Direct sea-spray exposure

• Prevailing wind direction

• Average humidity and rainfall

• Ambient temperature range

• Industrial, wastewater or chemical pollutants

• Exposure to cooling-tower drift

• Possibility of freshwater rinsing

• Required service life and downtime tolerance

Operating Information

The manufacturer will also need:

• Heat-transfer medium

• Fluid composition and chloride concentration

• Inlet and outlet temperatures

• Design and operating pressure

• Required cooling or heating capacity

• Airflow and allowable pressure drop

• Condensing or evaporating operation

• Cleaning method and available access

Choose the Heat Exchanger Material Carefully

No material is universally best. Selection must balance corrosion resistance, thermal performance, mechanical strength, fabrication, pressure, temperature and cost.

Stainless steel should never be specified only as “stainless.” Grade, surface finish, weld treatment, temperature and chloride exposure all matter. Chlorides can damage the passive layer, while stagnant deposits increase the risk of localized corrosion.

Material suppliers also caution that laboratory corrosion tables cannot fully reproduce actual service conditions. Final selection should consider fluid chemistry, impurities, temperature, velocity and component geometry. See Outokumpu’s material-selection guidance.

Select the Right Protective Coil Coating

Pre-Coated Aluminum Fins

With pre-coated fin stock, the coating is applied before the aluminum is formed into fins and assembled into a coil.

This option can provide economical protection in mild or moderate environments. Hydrophilic versions also help condensate spread and drain from evaporator surfaces.

However, pre-coating may not fully protect cut edges, tube joints, headers and other components added during assembly. It should not automatically be treated as equivalent to a fully coated assembled coil.

Full-Coil E-Coating

Electrodeposition, commonly called e-coating, immerses the assembled conductive coil in a coating bath and uses an electrical charge to deposit a controlled film.

Its main advantage is the ability to cover complex coil geometry, including fin edges and difficult-to-reach areas. It can also help electrically isolate dissimilar metal surfaces.

E-coating is commonly considered for coastal HVAC/R coils, including round-tube plate-fin and microchannel constructions. The exact formulation, pretreatment, curing process and UV resistance must still be verified with the supplier.

Baked Epoxy or Phenolic Coatings

Baked coatings can provide a continuous barrier against salt and selected industrial chemicals. Depending on the formulation, they may be applied by dipping, flooding or spraying before controlled curing.

Buyers should verify:

• Chemical resistance

• UV stability

• Film thickness

• Adhesion

• Flexibility

• Edge coverage

• Repair procedure

• Effect on heat-transfer and air-pressure-drop performance

A thicker coating is not automatically better. Excessive film build or bridging between closely spaced fins can restrict airflow and reduce thermal performance.

Field-Applied Spray Coatings

Spray-applied coatings can be useful for large assembled equipment, field repairs or units that cannot be immersed.

Their performance depends heavily on cleaning, surface preparation, access, film-thickness control and curing conditions. Internal fin passages may also be harder to cover uniformly than with a controlled factory process.

Hydrophilic Coatings Are Not Automatically Marine Coatings

A hydrophilic surface helps water spread into a thin film and drain more effectively. This can benefit evaporator performance and reduce condensate carryover.

However, “hydrophilic,” “blue fin” or “gold fin” describes a surface function or appearance—not a universal corrosion rating. Buyers should request the actual coating specification and test report rather than relying on a color name.

Match the Strategy to the Heat Exchanger Type

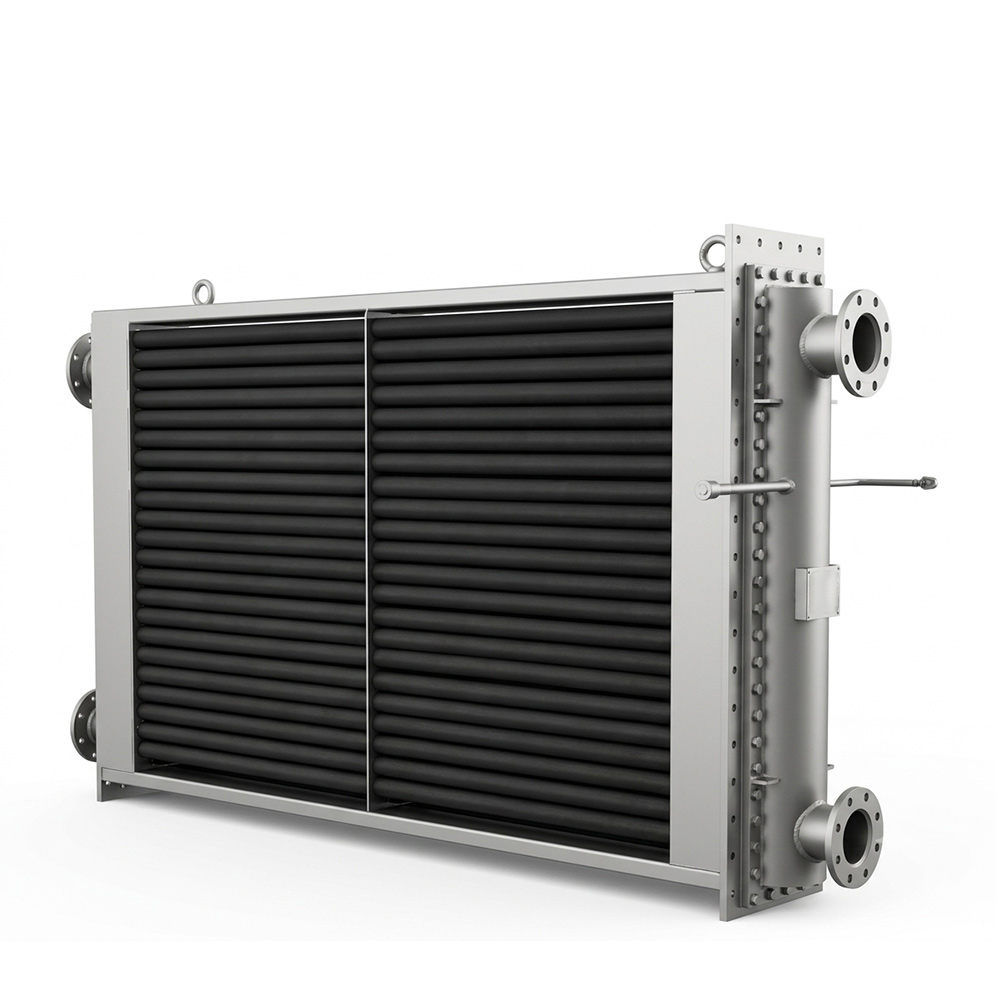

Fin-and-Tube Heat Exchangers

For copper-tube and aluminum-fin coils, focus on the tube-to-fin interface, fin edges, return bends, headers and frame.

A strong coastal specification may include:

• Full-coil factory-applied coating

• Compatible coating for copper, aluminum and brazed joints

• Protected headers and return bends

• Corrosion-resistant casing and drain pan

• Isolation between incompatible metals

• Accessible coil faces for freshwater rinsing

• Documented field-repair procedure

Condenser Versus Evaporator Requirements

A hydrophobic barrier coating may perform well on an outdoor condenser but affect condensate behavior on an evaporator. Wet-coil applications may require a compatible hydrophilic topcoat or another drainage-conscious system.

Always identify whether the coil operates dry, wet or under repeated wet–dry cycles.

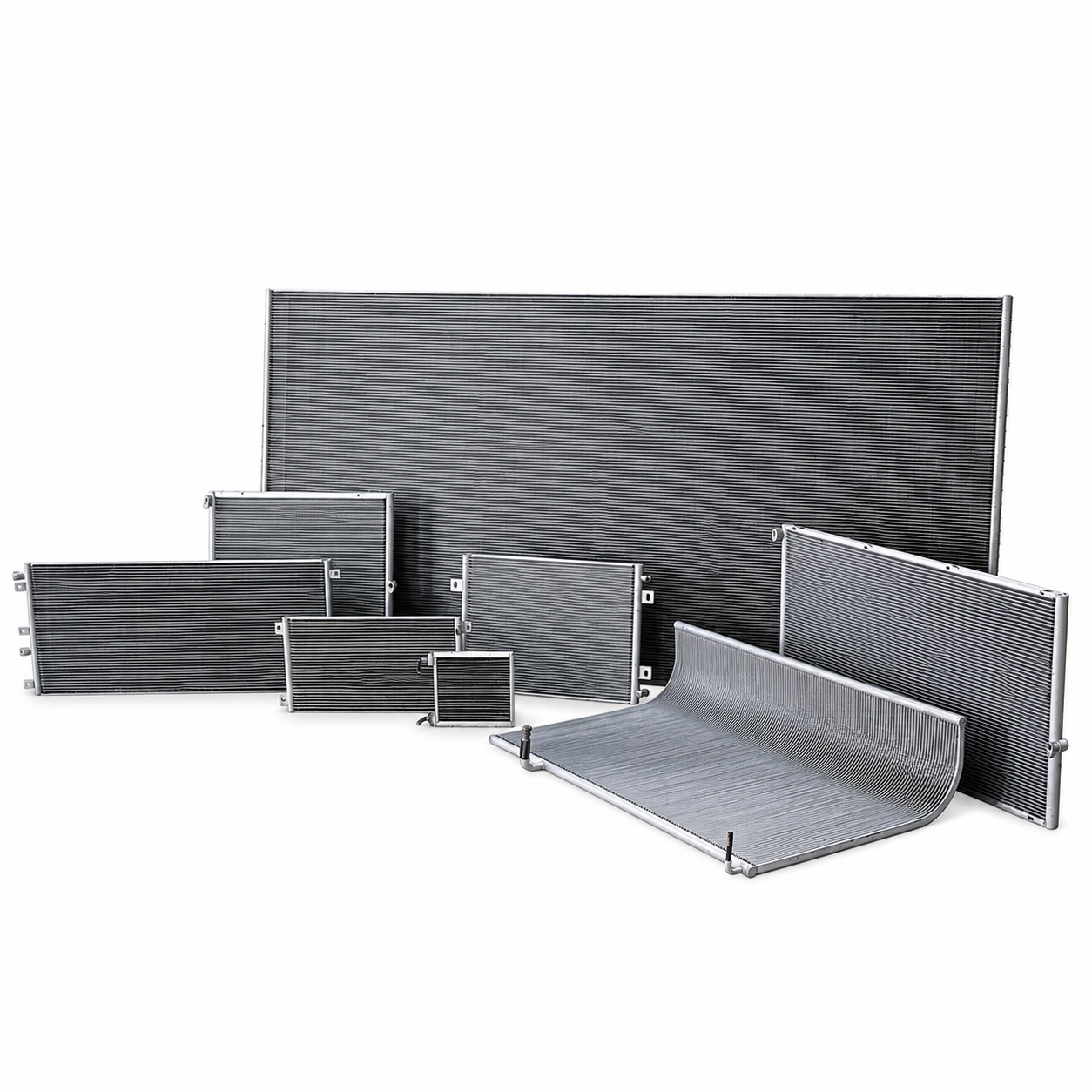

Microchannel Heat Exchangers

All-aluminum construction reduces the number of copper–aluminum galvanic interfaces. Nevertheless, coastal salt can still attack tubes, fins, headers and brazed connections.

For severe exposure, evaluate a coating designed specifically for microchannel geometry. It must cover narrow passages and edges without blocking airflow or creating unacceptable thermal resistance.

The coating supplier should confirm compatibility with the aluminum alloy, flux residues, brazed joints and operating temperature.

Dry Coolers and Air-Cooled Condensers

A dry cooler is a complete outdoor system, so protecting only the coil is insufficient.

The corrosion plan should also cover:

• Galvanized or coated steel casing

• Stainless or appropriately coated fasteners

• Fan guards and motor supports

• Electrical enclosures and cable entries

• Base frames and lifting points

• Drainage around the equipment

• Touch-up protection after transport and installation

Because dry coolers often operate continuously in critical industrial or data-center applications, access for inspection and coil cleaning should be incorporated into the layout.

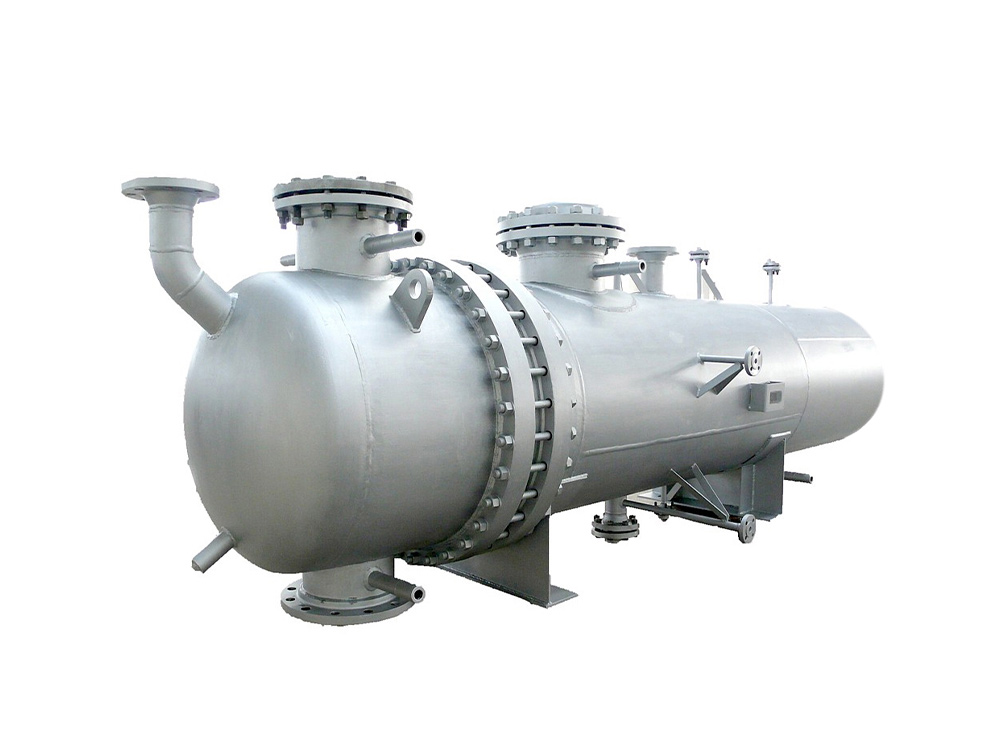

Shell-and-Tube and Plate Heat Exchangers

For shell-and-tube units installed outdoors, the marine atmosphere mainly affects the shell exterior, supports, flanges and fasteners. If seawater flows inside the tubes, it becomes a separate fluid-side materials problem.

Similarly, a plate heat exchanger handling seawater requires evaluation of plate material, gasket compatibility, chloride concentration, temperature and flow conditions. Selecting a stainless-steel name alone is not sufficient.

Design the Installation to Reduce Salt Exposure

Avoid Direct Spray Where Possible

Locate the equipment away from breaking surf, seawater discharge and concentrated cooling-tower drift. When possible, place the most vulnerable coil face away from the prevailing onshore wind.

Use Protective Screens Carefully

A screen, louver or windbreak may reduce direct salt deposition, but it must not restrict the required airflow or cause hot-air recirculation.

The equipment manufacturer should verify minimum clearances and pressure-drop effects.

Prevent Water Traps

Provide sufficient drainage and avoid horizontal ledges, closed channels or overlapping panels that collect saltwater.

Mounting bases should keep the unit above standing water. Drain holes must remain accessible and should not discharge salty water onto unprotected components below.

Isolate Dissimilar Metals

Use suitable insulating washers, sleeves, gaskets or sealants where incompatible metals meet. Isolation must remain mechanically stable and suitable for the operating temperature and environment.

How to Evaluate Corrosion-Test Claims

Coating advertisements often highlight a large number of salt-spray test hours. That number is useful only when the complete test conditions are known.

Ask the supplier:

1. Which standard was used?

2. Was the sample a flat panel, fin stock or complete coil?

3. Was the surface intentionally scribed?

4. What substrate and pretreatment were used?

5. What coating thickness was tested?

6. How were blistering, creepage and corrosion evaluated?

7. Was UV exposure included?

8. Were wet–dry or cyclic conditions tested?

9. Was thermal performance measured after coating?

10. Does the report apply to the offered coating system?

ASTM B117 defines how to operate a salt-fog apparatus, but ASTM cautions that performance in natural environments has seldom been correlated with salt-spray results when they are used alone. Therefore, 3,000 test hours should not be marketed as a specific number of years beside the ocean. See the current ASTM B117 standard.

ASHRAE also emphasizes that equipment for known corrosive environments should use appropriate material thickness, coating or corrosion-resistant construction for the application. This supports an application-based specification rather than a one-number comparison. See ANSI/ASHRAE Standard 147 Addendum A.

Build a Coastal Maintenance Program

Even a high-performance coating requires maintenance. Salt deposits should not be allowed to remain indefinitely on the coil and casing.

Establish an Exposure-Based Cleaning Schedule

There is no universal cleaning interval for every coastal site. Begin with frequent inspection after commissioning and adjust the schedule according to observed salt accumulation, prevailing winds, rainfall and operating conditions.

An oceanfront installation may need substantially more attention than equipment farther inland or protected from direct spray.

Use Fresh Water and Approved Cleaning Products

Follow the heat exchanger and coating manufacturers’ instructions. In many cases, gentle freshwater rinsing helps remove soluble salt before it becomes concentrated.

Avoid unapproved acidic or highly alkaline cleaners that could attack aluminum, copper, zinc or the protective film. Modine, for example, specifies a non-acidic and non-caustic cleaning approach for maintaining its own coated products, illustrating why coating-specific instructions matter. Modine’s coastal coil maintenance information provides one manufacturer example.

Avoid Mechanical Damage

High-pressure water, stiff brushes and careless fin straightening can damage thin fins or break the coating. Use low-pressure cleaning methods approved by the supplier.

After servicing, inspect for:

• Bent fins

• Coating chips

• Exposed fin edges

• Rust around fasteners

• Corrosion at brazed or welded joints

• Blocked drain holes

• Discoloration around electrical connections

• Refrigerant or fluid leakage

Repair coating damage promptly using the specified touch-up system.

Keep Maintenance Records

Record inspection dates, photographs, cleaning products, coating repairs and leak-test results. This provides evidence for warranty compliance and helps identify whether the cleaning interval is adequate.

Coastal Heat Exchanger Procurement Checklist

Before requesting a quotation, give the manufacturer the following information:

• Installation address or coastal region

• Approximate distance from the sea

• Direct spray and prevailing wind conditions

• Ambient temperature and humidity

• Industrial or chemical contaminants

• Heat exchanger type

• Heat-transfer fluid and full composition

• Chloride concentration, pH and temperature

• Design pressure and temperature

• Required capacity and airflow

• Target operating life

• Acceptable maintenance frequency

• Required casing and fastener materials

• Preferred coating type

• Required corrosion test and acceptance criteria

• Inspection and documentation requirements

Do not specify only “coastal coating” or “marine grade.” Define the environmental conditions and request a complete construction proposal.

Consider Life-Cycle Cost, Not Only Purchase Price

A corrosion-resistant heat exchanger normally costs more than a standard unprotected design. However, the initial price should be evaluated against:

• Coil replacement

• Refrigerant loss

• Emergency labor

• Process downtime

• Reduced cooling capacity

• Increased fan or compressor energy

• Shortened equipment life

• Difficult site access

For hotels, food-processing plants, data centers, cold stores and industrial production lines, the cost of one unplanned failure may exceed the original corrosion-protection investment.

The most economical solution is therefore not always the least expensive coating or alloy. It is the design that meets the required service life with manageable maintenance and acceptable operating risk.

Frequently Asked Questions

What is the best coating for a coastal heat exchanger?

There is no universal best coating. Full-coil e-coating and properly specified baked barrier coatings are commonly evaluated for severe environments, while pre-coated fins may be suitable for less aggressive exposure. The decision depends on the coil type, wet or dry operation, UV exposure, chemicals and maintenance access.

Is an all-aluminum microchannel coil corrosion-proof?

No. All-aluminum construction reduces dissimilar-metal interfaces but remains vulnerable to chloride pitting, deposits, coating damage and corrosion around joints. Severe coastal exposure may still require an appropriate full-coil coating.

Is 316 stainless steel suitable for seawater?

316 stainless steel generally has better chloride resistance than 304, but it is not universally suitable for continuous seawater service or severe hot-chloride conditions. Chloride concentration, temperature, oxygen, flow, deposits and crevice geometry must be evaluated.

How often should a coastal coil be cleaned?

The interval should be based on actual salt deposition and the manufacturer’s maintenance requirements. Inspect frequently after commissioning, establish a baseline and shorten the interval when visible deposits or corrosion appear.

Can salt-spray hours be converted into service life?

No direct conversion should be made. Salt-spray testing helps compare coating systems under defined laboratory conditions, but it does not reproduce every aspect of natural coastal exposure.

Should the casing be protected if the coil is coated?

Yes. Casings, supports, fasteners, fan guards and electrical components can corrode independently. A reliable coastal design protects the entire outdoor unit.
