Wide-Gap Plate Heat Exchangers: When Does a Larger Channel Make Sense?

Introduction

Plate heat exchangers are widely used in industrial cooling, heating, and heat recovery because they offer compact construction and effective heat transfer. However, conventional plate heat exchangers are not suitable for every process fluid.

When liquids contain suspended solids, fibers, pulp, or other materials that may obstruct narrow passages, conventional plate channels can become a limitation. Frequent blockage, increasing pressure drop, and reduced thermal performance may lead to unexpected maintenance and production interruptions.

A wide-gap plate heat exchanger offers an alternative for certain challenging applications. By providing larger or more open flow passages, this design can help accommodate fluids that are difficult to process through standard narrow-channel equipment.

But does a larger channel always improve heat exchanger performance?

Not necessarily. Wider channels may improve fluid passage and reduce specific clogging risks, but they can also influence flow velocity, turbulence, heat transfer coefficients, and equipment sizing.

This guide explains how wide-gap plate heat exchangers work, when larger channels make engineering sense, and what industrial buyers should evaluate before choosing a suitable heat exchanger.

1. What Is a Wide-Gap Plate Heat Exchanger?

A wide-gap plate heat exchanger is a plate-type heat exchanger designed with relatively large flow passages to accommodate challenging fluids, particularly those containing fibers, particles, or other materials that may obstruct conventional plate channels.

Like other plate heat exchangers, it transfers thermal energy between two fluid streams through metal plates without intentionally mixing the fluids.

The primary difference lies in the geometry of the fluid passages.

1.1 How Wide-Gap Plate Heat Exchangers Work

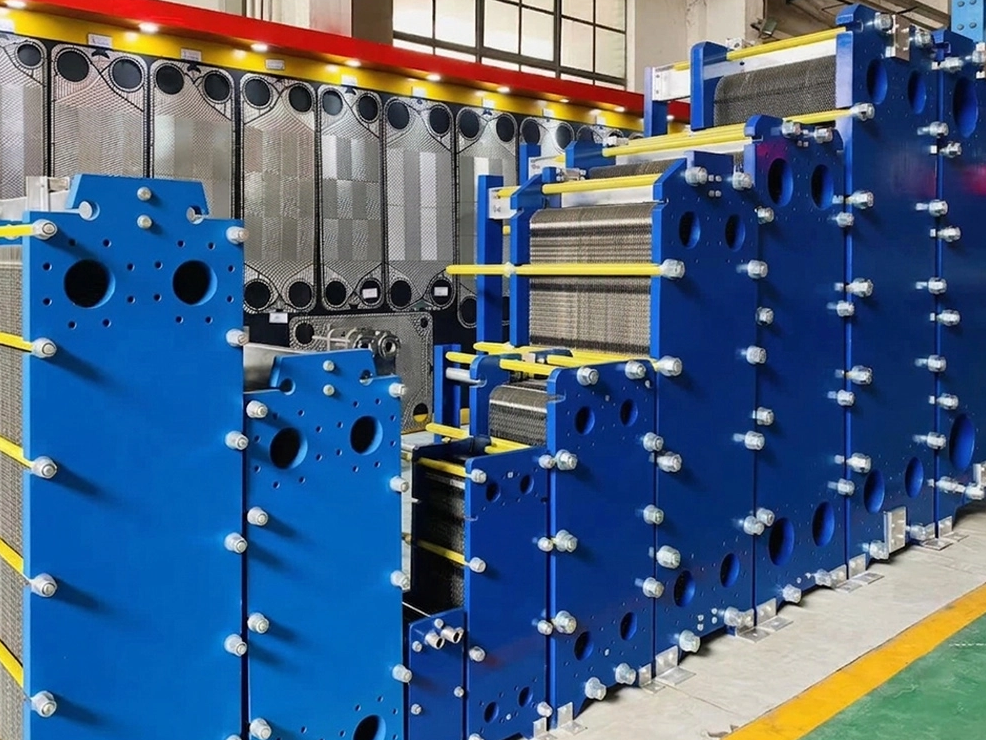

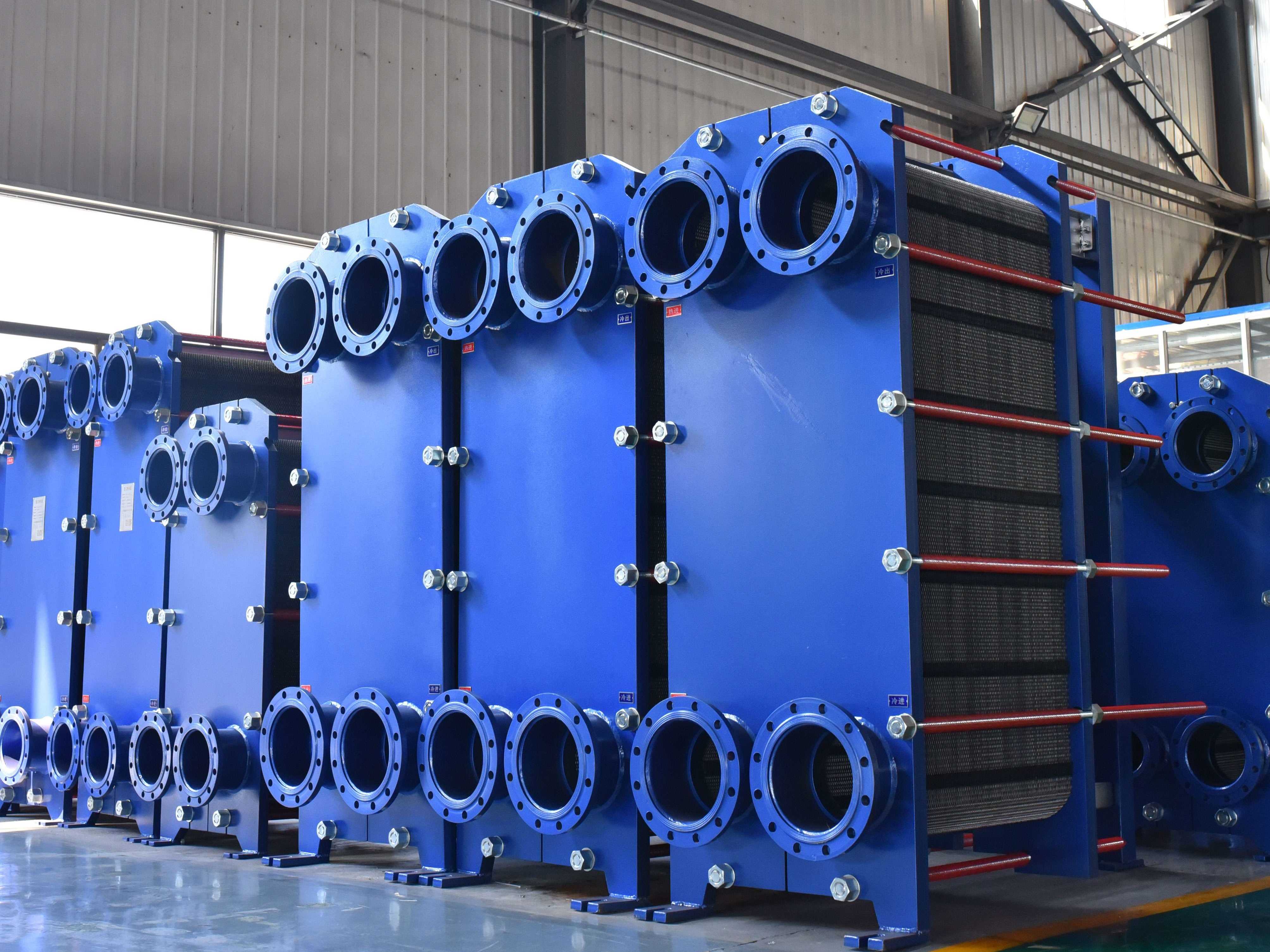

In a typical gasketed wide-gap plate heat exchanger, specially designed metal plates are assembled in a frame with sealing gaskets.

Hot and cold fluids circulate through separate channels on opposite sides of the heat transfer plates.

Heat passes through the metal surfaces from the warmer fluid to the cooler fluid.

Compared with conventional closely spaced plates, wide-gap designs use greater plate separation, modified corrugations, or more open flow passages to accommodate challenging media.

The actual channel geometry depends on the exchanger design and manufacturer.

1.2 What Makes a Wide-Gap Design Different?

The defining characteristic is not simply a greater distance between plates.

An effective wide-gap design considers the entire flow path, including:

• Plate channel geometry and minimum clearances

• Fluid distribution at the inlet and outlet

• Particle and fiber passage requirements

• Flow velocity and turbulence

• Pressure drop limitations

• Cleaning and maintenance accessibility

For example, increasing the channel width alone may not prevent blockage if a narrow inlet distribution area continues to trap suspended material.

Therefore, a true wide-gap design should be evaluated as a complete hydraulic and thermal system rather than by plate spacing alone.

1.3 Wide-Gap Versus Standard Plate Channels

Conventional plate heat exchangers often use closely spaced corrugated channels that promote mixing and heat transfer.

These designs can be highly effective for clean liquids.

However, suspended particles or fibers may accumulate in restricted passages.

Wide-gap designs provide an alternative when the fluid characteristics create unacceptable blockage or maintenance risks.

A wide-gap exchanger should not automatically replace a standard plate heat exchanger when the process fluid is clean and conventional equipment already meets the operating requirements.

2. When Does a Larger Channel Make Sense?

The decision to select a wide-gap plate heat exchanger should begin with the properties of the process fluid.

2.1 When Fluids Contain Suspended Solids

Suspension particles may cause difficulties in narrow channels.

Depending on the size, concentration, shape and behavior of the particles, they may accumulate at the channel entrance, get trapped between plates, or settle in areas with low flow velocity.

For some industrial processes, wider channels may provide sufficient space, thereby reducing the risk of mechanical blockage.

Potential applications include process liquids with suitable properties from industrial wastewater treatment, food processing, and other solid-containing operations.

However, particle size alone cannot determine its suitability. Factors such as particle concentration, settling behavior, wear resistance, and particle size distribution also need to be evaluated.

2.2 When Fibrous Materials Cause Blockage

The challenges introduced by fibers are often difficult to predict solely based on the size of a single particle.

Long and flexible fibers may bend, entangle or form bridging phenomena in restricted flow channels.

Such behaviors may occur in pulp processing, biofuel production, and certain food processing applications.

2.2.1 Why Fiber Length Matters

Fiber length, flexibility, concentration and aggregation tendency may affect the risk of clogging.

Fluids containing relatively small but longer and easily entangling fibers may cause more severe flow resistance than fluids containing larger and freely moving particles.

Therefore, suppliers should assess the fiber properties rather than relying solely on the nominal particle size.

2.2.2 Why the Entire Flow Path Must Be Evaluated

Even if the main heat transfer channel is sufficiently wide, other restrictions may cause blockage.

Potential trouble spots include inlet ports, distribution zones, local corrugation contact points, and outlet connections.

2.2.2.1 Identifying the Most Restrictive Passage

The actual clearance volume is not always equal to the nominal average inter-particle gap.

Engineers should determine the minimum effective channel through which the suspended material must pass.

This is particularly important for fluids containing irregular particles, fiber bundles or aggregates.

A suitable wide-gap design should provide a flow path that can accommodate the expected material properties while maintaining sufficient fluid movement.

2.3 When Fluid Viscosity Is Relatively High

Viscous liquids may generate significant flow resistance in narrow channels.

In some high-viscosity applications, increasing the channel size can help achieve a different balance between channel resistance and flow rate.

However, increasing the channel size does not necessarily automatically improve performance.

High viscosity reduces the degree of turbulence and the heat transfer coefficient, while too low channel flow rate may further reduce thermal performance.

The correct choice should be determined based on the viscosity, flow rate, channel geometry, and allowable pressure drop at the actual operating temperature.

2.4 When Conventional Equipment Requires Frequent Cleaning

Repeated blockage and excessive cleaning frequency may indicate that the channel geometry is poorly matched to the fluid.

A wide-gap design may reduce some mechanical obstructions and help extend operating periods between cleaning events.

However, it cannot eliminate all fouling mechanisms.

Mineral scaling, chemical precipitation, crystallization, biological growth, and sticky deposits may still accumulate on heat transfer surfaces.

Before replacing an existing heat exchanger, engineers should identify the underlying cause of its performance deterioration.

If the main problem is chemical scaling rather than mechanical blockage, water treatment, temperature control, or another heat exchanger design may be more effective than increasing the channel width.

3. How Does Channel Width Affect Heat Transfer Performance?

Selecting a larger channel involves a trade-off between fluid passage, heat transfer, and hydraulic resistance.

3.1 Heat Transfer Coefficient and Turbulence

The thermal performance of a plate heat exchanger depends on the overall heat transfer coefficient, effective heat transfer area, and temperature driving force.

For an appropriate single-phase heat transfer calculation:

Q = U × A × LMTD

Where:

• Q = Heat transfer rate

• U = Overall heat transfer coefficient

• A = Effective heat transfer area

• LMTD = Log mean temperature difference

Channel geometry affects fluid velocity, mixing, and the convective heat transfer coefficient.

Increasing the channel gap can reduce velocity if the flow rate and other geometric conditions remain comparable.

Lower velocity may reduce turbulence and thermal intensity.

Therefore, wider channels do not necessarily provide higher heat transfer coefficients.

3.2 Pressure Drop and Flow Resistance

Pressure drop is an important factor that must be considered when selecting a heat exchanger.

Narrow channels, changes in flow direction, corrugated structures, and fluid viscosity all affect hydraulic resistance.

A wider channel may reduce pressure drop under the same conditions, but the actual effect depends on the overall design.

For example, in a wide-gap heat exchanger, to maintain sufficient flow rate, the number of flow channels may need to be increased, which instead increases hydraulic resistance.

Before determining the most suitable configuration, both thermal and hydraulic calculations must be carried out simultaneously.

3.3 Fouling Resistance and Flow Velocity

The larger channels can reduce certain mechanical blockages, especially when suspended matter would otherwise clog narrow spaces.

However, too low a flow rate may not be conducive to the transportation of solid substances.

If particles settle or deposits accumulate, the effective heat transfer area may gradually be blocked.

Therefore, the properly selected heat exchanger must maintain an appropriate balance between the channel gap and the fluid velocity.

3.4 Why the Largest Gap Is Not Always the Best Choice

Specifying the maximum available channel width may appear to provide the greatest protection against blockage.

In practice, an oversized passage can create unnecessary thermal and hydraulic compromises.

Potential consequences include:

• Reduced fluid velocity

• Lower convective heat transfer coefficients

• Increased heat transfer area requirements

• Less effective suspension of settling particles

• Higher equipment investment

• Larger equipment dimensions

The preferred channel geometry is the one that provides sufficient fluid clearance without creating unacceptable thermal or operating penalties.

4. Wide-Wide and Wide-Narrow Channel Configurations

Some wide-gap plate heat exchanger designs offer different channel arrangements to suit the properties of the two fluids.

4.1 Wide-Narrow Channel Configuration

The wide-narrow structure combines a relatively wide channel for handling difficult process fluids, and a narrower channel for cleaning fluids.

This configuration is particularly useful when only one side contains fibers, particles, or other materials that require additional space.

The cleaning side can retain a more traditional channel layout to support thermal performance.

4.1.1 When Wide-Narrow Channels Are Appropriate

Consider this configuration when:

• One stream contains suspended solids or fibers.

• The other stream is relatively clean.

• A wide passage is needed on only one side.

• Thermal and hydraulic calculations support an asymmetric channel arrangement.

4.2 Wide-Wide Channel Configuration

The wide configuration design adopts relatively large channels on both sides of the fluid.

When both streams of fluid require additional gaps, this layout can be considered.

However, if the channels on both sides are too wide, it may affect the flow velocity and heat transfer performance of the channels.

Therefore, the applicability of the wide configuration must be determined through design calculations specific to the application.

4.3 Why Configuration Matters More Than Gap Size Alone

Two heat exchangers with similar nominal channel gaps may exhibit different performances due to their different plate structures, fluid distribution, number of channels, and hydraulic design.

Engineers should evaluate the heat exchangers as an integrated component, considering both sides simultaneously, rather than making a choice based solely on a single dimension parameter.

5. Typical Industrial Applications of Wide-Gap Plate Heat Exchangers

Wide-gap designs are used in selected industrial processes where conventional narrow passages may be vulnerable to blockage.

5.1 Pulp and Paper Processing

The pulp and papermaking process may involve liquids containing cellulose fibers and suspended substances.

These fluids may cause problems for traditional closely arranged plate-type channels.

For the requirements of proper process heating, cooling and waste heat recovery, a wide gap design can be considered.

The selected configuration must be able to accommodate the fiber characteristics, solid loading, operating temperature and maintenance requirements.

5.2 Bioethanol and Biofuel Production

Biofuel production can involve fermentation liquids, mash, and other streams containing suspended organic material.

Heat recovery between process streams can improve the utilization of thermal energy.

Wide-gap plate heat exchangers may be suitable for particular duties where fibers or solids would otherwise obstruct conventional plate channels.

Their suitability depends on process-fluid composition, particle behavior, and required thermal performance.

5.3 Sugar Processing

The sugar processing facilities may handle process liquids containing suspended solids or fibrous substances.

Some heat recovery and heating applications can benefit from plate heat exchangers specifically designed for complex process liquids.

The wide gap structure helps to reduce the flow resistance caused by these materials.

However, crystallization, scaling and other deposition formation mechanisms still need to be considered separately.

5.4 Food and Beverage Processing

Some food-processing liquids contain pulp, fibers, or suspended ingredients.

Examples can include selected fruit-based products and other viscous or particulate streams.

Specialized wide-gap or hygienic plate heat exchangers may be considered where their construction meets the required product-handling conditions.

For hygienic duties, engineers must also verify cleanability, hygienic design, surface finish, gasket suitability, and applicable sanitation requirements.

A conventional industrial wide-gap exchanger should not automatically be assumed suitable for hygienic food processing.

5.5 Industrial Wastewater and Process Heat Recovery

Industrial wastewater may contain suspended particles, biological substances, oils and other impurities.

Depending on the composition of the fluid, wide-gap plate heat exchangers can be considered to recover useful heat from specific wastewater or process streams.

However, for materials with abrasive solids, viscous deposits, high solid content and difficult-to-clean slurries, other technologies may be required.

The heat exchanger should be selected based on the actual characteristics of the wastewater rather than solely on the application name.

6. Wide-Gap Plate Heat Exchanger vs. Shell-and-Tube Heat Exchanger

Both technologies can be used for industrial process heating and cooling, but neither is universally superior.

A wide-gap plate heat exchanger may offer a relatively compact and serviceable solution for suitable fibrous or particulate fluids.

A shell-and-tube heat exchanger may be preferable where mechanical cleaning, robust construction, high operating pressures, difficult slurries, or particular material and maintenance requirements favor tubular equipment.

A comparison should use the same thermal duty, fluid conditions, fouling allowance, allowable pressure drop, and design requirements.

For additional guidance, read Shell and Tube vs. Plate Heat Exchangers: A Comprehensive Comparison.

7. How to Select the Right Wide-Gap Plate Heat Exchanger

7.1 Start With Actual Fluid Properties

A reliable selection begins with a complete understanding of both fluids.

Important information includes:

• Fluid composition

• Density and viscosity at operating temperatures

• Maximum and typical particle sizes

• Particle size distribution

• Solids concentration

• Fiber length and tendency to entangle

• Abrasive or corrosive characteristics

• Scaling and fouling tendencies

These characteristics influence the required passage clearance, materials, pressure drop, and cleaning strategy.

7.2 Determine the Required Heat Duty

Thermal capacity is a primary selection requirement.

For a single-phase stream with approximately constant specific heat capacity:

Q = ṁ × cp × ΔT

Where:

• Q = Heat transfer rate

• ṁ = Mass flow rate

• cp = Specific heat capacity

• ΔT = Temperature change

The design must also satisfy the overall heat transfer relationship between the hot and cold fluids.

If the liquid contains significant suspended solids or has strongly temperature-dependent properties, additional thermophysical data may be needed.

7.3 Verify the Allowable Pressure Drop

Pressure loss should be evaluated separately for the hot and cold sides.

An excessive pressure drop can increase pump energy consumption or prevent the existing pumping system from maintaining the required flow rate.

The design should account for expected operating conditions and the potential effect of fouling.

7.4 Consider Plate Materials and Gaskets

The selection of materials depends on the chemical and mechanical properties of the fluid.

According to the corrosion requirements, stainless steel and other suitable alloys can be considered for use.

For the design of gaskets, the gasket material must be compatible with the process medium, temperature, pressure, and cleaning chemicals.

One should not choose a material merely because it is commonly used in plate heat exchangers.

7.5 Evaluate Maintenance and Cleaning Requirements

Wide-gap passages can improve accessibility for certain fluids, but cleaning requirements remain important.

For a gasketed plate heat exchanger, the ability to open the plate pack may support inspection and manual cleaning.

Cleaning-in-place may be appropriate in some systems, subject to fluid characteristics, chemical compatibility, and equipment construction.

Maintenance planning should also consider the required inspection intervals, spare gasket availability, and equipment accessibility.

7.6 Compare Total Operating Costs

Initial equipment cost is only one element of the purchasing decision.

Industrial buyers should also evaluate:

• Expected cleaning frequency

• Planned and unplanned downtime

• Pumping energy

• Maintenance labor

• Replacement components

• Thermal efficiency under expected fouling conditions

• Equipment service life

A wider passage may justify additional initial cost if it materially improves operating reliability.

Conversely, a conventional plate heat exchanger may provide better overall value when the fluid is sufficiently clean.

For broader purchasing considerations, see How to Choose a Gasket Plate Heat Exchanger: A Complete Buyer's Guide.

8. Common Mistakes When Choosing Wide-Gap Plate Heat Exchangers

8.1 Assuming Wider Channels Prevent All Fouling

A larger flow passage can reduce particular blockage mechanisms, but it cannot eliminate chemical scaling, precipitation, sticky deposits, or biological fouling.

The cause of fouling should be identified before selecting a solution.

8.2 Ignoring Minimum Passage Clearance

Nominal channel spacing may not describe the smallest restriction encountered by the fluid.

Particle and fiber passage requirements should be checked throughout the flow path.

8.3 Selecting Based Only on Pressure Drop

A wider channel may reduce hydraulic resistance, but insufficient velocity can compromise heat transfer or promote solids settling.

Hydraulic and thermal performance must be evaluated together.

8.4 Overlooking Actual Operating Temperatures

Fluid viscosity, solubility, deposit formation, and material compatibility can change with temperature.

An exchanger selected using only one operating condition may behave differently during startup, shutdown, or part-load operation.

8.5 Assuming Every Wide-Gap Unit Is Hygienic

Industrial wide-gap heat exchangers and hygienic wide-gap heat exchangers are not necessarily interchangeable.

Food-contact and sanitary applications require verification of the complete equipment construction and relevant hygienic requirements.

9. Frequently Asked Questions About Wide-Gap Plate Heat Exchangers

Q1. What is the main advantage of a wide-gap plate heat exchanger?

Its main advantage is improved accommodation of certain challenging fluids, particularly those containing fibers or suspended particles that may obstruct conventional plate channels.

The actual benefit depends on channel geometry and fluid properties.

Q2. Are wide-gap plate heat exchangers better for dirty water?

They can be useful for some dirty-water applications, but not all.

The appropriate design depends on the nature of the contaminants, particle sizes, fouling behavior, and cleaning requirements.

Q3. Does a larger plate gap always reduce pressure drop?

No.

A larger passage can reduce flow resistance under certain comparable conditions, but pressure drop also depends on flow velocity, plate geometry, fluid properties, number of passes, and the distribution system.

Q4. Can wide-gap plate heat exchangers handle high-viscosity liquids?

Some wide-gap designs are intended for viscous process fluids.

However, viscosity can significantly affect heat transfer coefficients and hydraulic resistance.

The supplier must evaluate viscosity over the required temperature range before confirming suitability.

Q5. Can a standard gasketed plate heat exchanger be converted into a wide-gap model?

Not simply by loosening the frame bolts or increasing the compression distance.

The required plate gap and channel geometry are established by the engineered plate and gasket design.

A conversion would require appropriate components, frame compatibility, and manufacturer verification.

Q6. Are wide-gap plate heat exchangers suitable for industrial refrigeration?

They may be useful in selected industrial cooling or heat recovery systems involving challenging secondary fluids.

However, refrigeration applications involving refrigerants, high pressure, or phase change require a heat exchanger designed specifically for those operating conditions.

Q7. How do I know whether I need a wide-gap or standard plate heat exchanger?

Begin by reviewing the fluid characteristics and the operating history of similar equipment.

If fibers, particles, or mechanical blockage represent a significant risk, a wide-gap option deserves evaluation.

If the fluids are clean, a standard plate heat exchanger may provide a more economical and compact solution.

The final decision should be based on thermal and hydraulic calculations.

10. Conclusion: Choose a Larger Channel Only When the Process Requires It

Wide-gap plate heat exchangers offer an important design option for industrial processes involving fibers, suspended solids, and certain viscous fluids.

Their larger or more open passages can help reduce mechanical blockage risks and support more reliable operation under suitable conditions.

However, channel width alone does not determine heat exchanger performance.

Thermal efficiency, pressure drop, flow velocity, fouling behavior, material compatibility, and cleaning requirements must all be considered.

The best approach is not to select the widest possible channel, but to choose a configuration that matches the real characteristics of the process fluid and the operating requirements.

Explore Plate Heat Exchanger Solutions With Aidear

Changzhou Aidear Refrigeration Technology Co., Ltd. provides heat exchanger solutions for industrial cooling, HVAC, refrigeration, and heat recovery applications.

For projects involving challenging fluids, effective selection begins with evaluating the heat transfer duty, fluid properties, channel configuration, and maintenance requirements.

Explore our gasketed plate heat exchanger solutions and discuss your operating requirements with our team.

Request a Custom Quote

Are you evaluating a plate heat exchanger for a fluid containing fibers, particles, or other challenging materials?

Share your fluid characteristics, flow rates, operating temperatures, allowable pressure drops, and required heat transfer capacity.

Our team can review your application requirements and discuss suitable heat exchanger options, subject to technical evaluation and configuration availability.

Contact Aidear for Your Heat Exchanger Project
