Dry coolers are widely used in industrial process cooling, HVAC systems, data centers, and other applications where reliable heat rejection is essential. However, as cooling equipment is increasingly installed near commercial buildings, residential areas, and noise-sensitive facilities, acoustic performance has become an important consideration in system design.
A dry cooler may provide sufficient cooling capacity and energy efficiency while still generating unacceptable noise at nearby buildings or property boundaries. This is particularly challenging for systems operating continuously or during nighttime hours when background noise levels are typically lower.
The sound performance of a dry cooler depends on more than its fan type. Fan speed, blade geometry, heat exchanger design, airflow resistance, vibration, operating controls, and installation conditions all influence the final noise level.
A successful low-noise dry cooler design must balance three essential requirements: cooling capacity, energy consumption, and acoustic performance.
This guide examines the main factors affecting dry cooler noise, practical noise-reduction strategies, and the technical information engineers should evaluate before selecting equipment.
Noise control is not simply a comfort issue. In certain installations, it can directly influence equipment selection, project approval, and long-term operating flexibility.
For example, a dry cooler installed on a commercial rooftop may operate without causing problems during daytime hours but become a significant source of disturbance at night.

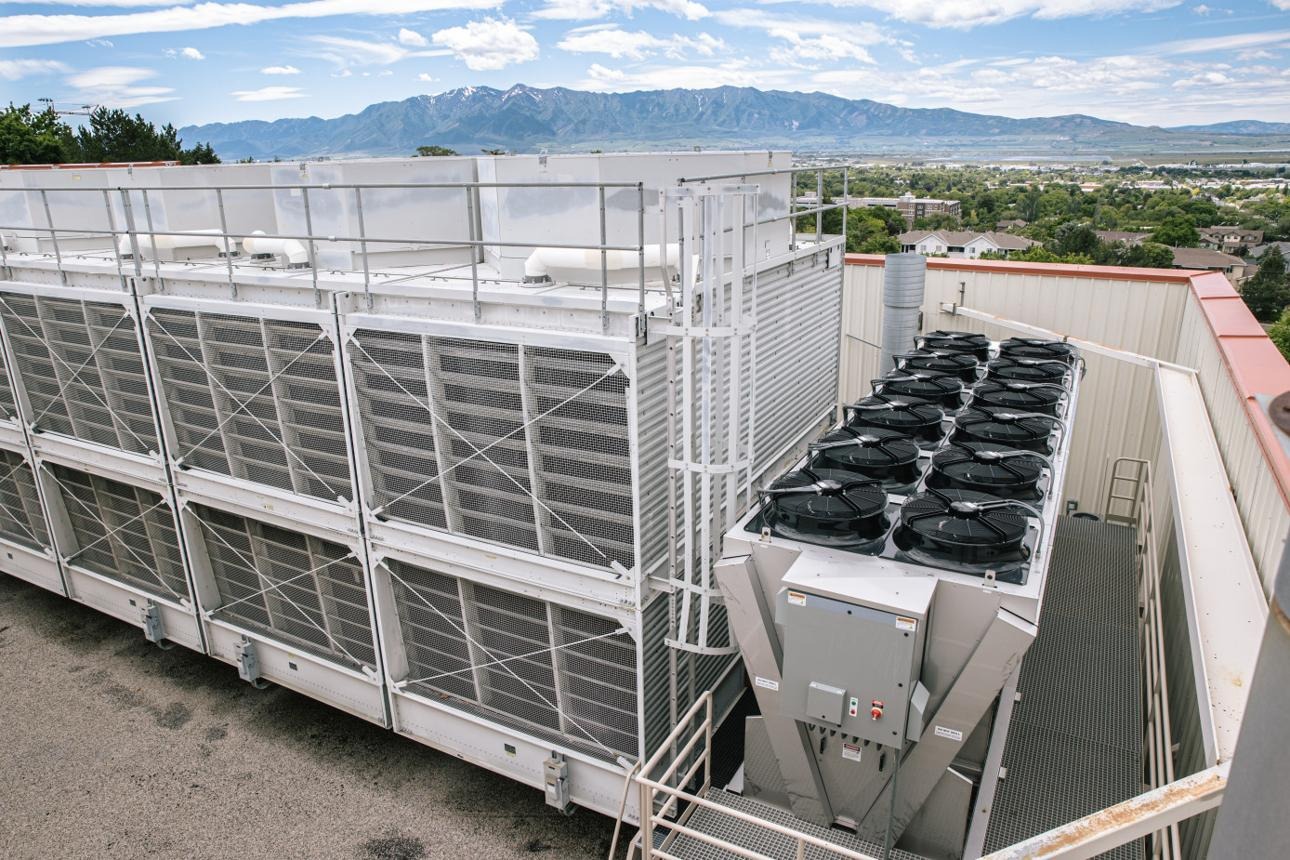

Similarly, cooling systems serving data centers may need to operate continuously while meeting environmental noise restrictions near the facility.
Low-noise design becomes particularly important in the following situations:
Urban HVAC installations: Equipment operates near offices, hotels, apartments, or neighboring properties.
Data centers: Continuous cooling operation can create persistent environmental noise.
Industrial facilities: Multiple heat rejection units may contribute to the overall site noise level.
Hospitals and research facilities: Noise-sensitive environments require careful equipment placement and sound control.
Rooftop installations: Structural vibration and reflected sound may affect occupied spaces below or nearby.
For these applications, selecting equipment based only on cooling capacity may result in additional costs for acoustic barriers, operating restrictions, or equipment modifications.
Considering sound requirements at the beginning of the design process is generally more effective than attempting to correct noise problems after installation.
Before comparing low-noise dry coolers, it is important to understand how acoustic performance is measured.
Two commonly used parameters are sound power level and sound pressure level. Although both are expressed in decibels, they describe different acoustic characteristics.
Sound power (Lw) is the total acoustic power emitted by a source, determined primarily by the equipment and its operating condition. It provides a consistent basis for comparing dry cooling system designs.
Sound pressure level (Lp) is the sound pressure measured or predicted at a specific location. Unlike sound power, it depends on the environment—including distance, reflections, obstacles, and equipment orientation.
Parameter |
Sound Power Level (Lw) |
Sound Pressure Level (Lp) |
|---|---|---|
Definition |
Acoustic power emitted by equipment |
Sound level at a specific point |
Distance dependent |
No |
Yes |
Environmental influence |
Characterizes source emission |
Influenced by sound propagation |
Typical application |
Equipment comparison |
Site noise assessment |
Important information |
Test conditions and operating point |
Distance and measurement environment |
A-weighted sound levels, expressed in dB(A), account for the frequency-dependent sensitivity of human hearing.
However, a single overall dB(A) value does not fully describe how a dry cooler sounds.
Two units with identical A-weighted sound levels may produce different acoustic characteristics.
One may generate relatively uniform broadband airflow noise, while another produces a noticeable hum associated with fan blade-passing frequency or motor operation.
For noise-sensitive projects, engineers may also need to review:
Octave-band or one-third-octave-band sound levels
Tonal components
Low-frequency noise
Noise variation with fan speed
Maximum operating sound levels
These factors help engineers evaluate whether equipment will create unacceptable acoustic conditions even when its overall dB(A) value appears acceptable.
A conventional dry cooler typically consists of finned heat exchanger coils, axial fans, motors, structural components, and a liquid circulation system connected to external pumps.
Because a standard dry cooler does not contain a refrigeration compressor, its main noise sources differ from those of an air-cooled chiller.

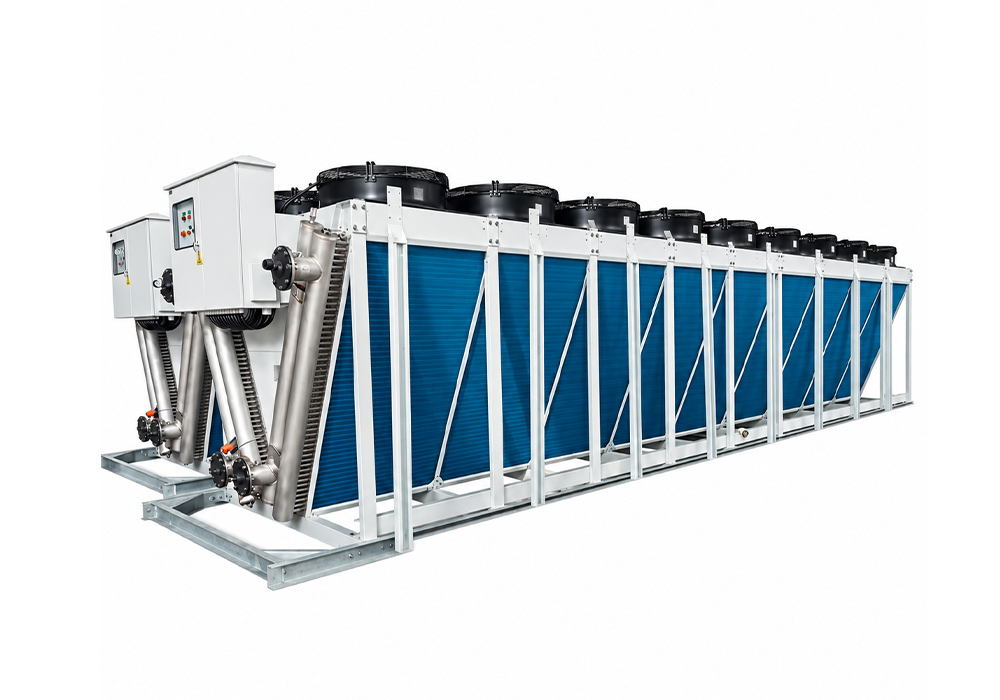

Typical industrial dry cooler configuration with finned coils and axial fans.
Air moving through rotating fan blades creates pressure fluctuations and turbulence.
Aerodynamic noise can be influenced by blade tip speed, impeller geometry, inlet conditions, and interaction between the fan and surrounding components.
In many dry cooler designs, aerodynamic fan noise is a major contributor to overall sound emissions.
Fan motors and rotating assemblies can produce mechanical or electromagnetic noise.
Potential sources include bearings, motor-related tonal components, and rotating imbalance.
The contribution depends on motor construction, fan condition, rotational speed, and operating load.
Fan assemblies can transmit vibration through their mounting structures.
If this vibration excites the casing, supporting frame, connected piping, or building structure, additional sound may be generated.
Structural transmission can be particularly important in rooftop installations.
When air flows through that finned coil, it kinda hits some resistance.
If the airflow isn’t evenly spread out, or if the coil itself is cramped or oddly shaped—or even if the air intake’s just poorly designed—it can stir up more turbulence, or force the fan to work harder against higher pressure.
That shift in how the fan’s running? Yeah, it often means more noise.
Knowing why this happens helps engineers pick the right noise-fixing tricks—ones that actually tackle the real issue—not just slap on extra sound-dampening material as a quick fix.
Fan rotational speed is one of the most important variables affecting dry cooler sound performance.
As fan speed increases, aerodynamic pressure fluctuations and associated sound generation generally increase.
A useful parameter is blade tip velocity:
vtip=πDN60v_{\text{tip}}=\frac{\pi D N}{60}vtip=60πDN
Where:
vtipv_{\text{tip}}vtip = blade tip velocity (m/s)
DDD = fan diameter (m)
NNN = rotational speed (rpm)
For a fixed fan diameter, increasing rotational speed increases blade tip velocity proportionally.
Higher tip velocity can increase aerodynamic noise, although actual noise performance also depends on blade shape, airflow conditions, and fan efficiency.
Reducing fan speed is therefore a common strategy for achieving quieter operation.
However, reducing speed also decreases available airflow and fan pressure capability. The system must still provide sufficient heat rejection under the specified design conditions.
Fan diameter directly affects the airflow that can be delivered at a given rotational speed.
In some designs, using larger, slower-running fans can provide the required airflow with lower acoustic emissions than smaller fans operating at higher speeds.
The final result depends on the selected fan's performance curve and the resistance of the complete dry cooler.

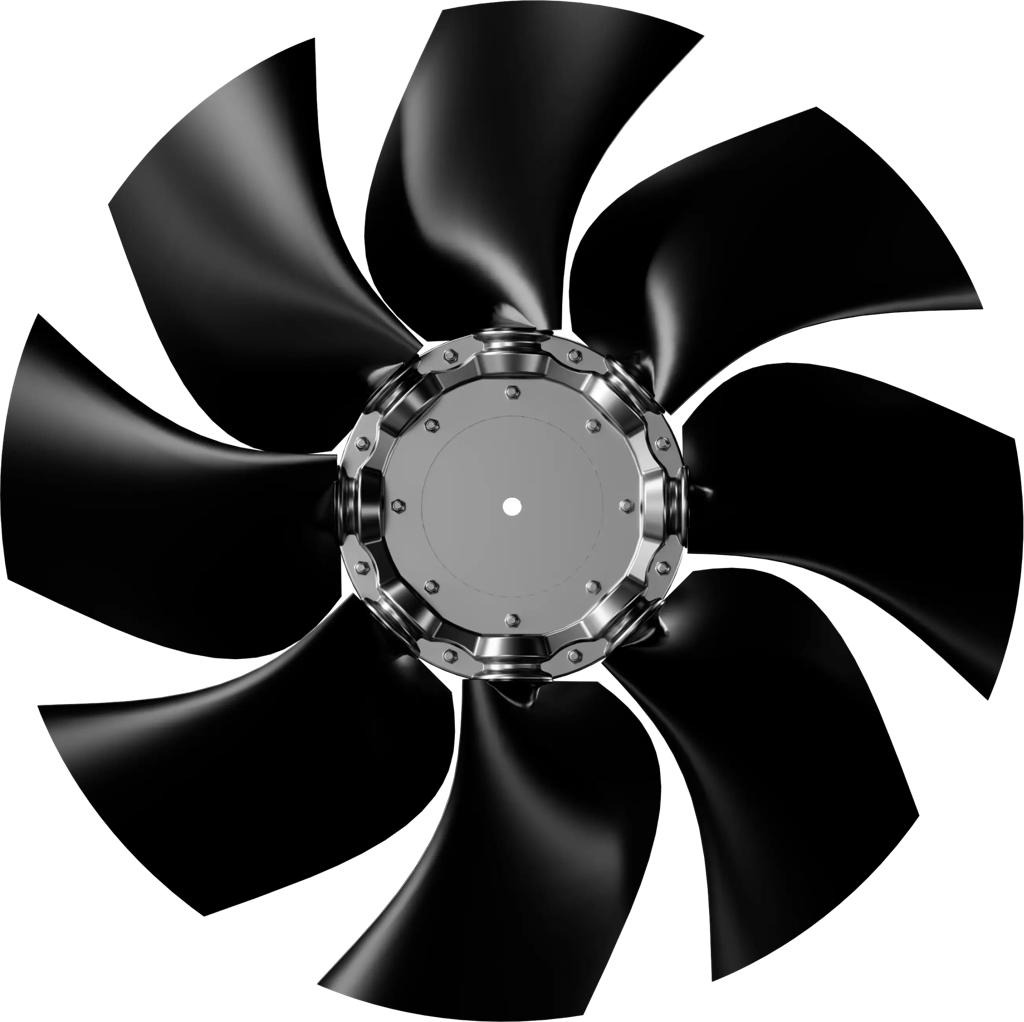

Blade geometry is equally important.
Important characteristics include blade pitch, airfoil shape, blade tip clearance, and the interaction between the impeller and fan housing.
Optimized blade designs can reduce flow separation, vortex formation, and undesirable tonal noise.
Fan manufacturer ebm-papst identifies blade tip clearance and turbulent inlet flow as significant contributors to axial fan noise.
mag
+1
Therefore, engineers should not assume that a larger fan is automatically quieter. The correct comparison is between complete fan configurations operating at the required airflow and pressure.
The electronic reversing (EC) fan can achieve variable frequency control and is suitable for low-noise dry cooler applications.
Unlike running continuously at a fixed speed, the EC fan can adjust the air volume output according to changes in cooling requirements.
When the ambient temperature is lower or the heat load decreases, the required airflow may be reduced.
In such cases, reducing the fan speed can lower noise and energy consumption.
Potential advantages include:
Adjustable fan speed
Improved part-load operating flexibility
Integration with automated control systems
Reduced sound levels during low-load operation
Potential energy savings compared with fixed-speed operation
However, the EC fans do not necessarily perform quieter than all AC fans under the same operating conditions. The acoustic performance depends on the fan's geometry, motor design, operating speed, and the overall system situation.
For instance, ebm-papst has released a fan comparison study, indicating that the optimized EC axial fan configuration can achieve lower power consumption with the same airflow in specific applications. Such results are model-specific and do not represent a universal performance guarantee.
ebm-papst
+1
For low-noise projects, EC fans should be evaluated together with the full-speed and part-load operating strategy.

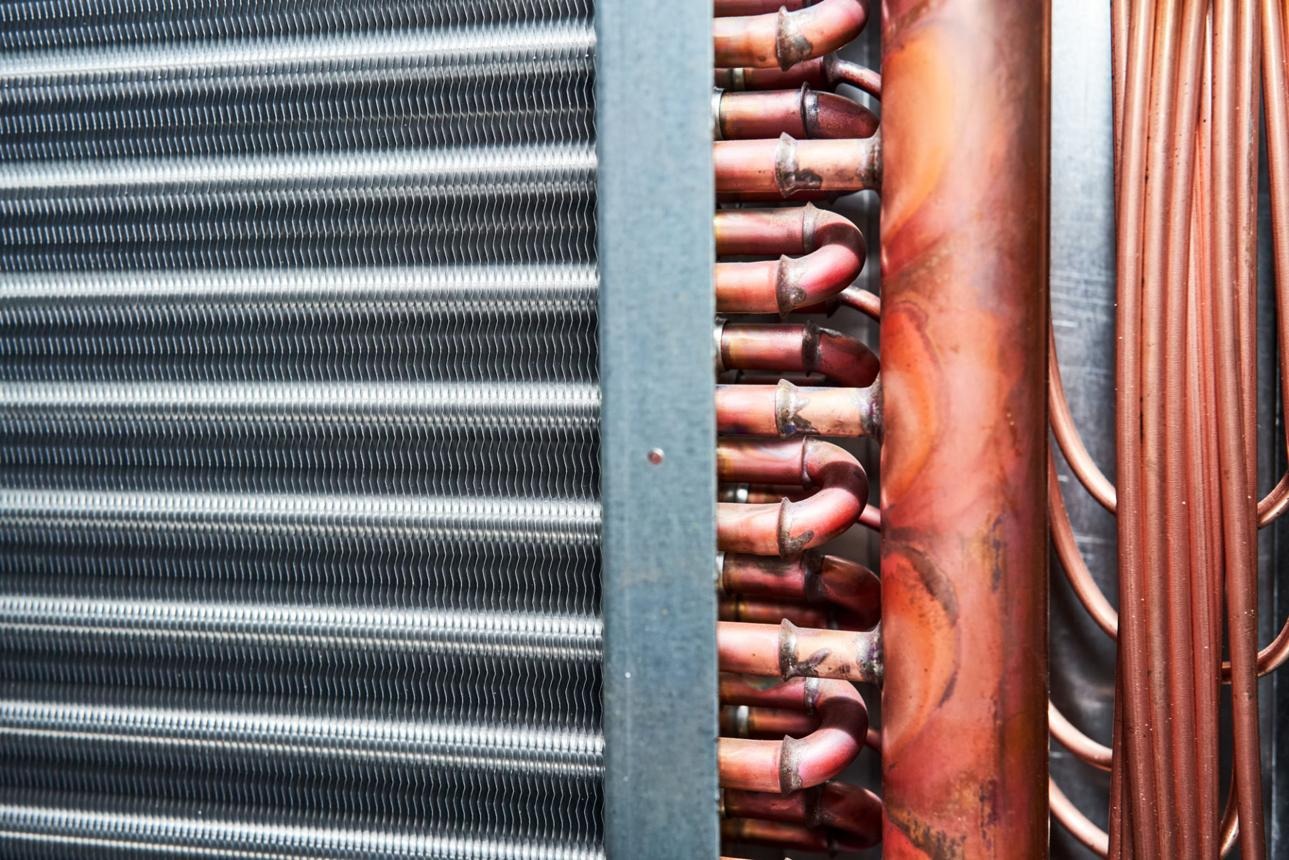

The heat exchanger coil has an indirect but important influence on dry cooler noise.
A larger effective heat transfer surface may allow a required cooling capacity to be achieved with less airflow, depending on the thermal design.
This creates an opportunity to reduce fan speed while maintaining the necessary heat rejection.
However, the relationship is not automatic.
The thermal performance of a dry cooler depends on several variables, including:
Ambient air temperature
Entering liquid temperature
Liquid flow rate and properties
Required leaving liquid temperature
Coil surface area and fin configuration
Airflow rate and distribution
Increasing coil surface area can improve thermal performance, but it may also increase physical dimensions, equipment cost, or airflow resistance if poorly configured.
The objective is to develop a coil and fan combination that achieves the required thermal performance at an acceptable acoustic operating point.
Air resistance is another key factor.
The fan must overcome the resistance caused by the heat exchanger coils, the intake and exhaust ports, the protective grilles, and other components in the airflow path.
If the resistance is too high, the fan may need to operate at a higher speed or be adjusted to a more unfavorable working point.
Both of these situations will affect the acoustic performance.
A good airflow design should minimize unnecessary restrictions and avoid severe intake port distortion.
Potential improvement measures include: adequate intake port clearance, appropriate fan intake port geometry, optimized coil layout, and carefully designed protective grilles.
Air recirculation is also another issue that needs attention.
When the hot exhaust airflow returns to the intake port, the cooling performance may decrease. The system may therefore increase the fan speed, resulting in additional noise.
This is particularly important in dry coolers installed in enclosed courtyards or near high walls.
Not all dry cooler noise travels directly through the air.
Mechanical vibration can transfer through the equipment frame into nearby structures and create secondary noise.
Common transmission paths include fan supports, equipment mounting feet, pipe connections, and rooftop structural members.
Potential vibration-control measures include:
Proper fan balancing
Rigid and suitably designed support frames
Appropriate vibration isolators
Flexible piping connections where required
Avoidance of structural resonance

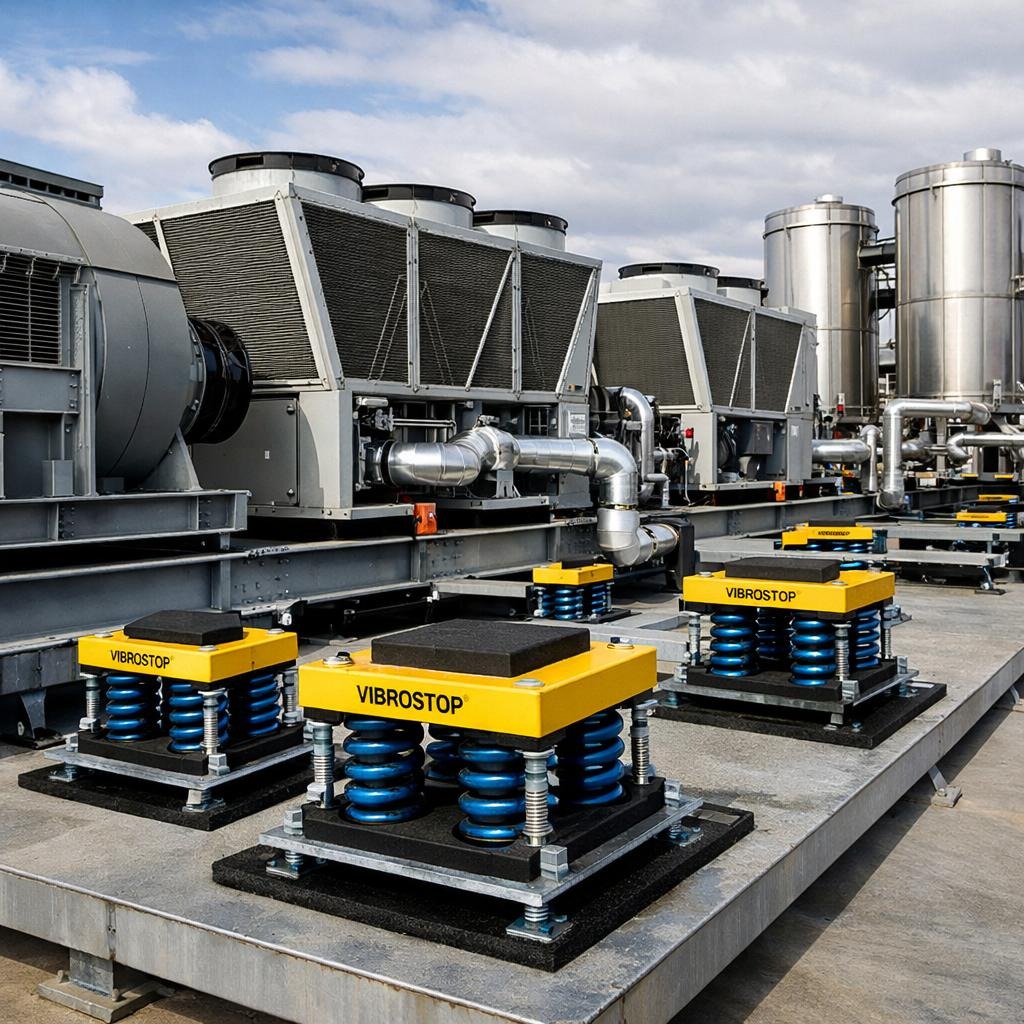

Vibration isolators must be selected according to the equipment weight, excitation frequencies, structural support conditions, and expected operating environment.
Incorrectly selected mounts can perform poorly or even amplify vibration near resonance.
The same dry cooling system may produce different noise levels in adjacent areas at different locations.
The nearby walls, roofs, eaves and other hard surfaces will reflect sound energy.
Improper installation can also lead to air circulation or blocked air intake.
When evaluating the site, engineers should consider the distance from noise-sensitive receiving equipment, the orientation of the equipment, surrounding buildings and potential sound reflection paths.
For installations with particularly strict acoustic requirements, a noise assessment for the site may need to be conducted before finalizing the equipment selection.
Several design approaches can be used to improve dry cooler sound performance.
The most effective solution often combines multiple methods rather than relying on a single component.
Design strategy |
Noise reduction mechanism |
Key engineering consideration |
|---|---|---|
Lower fan speed |
Reduces aerodynamic sound generation |
Must maintain required cooling capacity |
Larger, slower fans |
May reduce noise at equivalent duty |
Requires suitable fan and unit geometry |
Optimized fan blades |
Reduces turbulence and tonal components |
Depends on actual fan operating point |
EC variable-speed control |
Allows quieter part-load operation |
Requires suitable control programming |
Increased effective coil area |
May permit lower required airflow |
Equipment size and cost may increase |
Improved airflow path |
Reduces unnecessary turbulence and restrictions |
Installation clearances must be maintained |
Vibration isolation |
Limits structure-borne transmission |
Must match equipment and support dynamics |
Acoustic barriers |
Reduces transmission toward receivers |
Must not obstruct airflow or maintenance |
Operating all fans at maximum speed is not always necessary.
When cooling demand decreases, a properly designed control system may reduce fan speed while maintaining the target leaving liquid temperature.
This can provide lower sound emissions during favorable operating conditions.
However, the control strategy must account for minimum fan speeds, motor limitations, system stability, and cooling demand.
Some facilities need to reduce noise emissions at night.
The night mode can limit the maximum fan speed or adjust the control strategy during the specified period.
For example, if the heat load decreases and the ambient temperature permits, the dry cooler can operate at a lower fan speed at night.
It should be noted that reducing the fan speed will decrease the available heat dissipation capacity.
Therefore, the night operation mode must be evaluated based on the actual night cooling load at the site and the worst-case environmental conditions.
Without verification, it should not be assumed that the night mode can meet the required cooling load.
Replacing a conventional fan with a low-noise model may improve sound performance, but the complete unit still determines the result.
A fan designed for quiet operation may perform poorly when installed behind a restrictive grille or exposed to highly disturbed inlet airflow.
Engineers should evaluate the interaction between the fan, coil, enclosure, and installed environment.
For demanding projects, laboratory acoustic data or validated system-level predictions offer a stronger basis for equipment selection than fan catalogue values alone.
One of the main challenges in low-noise dry cooler engineering is balancing sound performance with thermal capacity.
Reducing fan speed generally lowers airflow.
As airflow decreases, the heat exchanger's air-side heat transfer performance usually declines, although the exact relationship is nonlinear and depends on the operating conditions.
This means a dry cooler selected only for full-speed capacity may fail to meet its required cooling duty when operating in a noise-reduced mode.
Consider a hypothetical dry cooler designed to reject 300 kW of heat under a defined set of operating conditions.
The project also requires reduced nighttime noise.
An engineer might evaluate the following configurations:
Configuration |
Fan control |
Thermal design approach |
Main consideration |
|---|---|---|---|
A — Standard |
Fixed-speed fans |
Sized for full-speed operation |
Limited acoustic flexibility |
B — Variable-speed |
EC fans |
Optimized for variable airflow |
Quieter partial-load operation possible |
C — Low-noise optimized |
Larger effective coil and selected low-speed fans |
Designed around acoustic and thermal targets |
Greater space and cost requirements may apply |
These are conceptual configurations, not tested product results. No specific noise level or cooling capacity reduction can be established without manufacturer performance data.
The critical question is not simply which configuration uses the slowest fans.
It is which configuration can meet the required cooling duty while satisfying the acoustic limit at the designated receiver location.
For the same fan and approximately similar operating conditions, the fan affinity laws provide useful initial estimates:
Q2/Q1≈N2/N1Q_2/Q_1 \approx N_2/N_1Q2/Q1≈N2/N1
Δp2/Δp1≈(N2/N1)2\Delta p_2/\Delta p_1 \approx (N_2/N_1)^2Δp2/Δp1≈(N2/N1)2
P2/P1≈(N2/N1)3P_2/P_1 \approx (N_2/N_1)^3P2/P1≈(N2/N1)3
Where QQQ is airflow, NNN is fan speed, Δp\Delta pΔp is fan pressure rise, and PPP is fan power.
These relationships illustrate why reducing fan speed can save electrical power.
They should not, however, be used alone to predict dry cooler thermal capacity or sound level.
Heat exchanger calculations and acoustic performance data are required for final selection.
Selecting a low-noise dry cooler requires more than asking a supplier for the lowest available dB(A) value.
The correct specification should define thermal requirements, acoustic limits, operating conditions, and the measurement basis.
When reviewing a manufacturer's proposal, engineers should request sound power levels for the complete dry cooler whenever available.
Sound pressure levels should identify the measurement or prediction distance and environmental conditions.
For multi-fan equipment, it is important to establish whether the stated noise value represents a single fan or the complete operating unit.
The fan-speed setting and associated cooling capacity should also be specified.
Industry standards provide consistent methods for determining and comparing acoustic performance.
Three useful references include:
ISO 3744:2025
This standard specifies engineering methods for determining sound power levels from sound pressure measurements over an enclosing measurement surface in an approximately free field above a reflecting plane.
ISO
ASHRAE Handbook — Sound and Vibration
ASHRAE provides guidance on sound power, sound pressure, vibration, and acoustic propagation in HVAC applications.
ASHRAE 手册在线
Eurovent Certified Performance — Heat Exchangers
The Eurovent heat exchanger certification programme includes A-weighted sound power and sound pressure performance among the declared certified characteristics for participating dry coolers.
Eurovent Certita Certification
These references help engineers understand how sound data can be established. They do not mean that every dry cooler is certified or has been tested under all these methods.
A dry cooler may operate quietly at moderate ambient temperatures but require higher fan speeds during extreme heat.
Therefore, acoustic assessment should consider more than a single favorable operating condition.
Important scenarios include maximum cooling demand, expected nighttime operation, high ambient temperature, and multiple units operating simultaneously.
Where strict environmental limits apply, the prediction should account for relevant site conditions and potential tonal noise.
For a project with acoustic restrictions, buyers should request a technical proposal that includes the following information:
Required heat rejection capacity (kW)
Entering and leaving liquid temperatures (°C)
Design ambient air temperature (°C)
Liquid type, glycol concentration if applicable, and flow rate
Fan type, quantity, speed range, and electrical characteristics
Complete-unit sound power data, if available
Predicted sound pressure levels at the specified receiver location
Cooling capacity at the proposed low-noise operating point
Unit dimensions, weight, and installation clearances
Acoustic testing basis and available supporting documentation
This information makes it easier to compare alternative equipment selections on a consistent basis.
Data centers often require continuous heat rejection.
Dry coolers can be used in suitable liquid-cooling and heat-rejection systems, including applications involving chilled-water systems or cooling loops.
Noise control becomes important when large numbers of fans operate close to site boundaries.
For these projects, variable-speed control, acoustic system modelling, and multi-unit operation should be considered together.
In commercial buildings, dry coolers may be installed close to occupied floors or neighboring properties.
Low-noise equipment selection can help reduce the risk of disturbances caused by outdoor fans and vibration transmission.
Rooftop structural design, support isolation, and equipment orientation should be evaluated during project planning.
Industrial facilities may use dry coolers for cooling process liquids, production equipment, and other systems requiring heat rejection.
Where several cooling units operate simultaneously, the combined acoustic contribution can be significantly higher than the level generated by an individual unit.
As a basic acoustic principle, combining two independent sources with equal sound levels increases the combined level by approximately 3 dB.
Consequently, the total number of units and their simultaneous operating modes must be considered in large installations.
Cooling equipment installed close to hospitals, laboratories, and other sensitive facilities requires careful acoustic assessment.
Even when equipment is located outdoors, vibration and airborne sound may be transmitted into occupied areas.
Selecting suitable low-noise fans and controlling transmission paths can help manage these risks.
Not every cooling application requires the same acoustic performance.
A dry cooler installed in a remote industrial facility may prioritize compact dimensions and initial equipment cost.
A unit installed near residential buildings may require lower sound emissions, even if achieving them increases heat exchanger size or equipment cost.
This is why customized dry cooler selection can be valuable for projects with defined noise limits.
At Changzhou Aidear Refrigeration Technology Co., Ltd., dry cooler projects can be discussed in terms of required cooling capacity, working fluid, operating temperatures, installation conditions, and application-specific requirements.
For noise-sensitive applications, customers should provide the project acoustic limits and required operating conditions so that suitable fan and heat exchanger configurations can be evaluated.
Final cooling and acoustic performance should be confirmed against the selected equipment configuration and applicable technical documentation.
There is no single universal noise level for all dry coolers.
Actual sound performance depends on equipment size, fan quantity, rotational speed, operating condition, and acoustic design.
Published dB(A) values should always be accompanied by a clear measurement basis.
EC fans provide flexible speed control and can reduce noise during partial-load operation.
However, whether an EC fan is quieter than an AC fan at the same operating point depends on the specific fan designs and conditions.
It is best to compare verified fan or complete-unit acoustic data at equivalent airflow and pressure.
Reducing fan speed generally reduces aerodynamic fan noise under comparable operating conditions.
However, resonance, tonal components, motor behavior, and changes in airflow patterns may influence the final result.
Lower speed also reduces airflow and potentially cooling capacity.
Yes. Properly designed acoustic barriers can reduce sound transmission toward particular locations.
However, barriers must be positioned to avoid obstructing the dry cooler's airflow or creating excessive recirculation.
Their actual effectiveness depends on geometry, frequency, and installation conditions.
Multiple operating fans contribute to the total sound level.
For equal independent sound sources, doubling the number of operating sources increases the combined sound level by approximately 3 dB.
However, changing the number of fans may also alter individual fan speed and airflow requirements, so complete-unit acoustic performance must be evaluated.
It is possible when the nighttime thermal load and ambient conditions allow the required heat rejection to be achieved at reduced fan speed.
If the required cooling capacity remains high, additional heat exchanger surface or other system design changes may be necessary.
Night mode cannot guarantee unchanged capacity under all operating conditions.
Compare complete-unit sound power data, cooling capacity, fan power input, and operating conditions.
For projects with strict acoustic requirements, request octave-band data and consider a site-specific sound assessment.
Equipment should be evaluated at equivalent thermal duties rather than comparing isolated noise figures.
Low-noise dry cooler design requires a coordinated approach to fan selection, heat exchanger sizing, airflow management, vibration control, and installation planning.
Fan speed is one of the most influential acoustic variables, but reducing speed without considering the thermal design can compromise cooling performance.
A more effective strategy is to optimize the complete dry cooler so that the required cooling capacity can be maintained at an appropriate fan operating point.
For engineers and industrial buyers, the most important step is to define acoustic requirements early and compare equipment using consistent sound and thermal performance data.
Looking for a dry cooler solution for a noise-sensitive cooling project?
Contact Aidear to discuss your required cooling capacity, operating temperatures, working fluid, installation conditions, and acoustic targets. Our team can review your application requirements and discuss suitable customized dry cooler configurations.
