How Altitude Affects Dry Cooler Capacity | High-Altitude Selection Guide

Dry coolers are widely used in data centers, industrial process cooling, energy storage systems, power generation, HVAC systems, and other applications where heat must be rejected to outdoor air without relying heavily on water.

However, there is one operating condition that can easily be overlooked during equipment selection: altitude.

A dry cooler selected for a facility near sea level may not deliver exactly the same thermal performance when installed 1,500, 2,000, or 3,000 meters above sea level.

The main reason is not the elevation itself. It is the change in air density, air mass flow, fan performance, and ultimately air-side heat transfer.

For engineers designing high-altitude cooling systems, understanding these relationships is essential. Simply taking a sea-level dry cooler rating and applying it to a high-altitude project can result in insufficient cooling capacity, elevated fluid temperatures, or oversized fan energy requirements.

This guide explains how altitude affects dry cooler capacity, why air density matters, how fan behavior changes, and what engineers should consider when selecting a dry cooler for high-altitude installations.

Why Does Altitude Matter for Dry Cooler Performance?

A dry cooler removes heat by passing ambient air across a finned-tube heat exchanger.

On the liquid side, water or a water-glycol mixture flows through the tubes. On the air side, axial fans move outdoor air across the fins.

The basic sensible heat transfer relationship on the air side can be expressed approximately as:

Q = ṁ × Cp × ΔT

Where:

• Q = heat transfer rate

• ṁ = air mass flow rate

• Cp = specific heat capacity of air

• ΔT = air temperature rise across the heat exchanger

The important term for altitude calculations is air mass flow rate.

Air mass flow is related to volumetric airflow by:

ṁ = ρ × V̇

Where:

• ρ = air density

• V̇ = volumetric airflow

• ṁ = mass airflow

As altitude increases, atmospheric pressure decreases and the air becomes less dense.

Therefore, even if a fan moves approximately the same volumetric airflow, such as the same m³/h or CFM, there is less air mass passing across the heat exchanger.

Fans are fundamentally volumetric devices. AMCA notes that a fan delivering the same volumetric airflow at higher elevation transports less air mass because of the lower air density.

That reduction in air mass flow is one of the primary reasons a dry cooler may deliver less capacity at altitude.

How Air Density Changes with Altitude

Under standard atmospheric conditions, air density decreases progressively with elevation.

Approximate standard-atmosphere values are:

These values are based on standard-atmosphere conditions. Actual air density at a project site also depends on temperature, atmospheric pressure, and to a lesser extent moisture content.

This distinction is important.

For example, saying that a site at 2,000 meters has approximately 18% lower standard air density than sea level does not automatically mean that dry cooler capacity will be exactly 18% lower.

Dry cooler performance depends on several interacting variables.

Lower Air Density Does Not Equal the Same Percentage of Capacity Loss

This is one of the most common misunderstandings in high-altitude dry cooler selection.

Consider a dry cooler rated at:

500 kW at sea-level design conditions

It would be incorrect to automatically assume:

Air density falls 18%, therefore dry cooler capacity becomes 410 kW.

Real thermal performance is more complicated.

The actual capacity depends on:

• air mass flow;

• fan operating point;

• coil geometry;

• fin spacing;

• tube configuration;

• fluid flow rate;

• fluid properties;

• entering fluid temperature;

• ambient dry-bulb temperature;

• required leaving fluid temperature;

• heat exchanger surface area;

• air-side heat transfer coefficient;

• fan speed and motor capability.

Manufacturers should therefore recalculate the thermal performance at the actual installation altitude and design ambient condition rather than applying a universal percentage derating.

What Actually Happens to a Dry Cooler at High Altitude?

1. Air Mass Flow Decreases

Suppose a fan delivers approximately the same volumetric airflow at two locations.

At sea level:

Volumetric airflow = 100,000 m³/h

At a higher elevation, the fan may still move a similar volume of air, but each cubic meter contains less air mass.

Because:

Mass Flow = Air Density × Volume Flow

less thermal mass is available to absorb heat from the dry cooler coil.

This reduces the air-side heat rejection potential.

2. Fan Pressure Capability Changes

Altitude does not only affect heat exchanger performance.

It also influences the fan.

Fan performance data is typically based on standard air density. When actual air density changes, fan pressure and power must be corrected.

Greenheck notes that while airflow volume remains nearly constant at a given speed, lower air density reduces pressure and alters power demand. Thus, when operating conditions deviate from standard air—due to temperature or altitude changes—fan selection requires corresponding temperature and altitude corrections.

This matters in dry coolers because the fan must overcome resistance created by:

• the finned coil;

• guards and screens;

• casing;

• inlet restrictions;

• nearby equipment;

• recirculation conditions;

• accessories.

If the fan and coil are selected only using sea-level conditions, the actual operating point may differ once the unit is installed at altitude.

3. Air-Side Heat Transfer Can Decline

The heat exchanger’s performance partly depends on convection between the fin surface and airflow.

At higher altitudes, reduced air density alters key air-side flow characteristics.

Thus, the actual heat transfer coefficient may differ from sea-level design values.

The specific effect varies with coil geometry and operating conditions—making a single altitude correction factor unreliable for each dry cooling unit.

4. The Required Air Volume May Increase

One way to compensate for lower air density is to move a greater volume of air.

If more volumetric airflow passes across the coil, some of the lost air mass flow can be recovered.

That may require:

• larger fans;

• higher fan speeds;

• additional fans;

• larger heat exchanger face area;

• lower-pressure-drop coil designs.

However, increasing airflow is not free.

Higher fan speeds may increase:

• electrical consumption;

• sound levels;

• mechanical loading;

• fan operating pressure requirements.

Fan affinity laws also mean that relatively small changes in rotational speed can create much larger changes in power demand.

For this reason, increasing fan speed should be evaluated as part of the complete dry cooler design rather than treated as the automatic solution.

Altitude and Ambient Temperature Must Be Considered Together

Altitude should never be evaluated independently from ambient temperature.

Why?

Because air density is affected by both pressure and temperature.

Higher temperatures reduce air density even further.

A high-altitude site with a hot summer design temperature can therefore represent a particularly demanding operating condition.

For example, an installation at:

2,000 m elevation and 35°C design ambient

should not be selected using standard-atmosphere density at 2,000 m alone.

The manufacturer should use the actual:

• site altitude;

• design dry-bulb temperature;

• atmospheric pressure where available;

• required thermal duty.

This produces a more realistic air-density correction.

Can Cooler High-Altitude Weather Offset the Density Effect?

Sometimes, partially.

Many high-altitude locations have lower average ambient temperatures than lower-elevation locations.

A lower entering-air temperature increases the temperature difference between the cooling air and the hot process fluid.

That increased temperature difference can improve heat rejection.

Therefore, an actual project may experience two competing effects:

High altitude → lower air density → reduced air-side capability

while:

Lower ambient temperature → larger temperature difference → potentially improved heat transfer

This is exactly why altitude should not be treated as an isolated capacity-reduction percentage.

The dry cooler should be evaluated at the project's actual worst-case design condition.

The Role of Approach Temperature

One of the most important variables in dry cooler sizing is the approach temperature.

For a dry cooler, the approach can be expressed approximately as:

Approach = Leaving Fluid Temperature − Entering Air Temperature

Suppose a system requires:

• entering fluid: 45°C;

• leaving fluid: 35°C;

• design ambient air: 30°C.

The approach temperature is:

35°C − 30°C = 5 K

A 5 K approach is relatively demanding for a dry cooler because the driving temperature difference becomes small near the outlet end of the heat exchanger.

Now, this small pitch is combined with high altitude.

Lower air density reduces available airflow for heat dissipation, making coil surface area and air velocity more critical.

That’s why dry coolers in high-altitude, high-temperature, or near-ambient conditions may be significantly larger than those using larger pitches at sea level.

How Engineers Should Select a Dry Cooler for High Altitude

Step 1: Define the Required Heat Rejection

Start with the actual thermal duty.

Provide:

• cooling capacity in kW;

• entering fluid temperature;

• leaving fluid temperature;

• fluid flow rate where known.

Do not simply specify the nominal capacity of another unit.

Step 2: Specify the Exact Installation Altitude

Altitude should be included as a standard dry cooler selection parameter.

For example:

Installation elevation: 2,300 m above sea level

This allows the manufacturer to calculate or apply the correct air-density conditions.

Step 3: Provide the Summer Design Ambient Temperature

For industrial dry cooler sizing, peak design conditions are generally more important than annual average temperature.

For example:

Design ambient dry bulb: 38°C

rather than:

Annual average temperature: 18°C

A dry cooler capable of rejecting the load during average weather may still be undersized on the hottest design day.

Step 4: Confirm the Cooling Fluid

The fluid may be:

• water;

• ethylene glycol solution;

• propylene glycol solution;

• another compatible process fluid.

Glycol concentration matters because it changes:

• specific heat;

• viscosity;

• density;

• pressure drop;

• heat-transfer characteristics.

The dry cooler therefore needs to be selected using the actual fluid properties.

Step 5: Calculate Site Air Density

Air density should reflect both:

• altitude;

• design air temperature.

Where project requirements justify it, local barometric pressure can provide an even more representative basis.

The fan and thermal calculation can then be performed using site-specific conditions.

Step 6: Recalculate Fan Performance

Fan selection should account for actual air density.

At the required airflow, engineers should verify:

• operating point;

• static pressure capability;

• fan speed;

• motor power;

• fan efficiency;

• noise level.

Published fan curves should not automatically be interpreted as site-condition performance when the installation conditions differ from the rating conditions.

AMCA fan standards explicitly include parameters such as airflow, pressure, power, air density and rotational speed in aerodynamic performance testing.

Step 7: Recalculate Coil Thermal Performance

The heat exchanger should then be rated using the corrected airflow and site conditions.

The manufacturer may compensate through changes such as:

• increased face area;

• additional coil rows;

• optimized fin spacing;

• modified tube circuitry;

• larger fans;

• additional fans;

• higher fan speed.

The best solution depends on thermal duty, footprint limits, noise restrictions and energy targets.

Common Ways to Compensate for High-Altitude Capacity Loss

Increase the Heat Exchanger Surface Area

A larger coil provides more surface area for heat transfer.

This is often one of the most straightforward ways to restore capacity without relying entirely on higher fan speeds.

Possible changes include:

• longer coils;

• taller coils;

• additional coil sections;

• alternative coil geometry.

However, increasing rows or fin density can also increase air-side pressure drop, so the fan and coil must be optimized together.

Increase Airflow

Higher volumetric airflow can compensate for some of the reduction in air mass caused by altitude.

Options include:

• larger-diameter axial fans;

• additional fans;

• higher rotational speed;

• optimized blade design.

But engineers should check both sound and energy consumption before choosing this approach.

Optimize Fin Spacing

Closer fin spacing increases heat-transfer surface area within a given footprint.

However, it also increases resistance to airflow.

In environments with:

• dust;

• sand;

• cotton fibers;

• industrial particles;

very tight fin spacing may increase fouling and maintenance requirements.

For a high-altitude industrial project, maximum surface area is not necessarily the same as optimum design.

Increase the Allowable Fluid Temperature

If the process can tolerate a slightly higher leaving-fluid temperature, dry cooler size may be reduced significantly.

For example, changing the design condition from:

35°C leaving water

to:

38°C leaving water

can increase the available air-to-fluid temperature difference.

Whether this is acceptable depends on the downstream process.

Use Variable-Speed Fans

EC fans or VFD-controlled AC fans can provide useful operating flexibility.

At peak summer conditions, fans can operate at higher capacity.

During cooler periods, fan speed can be reduced to save energy and lower noise.

This approach is particularly useful where the cooling load or ambient conditions vary considerably throughout the year.

Should You Simply Oversize the Dry Cooler?

Not necessarily.

A common response to uncertainty is to select a much larger dry cooler.

Some design margin is sensible, but uncontrolled oversizing has disadvantages.

An oversized unit can result in:

• greater initial cost;

• larger installation footprint;

• increased structural requirements;

• additional fans;

• unnecessary electrical infrastructure.

A better approach is to calculate the actual high-altitude operating point and then apply an appropriate engineering margin.

Correct selection is better than arbitrary oversizing.

High-Altitude Dry Cooler Selection Example

Consider a simplified industrial cooling project.

Project Requirements

• Required heat rejection: 600 kW

• Fluid: 30% glycol-water mixture

• Fluid inlet temperature: 45°C

• Fluid outlet temperature: 38°C

• Design ambient temperature: 32°C

• Installation altitude: 2,000 m

At 2,000 m, standard-atmosphere air density is about 1.007 kg/m³ compared with approximately 1.225 kg/m³ at sea level.

The density difference is approximately:

1.007 / 1.225 ≈ 0.82

In other words, under those standard-atmosphere reference conditions, air density is approximately 82% of the sea-level value.

But the engineer should not simply multiply:

600 kW × 0.82

and conclude that a 600 kW sea-level dry cooler becomes a 492 kW dry cooler.

Instead, the manufacturer should rerun the selection at:

• 2,000 m altitude;

• 32°C ambient;

• actual glycol properties;

• specified flow temperatures;

• actual fan operating conditions.

The final high-altitude unit might require more coil surface, higher airflow, a different fan arrangement, or a combination of these measures.

High Altitude vs. Sea Level: Key Design Differences

Which Applications Require Particular Attention?

Data Center Cooling

The data center needs year-round reliable cooling.

At high-altitude sites, dry cooler selection must account for both reduced air density and redundancy requirements.

Insufficient cooling raises coolant temperature and erodes the IT cooling system’s operating margin.

Battery Energy Storage Systems

Battery energy storage facilities can use dry coolers to reject heat from liquid cooling circuits.

For mountainous or high-altitude sites, determine altitude during initial thermal design—not after equipment selection.

Industrial Process Cooling

Industrial production often requires stable cooling-medium temperatures across varying weather conditions.

When the process has a narrow allowable temperature range, high-altitude capacity correction is critical.

Power and Energy Applications

Generators, converters, transformers, power electronics, and their liquid cooling systems can produce substantial continuous heat loads.

For high-altitude projects, cooling system availability must be assessed under peak environmental conditions.

Mining and Mountain Installations

Mining operations are frequently located at substantial elevation.

These applications may combine several difficult conditions:

• high altitude;

• dust;

• large temperature swings;

• limited water supply;

• difficult maintenance access.

Dry cooler design for these environments should therefore consider altitude together with fouling resistance, fin spacing, motor protection and maintenance accessibility.

Don't Forget Air Recirculation

Altitude is only one part of the air-side design.

Even a correctly altitude-rated dry cooler can lose performance if hot discharge air is drawn back into the coil inlet.

Recirculation risk increases when units are installed:

• too close together;

• next to tall walls;

• below surrounding structures;

• inside partially enclosed spaces;

• near other heat-rejection equipment.

The actual air entering the coil may then be considerably warmer than the official outdoor ambient temperature.

For high-altitude projects where thermal margins may already be tighter, good equipment positioning is particularly important.

What Information Should Be Sent to a Dry Cooler Manufacturer?

For accurate high-altitude selection, engineers and buyers should ideally provide:

Thermal Conditions

• required capacity, kW;

• fluid inlet temperature;

• fluid outlet temperature;

• fluid type;

• glycol concentration;

• fluid flow rate if available.

Site Conditions

• installation altitude;

• maximum design ambient temperature;

• minimum ambient temperature if winter operation is required;

• installation environment;

• available installation space.

Electrical Requirements

• supply voltage;

• frequency;

• phase;

• preferred fan control method.

Project Restrictions

• maximum sound level;

• dimensional restrictions;

• corrosion environment;

• required material or coating;

• redundancy requirements.

The more complete the design information, the more accurately the dry cooler can be sized.

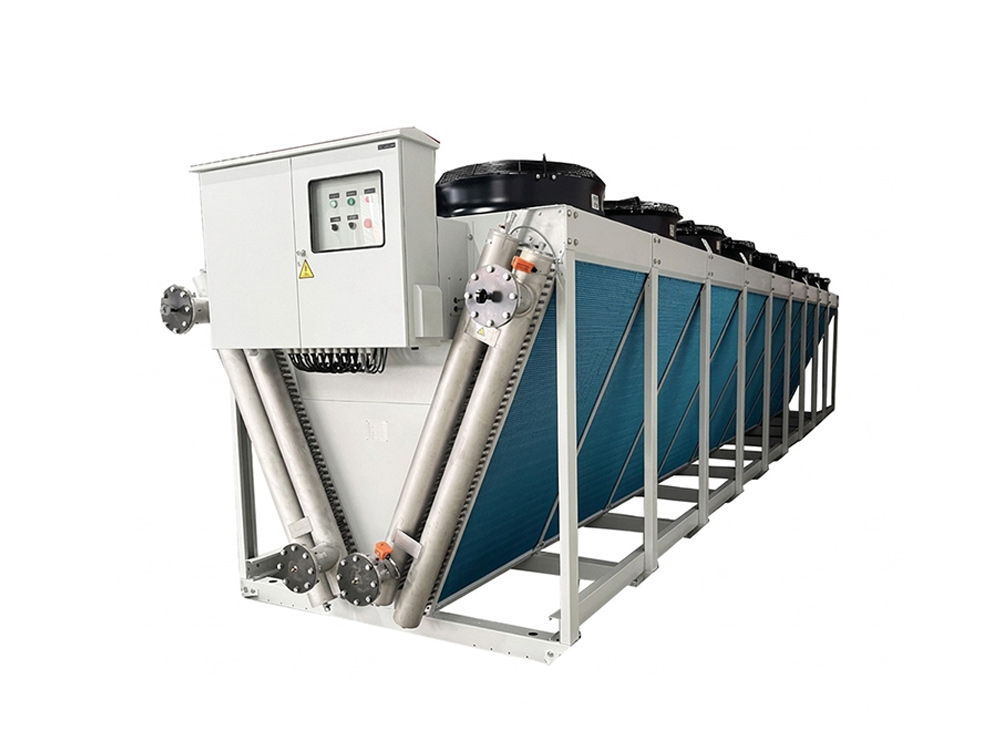

Aidear Dry Cooler Solutions for High-Altitude Projects

A dry cooler used at high altitude should be selected according to the actual project operating conditions rather than only nominal catalogue capacity.

Aidear can configure finned-coil dry coolers around project requirements such as:

• cooling capacity;

• fluid temperatures;

• glycol concentration;

• installation altitude;

• ambient design temperature;

• available footprint;

• fan configuration;

• material requirements;

• corrosion protection requirements.

For high-altitude projects, altitude and design ambient temperature should be provided during the initial selection stage so that both the coil and fan system can be evaluated under the intended operating condition.

This is more reliable than choosing a standard sea-level model first and trying to correct the problem after installation.

Practical Engineering Checklist

Before approving a dry cooler for a high-altitude project, verify:

1. What is the installation elevation above sea level?

2. What is the maximum design dry-bulb temperature?

3. Has air density been corrected for both altitude and temperature?

4. Are the fan curves applicable to the actual air density?

5. Has the coil been thermally rated at site conditions?

6. What fluid and glycol concentration are used?

7. What is the required approach temperature?

8. Is additional coil area or airflow required?

9. Will increased airflow affect sound or electrical consumption?

10. Could hot-air recirculation reduce actual performance?

If these questions are answered before equipment selection, high-altitude dry cooler sizing becomes far more predictable.

Final Takeaway

Altitude matters because a dry cooler does not reject heat based only on the number of cubic meters of air moving through the coil.

It depends on the mass and thermal properties of that air.

As elevation increases, air density decreases. The same volumetric airflow therefore contains less air mass, while fan pressure characteristics also change.

For engineers, the key lesson is simple:

Do not select a high-altitude dry cooler solely from sea-level catalogue capacity.

Instead, specify:

Altitude + Design Ambient Temperature + Heat Load + Fluid Conditions + Required Fluid Temperatures

and evaluate the coil and fan together.

With proper high-altitude correction, sufficient heat exchanger surface and correctly selected airflow, dry coolers can provide reliable heat rejection for data centers, industrial processes, energy storage, power systems and other demanding applications at elevated locations.

Need a Dry Cooler Selection for a High-Altitude Project?

Provide your required cooling capacity, fluid temperatures, glycol concentration, maximum ambient temperature and installation altitude.

Aidear can evaluate these operating conditions and configure a dry cooler based on the project's actual thermal requirements.
