How Coil Circuit Design Influences Dry Cooler Performance

Dry coolers are widely used in industrial process cooling, data centers, HVAC systems, energy storage, and other applications that require reliable heat rejection.

When selecting a dry cooler, engineers often focus on cooling capacity, fan configuration, coil size, and ambient temperature. However, another important design factor is sometimes overlooked: coil circuit design.

Two dry coolers with similar dimensions, fin materials, tube diameters, and airflow rates can exhibit different thermal and hydraulic performance because of differences in their internal fluid circuits.

The number of parallel circuits, tube arrangement, flow path length, and header configuration all influence how effectively heat is transferred from the circulating fluid to the surrounding air.

An unsuitable circuit design may result in excessive pressure drop, inefficient fluid distribution, reduced heat-transfer performance, or unnecessary pumping energy.

This article explains how dry cooler coil circuiting works, the engineering trade-offs involved, and how to select an appropriate circuit configuration for different cooling requirements.

1. What Is Coil Circuit Design in a Dry Cooler?

The coil circuit design refers to the arrangement of the fluid flow path within the coil of the heat exchanger.

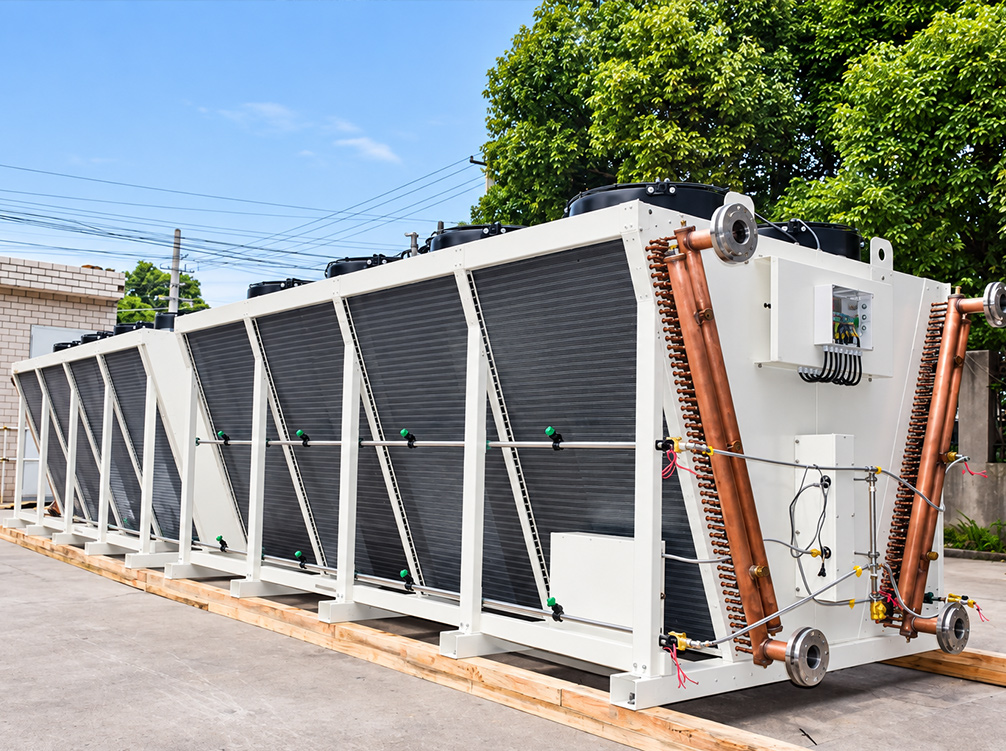

In the traditional finned tube dry cooler, hot water or ethylene glycol solution enters the coil through the inlet connection and the manifold. The fluid is distributed into multiple circuit loops and flows over the heat transfer surface before returning to the outlet manifold.

Axial flow fans blow the surrounding air over the finned tubes, allowing the circulating fluid to transfer heat to the air through the tube walls and fins.

The circuit structure determines the distribution method of the total fluid flow and the distance that each part of the fluid travels within the tube.

1.1 Main Components of a Coil Circuit

The principal components affecting coil circuiting include:

• Inlet header: Distributes fluid among the individual circuits.

• Parallel tube circuits: Provide multiple flow paths through the heat exchanger.

• Return bends: Connect tubes to establish the required number of passes.

• Outlet header: Collects fluid leaving the individual circuits.

• Tube and fin arrangement: Determines the available heat-transfer geometry.

These components must function together to achieve the specified cooling duty within the allowable hydraulic resistance.

1.2 Why Circuit Configuration Matters

Circuiting directly influences several operating characteristics:

1. Fluid velocity inside the tubes.

2. Internal convective heat transfer.

3. Fluid-side pressure drop.

4. Flow distribution between parallel circuits.

5. Temperature profiles across the heat exchanger.

6. Pumping requirements and operating efficiency.

The objective is not simply to maximize fluid velocity or minimize pressure loss.

Instead, engineers must balance thermal performance and hydraulic efficiency under the actual operating conditions.

2. How Coil Circuit Design Affects Heat Transfer Efficiency

Heat transfer in a dry cooler depends on the temperature difference between the circulating fluid and ambient air, the available heat-transfer surface, and the overall thermal resistance.

The heat rejected by the fluid can be expressed as:

Q = ṁ × cp × (Tin − Tout)

Where:

• Q = Heat rejection rate (W)

• ṁ = Fluid mass flow rate (kg/s)

• cp = Specific heat capacity of the fluid (J/kg·K)

• Tin = Fluid inlet temperature (°C)

• Tout = Fluid outlet temperature (°C)

This equation describes the fluid-side heat balance.

The actual heat-transfer capability also depends on the overall heat-transfer coefficient, coil surface area, temperature distribution, and airflow conditions.

Coil circuiting affects these factors by changing the internal flow conditions.

2.1 Fluid Velocity and Internal Heat Transfer

Fluid velocity is one of the most important considerations in circuit design.

Under the condition of a fixed total fluid flow rate, reducing the number of parallel circuits usually increases the flow rate through each remaining circuit.

Conversely, increasing the number of parallel circuits usually decreases the flow rate through each path.

The change in fluid velocity affects the convective heat transfer coefficient within the pipe.

2.1.1 Why Fluid Velocity Influences Heat Transfer

When a fluid flows through a pipe, a thermal boundary layer forms near the inner wall of the pipe.

Under appropriate turbulent flow conditions, fluid mixing can improve the heat transfer between the fluid and the pipe wall.

Depending on the properties and state of the fluid, a higher flow velocity can increase the internal heat transfer coefficient.

However, increasing the flow velocity will also increase the frictional resistance.

Therefore, if internal convection is enhanced in the design, a higher pump pressure may be required simultaneously.

2.1.1.1 Why Higher Velocity Does Not Always Mean Better Overall Performance

The benefits brought by increasing the flow rate are limited by various factors.

Firstly, in fin-tube dry cooling towers, the air side usually accounts for a large portion of the total thermal resistance. Therefore, merely improving the heat transfer coefficient of the internal fluid side may only lead to a limited overall improvement in heat transfer capacity.

Secondly, an excessively high flow rate will increase pressure drop and may cause problems such as noise, vibration or erosion.

Thirdly, higher pumping energy consumption may offset some of the thermal effects.

Based on the above reasons, the flow rate should be optimized rather than maximized.

2.2 Number of Parallel Circuits

The number of parallel circuits determines how the total fluid flow is divided inside the coil.

Consider two circuit configurations with the same total flow rate and tube internal diameter.

These trends assume comparable coil geometry and reasonable flow distribution. Actual results depend on the complete circuit arrangement.

2.2.1 Example: Comparing Two Circuit Configurations

Assume a dry cooler has a total design flow rate of 120 L/min.

Two hypothetical configurations are evaluated:

Configuration A: 10 parallel circuits

Flow per circuit:

120 ÷ 10 = 12 L/min

Configuration B: 20 parallel circuits

Flow per circuit:

120 ÷ 20 = 6 L/min

At the same tube internal diameter, Configuration A has twice the nominal flow through each circuit.

This normally produces a higher internal fluid velocity.

Configuration B distributes the total flow among more paths and may reduce the hydraulic resistance.

However, neither arrangement can be declared superior based only on these calculations.

The final choice requires evaluation of tube dimensions, circuit lengths, fluid properties, allowable pressure drop, and predicted cooling capacity.

The example demonstrates flow division only; it does not represent a validated dry cooler selection.

2.3 Circuit Length and Number of Passes

The length of the circuit is another important design parameter.

The fluid circuit may need to pass through multiple connected pipes before reaching the outlet manifold.

Increasing the number of passes will change the heat transfer conditions on the fluid side and the temperature relationship between the fluid and the air.

However, longer flow channels usually lead to greater friction losses.

2.3.1 Balancing Heat Transfer and Flow Resistance

A greater number of passes may help maintain fluid velocity when the available system flow rate is relatively low.

Nevertheless, the additional tube length and return bends increase hydraulic resistance.

The designer must consider:

• Effective heat-transfer area.

• Tube internal diameter.

• Total circuit length.

• Number of return bends.

• Fluid flow rate.

• Allowable pressure drop.

More passes do not automatically result in greater cooling capacity.

The circuit must be evaluated as part of the complete heat exchanger.

3. How Fluid Distribution Influences Dry Cooler Performance

An effective dry cooler coil should distribute the circulating fluid appropriately among its parallel circuits.

In practice, perfectly uniform flow distribution is difficult to achieve.

Differences in hydraulic resistance can cause certain circuits to receive more fluid than others.

This phenomenon is known as flow maldistribution.

3.1 What Causes Uneven Flow Distribution?

Several factors can contribute to uneven distribution:

• Inlet and outlet header geometry.

• Header pressure variation along its length.

• Unequal circuit lengths.

• Different numbers of return bends.

• Connection locations.

• Trapped air or partial blockages.

• Manufacturing and installation variations.

For example, if one circuit has significantly less hydraulic resistance than another, more fluid may pass through the lower-resistance path.

The distribution also depends on the pressure conditions within the common headers.

3.2 How Maldistribution Reduces Thermal Performance

Uneven flow means different parts of the coil operate at different fluid flow rates.

Some circuits may experience relatively high velocity and small fluid temperature changes.

Others may receive insufficient flow and develop larger temperature changes.

This uneven utilization can reduce the effective thermal performance of the coil.

3.2.1 The Importance of Balanced Circuit Resistance

A well-designed circuit arrangement seeks to avoid unnecessarily large differences in hydraulic resistance between parallel paths.

Useful design considerations include:

• Maintaining comparable circuit lengths where practical.

• Selecting suitable header diameters.

• Avoiding unnecessary differences in return-bend configurations.

• Evaluating the pressure distribution within the headers.

• Providing appropriate filling and venting arrangements.

3.2.1.1 How Engineers Can Identify Potential Distribution Problems

During engineering evaluation or commissioning, possible indicators include:

• Unexpected temperature variation across coil sections.

• Cooling capacity below the predicted operating point.

• Unstable fluid flow or trapped-air symptoms.

• Measured pressure loss inconsistent with the design.

• Large performance differences between otherwise similar coil sections.

These symptoms do not prove that circuiting is the cause.

Airflow maldistribution, fouling, incorrect glycol concentration, and other operating problems must also be investigated.

4. The Relationship Between Coil Circuiting and Pressure Drop

Pressure drop is one of the main limiting factors in the design of the dry cooler circuit.

When the fluid flows through the pipes, elbows and manifold, energy is lost due to friction and local flow resistance.

The circulating pump must provide sufficient pressure difference to overcome the resistance of the entire system.

4.1 Why Pressure Drop Changes With Circuit Design

Pressure loss depends on:

• Fluid velocity.

• Fluid density and viscosity.

• Tube diameter and internal roughness.

• Circuit length.

• Return bends and fittings.

• Header and connection losses.

For turbulent flow in a fixed tube geometry, pressure loss often increases approximately with the square of velocity, although the friction factor and actual system conditions influence the relationship.

Consequently, reducing the number of parallel circuits can create a substantial hydraulic penalty.

4.2 How Circuit Design Affects Pumping Energy

The hydraulic power associated with overcoming pressure loss can be expressed as:

Phydraulic = ΔP × V̇

Where:

• Phydraulic = Hydraulic power (W)

• ΔP = Pressure difference (Pa)

• V̇ = Volumetric flow rate (m³/s)

Actual pump electrical power is higher because pump, motor, and drive efficiencies must be considered.

4.2.1 Lower Pressure Drop Does Not Guarantee Lower Energy Consumption

A coil with more interconnected circuits may require a lower pump pressure head under a given flow rate.

However, the actual energy-saving effect depends on the selection of the pump and the control method.

If the pump operates at a fixed speed without any adjustment, reducing the coil resistance does not necessarily correspond to the same percentage of power reduction.

Engineers should comprehensively evaluate the entire pumping system.

The circuit design must also ensure adequate thermal performance and cannot sacrifice pressure drop for the sake of cost reduction.

5. Counterflow Arrangement and Coil Thermal Performance

Apart from the number of circuits, the relative direction of fluid and airflow also affects the heat transfer efficiency.

The coils of dry coolers are usually arranged in cross-flow or multi-row cross-flow and counter-flow configurations.

The hot cross-flow configuration generally helps to maintain a favorable temperature difference along the length of the heat exchanger.

5.1 Parallel-Flow vs. Counterflow Temperature Arrangement

In a simplified parallel-flow arrangement, the warm fluid and cool entering air move through the heat exchanger in the same general direction.

In a counterflow arrangement, the two streams move in opposite general directions.

For a multi-row coil rejecting heat to outdoor air, a suitable counterflow-oriented circuit may allow:

• Warmer incoming fluid to encounter air that has already been heated.

• Cooler exiting fluid to exchange heat with the coolest entering air.

This can provide a more favorable temperature profile, particularly when a close approach temperature is required.

5.2 Why Circuit Orientation Must Be Evaluated Carefully

Real finned-tube dry coolers are not always ideal counterflow heat exchangers.

Their airflow typically crosses the tubes, and the actual thermal configuration depends on tube rows, passes, and connection positions.

A manufacturer should therefore evaluate the complete circuit arrangement rather than assume that changing the inlet and outlet locations will always produce a specific capacity improvement.

6. How Glycol Concentration Affects Coil Circuit Selection

Many dry coolers use water-glycol mixtures for freeze protection.

Ethylene glycol and propylene glycol are common examples.

Compared with water, glycol mixtures generally have different:

• Viscosity.

• Density.

• Specific heat capacity.

• Thermal conductivity.

These properties directly affect fluid-side heat transfer and pressure loss.

6.1 The Effect of Viscosity on Fluid Flow

Higher fluid viscosity increases resistance to flow under many operating conditions.

It can also reduce the Reynolds number, affecting the internal flow regime and convective heat transfer.

As glycol concentration increases, designers may need to reconsider circuit quantity, tube size, pumping requirements, and total heat-transfer surface.

The correct evaluation must use the properties of the actual fluid mixture at the relevant temperatures.

6.2 Why Cold-Weather Operation Matters

Glycol viscosity can increase considerably as fluid temperature decreases.

A circuit configuration that performs satisfactorily during normal summer operation may experience higher hydraulic resistance at a low-temperature startup.

6.2.1 Evaluating the Worst Hydraulic Operating Condition

The design should consider both normal operating conditions and credible startup conditions.

6.2.1.1 Essential Cold-Start Checks

Before finalizing a glycol-cooled dry cooler, engineers should verify:

• Minimum expected fluid temperature.

• Glycol type and concentration.

• Fluid viscosity at startup.

• Available pump differential pressure.

• Required minimum flow.

• Appropriate freeze-protection and control arrangements.

Circuit design and freeze protection should be evaluated together, particularly for equipment installed outdoors in cold climates.

For additional system-level guidance, see Aidear's Dry Cooler Freeze Protection Guide.

7. How to Select the Right Coil Circuit Design

There is no universally optimal number of circuits for every dry cooler.

The appropriate arrangement depends on thermal requirements, hydraulic limitations, fluid properties, and available coil geometry.

7.1 Define the Required Cooling Conditions

Before designing the internal circuits, engineers should establish the main operating parameters.

7.1.1 Thermal Design Data

Required information includes:

• Total heat rejection capacity (kW).

• Fluid inlet temperature (°C).

• Target fluid outlet temperature (°C).

• Design ambient dry-bulb temperature (°C).

• Required airflow and available coil dimensions.

These values establish the fundamental cooling duty.

7.1.2 Hydraulic Design Data

The hydraulic evaluation should include:

• Total fluid flow rate (m³/h).

• Fluid type and concentration.

• Maximum allowable coil pressure drop.

• Available pump differential pressure.

• Minimum and maximum operating flow rates.

• Expected operating temperature range.

The maximum allowable coil pressure drop should be distinguished from the pressure loss permitted across the complete system.

7.2 Evaluate Different Circuit Configurations

After establishing the design conditions, engineers can compare several alternatives.

The preferred design should meet the required cooling capacity and allowable pressure drop simultaneously.

7.3 Consider Different Application Requirements

Different industries may prioritize different performance characteristics.

7.3.1 Data Center Cooling

Data centers often require predictable cooling performance, stable fluid temperatures, and high operational reliability.

Circuit design should account for:

• Continuous operation.

• Redundant cooling arrangements.

• Part-load operating conditions.

• Pumping energy.

• Variable-speed fan and pump strategies where applicable.

Balanced fluid distribution becomes particularly important when multiple coils or dry coolers operate in parallel.

7.3.2 Industrial Process Cooling

Industrial cooling applications may involve varying process loads and different circulating fluids.

The circuit design should consider:

• Fluctuating heat loads.

• Changes in flow rate.

• Fluid compatibility.

• Fouling and maintenance requirements.

• Allowable process temperature variations.

A circuit selected only for maximum operating flow may not deliver the desired performance at much lower flow rates.

7.3.3 Cold-Climate Cooling Systems

For outdoor glycol systems, low-temperature fluid properties and freeze protection are especially important.

An appropriate configuration should avoid excessive hydraulic resistance during startup while maintaining adequate performance during normal operation.

8. Common Coil Circuit Design Mistakes

Several design errors can reduce dry cooler performance or increase long-term operating costs.

8.1 Selecting Too Few Parallel Circuits

Too few circuits may increase internal velocity and create excessive pressure drop.

Even if the internal heat-transfer coefficient improves, the additional pumping requirement may make the design less economical.

8.2 Selecting Too Many Parallel Circuits

Increasing circuit quantity can reduce pressure drop, but excessive parallelization may create very low fluid velocities.

Under some conditions, this can reduce internal heat transfer and result in insufficient thermal performance.

8.3 Ignoring Header Distribution

A circuit arrangement with suitable nominal velocity can still perform poorly if flow is not distributed appropriately.

Header design must be considered alongside the individual tube circuits.

8.4 Designing With Water Properties When Glycol Is Used

Water-based calculations may not accurately represent the hydraulic and thermal performance of a glycol system.

The actual glycol concentration and temperature-dependent properties should be used.

8.5 Evaluating Only the Design Flow Rate

A dry cooler may experience different flow rates during startup, part-load operation, or process changes.

Where these conditions are significant, both thermal capacity and pressure drop should be evaluated across the expected operating range.

9. Working With a Dry Cooler Manufacturer on Circuit Design

Coil circuit design is not simply a matter of choosing a standard tube arrangement.

It requires coordinated thermal and hydraulic calculations.

For custom projects, manufacturers should review circuit quantity, tube configuration, fluid properties, header sizing, and operating requirements together.

9.1 What Should Buyers Request From the Manufacturer?

A technical proposal should ideally provide:

• Cooling capacity at clearly specified conditions.

• Design fluid flow rate.

• Entering and leaving fluid temperatures.

• Coil fluid-side pressure drop.

• Fluid type and glycol concentration.

• Coil construction and connection details.

• Relevant operating limitations.

Where appropriate, buyers may also request alternative circuit configurations for comparison.

9.2 Custom Dry Cooler Solutions From Aidear

At Changzhou Aidear Refrigeration Technology Co., Ltd., dry cooler selection can be approached according to the project's thermal requirements, fluid conditions, and installation constraints.

For applications requiring customized heat rejection, the evaluation may include finned-tube coil configuration, available cooling surface, fluid circuit arrangement, airflow requirements, and pressure-drop limitations.

The final circuit design should be confirmed through project-specific calculations rather than assumptions based only on nominal cooling capacity.

Explore Aidear Dry Cooler Solutions and Air-Cooled Finned-Tube Heat Exchangers for related cooling equipment.

Request a Custom Dry Cooler Quote

If you are developing a new industrial cooling system or replacing an existing dry cooler, provide your required cooling capacity, fluid temperatures, flow rate, glycol concentration, ambient conditions, and allowable pressure drop.

These specifications will help establish a suitable basis for thermal and hydraulic evaluation.

10. Frequently Asked Questions About Dry Cooler Coil Circuit Design

10.1 Does Increasing the Number of Circuits Improve Dry Cooler Efficiency?

Not necessarily.

More parallel circuits generally reduce the flow through each circuit and may lower pressure drop. However, the resulting lower fluid velocity can also affect internal heat transfer.

The optimal number depends on the required cooling duty and hydraulic conditions.

10.2 What Happens if Fluid Velocity Is Too Low?

Low fluid velocity can reduce internal convective heat transfer, particularly if the flow regime changes toward laminar conditions.

The resulting performance impact depends on the proportion of total thermal resistance associated with the fluid side.

10.3 Can Coil Circuit Design Reduce Pumping Energy?

Yes, an appropriate circuit configuration can reduce unnecessary hydraulic resistance.

However, actual electrical savings depend on the complete piping system, pump efficiency, and control strategy.

10.4 Is a Longer Coil Circuit Always Better?

No.

Longer circuits may help produce the desired flow and temperature arrangement, but they also increase frictional resistance.

Circuit length should be selected according to both thermal and hydraulic requirements.

10.5 Does Glycol Concentration Affect the Number of Circuits?

It can.

Glycol changes fluid viscosity, specific heat, and other thermal properties. These changes may require a different circuit configuration to meet the specified capacity and pressure-drop limits.

10.6 Can a Dry Cooler With Poor Circuiting Still Meet Its Rated Capacity?

It depends on how the rating was determined and the actual operating conditions.

A poorly matched circuit arrangement may require greater pumping head or may fail to achieve the required heat rejection at the available flow rate.

Performance should be verified using the specified fluid, airflow, temperature, and hydraulic conditions.

11. Conclusion: Optimize the Entire Coil, Not Just the Circuit Count

Coil circuit design plays an important role in determining dry cooler performance.

The number of parallel circuits, tube passes, header configuration, and internal flow distribution influence both thermal efficiency and hydraulic resistance.

Fewer circuits may improve internal fluid velocity but increase pressure loss.

More circuits may reduce pumping resistance but produce lower internal heat-transfer coefficients.

Neither approach is universally superior.

The most effective dry cooler coil design balances heat-transfer capacity, fluid velocity, pressure drop, flow distribution, and the actual operating conditions.

For engineers and industrial buyers, this means evaluating circuit configuration as part of the complete dry cooler selection process rather than treating it as an isolated component detail.

A properly engineered circuit arrangement can help deliver the required cooling performance while avoiding unnecessary hydraulic resistance and supporting reliable long-term operation.
