Single-Pass Vs Multi-Pass Plate Heat Exchangers: How To Choose

When selecting a plate heat exchanger for industrial cooling, HVAC, refrigeration, or heat recovery, engineers typically begin with cooling capacity, fluid temperatures, heat transfer area, and allowable pressure drop. However, another important design decision can significantly influence performance: the number of fluid passes through the plate pack.

A single-pass plate heat exchanger provides a relatively straightforward flow arrangement, allowing each fluid to travel through one channel section between its inlet and outlet. A multi-pass configuration redirects one or both fluids through successive groups of channels.

These arrangements can produce different channel velocities, temperature profiles, pressure losses, and pumping requirements, even when the total flow rates and heat transfer duties are identical.

But is a multi-pass plate heat exchanger always more efficient? Does a single-pass design necessarily require less heat transfer area? And how should engineers select the appropriate arrangement?

The answer depends on the operating conditions.

This guide compares single-pass and multi-pass plate heat exchangers, explains their thermal and hydraulic differences, and provides a practical selection framework for industrial engineers and B2B equipment buyers.

1. What Is a Pass in a Plate Heat Exchanger?

1.1 Understanding Plate Heat Exchanger Flow Paths

A plate heat exchanger transfers heat between two fluid streams through a series of thin metal plates.

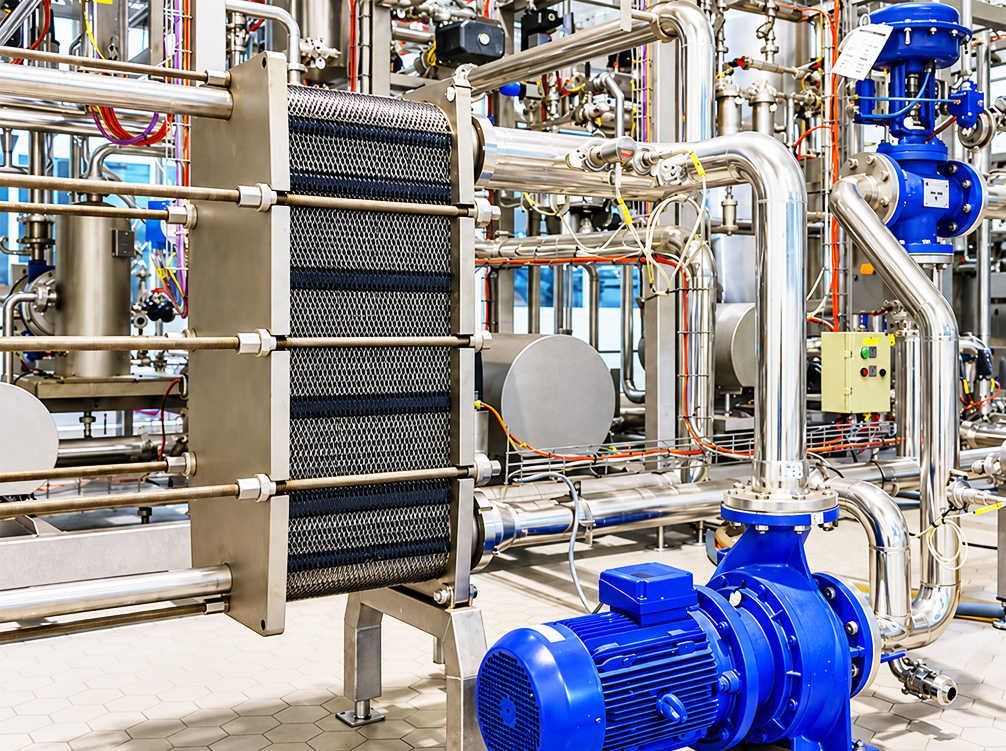

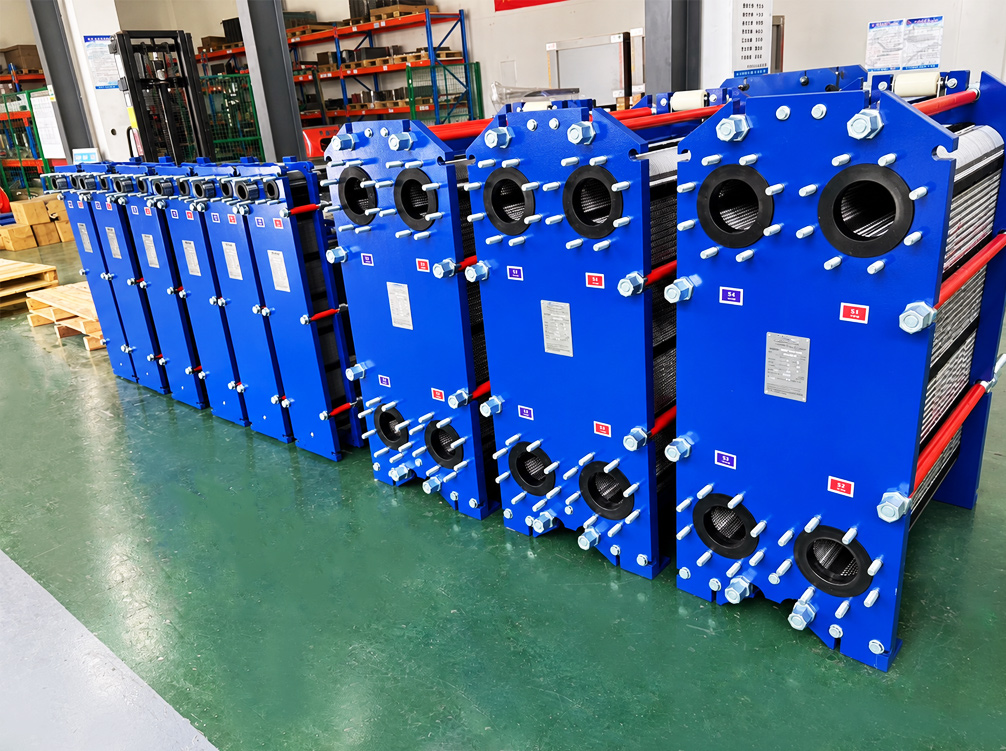

In a gasketed plate heat exchanger, the plates are assembled within a frame, and gaskets direct the hot and cold fluids through separate channels.

Heat passes through the plate surfaces while the two fluids remain separated.

The internal flow arrangement determines how the fluids travel through the heat exchanger.

A pass refers to one stage of flow through a group of plate channels before the fluid either leaves the exchanger or is redirected into another group.

The number of passes must be considered separately for each fluid circuit.

For example, a plate heat exchanger may have one pass on both sides, two passes on both sides, or different numbers of passes on the hot and cold sides.

1.2 What Is a Single-Pass Plate Heat Exchanger?

In a single-pass heat exchanger, each fluid flows from the inlet through a set of parallel channels to the outlet without needing to be redirected through other sets of channels.

Hot and cold fluids typically flow alternately through different channels.

Many liquid-liquid plate heat exchangers employ counter-current heat exchange, where hot and cold fluids flow in opposite directions to maintain a suitable temperature difference.

Single-pass heat exchangers are typically used for applications with sufficient fluid flow rates and acceptable thermal performance within permissible pressure drop ranges.

1.2.1 Main Characteristics of a Single-Pass Design

A single-pass arrangement offers several potential advantages:

• Straightforward internal fluid routing

• Relatively simple plate and connection arrangements

• Potentially lower hydraulic resistance for comparable designs

• Fewer internal pass transitions

• Suitability for many high-flow liquid-to-liquid duties

However, a single-pass arrangement may be less suitable when one fluid has a very low flow rate relative to the available number of parallel channels.

In that situation, the velocity through individual channels may be insufficient for the desired heat transfer performance.

1.3 What Is a Multi-Pass Plate Heat Exchanger?

In a multi-channel heat exchanger, one or two fluids flow sequentially through two or more sets of channels before leaving the heat exchanger.

For example, a dual-channel fluid loop first flows through one set of channels, changes direction at an internal corner, and then flows through another set of channels.

In a suitable gasketed plate heat exchanger, these flow paths can be achieved through specially configured corner plates and related components.

Multi-channel heat exchangers can provide higher channel velocities and different thermal paths without simply increasing the number of plates.

However, longer hydraulic paths and a reduction in the number of parallel channels per channel can also lead to increased pressure drop.

1.3.1 What Does a 1–1, 2–2, or 2–1 Arrangement Mean?

Pass arrangements are often described by two numbers.

A 1–1 design has one pass on each fluid side.

A 2–2 design has two passes on each side.

A 2–1 design uses two passes on one side and one pass on the other.

1.3.1.1 Why Hot-Side and Cold-Side Pass Counts May Differ

The two fluid circuits do not necessarily have identical flow rates, viscosities, or thermal properties.

If one fluid has a much lower flow rate, increasing the number of passes on that side may help improve its channel velocity.

The higher-flow side may remain single-pass to avoid excessive hydraulic resistance.

Such asymmetric configurations require detailed thermal analysis because the resulting temperature profile may differ from ideal countercurrent flow.

The appropriate pass arrangement must therefore be determined separately for each fluid side.

2. Single-Pass vs Multi-Pass Plate Heat Exchangers: Key Differences

The main differences involve internal routing, channel velocity, thermal performance, and pressure drop.

Neither arrangement should be considered universally superior.

The correct choice is the configuration that satisfies the required heat duty while remaining within the allowable pressure drop and operational limits.

2.1 Flow Velocity and Channel Utilization

For a fixed total fluid flow rate, channel velocity depends on how many parallel passages are available within each pass.

A single-pass exchanger with many parallel channels may have relatively low velocity in each channel.

Dividing the same passages into multiple sequential groups can reduce the number of channels operating in parallel at each stage.

This may increase local velocity.

Higher velocity can improve convective heat transfer, depending on the plate geometry and flow regime.

However, greater velocity generally creates additional hydraulic resistance.

2.2 Differences in Thermal Performance

Multi-pass designs may provide improved heat transfer under conditions where the original single-pass arrangement has inadequate channel velocity.

Nevertheless, the relationship between pass count and performance is not linear.

Increasing the number of passes does not automatically produce a proportional increase in cooling capacity.

The result depends on:

• Plate geometry

• Fluid flow rates

• Number of active channels per pass

• Flow distribution

• Temperature program

• Fluid properties

• Available heat transfer area

A properly selected single-pass heat exchanger may already achieve the required duty without additional passes.

2.3 Differences in Pressure Drop

Pressure drop is often a key factor in determining the configuration of single-pass and multi-pass heat exchangers.

Multi-pass configurations may increase fluid velocity and total path length.

Both of these changes increase frictional pressure drop.

The magnitude of the additional resistance depends on the specific channel geometry, port arrangement, fluid properties, and channel configuration.

Therefore, the pressure drop of the entire heat exchanger must be calculated, and cannot be estimated solely based on the number of channels.

3. How Does Pass Arrangement Affect Heat Transfer Performance?

3.1 The Relationship Between Velocity and Heat Transfer

Heat transfer between a fluid and a plate surface depends partly on the convective heat transfer coefficient.

For a simplified thermal analysis:

Q = U × A × ΔTlm

Where:

• Q = Heat transfer rate

• U = Overall heat transfer coefficient

• A = Heat transfer area

• ΔTlm = Log mean temperature difference

The overall heat transfer coefficient includes the thermal resistance of both fluid films, the plate material, and relevant fouling layers.

Increasing channel velocity may improve the fluid-side heat transfer coefficient under appropriate conditions.

However, it can also increase pressure drop.

The objective is not to maximize velocity, but to achieve the required heat transfer performance within acceptable hydraulic limits.

3.2 Why Multi-Pass Designs Can Improve Performance at Low Flow Rates

In a single-pass design, the total flow rate is distributed across multiple parallel channels.

If the flow rate is low relative to the number of channels, the local heat transfer coefficient may be lower than expected.

A multi-pass arrangement can reduce the number of parallel flow paths in each stage.

For a suitable geometry, this can increase the mass flow rate per effective channel.

3.2.1 Understanding the Effect of Parallel Channel Count

Consider a simplified comparison in which one fluid circuit contains 24 equivalent channels.

In the single-pass arrangement, all 24 channels operate in parallel.

In the hypothetical two-pass arrangement, the flow travels through two successive groups, each containing 12 parallel channels.

For the same total flow rate, the average flow through each active channel in the two-pass arrangement would be approximately twice that of the single-pass arrangement.

This is a geometric illustration, not a prediction of actual heat exchanger performance.

3.2.1.1 Why Higher Channel Velocity Does Not Guarantee Better Overall Efficiency

The thermal benefits of increasing flow rate must be balanced against the increased pumping demands.

While multi-channel systems can achieve higher local heat transfer coefficients, they also consume more pumping energy.

Furthermore, the system layout affects fluid and temperature distribution.

Therefore, the final selection should be based on the required heat load, allowable pressure drop, actual fluid characteristics, and operating conditions.

3.3 Countercurrent Flow and Temperature Approach

Countercurrent flow is often preferred for liquid-to-liquid heat transfer because it can maintain a useful temperature driving force along the heat exchanger.

In an ideal countercurrent exchanger, the hot and cold streams flow in opposite directions.

The temperature difference at each end helps determine the log mean temperature difference.

A simplified countercurrent calculation uses:

ΔT1 = Hot Inlet Temperature − Cold Outlet Temperature

ΔT2 = Hot Outlet Temperature − Cold Inlet Temperature

LMTD = (ΔT1 − ΔT2) / ln(ΔT1 / ΔT2)

This expression applies when the relevant temperature differences are positive and the assumed flow arrangement is appropriate.

In multi-pass equipment, the actual thermal arrangement may require an LMTD correction factor or a detailed numerical calculation.

An unequal-pass configuration should not automatically be treated as an ideal countercurrent exchanger.

For more information, see our article on why approach temperature matters in plate heat exchanger design.

3.4 Flow Distribution and Thermal Effectiveness

Flow maldistribution occurs when fluid is distributed unevenly among the available parallel channels.

This can reduce effective heat transfer surface utilization and alter pressure drop.

The number of passes can influence flow distribution because it changes the relationship between header flow and channel resistance.

Some experimental studies have found improved flow uniformity in particular multi-pass configurations compared with equivalent single-pass arrangements.

However, this result depends on the investigated geometry and operating conditions.

Multi-pass construction is not a universal solution to every flow distribution problem.

3.5 Does More Passes Mean More Heat Transfer Area?

No.

Pass count and heat transfer area are different design parameters.

The total effective heat transfer area is primarily determined by the relevant plate dimensions, plate count, and active heat transfer surfaces.

Changing the pass arrangement redistributes the existing flow paths.

It does not automatically increase the physical area available for heat exchange.

In some designs, additional turning or transition plates affect the number of active heat transfer surfaces.

The manufacturer must account for these details in the final selection.

4. How Does Pass Arrangement Affect Pressure Drop and Pumping Energy?

4.1 Why Pressure Drop Usually Increases With More Passes

Fluid flow through a plate heat exchanger is subject to pressure losses due to various factors, including channel friction, inlet and outlet regions, port conditions, and changes in flow direction.

Multi-channel structures may exacerbate the effects of several of these factors.

While increasing the flow velocity can enhance convective heat transfer, the corresponding hydraulic performance losses can be quite significant.

Therefore, both thermal and hydraulic performance must be considered when selecting a plate heat exchanger.

4.2 Evaluate the Available Pumping Pressure

A cooling or heating system has a finite pressure budget.

The heat exchanger must operate within the available differential pressure while allowing for the losses of other system components.

The total hydraulic system may include:

• Process piping

• Valves and fittings

• Strainers

• Heat exchangers

• Flow measurement devices

• Control valves

A multi-pass design that exceeds the available pressure budget may require a different plate arrangement, a larger exchanger, or changes to the pumping system.

4.3 Estimating the Effect on Pumping Power

The approximate hydraulic power needed to overcome a pressure drop is:

P = ΔP × V̇

When pressure drop is expressed in kPa and volumetric flow rate in m³/s, the result is in kW.

Actual electrical input is greater than hydraulic power because pumps, motors, and drives are not perfectly efficient.

4.3.1 Why the Lowest Equipment Price May Not Mean the Lowest Total Cost

A compact multi-pass exchanger may reduce certain equipment or installation costs.

However, additional pressure drop can increase annual pumping electricity consumption.

For systems operating continuously, the cumulative energy cost can become an important consideration.

Therefore, industrial buyers should compare lifecycle costs rather than initial purchase prices alone.

5. When Should You Choose a Single-Pass or Multi-Pass Plate Heat Exchanger?

5.1 Choose Single-Pass When the Thermal Duty Is Already Achievable

A single-pass configuration is often a suitable starting point when the fluid flow rates are sufficient to provide effective heat transfer within the allowable pressure drop.

It may be attractive for:

• Building HVAC water-to-water systems

• Industrial process cooling with adequate flow

• District energy applications

• Heat recovery duties with suitable countercurrent temperature profiles

• Systems where minimizing hydraulic resistance is important

The selection should still be confirmed using thermal and hydraulic calculations.

5.1.1 Why Single-Pass Is Often a Practical Starting Point

Single-pass designs generally provide straightforward internal routing.

Depending on the equipment, they may also simplify connections and maintenance access.

They are often worth evaluating first because additional passes should solve an identifiable design problem rather than be specified without justification.

5.1.1.1 When a Single-Pass Design Needs Reconsideration

If a single-pass cooling design cannot meet the specified heat dissipation and outlet temperature without sacrificing heat dissipation area, reducing channel utilization, or other unacceptable compromises, the design should be reconsidered.

Before changing the number of cooling channels, engineers should also consider other heatsink geometries, heatsink sizes, and channel configurations.

5.2 Choose Multi-Pass When Channel Velocity Needs Improvement

A multi-pass arrangement may be useful when the flow rate on one side is too low for satisfactory thermal performance with the proposed single-pass plate configuration.

Increasing the number of passes can raise the average flow through the channels operating in each pass.

This may improve local convective heat transfer.

However, the resulting pressure drop must remain acceptable.

For highly viscous fluids, higher velocity and more passes are not automatically the right solution because viscosity can create significant additional resistance.

Fluid-specific thermal and hydraulic calculations remain essential.

5.3 Consider Unequal Pass Arrangements for Unequal Fluid Conditions

The hot-side and cold-side flow rates may differ significantly.

In such applications, a symmetrical arrangement may not produce suitable channel velocities on both sides.

An unequal-pass arrangement can be considered to better match the hydraulic requirements of the two streams.

For example, the lower-flow side may benefit from additional passes while the higher-flow side retains fewer passes.

However, asymmetric routing can influence the temperature profile and effective thermal driving force.

Its suitability must be verified using the actual exchanger geometry.

5.4 Consider Fouling and Cleaning Requirements

Flow velocity can influence the tendency of some deposits to accumulate in plate channels.

At insufficient velocity, certain suspended materials may settle or adhere more readily.

A properly designed multi-pass arrangement may improve local shear conditions in some cases, but higher velocity does not eliminate chemical scaling, crystallization, or all forms of fouling.

In applications containing solids, fibers, or other challenging materials, a different channel geometry may be more useful than simply adding passes.

For these applications, our guide to wide-gap plate heat exchanger selection explains when larger or more open channels should be considered.

5.5 Evaluate Maintenance and Future Expansion

Gasketed plate heat exchangers can generally be opened for inspection and cleaning when their design allows.

Some units can also accommodate changes in plate count or configuration.

However, converting an existing single-pass unit into a multi-pass arrangement is not always straightforward.

It may require different turning plates, gaskets, partition components, connections, or a suitable frame arrangement.

Any proposed conversion must be checked against the manufacturer's assembly drawings and mechanical design.

Brazed plate heat exchangers are different because their plates are permanently joined.

Although multi-pass brazed designs exist, their internal routing cannot normally be reconfigured after manufacture.

For a broader equipment comparison, see gasketed vs. brazed plate heat exchangers.

6. Worked Example: Comparing Single-Pass and Two-Pass Configurations

6.1 Establish the Required Heat Duty

Consider an illustrative liquid-to-liquid cooling application.

The hot-side design requirements are:

The required heat transfer rate is:

Q = 10 × 4.18 × (55 − 50)

Q = 209 kW

This is the required hot-side heat duty, assuming the approximate fluid properties are appropriate.

The cold-side flow rate and temperature requirements must also be established before final equipment selection.

6.2 Compare the Two Candidate Flow Arrangements

Suppose the engineer is evaluating two arrangements based on a comparable plate family:

• Option A: Single-pass arrangement

• Option B: Two-pass arrangement on a selected fluid side

The same total flow rate is supplied to each candidate.

Option B may produce a higher channel velocity because fewer channels operate in parallel during each pass.

However, it may also have a greater pressure drop.

The selection cannot be completed without considering the cold-side operating conditions, active heat transfer area, distribution arrangement, and calculated hydraulic resistance.

6.3 Compare Using the Same Design Constraints

Both candidates should be evaluated using:

1. The same required heat duty

2. Identical hot-side and cold-side operating conditions

3. The same allowable pressure-drop limits

4. The relevant fluid properties

5. The same fouling and maintenance assumptions

6. Comparable operating hours and energy costs

If the single-pass candidate meets all requirements at an acceptable lifecycle cost, additional passes may offer no useful advantage.

If the single-pass option has inadequate local heat transfer performance while the two-pass configuration meets the thermal duty and pressure-drop limits, a multi-pass arrangement may be preferable.

These are illustrative selection scenarios, not verified performance data for a specific Aidear product.

7. Common Mistakes When Selecting Pass Arrangements

7.1 Assuming More Passes Always Increase Efficiency

More passes can increase channel velocity in suitable configurations.

However, this does not guarantee higher overall efficiency.

Pressure drop, pumping energy, and thermal effectiveness must all be evaluated.

7.2 Selecting Only by Heat Transfer Area

Plate area is important, but it does not independently determine exchanger performance.

Channel velocity, fluid distribution, thermal driving force, and allowable pressure drop are equally relevant.

A larger plate pack with poorly matched flow characteristics may not be the best solution.

7.3 Ignoring Cold-Side Operating Conditions

A pass arrangement cannot be selected reliably using only the hot-side design data.

The cold-side fluid properties, temperatures, flow rate, and pressure limits affect the appropriate configuration.

7.4 Confusing Number of Passes With Number of Plates

Plate count determines much of the available heat transfer surface and number of potential channels.

Pass count determines how the fluid is routed through groups of channels.

These parameters are related, but they are not interchangeable.

7.5 Assuming Every Gasketed Exchanger Can Be Converted to Multi-Pass

The gasketed structure ensures ease of maintenance but limits configuration flexibility.

Internal piping layout is constrained by plate arrangement, gasket arrangement, frame dimensions, connection locations, and other mechanical details.

Any modifications must be approved by the actual heat exchanger design.

8. Plate Heat Exchanger Selection Checklist for Industrial Buyers

Before requesting a quotation, buyers should provide the manufacturer with accurate process information.

8.1 Questions to Ask the Manufacturer

When comparing proposals, consider asking:

• Is the proposed exchanger single-pass or multi-pass?

• How many passes are provided on each fluid side?

• What are the calculated channel velocities and pressure drops?

• Has the equipment been evaluated at minimum and maximum flow conditions?

• Does the proposed arrangement meet the required outlet temperatures?

• Will the connection arrangement affect installation or maintenance?

• Can the manufacturer provide a thermal calculation summary and relevant drawings?

For related guidance, read how to size a brazed plate heat exchanger, which explains additional thermal selection considerations.

8.2 Compare the Complete Operating Cost

Purchase price should not be the only selection criterion.

Engineers should evaluate the relationship between:

• Heat exchanger investment

• Pumping energy

• Cleaning and maintenance requirements

• Installation complexity

• Operating reliability

• Expected service conditions

A lower-cost exchanger that requires excessive pumping energy may not provide the lowest lifecycle cost.

9. Frequently Asked Questions About Single-Pass and Multi-Pass Plate Heat Exchangers

9.1 Is a Multi-Pass Plate Heat Exchanger More Efficient Than a Single-Pass Design?

Not necessarily.

A multi-pass configuration may improve heat transfer when it increases channel velocity under suitable operating conditions.

However, the additional pressure drop may increase pumping energy.

Overall efficiency must be evaluated for the complete system.

9.2 Does a Multi-Pass Plate Heat Exchanger Have a Higher Pressure Drop?

Often, yes, when comparing otherwise similar configurations at the same total fluid flow rate.

Additional passes may increase channel velocity and the total flow path length.

However, exact pressure losses depend on plate geometry, port design, and fluid properties.

9.3 Can a Single-Pass Plate Heat Exchanger Achieve a Close Temperature Approach?

Yes.

A properly designed single-pass countercurrent plate heat exchanger can achieve close temperature approaches in suitable applications.

The result depends on heat transfer area, temperature profiles, fluid properties, and flow conditions.

Multi-pass construction is not automatically required.

9.4 Can the Hot and Cold Sides Have Different Numbers of Passes?

Yes, in suitable plate heat exchanger designs.

Unequal pass arrangements may be used to accommodate different fluid flow rates or thermal requirements.

The resulting temperature profile and pressure drop must be evaluated carefully.

9.5 Can a Brazed Plate Heat Exchanger Be Multi-Pass?

Yes.

Some brazed plate heat exchangers are manufactured with two-pass or other specialized internal flow arrangements.

However, this capability depends on the particular product design.

A conventional brazed plate exchanger cannot normally be changed to a different pass arrangement after manufacture.

9.6 How Do I Know Whether My Application Needs Multi-Pass Design?

Start by evaluating a suitable single-pass arrangement using the actual heat duty, fluid properties, temperature requirements, flow rates, and pressure-drop limitations.

If it cannot provide satisfactory performance, assess other plate geometries or multi-pass configurations.

The final choice should be supported by manufacturer-specific thermal and hydraulic calculations.

10. Conclusion: Choose the Pass Arrangement That Fits Your Process

Single-pass and multi-pass plate heat exchangers offer different methods of managing fluid flow through the heat transfer channels.

Single-pass arrangements are often attractive because of their straightforward routing and potentially lower hydraulic resistance.

Multi-pass arrangements may be valuable when additional channel velocity or a different distribution of flow paths is necessary to meet the thermal duty.

However, increasing the number of passes also changes the hydraulic characteristics and may increase pumping requirements.

The correct design must balance:

• Required heat transfer capacity

• Fluid flow rates and properties

• Temperature approach

• Channel velocity

• Allowable pressure drop

• Fouling and maintenance requirements

• Installation and lifecycle costs

The best plate heat exchanger is not necessarily the one with the most passes. It is the one that delivers the required thermal performance with appropriate hydraulic resistance and long-term reliability.

10.1 Explore Plate Heat Exchanger Solutions With Aidear

Changzhou Aidear Refrigeration Technology Co., Ltd. supplies heat exchanger solutions for industrial cooling, HVAC, refrigeration, and heat recovery applications.

For projects requiring a specific flow arrangement, equipment selection should begin with a review of the heat duty, fluid properties, temperature conditions, available pumping pressure, and installation constraints.

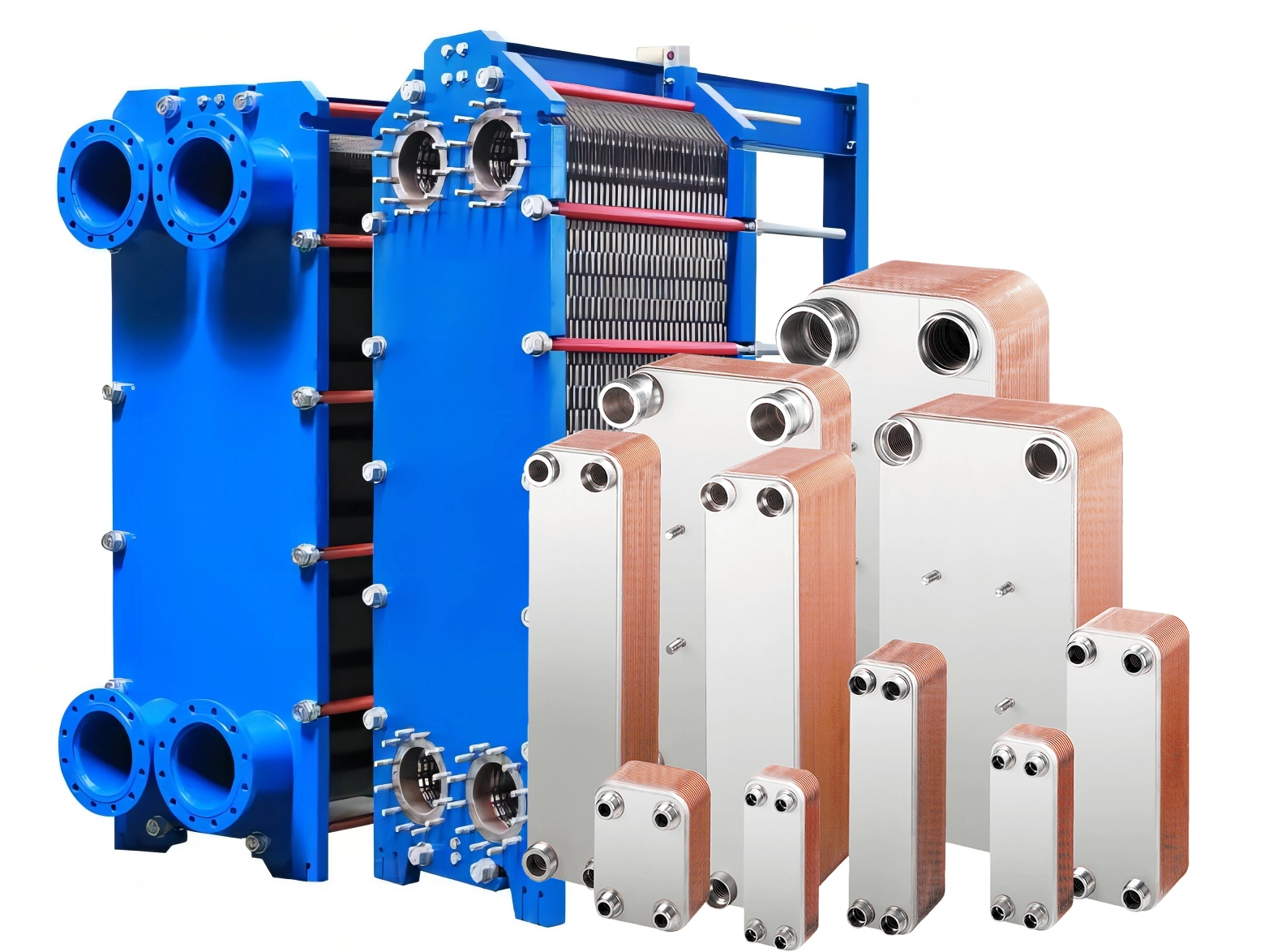

Explore our Gasketed Plate Heat Exchangers and Brazed Plate Heat Exchangers to learn more about the available product categories.

10.2 Request a Customized Plate Heat Exchanger Quotation

Are you comparing single-pass and multi-pass plate heat exchangers for an industrial project?

Share your required heating or cooling duty, fluid types, inlet and outlet temperatures, flow rates, and allowable pressure drops with Aidear.

Our team can review your application requirements and discuss suitable plate heat exchanger options, subject to technical evaluation and configuration availability.

Request a Custom Quote and find the appropriate heat transfer solution for your project.
