How Unequal Flow Rates Affect Plate Heat Exchanger Selection

In industrial heat transfer systems, the hot and cold fluids do not always circulate at the same flow rate.

A plate heat exchanger may transfer heat between a large cooling-water stream and a smaller process-water stream, or between two fluids with significantly different thermal properties.

These conditions are common in industrial cooling, heat recovery, HVAC, and process temperature-control applications.

However, unequal flow rates can complicate plate heat exchanger selection.

The designer must consider not only the required heat transfer capacity but also the temperature changes, fluid properties, channel velocities, and allowable pressure drops on both sides.

Selecting an exchanger based only on nominal capacity or connection size may produce an inefficient hydraulic arrangement.

This article explains how unequal hot-side and cold-side flow rates influence plate heat exchanger selection and which design considerations matter most.

1. What Are Unequal Flow Rates in a Plate Heat Exchanger?

1.1 Understanding Hot-Side and Cold-Side Flow Rates

A plate heat exchanger transfers thermal energy between two fluid streams through thin metal plates.

The hot fluid flows through one group of channels, while the cold fluid flows through alternating channels.

The two streams are hydraulically separated while exchanging heat through the plate walls.

In many applications, their total mass flow rates are different.

For example:

• A process circuit may circulate less fluid than its cooling-water circuit.

• A heat recovery system may connect two streams with different flow capacities.

• A district heating system may have different primary and secondary flow requirements.

• An industrial cooling system may operate with variable process demand.

Unequal flow rates are not necessarily a design problem.

The important question is whether the selected exchanger can meet the required thermal duty and hydraulic conditions on both sides.

1.2 Unequal Flow Rates vs. Flow Maldistribution

These two concepts should not be confused.

Unequal flow rates refer to differences between the total flow rates of the hot and cold fluid streams.

Flow maldistribution refers to uneven fluid distribution among the parallel channels within a circuit.

A plate heat exchanger may be designed to operate successfully with different hot-side and cold-side flow rates while maintaining acceptable internal flow distribution.

Conversely, an exchanger with similar total flow rates on both sides may still experience maldistribution.

For a detailed discussion of internal channel distribution, see our article on How Flow Maldistribution Reduces Plate Heat Exchanger Performance.

2. How Unequal Flow Rates Affect Heat Transfer Calculations

2.1 The Basic Heat Balance

For a single-phase fluid without significant heat losses, the heat transfer rate can be estimated using:

Q = ṁ × Cp × ΔT

Where:

• Q = Heat transfer rate

• ṁ = Mass flow rate

• Cp = Specific heat capacity

• ΔT = Fluid temperature change

The same basic relationship applies to the hot and cold sides.

For the hot fluid:

Qh = ṁh × Cph × (Th,in − Th,out)

For the cold fluid:

Qc = ṁc × Cpc × (Tc,out − Tc,in)

Under steady operating conditions, the heat lost by the hot fluid should approximately equal the heat gained by the cold fluid, after accounting for heat losses and measurement uncertainty.

2.2 Why Equal Flow Rates Are Not Required

The temperature change of each fluid depends on its mass flow rate and specific heat capacity.

Therefore, two streams can exchange the same amount of heat even when their flow rates differ.

A lower-flow stream may undergo a larger temperature change than a higher-flow stream, assuming similar specific heat capacities.

2.2.1 Example: Different Water Flow Rates

Consider a hypothetical water-to-water heat exchanger with the following conditions:

Using an approximate water specific heat of 4.18 kJ/(kg·K):

Hot-side heat transfer:

Qh = 2 × 4.18 × 10

Qh = 83.6 kW

Cold-side heat transfer:

Qc = 1 × 4.18 × 20

Qc = 83.6 kW

The simplified heat balance is satisfied even though the hot-side mass flow rate is twice the cold-side mass flow rate.

2.2.1.1 What This Example Demonstrates

The calculation shows that equal heat transfer does not require equal mass flow rates.

However, the heat balance alone does not establish whether a particular plate heat exchanger can achieve these outlet temperatures.

The actual design must also verify the temperature driving force, heat transfer coefficients, available surface area, pressure drops, and flow arrangement.

The values above illustrate thermal principles rather than the performance of a specified product.

2.3 Why Mass Flow and Volumetric Flow Should Be Distinguished

Plate heat exchanger specifications may express flow in kilograms per second, cubic meters per hour, or other units.

These quantities are not interchangeable without accounting for density.

Mass flow depends on volumetric flow and fluid density:

Mass Flow Rate = Density × Volumetric Flow Rate

When the fluids have different densities, equal volumetric flow rates do not necessarily mean equal mass flow rates.

Engineers should use consistent units and fluid properties when comparing the two circuits.

3. How Unequal Flow Rates Influence Channel Design

3.1 Channel Velocity and Flow Distribution

Flow velocity inside a plate heat exchanger depends on the total fluid flow and the effective flow area available within the channels.

When a fluid is distributed among multiple parallel channels, the flow assigned to each channel affects local velocity and hydraulic resistance.

For a given channel geometry and fluid condition, increasing the total flow rate generally increases the pressure drop.

Reducing flow may lower the channel velocity and change the convective heat transfer characteristics.

Consequently, a plate arrangement that performs efficiently on one side may not be equally suitable for the other.

3.2 Why Symmetrical Channels May Not Always Be Optimal

In a conventional symmetric plate configuration, the two fluid circuits may have similar channel geometries.

This arrangement can be appropriate for many applications.

However, when the two flow rates differ significantly, the same channel geometry on both sides may not provide the best thermal and hydraulic balance.

The higher-flow side may experience excessive pressure loss, while the lower-flow side may operate at a less favorable velocity.

Engineers must evaluate these conditions together rather than assuming that a symmetric arrangement is always the most economical solution.

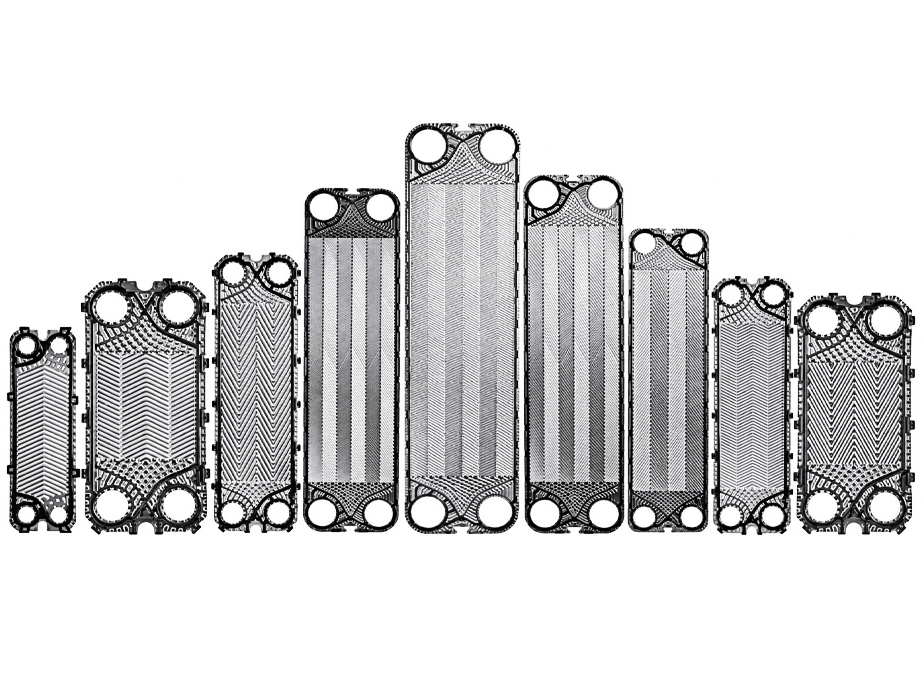

3.3 Asymmetric Plate Heat Exchanger Designs

Asymmetric channel designs provide different flow characteristics for the two circuits.

Depending on the plate technology, an asymmetric configuration may use different channel gaps, channel patterns, or hydraulic arrangements.

This can help accommodate differences in flow rate, fluid properties, or allowable pressure drop.

3.3.1 How Asymmetric Channels Can Improve Selection

An appropriately designed asymmetric exchanger may provide:

• Better use of the allowable pressure drop on each side

• More suitable channel velocities

• Improved thermal and hydraulic matching

• Reduced unnecessary pressure losses

• A more economical arrangement for the specified duty

These benefits are application-dependent.

An asymmetric design is not automatically superior, and the availability of specific channel arrangements depends on the plate technology.

3.3.1.1 When Should Engineers Consider an Asymmetric Design?

Consider evaluating asymmetric channels when:

• The hot-side and cold-side flow rates differ substantially.

• The fluids have significantly different viscosities.

• One circuit has a much stricter pressure-drop limit.

• A conventional symmetric arrangement cannot meet the combined design requirements efficiently.

The final configuration should be determined through thermal and hydraulic calculations rather than a fixed flow-rate ratio.

4. How Unequal Flow Rates Affect Pressure Drop

4.1 Understanding Hydraulic Resistance

Pressure drop represents the pressure loss caused by fluid movement through the exchanger.

It is affected by:

• Flow rate

• Fluid viscosity and density

• Channel dimensions

• Plate corrugation geometry

• Number of parallel channels

• Number of passes

• Distribution-port and connection design

• Fouling condition

Higher channel velocity can improve convective heat transfer in many liquid applications, but it generally increases hydraulic resistance.

This creates a design tradeoff between heat transfer performance and pumping requirements.

4.2 High-Flow-Side Challenges

When one circuit handles a much larger flow rate, its hydraulic requirements may become the controlling factor in equipment selection.

Potential concerns include:

• Excessive pressure drop

• Insufficient available pump head

• High velocity in distribution ports

• Increased pumping energy demand

• Difficulties meeting pressure-drop restrictions

The solution may involve changes to plate size, channel geometry, number of channels, pass arrangement, or the use of multiple exchangers.

The most suitable choice depends on the complete design conditions.

4.3 Low-Flow-Side Challenges

The lower-flow side may experience a different set of limitations.

If too many parallel channels are provided, the resulting channel velocity may be relatively low.

Depending on the fluid and operating conditions, this may reduce convective heat transfer or wall shear stress.

In fouling-prone services, insufficient wall shear can increase the likelihood of deposit accumulation.

However, lower flow does not automatically mean poor performance.

Fluid viscosity, thermal properties, channel geometry, and the required temperature program must also be considered.

4.4 Why Pressure-Drop Limits Must Be Specified Separately

The maximum allowable pressure drop on the hot side may differ from the limit on the cold side.

For example, one circuit may be supplied by a pump with available pressure capacity, while another circuit may have a strict hydraulic restriction.

The designer should therefore request separate pressure-drop allowances for each circuit.

Using one generic pressure-drop limit for the entire exchanger can lead to inappropriate sizing.

5. How Unequal Flow Rates Affect Temperature Performance

5.1 Heat Capacity Rates

The thermal behavior of the exchanger depends on the heat capacity rate of each fluid.

Heat capacity rate is defined as:

C = ṁ × Cp

This quantity describes how much heat is required to change a fluid's temperature by one degree per unit time.

For a given transferred heat duty, the stream with the smaller heat capacity rate generally undergoes the larger temperature change.

The ratio of hot-side to cold-side flow rates alone does not fully describe this behavior because the fluids may have different specific heat capacities.

5.2 Temperature Approach and Driving Force

Plate heat exchanger selection must account for the required inlet and outlet temperatures.

In a suitable countercurrent arrangement, the terminal temperature differences influence the available driving force for heat transfer.

A small required approach temperature may increase the heat transfer area needed to achieve the specified duty.

The designer must verify whether the target outlet temperatures are thermodynamically feasible.

Unequal flow rates can affect the temperature changes required on each side, but they do not automatically determine the approach temperature.

For further explanation, read our Plate Heat Exchanger Approach Temperature Design Guide.

5.3 Why Flow Rate Cannot Be Evaluated Independently

Suppose the cold-side flow rate decreases while the heat transfer requirement remains unchanged.

If the cold-side specific heat remains approximately constant, the required cold-side temperature rise increases.

This may alter the temperature driving force available within the exchanger.

A previously acceptable selection may no longer satisfy the required outlet conditions.

Therefore, changes in flow rate should trigger a review of both the thermal and hydraulic performance.

6. Single-Pass vs. Multi-Pass Arrangements

6.1 Single-Pass Plate Heat Exchangers

In a single-pass arrangement, each fluid travels through its assigned plate channels in one pass through the plate pack.

Single-pass designs can provide a practical configuration for many industrial heating and cooling duties.

Their suitability depends on channel geometry, heat transfer area, pressure drop, and the required temperature program.

6.2 When Multi-Pass Designs May Be Considered

Multi-pass arrangements redirect one or both fluid streams through additional passes.

Depending on the design, changing the pass arrangement can alter:

• Flow velocity

• Hydraulic resistance

• Temperature profiles

• Effective heat transfer performance

• Connection arrangements

A multi-pass configuration may be useful when a single-pass option cannot meet the required conditions efficiently.

However, it can also increase pressure drop and design complexity.

It should not be selected simply because the hot-side and cold-side flow rates are different.

For a dedicated comparison, see our Single-Pass vs. Multi-Pass Plate Heat Exchanger Guide.

7. How to Select a Plate Heat Exchanger for Unequal Flow Rates

7.1 Step 1: Collect Accurate Fluid Information

Identify the fluid on each side and obtain the relevant properties.

These may include:

• Density

• Specific heat capacity

• Viscosity

• Thermal conductivity

• Corrosiveness

• Fouling tendency

• Solids content, where applicable

Fluid properties should be evaluated at representative operating temperatures.

7.2 Step 2: Define the Thermal Duty

Provide the required heating or cooling capacity, together with the inlet and target outlet temperatures.

Verify that the specified heat balance is physically consistent.

If flow rates and all four temperatures are independently specified, any mismatch in the calculated hot-side and cold-side duties must be resolved before final sizing.

7.3 Step 3: Specify Both Flow Rates

Provide the design flow rates for the hot and cold circuits separately.

Also identify the expected minimum and maximum operating flows if the system operates under variable load.

The flow units and fluid properties should be clearly stated.

7.4 Step 4: Establish Hydraulic Requirements

Determine:

• Maximum allowable hot-side pressure drop

• Maximum allowable cold-side pressure drop

• Available pump head

• Operating pressure

• Design pressure

• Connection requirements

These conditions help determine whether a candidate plate arrangement is hydraulically acceptable.

7.5 Step 5: Compare Candidate Plate Configurations

Suitable alternatives may include:

• Different plate sizes

• Different channel patterns

• Symmetric or asymmetric channel designs

• Alternative numbers of parallel channels

• Single-pass or multi-pass arrangements

• Multiple exchangers where justified

Each alternative should be compared using consistent thermal and hydraulic criteria.

7.6 Step 6: Verify Part-Load Operation

Industrial systems rarely operate at exactly one condition throughout their service life.

The selected exchanger should be evaluated under representative minimum, normal, and maximum operating flows.

Important questions include:

• Can the exchanger meet the required temperature conditions?

• Does either circuit exceed its allowable pressure drop?

• Will channel velocities remain suitable?

• Could the selected arrangement increase fouling risk?

• Are the process control conditions stable?

Part-load evaluation helps prevent the selection from being optimized only for a single design point.

8. Common Selection Mistakes

9. Frequently Asked Questions

Can a Plate Heat Exchanger Work With Different Hot and Cold Flow Rates?

Yes. Different flow rates are common and can be accommodated when the exchanger is properly selected for the required heat duty, temperatures, fluid properties, and hydraulic limits.

Do Unequal Flow Rates Always Require an Asymmetric Plate Heat Exchanger?

No. Many duties can be handled using conventional configurations.

Asymmetric designs become an option when they provide advantages for the specified thermal and hydraulic requirements.

Does a Higher Flow Rate Always Improve Heat Transfer?

Increasing flow may improve convective heat transfer under certain conditions, but it also changes pressure drop and the temperature change of the flowing fluid.

The overall benefit must be evaluated for the complete system.

Is a Larger Plate Heat Exchanger Always Better for Unequal Flow Rates?

No. Additional plates can increase the available transfer area, but they may also create additional parallel flow channels.

At a fixed total flow rate, this can reduce channel velocity.

The correct selection balances surface area, channel conditions, temperature requirements, and pressure drop.

What Information Should Be Sent to a Plate Heat Exchanger Manufacturer?

Provide the fluid compositions, flow rates, inlet and target outlet temperatures, required capacity, operating pressures, allowable pressure drops, and any relevant fouling or installation requirements.

10. Conclusion

Unequal hot-side and cold-side flow rates are normal in many industrial heat transfer applications.

The challenge is not to make the two flow rates equal, but to select an exchanger that meets the required thermal duty while maintaining acceptable hydraulic performance on both sides.

Heat capacity rates, temperature driving force, channel velocities, and separate pressure-drop limits must all be considered.

Symmetric plate arrangements may be suitable for many duties, while asymmetric channels, alternative pass configurations, or other designs can be evaluated when significant differences exist.

The most reliable selection method is to evaluate the actual operating conditions rather than relying on a fixed flow-rate ratio or nominal capacity.

Request a Custom Plate Heat Exchanger Selection

Aidear offers plate heat exchanger solutions for industrial heating, cooling, and heat recovery applications.

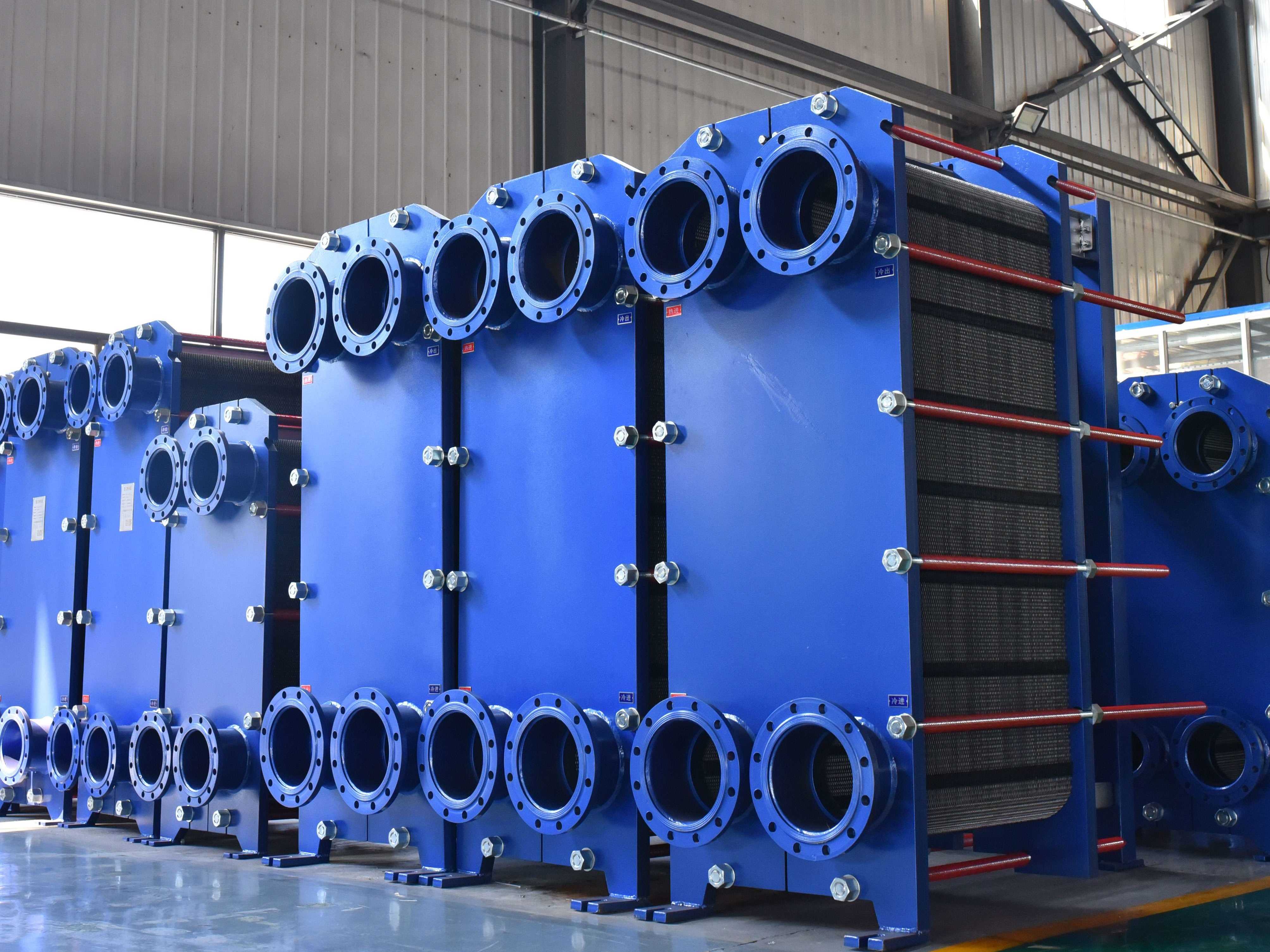

Explore our Gasketed Plate Heat Exchangers or contact Aidear with your hot-side and cold-side operating conditions to discuss a suitable exchanger configuration.
