What Causes Gasket Failure in a Plate Heat Exchanger?

Gasketed plate heat exchangers are widely used in industrial cooling, HVAC, food processing, chemical manufacturing, and heat recovery systems. Their compact plate arrangement provides efficient heat transfer, while removable gaskets make inspection and maintenance possible without replacing the entire exchanger.

However, the sealing system is also one of the components most sensitive to operating conditions.

When a gasket loses its sealing capability, the consequences may include external leakage, unplanned shutdowns, maintenance costs, and potential process contamination.

Gasket failure is not always caused by age. Chemical incompatibility, temperature fluctuations, pressure surges, incorrect plate-pack compression, and poor maintenance practices can all contribute to premature deterioration.

Understanding these mechanisms helps engineers identify the real cause of failure rather than repeatedly replacing damaged gaskets without correcting the underlying problem.

1. How Do Gaskets Work in a Plate Heat Exchanger?

1.1 The Role of Gaskets in a Plate-and-Frame Design

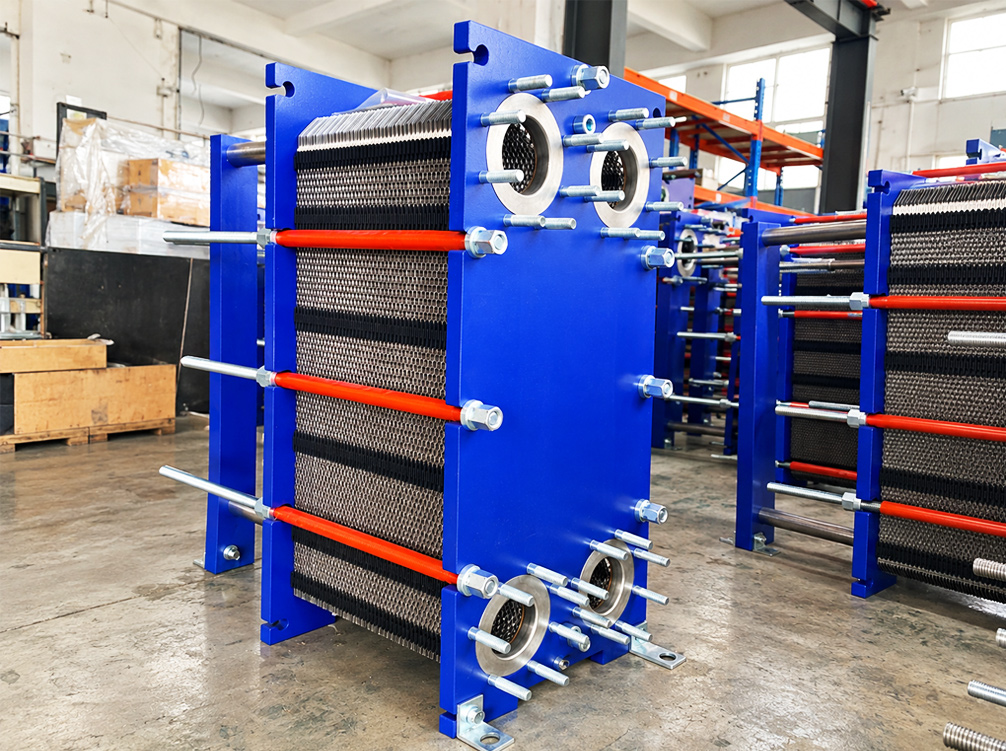

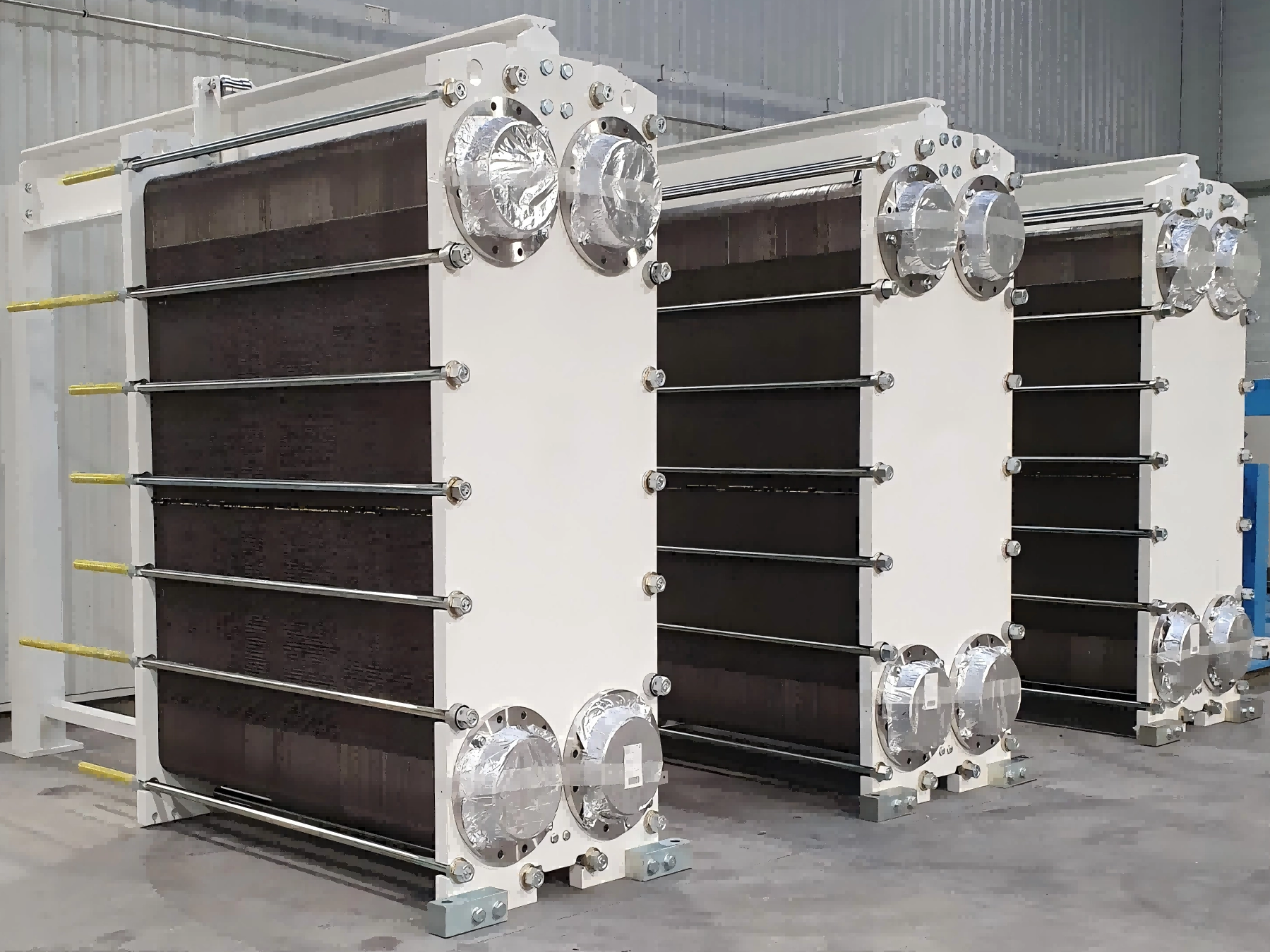

A gasketed plate heat exchanger consists of corrugated metal plates assembled inside a supporting frame.

Gaskets are positioned around the sealing areas of individual plates. Their primary functions are to:

• Seal the flow passages against external leakage.

• Separate the hot and cold fluid circuits through the intended gasket arrangement.

• Direct fluids through their designated plate channels.

• Accommodate the designed plate-pack compression.

The gaskets must retain enough elasticity to maintain an effective seal under the specified operating conditions.

If their physical properties change significantly, the sealing system may no longer function as intended.

1.2 Why Gasket Performance Depends on More Than Material Quality

Even a correctly manufactured gasket can fail prematurely when it operates outside its intended limits.

Its service condition depends on several interacting factors:

• Operating temperature and thermal cycling

• Operating pressure and pressure fluctuations

• Chemical composition of the process fluids

• Cleaning agents and maintenance procedures

• Plate-pack compression and alignment

• Exposure to environmental conditions

For this reason, gasket selection should be treated as part of the overall heat exchanger design rather than an isolated replacement-parts decision.

2. What Are the Main Causes of Gasket Failure?

2.1 Thermal Aging and Loss of Elasticity

The mechanical properties of elastomer gaskets gradually change during use.

Prolonged exposure to high temperatures accelerates aging, causing the gasket to harden, crack, and undergo permanent deformation.

One key mechanism is compression set.

Compression set occurs when a gasket fails to fully recover its original shape after being compressed.

As the gasket loses its ability to maintain a sealing contact, leaks may occur, particularly when operating temperature or pressure changes.

2.1.1 Why Temperature Cycling Makes Aging More Noticeable

During heating and cooling cycles, the plate, frame, and gasket materials respond differently to temperature changes.

Aged gaskets may no longer be able to effectively accommodate these dimensional changes.

As a result, leaks may occur during shutdown, cooling, or restart.

2.1.1.1 Why Cold-Start Leakage Deserves Attention

Gaskets that maintain a seal during normal high-temperature operation may begin to leak once the heat exchanger has cooled down.

This does not necessarily mean that the plate pack needs to be tightened further.

It may indicate that the gaskets have hardened or lost their sealing resilience.

Before adjusting the compression settings, the maintenance team should inspect the condition of the gaskets and refer to the manufacturer’s specified tightening torque values.

2.2 Chemical Incompatibility Between Gaskets and Process Fluids

Different elastomers respond differently to oils, solvents, cleaning chemicals, and other process substances.

A gasket that performs well in one application may deteriorate rapidly in another.

Chemical incompatibility can cause:

• Swelling caused by absorption of process fluids

• Softening or loss of mechanical strength

• Shrinkage or dimensional changes

• Cracking and deterioration

• Reduced sealing performance

For example, EPDM is commonly considered for suitable water-based services, while NBR is used in certain oil-related applications.

However, neither material should be selected solely on the basis of these general categories.

Chemical concentration, fluid formulation, temperature, exposure duration, and the specific elastomer grade must all be evaluated.

2.3 Excessive Pressure and Hydraulic Shock

Gaskets are designed to operate within the mechanical limits of the assembled exchanger.

Sudden pressure changes may place additional stress on the sealing system.

Common operating causes include:

• Rapid valve opening or closing

• Abrupt pump starts and stops

• Hydraulic shock caused by unstable liquid flow

• Blockage or excessive differential pressure

• Pressure conditions exceeding the equipment design limits

A severe pressure surge may displace a gasket, damage its groove, or contribute to leakage.

Repeated pressure fluctuations can also affect the integrity of the complete plate assembly.

The correct response is to investigate the operating system, not simply install a stronger gasket.

2.4 Incorrect Plate-Pack Compression

The degree of plate pack compression is critical to the sealing performance of gasketed plate heat exchangers.

Manufacturers typically specify an assembly dimension (often referred to as the “A” dimension), which defines the correct degree of plate pack compression.

If the heat exchanger is not tightened sufficiently, the gaskets may not maintain an adequate seal.

However, over-tightening can also cause damage.

Excessive compression can crush the gaskets, cause plate deformation, or damage the gasket grooves.

2.4.1 Why More Tightening Is Not Always the Solution

When operators discover a leak, tightening the frame bolts may appear to be a quick repair.

But this approach can create further problems if the specified compression limit has already been reached.

The correct procedure includes checking:

• The manufacturer's permitted tightening dimensions

• Uniformity of plate-pack compression

• Plate and frame alignment

• Gasket condition

• Whether the equipment was assembled in the correct sequence

2.4.1.1 A Practical Inspection Before Retightening

Before making any adjustments, record the dimensions of the existing packing bed and compare them with the equipment documentation.

If the packing bed has reached its minimum allowable size, do not continue tightening.

Inspect the sealing components and follow the manufacturer’s approved maintenance procedures.

2.5 Incorrect Gasket Installation

Installation quality can significantly affect gasket reliability.

Common mistakes include:

• Installing an incorrect gasket profile

• Leaving dirt inside the gasket groove

• Stretching or twisting the gasket during installation

• Misaligning the gasket with the sealing surface

• Using an unsuitable adhesive on a glued design

• Incorrectly assembling the plate sequence

A gasket may be manufactured from the correct material but still fail if it is not properly seated.

2.6 Improper Cleaning Chemicals

Gaskets may be damaged if the formulation or conditions of use of cleaning chemicals are inappropriate.

Cleaning solutions that are too corrosive may accelerate gasket swelling, hardening, or surface degradation.

Potential problems include chemical incompatibility, excessive concentration, excessive temperature, or prolonged exposure.

When planning a Clean-in-Place (CIP) process, engineers must verify that the cleaning agent is compatible with both the metal plates and the installed gasket material.

Cleaning procedures should follow the equipment manufacturer’s instructions and the application limits approved by the chemical supplier.

2.7 Environmental Aging During Storage and Shutdown

Gasket aging may also occur outside of normal production operations.

Depending on the material, exposure to ozone, ultraviolet light, high temperatures, and improper storage conditions can all accelerate aging.

Spare gaskets should be stored in accordance with the manufacturer’s instructions.

Long-term shutdown procedures should also take into account residual process fluids, cleaning chemicals, and the heat exchanger’s storage environment.

3. How to Identify Different Gasket Failure Symptoms

Not all gasket problems produce the same visible evidence.

The following observations can help guide initial troubleshooting.

These observations are diagnostic clues, not conclusive proof of a single failure mechanism.

3.1 External Leakage vs. Internal Fluid Contamination

It is essential to distinguish between external leaks related to gaskets and internal leaks between the two fluid circuits.

External leaks near the edges of the plates may indicate a problem with the gasket sealing system.

Cross-contamination between the hot and cold circuits, on the other hand, may be caused by plate damage, corrosion, fatigue cracks, or problems with the fluid separation device.

The specific leakage path depends on the design of the plates and gaskets.

Therefore, operators should not automatically diagnose every leakage issue as gasket failure.

If cross-contamination is suspected, the heat exchanger should be isolated and inspected in accordance with the manufacturer’s approved test procedures.

4. How to Prevent Premature Gasket Failure

4.1 Select the Correct Gasket Material

Gasket selection should account for the complete operating environment rather than temperature alone.

Common gasket material families include:

These descriptions are general material characteristics, not universal approvals.

The final choice must be verified against the actual fluid composition, temperatures, pressures, cleaning chemistry, and specific gasket grade.

4.2 Maintain Stable Operating Conditions

Reducing unnecessary pressure and temperature fluctuations can help protect sealing components.

Good practices include:

• Start and stop pumps according to approved procedures.

• Operate valves gradually to reduce pressure surges.

• Maintain operating pressure within design limits.

• Avoid uncontrolled thermal shocks.

• Monitor inlet and outlet pressure and temperature trends.

4.3 Follow Correct Maintenance Procedures

Routine maintenance should include visual inspections, leak monitoring, and verification of operating conditions.

When opening the plate bundle, check the gaskets and grooves for wear or deformation.

Use the correct replacement parts and follow the documented plate installation sequence.

Do not assume that all gaskets can be reused after removal.

Reusability depends on the condition of the material and the manufacturer’s instructions.

4.4 Plan Gasket Replacement Based on Actual Conditions

There is no single gasket replacement interval suitable for every plate heat exchanger.

A high-temperature process with frequent thermal cycling may impose different demands from a moderate-temperature water-cooling application.

A practical maintenance program should consider:

• Operating history

• Temperature and pressure cycles

• Gasket material and age

• Chemical exposure

• Leakage observations

• Previous inspection findings

Condition-based monitoring, supported by manufacturer recommendations, can help determine appropriate inspection and replacement schedules.

5. When Should Gaskets Be Replaced?

Replacement should be considered when inspection reveals substantial cracking, permanent deformation, swelling, material damage, or loss of sealing capability.

Replacement may also be necessary when:

• Leakage continues despite correct assembly.

• The gasket material is incompatible with the process.

• The gasket has been damaged during disassembly.

• The manufacturer does not permit reuse.

• Changes in operating conditions require a different gasket specification.

If repeated gasket failures occur, identifying and correcting the root cause is essential before installing another replacement set.

Otherwise, the same failure may occur again.

6. What Should Engineers Check Before Ordering Replacement Gaskets?

Before ordering replacement parts or specifying a new exchanger, collect the following information:

1. Manufacturer, model, and equipment identification

2. Plate pattern and gasket profile

3. Existing gasket material

4. Hot-side and cold-side fluid compositions

5. Normal and maximum operating temperatures

6. Normal and maximum operating pressures

7. Cleaning chemicals and maintenance history

8. Description and photographs of the failure

Accurate information reduces the risk of selecting incompatible or incorrectly sized replacement components.

For new equipment selection, our Gasket Plate Heat Exchanger Buyer's Guide explains other important design considerations.

7. Frequently Asked Questions

Can a Plate Heat Exchanger Gasket Be Reused?

Some gaskets may be reusable after opening, depending on their material, condition, attachment system, and the manufacturer's instructions.

Gaskets showing damage, significant aging, or permanent deformation should not be reused.

Does Every Plate Heat Exchanger Leak Require Gasket Replacement?

No. Leakage may result from incorrect assembly, pressure surges, damaged plates, corroded components, or other causes.

The leakage path and equipment condition must be investigated before replacement.

Can Overtightening Stop a Gasket Leak?

Additional tightening may be appropriate only when the plate pack is outside its specified assembly dimension and the manufacturer permits adjustment.

Overtightening beyond the allowable limit can damage the plates and gaskets.

How Long Do Plate Heat Exchanger Gaskets Last?

Service life depends on elastomer formulation, operating temperature, pressure cycles, process fluids, cleaning chemicals, and maintenance practices.

A universal replacement interval cannot be specified without evaluating the application.

8. Conclusion

Gasket failure in a plate heat exchanger is usually the result of interacting mechanical, thermal, chemical, or maintenance-related factors.

Thermal aging and compression set, chemical incompatibility, pressure surges, incorrect compression, and installation problems are among the main mechanisms engineers should investigate.

Effective prevention begins with accurate material selection, stable operating conditions, proper assembly, and condition-based maintenance.

For new installations, selecting a gasketed plate heat exchanger that matches the real process conditions is often more effective than addressing sealing problems after commissioning.
