How Tube Pitch Affects Shell-Side Heat Transfer and Pressure Drop

In a shell-and-tube heat exchanger, even a small change in tube spacing can influence thermal performance, hydraulic resistance, equipment size, and long-term maintenance requirements.

Tube pitch is one of the key geometric parameters governing how shell-side fluid moves through a tube bundle. A closely packed arrangement can provide a compact heat transfer surface and encourage stronger crossflow. However, tighter spacing may also increase flow resistance and make shell-side cleaning more difficult.

Increasing tube pitch can create more space between tubes, but it may also require a larger shell or reduce the number of tubes that can fit inside a given shell diameter.

The engineering challenge is not simply to maximize heat transfer or minimize pressure drop. It is to achieve the required thermal duty within the available pressure drop, mechanical, maintenance, and cost constraints.

This article examines how tube pitch affects shell-side heat transfer and pressure drop, compares common tube arrangements, and explains how engineers can select a suitable configuration for industrial applications.

1. What Is Tube Pitch in a Shell-and-Tube Heat Exchanger?

Tube pitch is the center-to-center distance between two adjacent tubes within the tube bundle.

It determines how closely the tubes are arranged and affects the available flow passages through which the shell-side fluid travels.

For a broader explanation of shell-and-tube construction and operating principles, see our Shell and Tube Heat Exchanger: Core Principles and Selection Guidelines.

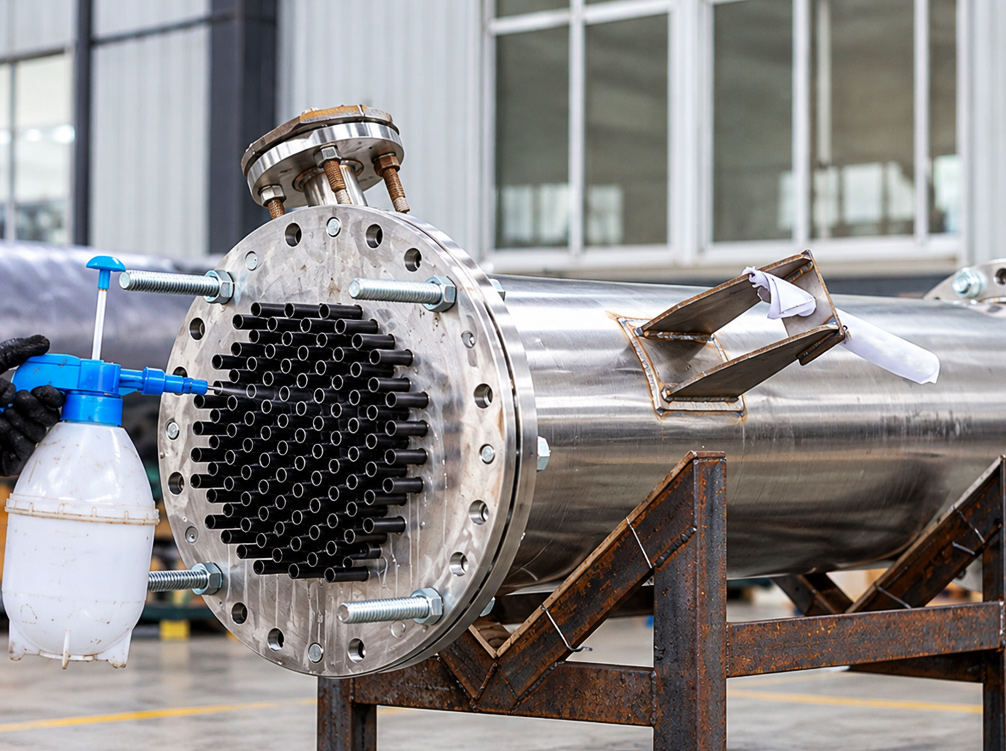

1.1 Tube Pitch, Tube Diameter, and Tube Clearance

Three dimensions are particularly important:

• Tube outside diameter (dₒ): The external diameter of an individual tube.

• Tube pitch (Pₜ): The center-to-center distance between adjacent tubes.

• Tube clearance (C): The minimum surface-to-surface gap between adjacent tubes.

Their basic geometric relationship is:

C = Pₜ − dₒ

The tube pitch ratio is:

Pitch Ratio = Pₜ / dₒ

This dimensionless ratio allows engineers to compare tube spacing across different tube diameters.

For example, consider a heat exchanger using tubes with an outside diameter of 20 mm.

If the selected tube pitch is 25 mm:

• Tube outside diameter = 20 mm

• Tube pitch = 25 mm

• Tube clearance = 5 mm

• Pitch ratio = 1.25

These values describe the tube geometry. They do not, by themselves, establish the shell-side heat transfer coefficient or pressure drop.

1.2 Why the Tube Pitch Ratio Matters

The tube pitch ratio influences several aspects of exchanger design:

1. Tube packing density and available heat transfer area.

2. Shell-side flow passages and local velocities.

3. Flow resistance and pressure loss.

4. Tube layout flexibility and baffle design.

5. Accessibility for mechanical cleaning.

6. Shell diameter and manufacturing cost.

A pitch ratio of approximately 1.25 is a common starting point in conventional shell-and-tube design.

However, it should not be treated as a universally optimal value.

The selected pitch must satisfy the applicable mechanical design requirements, tube-to-tubesheet joint requirements, cleaning access, and thermal-hydraulic calculations.

1.3 Tube Pitch Is Not the Same as Tube Layout

Tube pitch describes the distance between tubes.

Tube layout describes their geometric arrangement.

Two heat exchangers can use identical tube diameters and pitch ratios while producing different shell-side flow behavior because their tube patterns differ.

Common arrangements include:

• Triangular pitch (30°)

• Rotated triangular pitch (60°)

• Square pitch (90°)

• Rotated square pitch (45°)

The arrangement must be evaluated together with tube pitch rather than as a separate design decision.

2. How Tube Pitch Affects Shell-Side Heat Transfer

Heat transfer on the shell side is influenced by factors such as fluid velocity, turbulence, physical properties, flow field distribution, tube geometry, and the thermal resistance of the heat exchanger.

Tube spacing affects several of these factors simultaneously.

2.1 Closer Tube Spacing Can Increase Local Flow Velocity

When tubes are arranged more closely, the passages between adjacent tubes become narrower.

Under otherwise comparable flow conditions, restricted passages can increase local fluid velocity and alter the flow field around the tube surfaces.

Higher velocity and greater mixing can reduce the thickness of the thermal boundary layer and improve convective heat transfer.

This can increase the shell-side heat transfer coefficient.

However, the effect is not controlled by tube clearance alone.

The actual velocity distribution also depends on:

• Shell-side mass flow rate.

• Shell internal diameter.

• Tube arrangement and number of rows.

• Baffle spacing and baffle cut.

• Fluid viscosity and density.

• Leakage and bypass flow paths.

A smaller pitch does not guarantee higher useful heat transfer if a significant portion of the fluid bypasses the effective tube-bank crossflow region.

2.2 Tube Pitch Influences Heat Transfer Surface Density

Closely packed tube arrangements allow more tubes to fit inside a given bundle diameter.

For a fixed tube length and outside diameter, accommodating more tubes generally provides greater external heat transfer surface area.

The total external area of straight, smooth tubes can be estimated as:

Aₒ = N × π × dₒ × L

Where:

• Aₒ = total external tube surface area

• N = number of tubes

• dₒ = tube outside diameter

• L = effective heat transfer length

This simplified relationship excludes additional effects such as extended surfaces and variations in effective tube length.

A compact triangular arrangement may accommodate more tubes than a square arrangement within the same approximate bundle envelope.

This can be advantageous when equipment footprint is limited.

However, higher surface density is not automatically equivalent to higher thermal efficiency.

The shell-side flow must still reach the heat transfer surfaces effectively.

2.3 Why the Shell-Side Heat Transfer Coefficient Matters

The overall heat transfer rate is commonly expressed as:

Q = U × A × ΔTₘ

Where:

• Q = heat transfer duty

• U = overall heat transfer coefficient

• A = heat transfer area

• ΔTₘ = effective mean temperature difference

For many shell-and-tube configurations, the mean temperature difference is evaluated using a corrected logarithmic mean temperature difference.

Tube pitch can influence both the shell-side contribution to U and the amount of heat transfer area that fits into the equipment.

2.3.1 The Relationship Between Tube Pitch and Overall Thermal Resistance

The overall heat transfer coefficient combines several thermal resistances, including:

• Tube-side convective resistance.

• Tube-wall conductive resistance.

• Shell-side convective resistance.

• Fouling resistance on both sides.

Reducing shell-side convective resistance can improve overall heat transfer performance.

But the size of that improvement depends on how important the shell-side resistance is relative to the other resistances.

2.3.1.1 When a Higher Shell-Side Coefficient Provides Limited Benefits

Consider a heat exchanger in which scaling on the tube side or convection on the tube side accounts for the majority of the total thermal resistance.

Even if shell-side convection is improved by reducing the tube spacing, the resulting increase in the overall heat transfer coefficient may be relatively small.

In this case, increasing the shell-side pressure drop to enhance turbulence may yield minimal benefits.

Engineering insight: Before selecting a tighter tube pitch, identify which thermal resistance is limiting performance.

An exchanger should be optimized as a complete thermal system, not by maximizing one individual heat transfer coefficient.

3. How Tube Pitch Affects Shell-Side Pressure Drop

Pressure drop represents the loss of fluid pressure as the shell-side stream travels through the exchanger.

In a conventional baffled shell-and-tube heat exchanger, pressure losses result from several mechanisms:

• Flow across tube banks.

• Flow through baffle windows.

• Repeated changes in flow direction.

• Inlet and outlet nozzle losses.

• Leakage and bypass flow resistance.

Tube pitch affects the geometry and resistance of the flow passages within the tube bundle.

3.1 Why Tighter Tube Pitch Can Increase Pressure Drop

When the tube spacing is tighter, the fluid flowing around adjacent tubes increases local flow velocity and resistance.

Under comparable operating and geometric conditions, this may result in an increase in shell-side pressure drop.

An increase in pressure drop may increase the pumping energy required to maintain the specified flow rate.

For a liquid pumping system, hydraulic power is related to volumetric flow rate and pressure increase:

Hydraulic Power = Volumetric Flow Rate × Pressure Difference

The actual electrical power also depends on pump and motor efficiency.

Therefore, selecting an exchanger with unnecessarily high hydraulic resistance may increase operating costs over its service life.

3.2 Does Increasing Tube Pitch Always Reduce Pressure Drop?

Increasing tube pitch often increases the available spacing between tubes and can reduce resistance through the tube-bank crossflow passages.

However, the total shell-side pressure drop does not necessarily decrease in a simple or predictable proportion.

The result depends on which design variables remain constant.

For example:

Case A: Fixed number of tubes

If the tube count and diameter remain constant, increasing tube pitch generally requires a larger tube bundle and potentially a larger shell.

This changes the exchanger dimensions and shell-side flow distribution.

Case B: Fixed shell diameter

If the shell diameter remains constant, increasing pitch may reduce the number of tubes that can be installed.

The reduction in heat transfer area may require additional tube length or other design changes to maintain the specified duty.

Case C: Fixed thermal duty

If the exchanger must meet the same duty and allowable pressure drop, the designer may need to adjust the shell diameter, tube length, baffles, or tube count together.

Consequently, a direct comparison of two pitch ratios is meaningful only when the remaining design constraints are clearly defined.

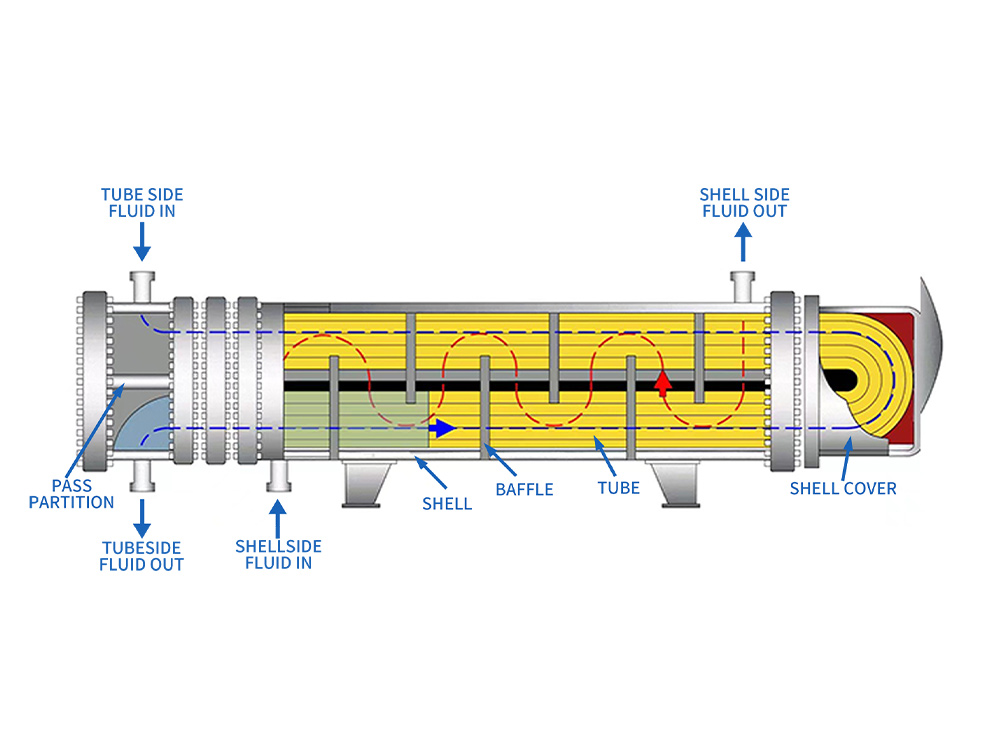

3.3 The Interaction Between Tube Pitch and Baffle Design

Baffles direct the shell-side fluid through the tube bundle and provide mechanical support for the tubes.

The arrangement of baffles has a significant impact on both heat transfer and pressure drop.

When the tube bundle spacing is small and the baffle spacing is relatively small, significant transverse flow resistance is generated.

Although increasing the baffle spacing can reduce the number of transverse flow sections and lower the pressure drop, it also reduces the shell-side heat transfer coefficient and increases the span of unsupported tube sections.

This introduces additional vibration and mechanical considerations.

3.3.1 Crossflow, Leakage, and Bypass Streams

Actual shell-side flow is more complex than the ideal cross-flow in a uniform tube bundle.

Some fluid may flow through the gaps between the tubes and the baffles or bypass the tube bundle.

These flow paths affect the amount of fluid participating in effective cross-flow.

The Bell-Delaware method takes into account the effects of non-ideal shell-side flow, including leakage and bypass flow, when estimating thermal and hydraulic performance.

3.3.1.1 Why Increasing Flow Area May Not Improve Useful Heat Transfer

Consider increasing the tube spacing while maintaining the required process load.

Increasing the tube spacing may reduce the resistance in certain areas of the tube bundle.

However, if the resulting geometry leads to reduced efficiency in the transverse flow distribution or requires more shell-side space, the effective heat transfer rate may not improve.

Although a lower calculated pressure drop may be achieved, the shell-side heat transfer coefficient will also decrease.

Therefore, designers should comprehensively evaluate both pressure drop and heat transfer performance, rather than treating them as independent objectives.

4. Triangular vs Square Tube Pitch: Which Is Better?

Tube layout changes the flow path around the tubes, the number of tubes that can fit inside a shell, and the available cleaning access.

The most common design comparison is between triangular and square arrangements.

4.1 Triangular Tube Pitch

A triangular pattern arranges tubes in staggered rows.

This configuration can accommodate a relatively high number of tubes within a given bundle diameter.

For many clean, single-phase shell-side services, triangular layouts can provide favorable heat transfer performance and compact equipment dimensions.

Typical advantages:

• High tube packing density.

• Compact heat transfer surface arrangement.

• Effective crossflow interaction in suitable designs.

• Potentially smaller shell diameter for a specified tube count.

Typical limitations:

• Greater shell-side flow resistance may occur.

• Straight mechanical cleaning lanes are generally unavailable at close pitch.

• Shell-side fouling can be more difficult to remove mechanically.

Triangular arrangements are often appropriate when the shell-side fluid is relatively clean and mechanical cleaning of tube exteriors is not required.

4.2 Square Tube Pitch

A square pattern aligns tubes in rows with continuous passages between them.

Compared with closely packed triangular arrangements, square layouts generally provide easier access for mechanical cleaning.

They can also offer relatively low shell-side pressure drop in suitable configurations.

Typical advantages:

• Better accessibility for mechanical cleaning.

• Useful for fouling-prone shell-side services.

• Potential for lower pressure drop in comparable applications.

• Straight cleaning lanes when properly designed.

Typical limitations:

• Lower tube packing density than triangular layouts at the same pitch.

• Potentially larger shell diameter for the same tube count.

• Lower shell-side heat transfer coefficients in some flow regimes.

4.3 Rotated Square and Rotated Triangular Arrangements

Rotating the tube bundle arrangement alters the orientation of the tube rows relative to the primary transverse flow direction.

The rotated square arrangement strikes a balance between heat transfer performance and ease of mechanical cleaning.

The rotated triangular arrangement retains the fundamental high-density packing characteristics of the triangular geometry, although its flow behavior may differ.

The relative performance of these layouts depends on the Reynolds number, baffle arrangement, and the overall geometry of the heat exchanger.

4.4 Tube Layout Comparison Table

These are qualitative tendencies, not universal performance rankings.

Final selection requires project-specific thermal and hydraulic calculations.

5. How Tube Pitch Influences Fouling and Maintenance

An exchanger that performs well under clean conditions may become less effective if deposits accumulate on the tube surfaces.

Tube pitch can influence both fouling behavior and the practical difficulty of cleaning the equipment.

5.1 Narrow Tube Spacing and Deposit Accumulation

In certain applications, excessively close spacing increases the risk of narrow channels becoming clogged by suspended solids or deposits.

However, fouling behavior is not determined solely by spacing.

Fluid composition, surface temperature, local flow velocity, chemical treatment, and operating conditions all play a role.

Higher local flow velocities may inhibit certain deposition mechanisms, while uneven flow patterns or hard-to-reach channels can exacerbate other scaling issues.

Therefore, design must take into account the actual scaling mechanisms rather than simply assuming that larger spacing will always prevent deposition.

5.2 Mechanical Cleaning Requirements

When mechanical cleaning is required on the shell side, the tube pattern must provide suitable continuous access lanes.

Conventional triangular layouts at close pitch are generally unsuitable for mechanical cleaning of the tube exteriors.

Square or rotated square patterns are commonly considered where this access is essential.

The required clearance must also accommodate the intended cleaning method.

For example, applicable TEMA provisions commonly reference minimum cleaning lanes of approximately 6.4 mm for specified exchanger classes and configurations, with requirements depending on the applicable class and dimensions.

A tube pitch ratio of 1.25 does not automatically guarantee adequate cleaning clearance for every tube diameter.

5.3 Tube Bundle Removability Matters

Tube spacing cannot compensate for the inability to access surfaces requiring cleaning due to the heat exchanger’s structural design.

In fixed-tube-sheet heat exchangers, the tube bundle typically cannot be removed from the shell.

In appropriately designed removable tube bundles—such as certain floating-head or U-tube configurations—maintenance operations on the shell side are more convenient.

For applications prone to scaling, engineers should comprehensively evaluate the tube layout, heat exchanger structure, and planned cleaning procedures.

6. How to Choose the Right Tube Pitch for Different Applications

There is no universal pitch ratio that maximizes performance for every shell-and-tube exchanger.

An appropriate choice depends on fluid properties, thermal duty, pressure drop limits, maintenance strategy, and mechanical requirements.

6.1 Clean Liquid-to-Liquid Heat Exchangers

For applications involving clean liquids, a relatively compact tube bundle may be more desirable.

When shell-side pressure drop and mechanical requirements permit, a triangular arrangement with a spacing ratio close to the general minimum value may be considered.

However, the final selection must be based on the required heat transfer area, the allowable pressure drop, and the fluid distribution.

6.2 Fouling-Prone Industrial Cooling Systems

When shell-side fluid contains suspended solids or is expected to produce deposits, maintenance accessibility may become more important than maximum tube packing density.

Square or rotated square layouts can provide practical advantages.

The design should prioritize:

• Sufficient cleaning access.

• Appropriate local fluid velocities.

• Manageable hydraulic resistance.

• Suitable materials and fouling assumptions.

• Access for inspection and maintenance.

Choosing the narrowest permitted pitch solely to minimize shell diameter can increase long-term maintenance difficulties.

6.3 High-Viscosity Fluids

For viscous fluids, careful consideration is required because flow may remain in a laminar or transitional state throughout most of the heat exchanger.

The effects of tube bundle arrangement may differ from those observed under highly turbulent conditions.

For such operating conditions, under certain circumstances, a rotating square or other arrangement may offer a more effective compromise.

Fluid properties should be evaluated at representative operating temperatures, particularly when viscosity varies significantly depending on the location within the heat exchanger.

6.4 Refrigeration Condensers and Evaporators

Shell-and-tube exchangers are used in industrial refrigeration for applications that include condensation, evaporation, and liquid cooling.

Tube pitch selection becomes more complex when the shell-side fluid undergoes a phase change.

In these applications, factors such as condensate drainage, vapor distribution, boiling behavior, and liquid circulation can be important.

For example:

• In a condenser, tube arrangement can influence condensate movement and vapor-side flow.

• In a flooded evaporator, tube spacing and arrangement may influence boiling interactions and vapor removal.

• In a single-phase liquid cooler, conventional crossflow heat transfer and pressure drop considerations may dominate.

Important: Single-phase shell-side correlations should not be used without verification for condensation or boiling applications.

The appropriate thermal-hydraulic method must match the actual process.

For a broader system-level selection framework, read our Industrial Refrigeration Heat Exchanger Selection Guide.

7. Practical Tube Pitch Calculation Example

Consider a preliminary comparison using tubes with an outside diameter of 20 mm.

Two possible pitch ratios are being reviewed:

• Option A: Pitch ratio of 1.25

• Option B: Pitch ratio of 1.50

7.1 Calculate the Geometric Dimensions

Option B provides twice the nominal surface-to-surface clearance of Option A.

However, this does not mean that its pressure drop will be half as large.

Nor does it mean that Option A will deliver a predictable percentage increase in heat transfer.

7.2 Compare the Thermal-Hydraulic Implications

If the tube count is held constant, the larger pitch may require a larger bundle envelope.

If the shell diameter is held constant, the larger pitch may reduce the number of tubes that can fit inside the bundle.

In either case, the complete exchanger design changes.

The engineer must recalculate:

1. Actual tube count and heat transfer area.

2. Shell-side crossflow area and velocity distribution.

3. Shell-side heat transfer coefficient.

4. Shell-side pressure drop.

5. Overall heat transfer duty.

6. Mechanical and cleaning constraints.

Only after these calculations can the two layouts be compared fairly.

7.3 Why the Lowest Pressure Drop Is Not Always the Best Design

Assuming that a larger tube spacing can reduce the shell-side pressure drop, a larger shell is required to accommodate the necessary number of tubes.

While this may reduce pumping resistance, it increases material usage, equipment footprint, and capital costs.

On the other hand, although a more compact layout can lower initial equipment costs, it requires greater pumping energy consumption during operation.

The optimal design depends on the total installation and operating costs over the expected service life of the equipment.

For this reason, engineering teams should compare complete heat exchanger configurations rather than isolated tube spacing values.

8. How Engineers Optimize Tube Pitch and Shell-Side Performance

A reliable selection process starts with operating requirements rather than a predetermined tube pitch ratio.

8.1 Define Thermal and Hydraulic Requirements

The first step is to establish the required heat transfer duty and the allowable pressure drop on both sides.

For single-phase sensible heating or cooling, heat duty may be estimated using mass flow, specific heat capacity, and temperature change.

For phase-changing applications, an enthalpy-based calculation is generally required.

The process data should include inlet and outlet temperatures, flow rates, operating pressures, fluid properties, and fouling assumptions.

8.2 Establish a Preliminary Tube Layout

Next, the engineer selects a preliminary tube diameter, tube length, tube pitch, and layout pattern.

This selection must consider:

• Thermal duty.

• Shell diameter restrictions.

• Allowable shell-side pressure drop.

• Tube-side velocity and pressure drop.

• Tube support requirements.

• Mechanical cleaning accessibility.

• Applicable design standards.

A common pitch ratio can be used as a starting point, but not as a substitute for detailed design.

8.3 Evaluate Heat Transfer and Pressure Drop Together

The next step is to perform coupled thermal and hydraulic calculations.

For conventional baffled shell-and-tube exchangers, methods such as Bell–Delaware can help evaluate the effects of non-ideal shell-side flow.

The calculations should consider leakage, bundle bypass, baffle geometry, and actual flow distribution.

Where appropriate, specialized exchanger rating software can support more detailed comparisons.

8.4 Check Mechanical and Operational Constraints

Thermal performance alone is not sufficient.

The selected configuration must also satisfy mechanical requirements, including tube support, vibration limits, tube-to-tubesheet connections, and differential thermal expansion.

For applicable projects, TEMA and pressure equipment code requirements must be considered during mechanical design.

8.5 Compare Alternative Designs

Instead of reviewing only one layout, engineers should compare several feasible configurations under the same process requirements.

Useful comparison metrics include:

The goal is to identify a technically acceptable design with a practical balance of capital cost, energy consumption, and serviceability.

9. Common Mistakes When Selecting Tube Pitch

Several design assumptions can lead to unsuitable exchanger configurations.

9.1 Assuming Smaller Pitch Always Means Better Performance

Closer spacing can increase tube packing density and local flow interaction.

However, excessive hydraulic resistance, poor flow distribution, or cleaning limitations may outweigh these advantages.

A compact exchanger is not necessarily the most economical exchanger over its lifetime.

9.2 Assuming Larger Pitch Always Means Lower Operating Cost

Increasing pitch may reduce some flow resistance, but it can also lead to larger equipment dimensions or reduced heat transfer area within a fixed shell.

Additional capital cost may exceed the value of the pumping energy saved.

9.3 Ignoring Tube Layout Orientation

Triangular, square, and rotated arrangements behave differently.

Using the same pitch ratio does not make their thermal-hydraulic performance equivalent.

9.4 Ignoring Fouling and Cleaning Access

A closely packed tube bundle may be appropriate for clean service but difficult to maintain when shell-side deposits are significant.

The planned cleaning method should influence the layout from the beginning.

9.5 Evaluating Tube Pitch Without Baffle Geometry

Tube pitch, baffle spacing, baffle cut, shell geometry, and bypass paths interact.

Optimizing only one parameter can produce a misleading result.

A complete exchanger rating is necessary before finalizing the design.

10. What Information Should Buyers Provide to a Heat Exchanger Manufacturer?

Industrial buyers do not always need to specify the exact tube pitch in their initial inquiry.

In many projects, providing accurate operating data is more useful than choosing the geometry before the thermal design is complete.

For a custom shell-and-tube heat exchanger, the initial request should include:

• Heat transfer duty or required inlet and outlet temperatures.

• Fluid names and compositions on both sides.

• Flow rates and available fluid property data.

• Operating and design pressures and temperatures.

• Maximum allowable pressure drop on each side.

• Expected fouling characteristics and cleaning requirements.

• Preferred materials and applicable design codes.

• Installation space and maintenance accessibility.

• Whether the service involves single-phase flow, condensation, or evaporation.

If the project specifies a particular tube arrangement or minimum cleaning clearance, that requirement should also be stated.

A manufacturer can then evaluate alternative tube pitch and layout configurations against the project requirements.

11. Frequently Asked Questions About Tube Pitch

11.1 What Is the Standard Tube Pitch Ratio in a Shell-and-Tube Heat Exchanger?

A pitch ratio of 1.25 is a common conventional starting point.

However, the applicable minimum and final selected value depend on exchanger class, tube joint details, mechanical design rules, and cleaning requirements.

11.2 Does Increasing Tube Pitch Reduce Shell-Side Pressure Drop?

Increasing tube pitch can reduce resistance through the tube bundle under comparable conditions.

However, the total shell-side pressure drop also depends on shell diameter, baffle configuration, tube layout, leakage paths, and flow rate.

The effect must be confirmed through a complete hydraulic calculation.

11.3 Which Tube Layout Provides Better Heat Transfer: Triangular or Square?

Triangular layouts frequently provide higher tube packing density and favorable shell-side heat transfer in clean services.

Square layouts are often preferred when lower flow resistance and mechanical cleaning access are important.

Neither layout is universally superior.

11.4 Can Tube Pitch Affect Fouling?

Yes. Tube spacing influences flow passages and accessibility for cleaning.

Narrow gaps may become vulnerable to obstruction in some fouling-prone applications, while local velocity can influence deposition behavior.

The actual effect depends on fluid properties, operating conditions, and the fouling mechanism.

11.5 Is Tube Pitch More Important Than Baffle Spacing?

Both are important and must be evaluated together.

Tube pitch affects bundle geometry and flow passages, while baffle spacing influences crossflow sections, shell-side velocity, pressure drop, and tube support.

The relative importance depends on the exchanger configuration and operating conditions.

11.6 Can the Same Tube Pitch Be Used for Condensers and Evaporators?

The same geometric pitch may be feasible in different applications, but it should not be assumed to provide equivalent performance.

Condensation and boiling involve different thermal-hydraulic mechanisms and may require different tube arrangements or spacing.

The design must be evaluated for the actual phase-change process.

12. Conclusion: Optimize Tube Pitch for the Entire Heat Exchanger System

Tube spacing plays a significant role in the thermal and hydraulic performance of shell-and-tube heat exchangers.

In appropriate applications, reducing tube spacing can increase packing density and promote efficient heat transfer. However, this also increases hydraulic resistance and limits the space available for cleaning operations on the shell side.

Larger tube spacing provides greater clearance and may reduce flow resistance, but it may require a larger shell or result in a reduction in the available heat transfer area within a fixed tube bundle envelope.

The most suitable tube pitch is the one that satisfies the required heat transfer duty, allowable pressure drop, maintenance strategy, and mechanical design constraints—not necessarily the smallest or largest available pitch.

A reliable design process evaluates tube pitch together with tube layout, baffle configuration, shell geometry, fouling behavior, and long-term operating requirements.

Request a Custom Shell-and-Tube Heat Exchanger Solution

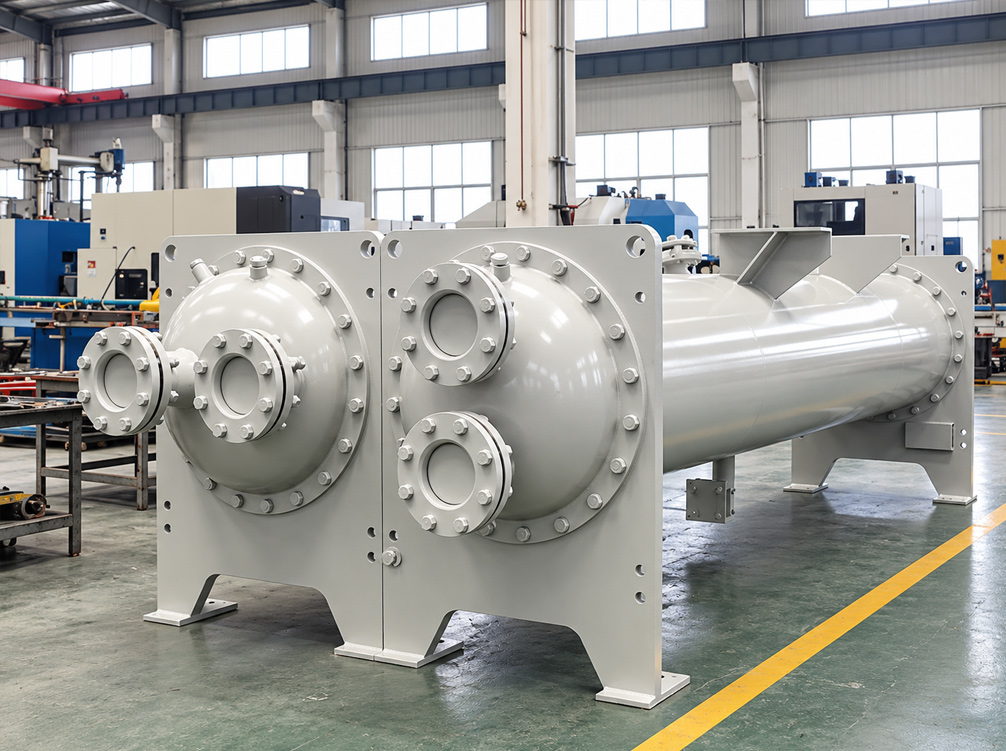

At Aidear, we provide shell-and-tube heat exchanger solutions for industrial refrigeration, HVAC, and process heat transfer applications.

Whether your project involves liquid cooling, condensation, evaporation, or another industrial thermal duty, selecting an appropriate tube bundle configuration is an important part of equipment specification.

Explore our Shell and Tube Heat Exchanger Products and share your operating requirements with our team.

Request a Custom Quote

Provide your fluid types, flow rates, inlet and outlet temperatures, allowable pressure drops, and preferred construction requirements to discuss a suitable heat exchanger configuration for your project.
