How Baffle Cut Changes Shell-Side Flow in a Heat Exchanger

In shell-and-tube heat exchanger design, small changes in internal geometry can significantly affect thermal and hydraulic performance. Among these design parameters, baffle cut plays an important role in determining how fluid moves through the shell side.

Baffles are installed inside shell-and-tube heat exchangers to guide fluid across the tube bundle, support the tubes, and influence heat transfer conditions. However, the amount of material removed from each segmental baffle determines the size of the opening through which the shell-side fluid passes.

A smaller baffle cut creates a narrower flow window, while a larger cut provides a wider opening. These changes affect crossflow behavior, local fluid velocity, pressure drop, and the distribution of heat transfer across the tube bundle.

The challenge is that increasing heat transfer performance and reducing pressure drop are not always compatible objectives.

An excessively small baffle cut can create high local velocities and significant flow resistance. An excessively large cut may encourage unfavorable flow paths and reduce effective crossflow through the tube bundle.

The goal of baffle cut design is not to maximize turbulence or minimize pressure drop independently, but to achieve an appropriate balance between heat transfer, hydraulic resistance, and mechanical reliability.

This guide explains how baffle cut influences shell-side flow, how it interacts with baffle spacing, and how engineers can select a suitable configuration for industrial cooling, chemical processing, refrigeration, and heat recovery applications.

1. What Is Baffle Cut in a Shell-and-Tube Heat Exchanger?

1.1 Understanding Segmental Baffles

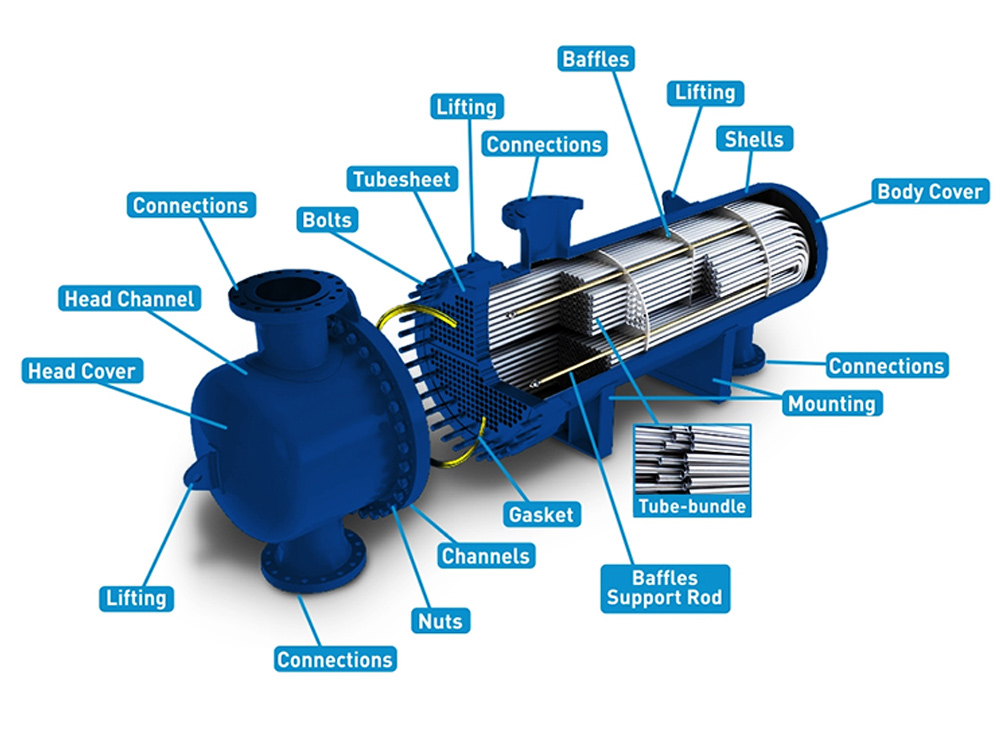

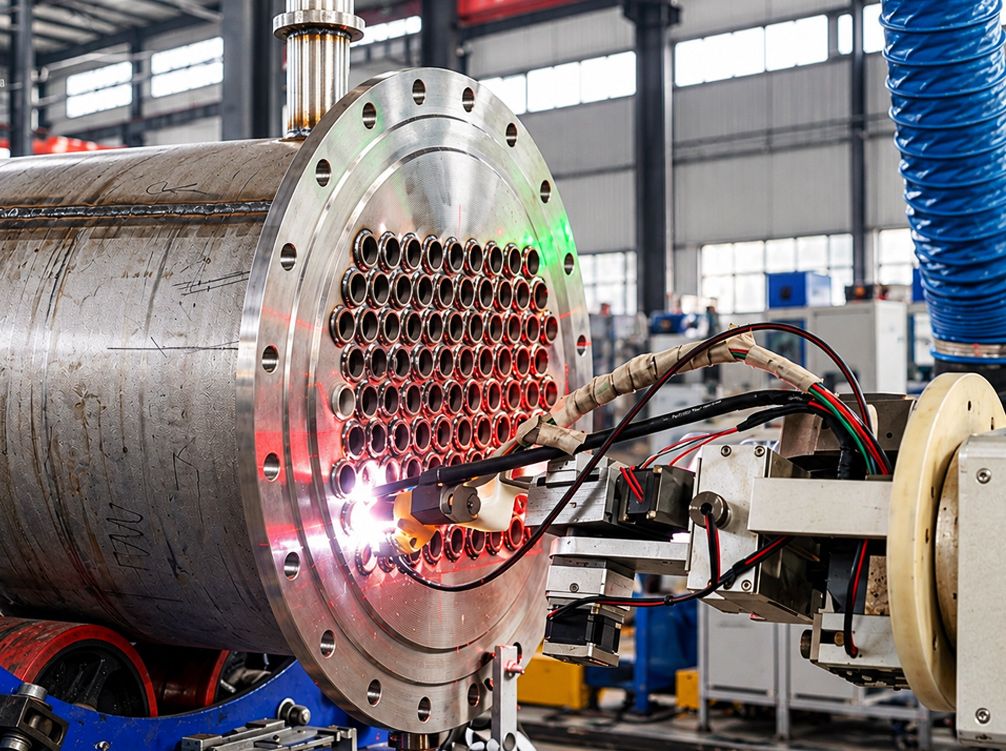

A shell-and-tube heat exchanger contains a bundle of tubes enclosed within a cylindrical shell.

One fluid flows inside the tubes, while the other flows through the shell around the tube surfaces.

Segmental baffles are plates installed across the shell, with a portion of each plate removed to create an opening for fluid passage.

In a conventional single-segmental arrangement, successive baffles are positioned so that their openings alternate along the exchanger.

This arrangement redirects the shell-side fluid through successive baffle compartments and across the tube bundle.

Baffles perform two important functions:

• Guide shell-side flow through the tube bundle to promote effective heat transfer.

• Provide intermediate mechanical support for tubes to limit unsupported spans and help control vibration.

For an introduction to the complete equipment structure, see our guide on shell-and-tube heat exchanger working principles.

1.2 Definition of Baffle Cut Percentage

Baffle cut refers to the height of the segment removed from a segmental baffle, typically expressed as a percentage of the shell inside diameter.

The basic relationship is:

Baffle Cut (%) = Cut Height ÷ Shell Inside Diameter × 100

Where:

• Cut Height = Distance from the shell-side perimeter to the straight edge of the baffle opening

• Shell Inside Diameter = Internal diameter of the exchanger shell

• Baffle Cut = Percentage describing the segmental opening height

For example, a 25% baffle cut means that the removed segment has a height equivalent to 25% of the shell inside diameter.

It does not mean that 25% of the total circular baffle area has been removed.

1.2.1 Example: Calculating Baffle Cut Dimensions

Consider a hypothetical shell-and-tube heat exchanger with an internal shell diameter of 500 mm.

For a 25% baffle cut:

Cut Height = 500 mm × 25% = 125 mm

This is a dimensional example only.

The actual baffle geometry, outside diameter, manufacturing clearances, and tube arrangement must be established in the approved equipment design.

1.2.1.1 Why Baffle Cut Percentage Is Not the Same as Open Area

A circular baffle opening has an arc-shaped geometry.

Since the opening is not rectangular, its area does not increase linearly with the height of the cutout.

Therefore, a baffle with a cutout ratio of 25% does not necessarily have an opening area equal to 25% of the shell’s cross-sectional area.

In addition, the effective flow area also depends on the presence of pipes within the baffle opening and other geometric details.

This distinction is critical when calculating flow velocity and pressure drop in the window.

1.3 Baffle Cut vs. Baffle Spacing

Baffle cut and baffle spacing are related but different design parameters.

Baffle cut determines the size of the segmental window through which the fluid passes.

Baffle spacing refers to the axial distance between successive baffles.

Baffle cut influences the window flow area, while spacing influences the available crossflow area and the length of the compartments between baffles.

These parameters work together to control shell-side flow distribution.

An appropriate cut combined with unsuitable spacing may still produce inefficient heat transfer.

Therefore, baffle cut should never be selected independently of baffle spacing.

2. How Does Baffle Cut Control Shell-Side Fluid Flow?

2.1 Crossflow Through the Tube Bundle

Transverse flow occurs when the shell-side fluid flows transversely through the tube bundle rather than primarily along the tube axis.

This flow pattern is an integral part of the operation of conventional segmented baffle-type shell-and-tube heat exchangers.

When the fluid flows transversely through the tube bundle, the resulting velocity field and mixing effects influence the convective heat transfer coefficient.

Appropriate cross-flow can improve heat transfer between the shell-side fluid and the outer surface of the tubes.

However, the flow direction is not always perfectly perpendicular throughout the entire heat exchanger.

Actual shell-side flow includes areas of cross-flow, window zones, leakage flow, and bypass paths.

2.2 Flow Through the Baffle Window

The window is the open portion created by the baffle cut.

Shell-side fluid travels through this opening as it moves between neighboring baffle compartments.

The window area affects the local fluid velocity.

For a given volume flow rate, a smaller effective flow area generally produces higher average velocity through that region.

A larger window can reduce local velocity and hydraulic resistance.

However, the actual relationship also depends on how much fluid passes through the intended window rather than through leakage or bypass paths.

A simplified relationship is:

Average Velocity = Volumetric Flow Rate ÷ Effective Flow Area

This equation illustrates the importance of flow area but is not sufficient for predicting the complete three-dimensional flow field.

2.3 Leakage and Bypass Flow

Not all fluid on the shell side follows the expected lateral flow path.

Some of the fluid may flow through the gap between the baffle edge and the shell, or through the gap between the tube wall and the baffle opening.

Other fluid may flow through the gap between the tube bundle and the shell, bypassing certain sections of the tube bundle.

These flow paths affect the actual volume of fluid participating in effective lateral flow.

2.3.1 Why Leakage and Bypass Cannot Be Ignored

Leaks and bypass flow can reduce the effective heat transfer coefficient on the shell side because less fluid flows through the intended cross-flow area.

They also alter the pressure drop.

If the reduction in pressure drop is due to excessive bypass flow, a lower measured pressure drop does not necessarily indicate higher heat exchanger efficiency.

To accurately predict performance, engineers must consider the complete shell-side flow field distribution, rather than just the nominal baffle window geometry.

3. What Happens When the Baffle Cut Becomes Smaller or Larger?

3.1 Small Baffle Cut: Narrower Windows and Stronger Flow Redirection

Reducing baffle cut decreases the segmental window height.

For comparable equipment geometry and flow conditions, this can increase local window velocity and encourage a greater proportion of the fluid to cross the tube bundle.

These effects may improve shell-side convection in certain designs.

However, smaller openings can also increase pressure losses associated with window flow.

If the cut is excessively small relative to the baffle spacing, high-velocity jets and uneven flow distribution may develop.

Therefore, reducing baffle cut does not guarantee better overall performance.

3.2 Large Baffle Cut: Wider Windows and Different Flow Paths

Increasing baffle cut creates a larger opening.

This can reduce local flow resistance and, in many conventional configurations, lower the shell-side pressure drop.

However, a larger window can also change how effectively the fluid crosses the tube bundle.

If the window is too large relative to the spacing between baffles, the main flow stream may follow a relatively direct path along the exchanger.

Some regions of the baffle compartment may then receive relatively little flow.

The resulting nonuniform flow can reduce effective heat transfer utilization.

3.3 Why the Best Baffle Cut Is Usually a Compromise

An effective baffle arrangement encourages fluid to pass through the intended crossflow and window regions without creating unnecessary resistance or stagnant zones.

The objective is to avoid both excessively concentrated flow and poorly distributed flow.

3.3.1 How Unbalanced Geometry Creates Recirculation

When the cut is small and spacing is relatively wide, fluid can emerge from the narrow window as a concentrated stream and circulate unevenly within the larger compartment.

When the cut is large and spacing is relatively narrow, fluid may travel near the baffle openings without adequately sweeping the whole compartment.

Both situations can create regions with relatively low local velocity.

3.3.1.1 Why Dead Zones Matter for Heat Transfer

A dead zone refers to an area where fluid motion is weaker compared to the main flow.

Pipe walls located in such areas may be subjected to weaker convective forces.

Under certain operating conditions, lower local flow velocities can also increase the tendency for sediment buildup.

Therefore, even if the average flow velocity in the design appears ideal, performance may still be poor if the flow field distribution is highly uneven.

3.4 Small vs. Large Baffle Cut: Engineering Comparison

These are general tendencies for comparable conventional segmental-baffle designs.

Actual performance must be calculated using the complete exchanger geometry and operating conditions.

4. How Does Baffle Cut Affect Heat Transfer and Pressure Drop?

4.1 Effect on the Shell-Side Heat Transfer Coefficient

The shell-side convective heat transfer coefficient depends on fluid properties, velocity, tube layout, and the actual flow field.

Baffle cut changes the proportion of the tube bundle exposed to different flow conditions.

A simplified overall heat transfer relationship is:

Q = U × A × ΔTm

Where:

• Q = Heat transfer duty

• U = Overall heat transfer coefficient

• A = Effective heat transfer area

• ΔTm = Appropriate mean temperature difference

The overall heat transfer coefficient includes thermal resistance on both fluid sides, tube-wall resistance, and relevant fouling resistance.

Changing baffle cut primarily affects shell-side flow characteristics.

Therefore, an improvement in the shell-side coefficient does not necessarily produce an equivalent improvement in the overall coefficient.

The benefit depends on the relative importance of the shell-side thermal resistance.

4.2 Effect on Shell-Side Pressure Drop

Pressure drop refers to the pressure difference required for a fluid to flow through a heat exchanger.

In multi-section baffle shell-and-tube heat exchangers, pressure drop results from pressure losses generated as the fluid flows through the cross-flow sections, baffle windows, inlet and outlet zones, and other areas where flow is restricted.

Changing the baffle slot geometry affects the pressure drop caused by these factors.

For many traditional single-pass designs, increasing the baffle slot size typically reduces the pressure drop.

However, the specific response depends on the flow conditions, baffle spacing, geometry, and leakage paths.

4.2.1 Why Pressure Drop Does Not Change in a Simple Linear Relationship

Pressure drop depends on the velocity distribution and hydraulic resistance throughout the exchanger.

A change in window size can influence both local flow velocity and the distribution of fluid between different flow paths.

Therefore, it is inappropriate to assume that a 10% increase in baffle cut will produce a fixed percentage reduction in pressure drop.

A detailed rating calculation is needed.

4.3 Effect on Pumping Energy

For single-phase liquid circulation, the approximate hydraulic power associated with a pressure difference is:

Hydraulic Power (kW) = Pressure Drop (kPa) × Volumetric Flow Rate (m³/s)

Actual electrical energy consumption also depends on pump and motor efficiency.

If a baffle configuration produces excessive pressure drop, the circulation system may require additional pumping power.

Over long operating periods, these energy costs can become significant.

For this reason, optimizing heat transfer alone does not necessarily minimize total operating cost.

4.4 Why Baffle Cut Cannot Be Optimized Alone

Baffle cut is only one part of shell-side thermal and hydraulic design.

Other important parameters include:

• Baffle spacing

• Shell inside diameter

• Tube outer diameter

• Tube pitch and arrangement

• Tube-bundle diameter

• Baffle-to-shell clearance

• Tube-to-baffle clearance

• Sealing strips and bypass paths

• Shell-side fluid properties

• Mass flow rate

Changing any of these parameters can influence the effective flow pattern.

The final configuration must therefore be evaluated as a complete system.

5. How to Choose the Right Baffle Cut Percentage

5.1 Start With the Process Requirements

Before selecting a baffle cut, engineers should establish the heat exchanger's operating requirements.

Important design inputs include:

• Required heat transfer duty

• Shell-side and tube-side fluid composition

• Inlet and outlet temperatures

• Mass flow rates

• Operating and design pressures

• Maximum allowable pressure drop

• Fluid viscosity and density

• Fouling characteristics

• Phase-change requirements

• Mechanical design constraints

The selected geometry must satisfy both thermal and hydraulic requirements.

5.2 Is a 20%–35% Baffle Cut a Good Starting Range?

For conventional single-segmental baffles in many single-phase shell-side applications, published engineering guidance commonly discusses baffle cuts in the approximate range of 20%–35%.

This can be useful as a preliminary design range.

However, it is not a universal requirement, and it does not establish that every exchanger should use a 25% cut.

The appropriate value depends on flow conditions, shell geometry, baffle spacing, tube support, and the selected design method.

Applications with unusual fluid properties, phase change, or specialized baffle arrangements may require different considerations.

5.3 Evaluate Baffle Cut and Spacing Together

An appropriate incision should be combined with a corresponding axial spacing.

The purpose is to maintain effective flow within the cross-flow region and to avoid significant velocity imbalances between the cross-flow region and the window region.

5.3.1 Crossflow Velocity vs. Window Velocity

Transverse flow velocity describes the flow of the fluid within the transverse flow region of the tube bundle.

Window flow velocity describes the flow of the fluid at the baffle opening.

If there is a significant difference between the two, it may indicate poor fluid distribution efficiency.

For traditional single-stage designs, engineering guidelines typically recommend keeping the characteristic window flow velocity and transverse flow velocity within a reasonably close range.

5.3.1.1 Two Flow Patterns to Avoid

Small cut with wide spacing: Fluid can enter a large baffle compartment as a relatively concentrated jet, producing uneven circulation and poorly swept regions.

Large cut with narrow spacing: The main stream can travel near the baffle openings, leaving portions of the crossflow region underutilized.

Neither condition should be corrected by adjusting baffle cut without checking the complete geometry.

5.4 Check Tube Support and Vibration Requirements

Baffles also provide mechanical support to the tube bundle.

Their spacing and arrangement determine the unsupported tube spans and influence mechanical behavior.

Flow-induced vibration may be associated with fluidelastic instability, vortex shedding, turbulent buffeting, or other mechanisms depending on the operating conditions.

Baffle cut influences the local shell-side flow field and can therefore affect vibration exposure.

However, cut percentage alone does not determine vibration safety.

Engineers must also evaluate tube dimensions, material, unsupported span, flow velocities, fluid density, and applicable mechanical design criteria.

5.5 Special Considerations for Condensers and Evaporators

When boiling or condensation occurs in the shell-side fluid, its flow behavior differs from that under single-phase liquid conditions.

The distribution of vapor and liquid, drainage, liquid retention, and phase separation may become critical factors.

Baffle arrangements suitable for single-phase water cooling may not be suitable for shell-side refrigerant evaporators or condensers.

Actual phase-change mechanisms and equipment configurations must be considered during selection.

General single-phase baffle cutting rules should not be mechanically applied to two-phase operation.

6. Engineering Example: Comparing Different Baffle Cuts

6.1 Establish the Hypothetical Design Conditions

Consider an illustrative shell-and-tube heat exchanger used for industrial liquid cooling.

The preliminary design conditions are:

These values are hypothetical inputs, not performance data from a particular Aidear product.

6.2 Compare Three Candidate Baffle Cuts

Assume three candidate configurations:

Option A provides the narrowest window of the three.

It may produce greater local flow resistance and stronger redirection of the fluid.

Option C provides the largest window.

It may reduce pressure loss but requires verification of crossflow utilization and possible low-velocity regions.

Option B represents an intermediate geometric configuration.

However, no candidate can be identified as the best design using cut percentage alone.

6.3 Evaluate the Candidates Using Thermal and Hydraulic Results

For each configuration, engineers should calculate or obtain:

1. Shell-side heat transfer coefficient

2. Shell-side pressure drop

3. Flow velocity in crossflow regions

4. Flow velocity through baffle windows

5. Leakage and bypass flow effects

6. Required effective heat transfer area

7. Tube support and vibration characteristics

8. Expected pumping energy

6.3.1 Why the Lowest Pressure Drop May Not Be the Best Design

Suppose the largest-cut candidate produces the lowest calculated pressure drop.

This may reduce pumping requirements.

However, if it also produces inadequate heat transfer performance, the exchanger may require additional surface area or a different configuration.

Likewise, the smallest-cut candidate may achieve better heat transfer but require excessive pumping pressure.

The final selection should meet the required thermal duty and pressure limits at an acceptable lifecycle cost.

No percentage improvement can be assigned without a manufacturer-specific rating calculation.

7. How Engineers Evaluate Baffle Cut Performance

7.1 Preliminary Thermal and Hydraulic Calculations

Preliminary calculations establish the heat duty, approximate heat transfer area, and initial shell-side geometry.

These calculations provide a useful starting point for comparing design alternatives.

However, a simplified calculation may not capture the complete effects of leakage, bypass flow, or localized recirculation.

7.2 Bell–Delaware Method for Shell-Side Rating

The Bell–Delaware method is widely used for analyzing thermal and hydraulic performance in conventional shell-and-tube heat exchangers with segmental baffles.

It accounts for departures from ideal tube-bank crossflow.

The shell-side heat transfer coefficient can be represented conceptually as:

h_shell = h_ideal × Jc × Jl × Jb × Js × Jr

Where:

• h_shell = Corrected shell-side heat transfer coefficient

• h_ideal = Ideal tube-bank crossflow coefficient

• Jc = Baffle-window and crossflow configuration correction

• Jl = Baffle leakage correction

• Jb = Bundle bypass correction

• Js = Unequal baffle spacing correction

• Jr = Applicable laminar-flow correction

The correction factors are calculated using the appropriate geometry and operating conditions.

They should not be treated as fixed values for every exchanger.

7.3 Computational Fluid Dynamics for Detailed Flow Analysis

Computational fluid dynamics (CFD) can help visualize velocity distribution, pressure fields, and potential recirculation zones.

It may be useful when evaluating unusual shell geometries or investigating performance differences that are difficult to explain with simplified calculations.

7.3.1 What CFD Can and Cannot Establish

CFD can provide insight into the predicted flow field when the geometry, boundary conditions, fluid properties, and numerical methods are appropriate.

However, results depend on turbulence modeling, mesh quality, and validation.

7.3.1.1 Why Validation Is Essential

Simulation results that predict flow distribution do not automatically prove that the heat exchanger can achieve its stated performance.

Where feasible, model results should be compared with recognized empirical equations, the manufacturer’s rating calculation methods, or relevant experimental data.

For conventional industrial equipment, validated thermodynamic and hydraulic calculations are generally sufficient, and CFD simulations are not required for every project.

8. Common Mistakes in Baffle Cut Selection

8.1 Choosing the Smallest Baffle Cut for Maximum Heat Transfer

A smaller opening may increase local velocity, but excessive restriction can produce high pressure drop and uneven flow.

The smallest cut is not automatically the most efficient.

8.2 Choosing the Largest Baffle Cut to Reduce Pumping Energy

A larger window can reduce hydraulic resistance.

However, excessive enlargement may reduce effective crossflow through the tube bundle.

The resulting reduction in thermal performance can outweigh the pumping benefit.

8.3 Ignoring Leakage and Bypass Flow

An idealized flow calculation assumes that most shell-side fluid follows the intended flow path.

Actual exchangers contain clearances and potentially significant bypass regions.

Ignoring these effects can lead to inaccurate performance predictions.

8.4 Treating Baffle Cut and Baffle Spacing as Independent Variables

The relationship between cut and spacing strongly influences shell-side flow distribution.

Optimizing one parameter while ignoring the other can produce poorly balanced flow conditions.

9. Frequently Asked Questions About Baffle Cut

9.1 What Is the Typical Baffle Cut in a Shell-and-Tube Heat Exchanger?

For many conventional single-phase applications using single-segmental baffles, approximately 20%–35% is commonly considered during preliminary design.

However, the final value depends on the equipment geometry, fluid properties, and thermal and hydraulic requirements.

9.2 Does a Smaller Baffle Cut Increase Heat Transfer?

It may improve shell-side convection in certain configurations by changing crossflow and local velocities.

However, an excessively small cut can produce high pressure drop and nonuniform flow.

The effect must be evaluated together with baffle spacing.

9.3 Does Increasing Baffle Cut Reduce Pressure Drop?

In many comparable conventional segmental-baffle designs, increasing the cut tends to reduce pressure drop.

However, the amount of reduction is geometry-dependent and cannot be predicted from the cut percentage alone.

9.4 Is Baffle Cut the Same as Baffle Spacing?

No.

Baffle cut describes the segmental opening height relative to shell diameter.

Baffle spacing describes the axial distance between successive baffles.

Both influence shell-side flow, but they affect different aspects of the flow geometry.

9.5 Does Baffle Cut Affect Tube Vibration?

Baffle cut changes local flow velocities and flow distribution, which can affect vibration excitation.

However, vibration risk also depends on tube support spacing, tube dimensions, fluid properties, and other mechanical factors.

A complete mechanical and vibration assessment is required where the risk is significant.

9.6 Can Baffle Cut Be Changed After Manufacturing?

Changing baffle cut on an existing exchanger is generally not a simple operating adjustment.

It may require modification or replacement of internal baffles and potentially other tube-bundle components.

Such changes must be reviewed for thermal performance, mechanical integrity, tube support, and applicable design requirements.

10. Conclusion: Optimize Shell-Side Flow, Not Just Baffle Cut

Baffle cut is an important parameter in the thermal and hydraulic design of a shell-and-tube heat exchanger.

It controls the size of the segmental opening through which shell-side fluid travels and influences how the fluid moves through the tube bundle.

A smaller cut may promote greater crossflow in suitable configurations but can also increase pressure drop.

A larger cut may reduce flow resistance but can create unfavorable distribution patterns if it is not matched with the correct baffle spacing.

The most effective design requires consideration of:

• Shell-side heat transfer performance

• Baffle-window and crossflow velocities

• Pressure drop and pumping energy

• Baffle spacing and tube geometry

• Leakage and bypass streams

• Fouling conditions

• Tube support and vibration

• Overall equipment and operating costs

The correct baffle cut is not necessarily the smallest or largest possible value. It is the value that produces an appropriate shell-side flow pattern while meeting the required thermal, hydraulic, and mechanical design conditions.

10.1 How Aidear Supports Shell-and-Tube Heat Exchanger Selection

Changzhou Aidear Refrigeration Technology Co., Ltd. supplies shell-and-tube heat exchanger solutions for industrial cooling, refrigeration, HVAC, and heat recovery applications.

Different operating conditions may require different tube arrangements, baffle configurations, materials, and mechanical constructions.

Appropriate equipment selection begins with understanding the required heat duty, fluid properties, temperature conditions, pressure limitations, and installation requirements.

Explore our Shell-and-Tube Heat Exchangers to learn more about available product solutions.

10.2 Request a Custom Shell-and-Tube Heat Exchanger Quote

Are you selecting a shell-and-tube heat exchanger for industrial cooling or heat recovery?

Share your project requirements with Aidear, including:

• Required heating or cooling capacity

• Shell-side and tube-side fluids

• Inlet and outlet temperatures

• Operating flow rates

• Design and operating pressures

• Allowable pressure drop

• Fouling and maintenance requirements

• Installation constraints

Our team can discuss suitable product options based on your operating conditions and available equipment configurations.

Request a Custom Quote to explore a shell-and-tube heat exchanger solution for your application.
