Finned Tube Heat Exchanger: Ultimate Industrial Heat Transfer Guide 2026

In modern industrial thermal engineering, efficient heat transfer is the core of energy saving, stable production, and operational cost control. Among all heat exchange equipment,finned tube heat exchangers have become the most popular solution for gas-liquid heat exchange scenarios. Unlike plain shell and tube heat exchangers designed for liquid-to-liquid working conditions, finned tube heat exchangers specialize in air cooling, flue gas recovery, and high-airflow industrial heat dissipation. This article comprehensively explains the structure, working principle, classification, advantages, application scenarios, material selection, and maintenance tips of finned tube heat exchangers, helping industrial buyers make informed purchasing decisions.

What Is a Finned Tube Heat Exchanger?

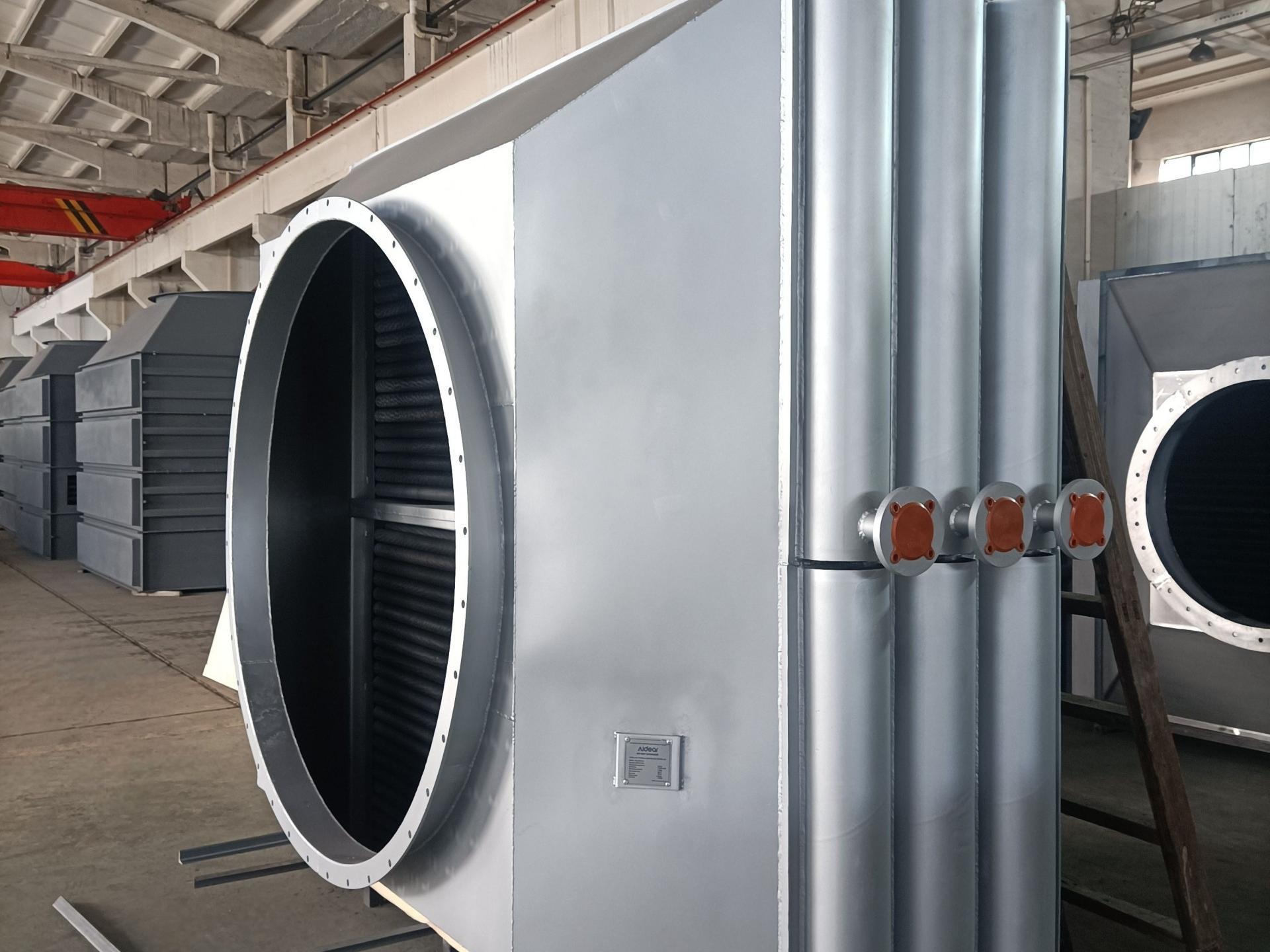

A finned tube heat exchanger is an enhanced heat exchange device formed by welding, rolling, or extruding metal fins on the outer surface of seamless metal tubes. The core design logic is simple: increase the external heat transfer area to solve the low heat transfer efficiency of gas-side fluid. Normally, the heat transfer coefficient of air or flue gas is far lower than that of liquid media such as water and oil. By adding dense fins on the tube surface, the effective heat exchange area can be increased by 5 to 12 times compared with ordinary bare tubes.

The internal tube usually carries liquid media (water, refrigerant, thermal oil), while the external fins contact flowing air or industrial exhaust gas. The temperature difference drives heat conduction through the tube wall and fin surfaces. This structural feature makes finned tube heat exchangers irreplaceable in air-cooled industrial environments.

Core Working Principle

The working principle of finned tube heat exchangers follows basic thermal conduction and convection laws. There are three core heat transfer steps during operation. First, the internal high-temperature or low-temperature fluid transfers heat to the inner tube wall through convection. Second, heat penetrates the metal tube wall and evenly spreads to the outer fin structure. Third, the continuously flowing outside air takes away heat through turbulent convection on the fin surface.

The specially designed fin structure can destroy the air flow boundary layer, generate strong turbulence, and effectively reduce thermal resistance. Unlike smooth tubes where air flows smoothly and forms a stagnant heat insulation layer, finned tubes force airflow to continuously flip and mix, greatly improving convection efficiency. Even under low wind speed conditions, it can maintain stable heat exchange performance.

Main Types of Finned Tube Heat Exchangers

According to fin shape, processing technology, and structural layout, finned tube heat exchangers are divided into four mainstream types, each tailored for distinct industrial working conditions.

1. Spiral Finned Tube Heat Exchanger

Spiral fins are tightly wrapped around the metal tube in a continuous spiral shape. This type has low manufacturing cost and excellent airflow disturbance performance. It is widely used in HVAC drying, factory ventilation cooling, and conventional waste heat recovery. Common materials include aluminum fins matched with carbon steel tubes.

2. Longitudinal Finned Tube Heat Exchanger

Long strip fins are vertically welded along the tube axis, suitable for high-pressure flue gas and high-viscosity fluid environments. The straight fin structure is not easy to accumulate dust and dirt, making it perfect for boiler exhaust gas recovery and petrochemical high-temperature flue gas treatment.

3. Plate Finned Tube Heat Exchanger

Square or circular thin plates are sleeved on the tube array with neat arrangement and compact structure. This type is commonly applied in refrigeration evaporators, air conditioning condensers, and small-scale industrial cooling systems.

4. H-type Finned Tube Heat Exchanger

Double-row square fins form an H-shaped structure, featuring high compression resistance and ash removal performance. It is the preferred solution for power plant boilers and heavy industrial flue gas waste heat recovery.

Key Advantages of Finned Tube Heat Exchangers

1. Ultra-high Heat Transfer Efficiency

Fins expand the heat dissipation area exponentially. Under the same volume, the heat exchange capacity is 4-8 times that of bare tubes. Even with a small temperature difference between fluid and air, it can achieve efficient heat transfer.

2. Compact Space Structure

Thanks to the enhanced heat exchange efficiency, the equipment volume is greatly reduced. It saves installation space for factories and reduces infrastructure investment costs, which is very suitable for limited-space industrial workshops.

3. Strong Anti-corrosion and Wear Resistance

Manufacturers can select carbon steel, stainless steel, copper, titanium, and composite bimetallic materials. High-temperature galvanizing and epoxy anti-corrosion coatings are optional to adapt to humid, corrosive, and dusty harsh industrial environments.

4. Low Operating and Maintenance Costs

The fin gap is reasonable with good ash removal performance. Regular high-pressure air blowing or simple water washing can complete daily maintenance. There are no vulnerable moving parts, resulting in an ultra-long service life of 15-20 years under normal working conditions.

5. Flexible Customization Ability

Parameters such as tube diameter, fin spacing, fin thickness, tube row number, and overall size can be customized according to pressure, temperature, airflow, and heat duty requirements to meet personalized industrial thermal solutions.

Typical Industrial Application Scenarios

Finned tube heat exchangers are the mainstream equipment for gas-liquid heat exchange, covering almost all energy-consuming industries.

• HVAC & Drying Industry: Industrial drying rooms, greenhouse heating, factory air supply heating, textile drying systems.

• Power & Energy Industry: Boiler flue gas waste heat recovery, power plant economizers, exhaust gas condensation cooling.

• Chemical & Petrochemical Industry: High-temperature process gas cooling, chemical medium condensation, corrosive fluid heat exchange.

• Food & Beverage Industry: Sterilization cooling, food drying, constant temperature processing workshop air conditioning systems.

• Refrigeration Industry: Air-cooled condensers, evaporators, industrial chiller auxiliary heat exchange components.

Material Selection Guide for Finned Tube Heat Exchangers

Material selection directly determines equipment service life and operating stability. For conventional non-corrosive air cooling, carbon steel tubes paired with aluminum fins are the most cost-effective combination. For corrosive flue gas and chemical vapor environments, stainless steel 304 or 316L tubes with stainless steel fins are recommended. For high-temperature working conditions above 350°C, alloy steel and thickened fin structures are required to resist thermal deformation. Bimetallic composite finned tubes are suitable for occasions requiring both thermal conductivity and corrosion resistance.

Daily Maintenance & Optimization Suggestions

Although finned tube heat exchangers have low maintenance difficulty, standardized maintenance can further extend service life and stabilize thermal efficiency. First, regularly clean dust and attachments on the fin surface to avoid blocked airflow and increased thermal resistance. Second, check welding joints for rust and leakage quarterly, and apply anti-rust paint to damaged coatings. Third, control fluid flow velocity to prevent tube wall erosion caused by excessive flow rate. Fourth, for outdoor installed equipment, add rainproof and dustproof protective covers to reduce environmental corrosion.

Why Choose Changzhou Aidear for Finned Tube Heat Exchangers?

When purchasing industrial-grade finned tube heat exchangers, manufacturing precision, material quality, and customized engineering capabilities are the core factors that determine equipment performance. Changzhou Aidear Refrigeration Technology Co., Ltd. is a professional heat exchanger manufacturer with over 20 years of industrial customization experience, focusing on R&D, production, and export of finned tube and shell and tube heat exchangers.

Aidear strictly implements ISO 9001 quality management systems, and all products comply with CE and international industrial pressure vessel standards. The company adopts automatic high-frequency welding and rolling fin processing technology to ensure seamless combination between fins and tubes without gaps, effectively avoiding thermal resistance increase caused by loose fin fitting. The product line covers spiral fins, longitudinal fins, H-type fins, and customized special-shaped finned tube heat exchangers, which can meet diverse working conditions such as high temperature, high pressure, corrosion, and heavy dust.

Up to now, Aidear’s finned tube heat exchangers have been exported to more than 30 countries, helping chemical factories, power plants, drying enterprises, and refrigeration companies reduce energy consumption by 15%-30%. The factory provides one-stop services including drawing design, production customization, factory inspection, overseas installation guidance, and 12-month full warranty. Whether you need standard small-sized heat exchangers or large industrial customized equipment, Aidear can provide cost-effective thermal management solutions.

Conclusion

Finned tube heat exchangers remain the most practical and cost-effective gas-liquid heat exchange equipment in the industrial field. With compact structure, high heat transfer efficiency, wide material adaptability, and low maintenance cost, they are irreplaceable in waste heat recovery, air cooling, drying heating, and flue gas treatment. Choosing a high-quality finned tube heat exchanger can effectively reduce enterprise energy consumption and long-term operating costs.

If you are looking for a reliable industrial finned tube heat exchanger manufacturer, Changzhou Aidear provides professional thermal calculation, free scheme design, and global after-sales service. Contact Aidear’s engineering team today to get a customized quotation tailored to your working conditions.
