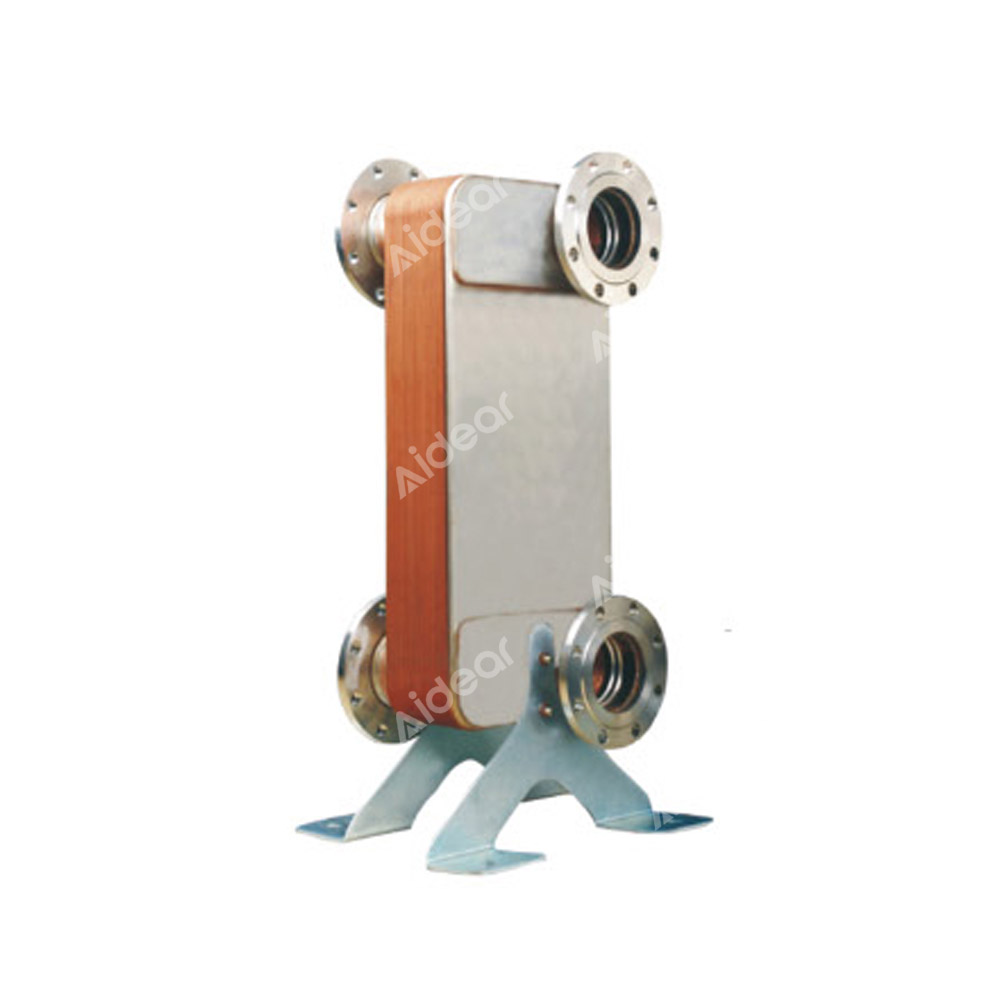

Product Description
| Heat exchange area（m²） | (n-2)*0.310 |
| Design pressure（Mpa） | 3.0/4.5 |
| Design temperature（℃） | -196-+200 |
| Plate channel | H |
| Maximum welded pipe size（in） | 5 |
| Maximum threaded pipe size | 4 |
| Number of plates | N |
| Product model | Number of plates | Total plate exchanger height（mm） | Total plate exchanger mass（kg） | Flow channel volume（L） | Heat exchange capacity | |
| Q1Q2 | Q3Q4 | |||||
| B3-310 | N | 20+2.85*n片 | 31+1.2*n | 0.65*N/2 | 0.65*(n-2)/2 | 150-550 |
