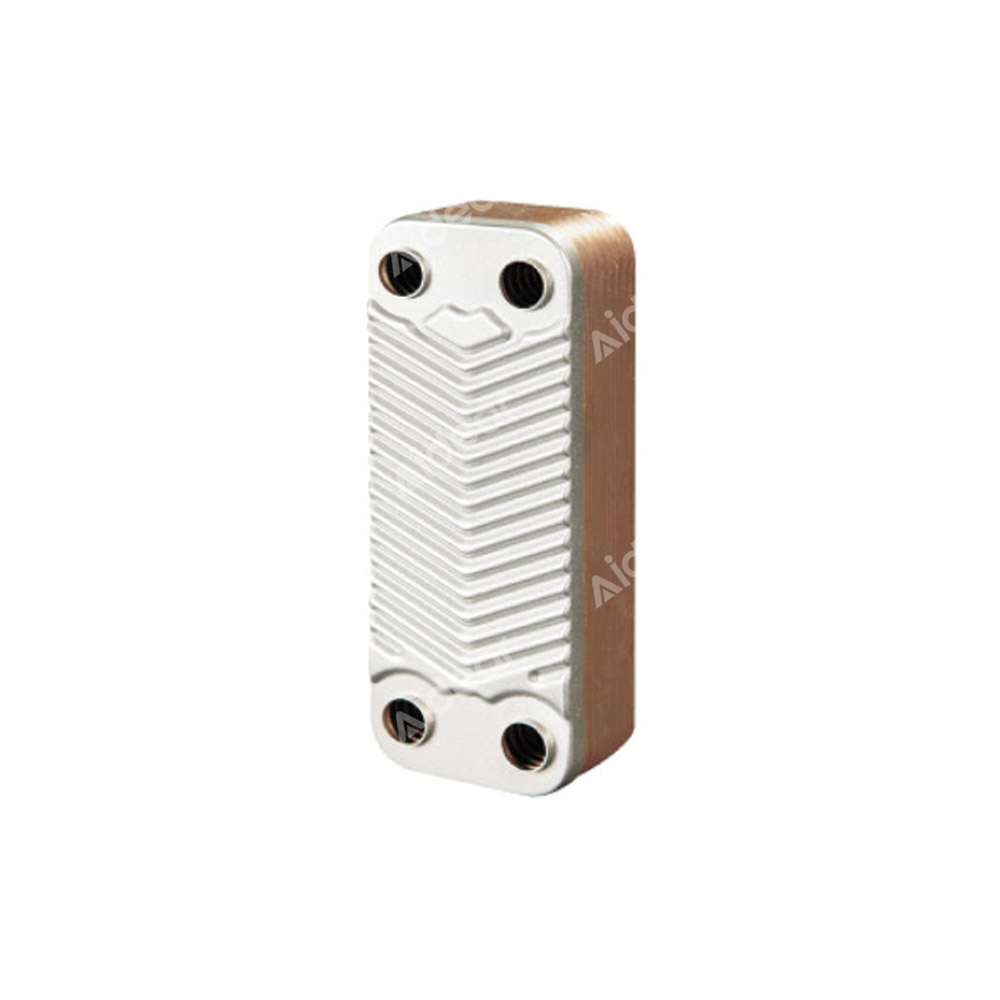

Product Description
| Heat exchange area（m²） | (n-2)*0.014 |
| Design pressure（Mpa） | 3.0/4.5 |
| Design temperature（℃） | -196-+200 |
| Plate channel | H |
| Maximum welded pipe size（in） | 7/8 |
| Maximum threaded pipe size | 3/4 |
| Product model | Number of plates | Total plate exchanger height（mm） | Total plate exchanger mass（kg） | Flow channel volume（L） | Heat exchange capacity | |
| Q1Q2 | Q3Q4 | |||||
| B3-012 | N | 7+2.3*n片 | 0.4+0.05*n | 0.020*N/2 | 0.020*(n-2)/2 | 1-5 |
