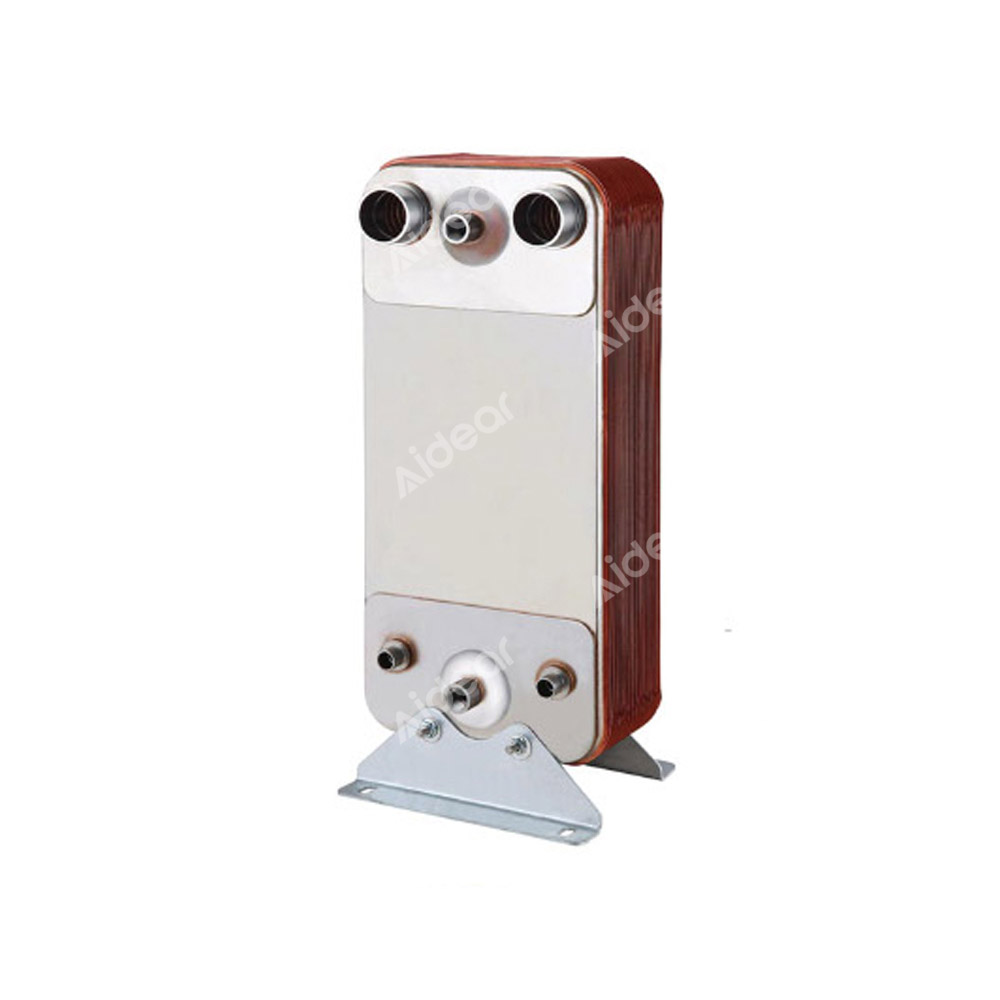

Product Description
| Heat exchange area（m²） | (n-2)*0.210 |
| Design pressure（Mpa） | 2.0/3.0 |
| Design temperature（℃） | -196-+200 |
| Plate channel | H、L、M |
| Maximum welded pipe size（in） | 3-1/8 |
| Maximum threaded pipe size | 4 |
| Product model | Number of plates | Total plate exchanger height（mm） | Total plate exchanger mass（kg） | Flow channel volume（L） | Heat exchange capacity | |
| Q1Q2 | Q3Q4 | |||||
| B3-210 | N | 13+2.85*n片 | 13+0.82*n | 0.4*N/2 | 0.4*(n-2)/2 | 150-450 |
