Product Description
| Heat exchange area（m²） | (n-2)*0.030 |
| Design pressure（Mpa） | 3.0/4.5 |
| Design temperature（℃） | -196-+200 |
| Plate channel | H |
| Maximum welded pipe size（in） | 1-3/8 |
| Maximum threaded pipe size | 1/-1/4 |
| Product model | Number of plates | Total plate exchanger height（mm） | Total plate exchanger mass（kg） | Flow channel volume（L） | Heat exchange capacity | |
| Q1Q2 | Q3Q4 | |||||

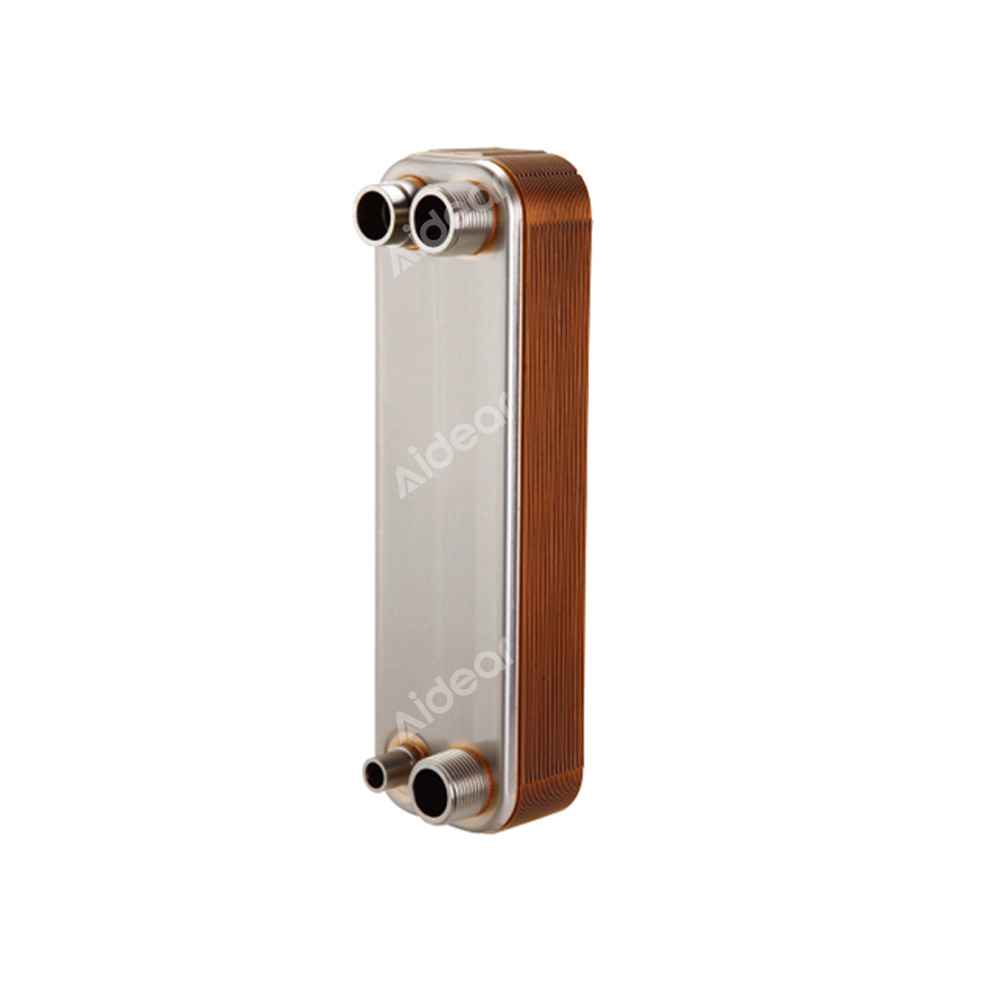

| B3-030B | N | 9+2.30*n片 | 1.4+0.11*n | 0.060*N/2 | 0.060*(n-2)/2 | 3-30 |
