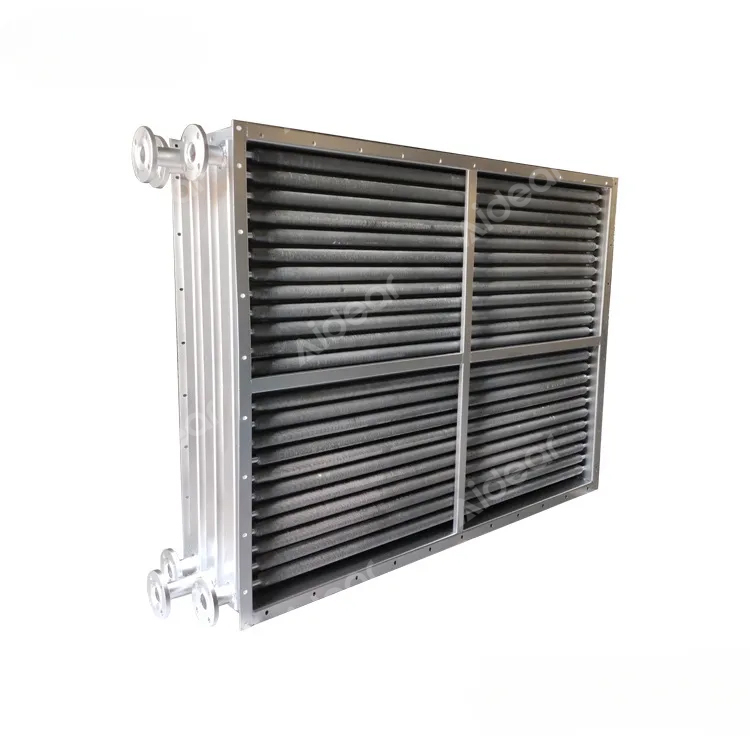

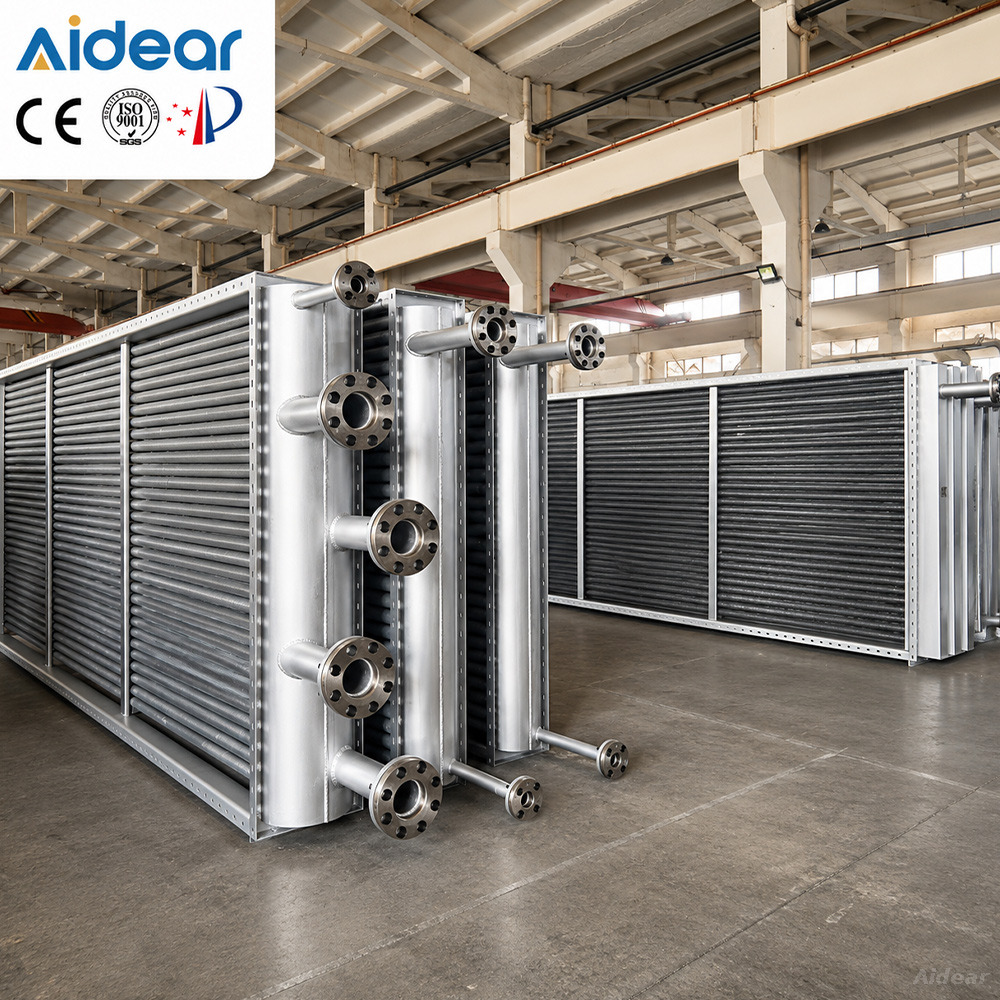

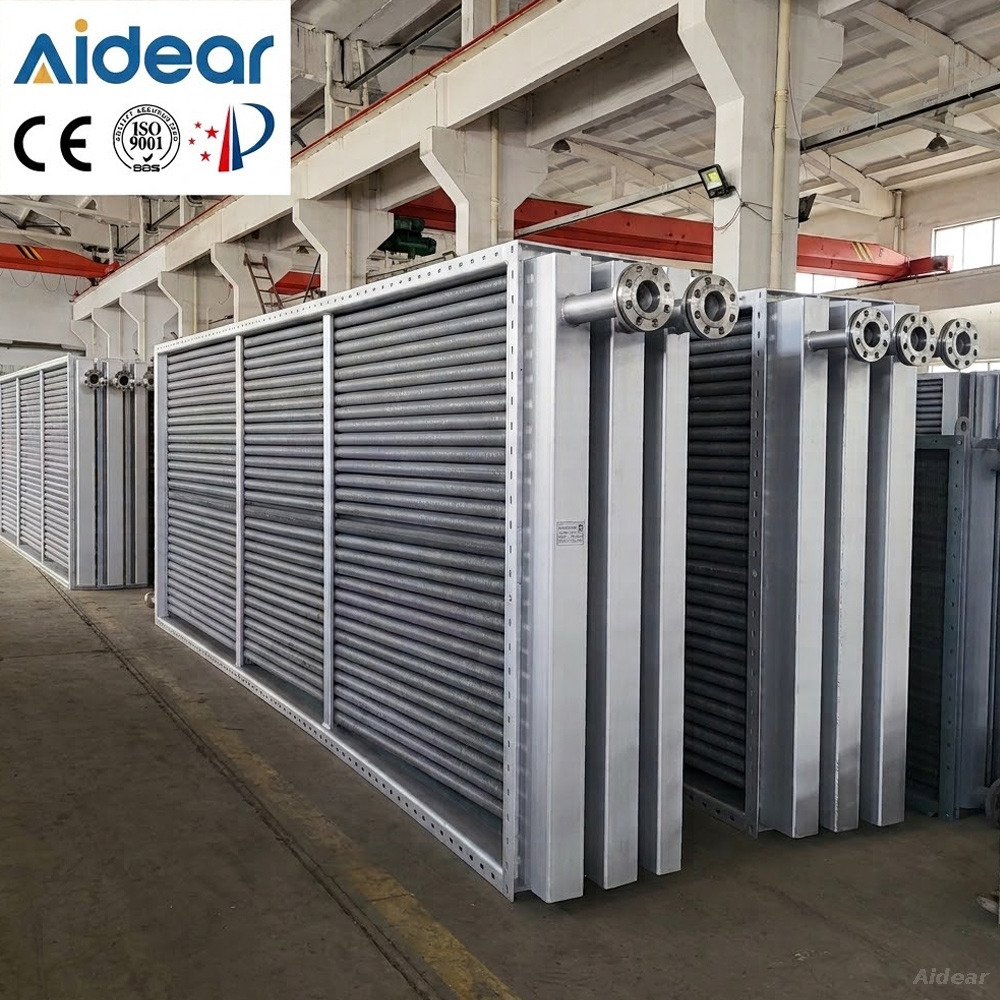

Steam Finned Tube Heat Exchanger for Industrial Air Heating

Product Overview

Aidear's finned tube heat exchanger product range includes solutions for industrial air heating applications using steam as a thermal energy source.

A steam finned tube heat exchanger transfers heat from steam to a flowing air stream through metal tube walls and extended fin surfaces. This type of equipment can be used where a manufacturing or ventilation process requires heated air supplied from an existing steam system.

Unlike direct-fired air heating equipment, an indirect steam air heater transfers heat across a physical barrier separating the steam circuit from the process air.

The required heat transfer area, tube construction, and connection arrangement depend on steam conditions and the intended air heating duty.

Heat Transfer and Steam Condensation

Steam enters the heating circuit and releases thermal energy as it condenses. Heat passes through the tube wall and fins into the surrounding air stream.

As condensation occurs, the resulting condensate must be discharged through a properly designed drainage arrangement.

Steam-Side Considerations

Steam Supply Conditions

Available steam pressure, steam quality, and supply stability influence the operating conditions of the exchanger.

Condensate Removal

Steam traps, pipework, and drainage arrangements must be selected to prevent condensate accumulation and associated operating problems.

Water Hammer Prevention

Improper drainage or piping arrangements can contribute to water hammer. These risks must be addressed in the overall steam system design.

Key Product Characteristics

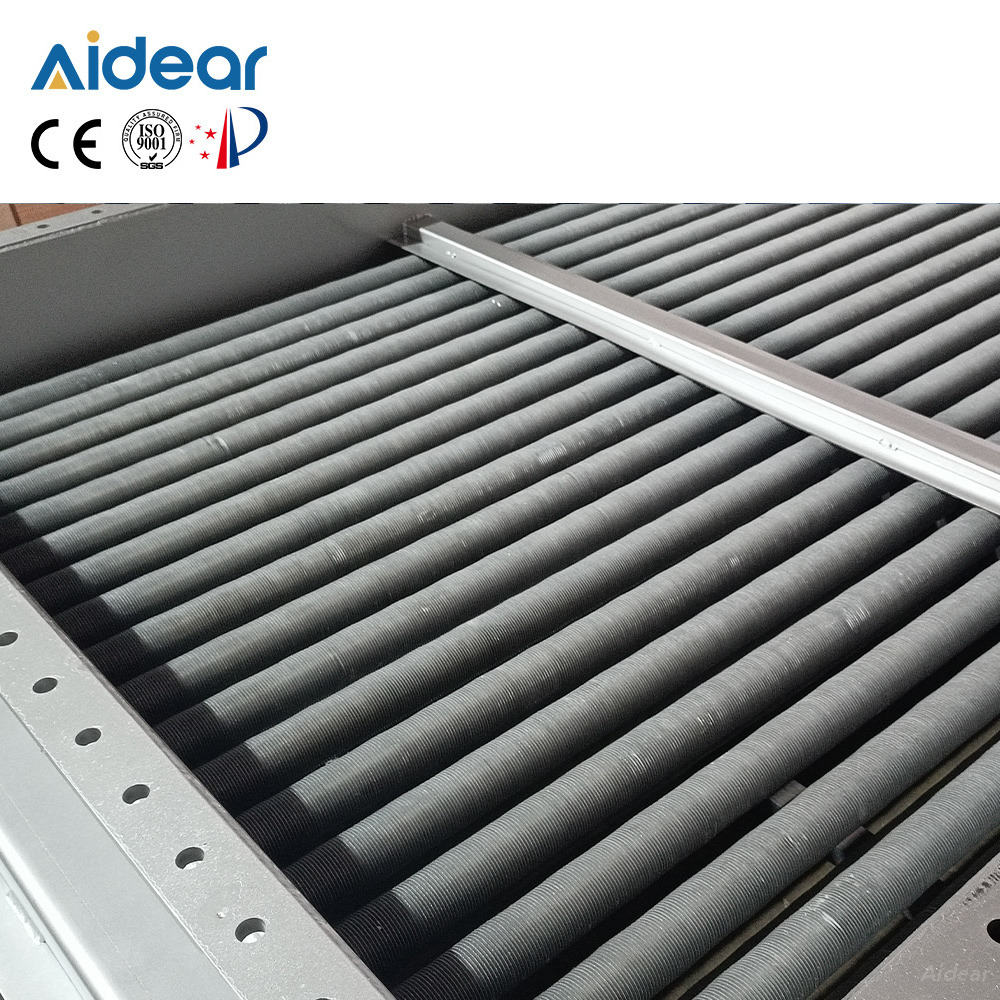

Finned Surface for Air Heating

The extended surface of the finned tubes increases the heat transfer area exposed to the air stream.

Integration with Steam Systems

An appropriately designed exchanger can use steam as the heating medium in an industrial air supply or process heating arrangement.

Application-Based Tube Selection

Tube and fin materials should be chosen according to temperature, pressure, air quality, and mechanical requirements.

Adaptation to Installation Conditions

Heat exchanger dimensions, connections, and airflow arrangement should be specified for the intended equipment layout.

Industrial Applications

Manufacturing Process Air Heating

Steam-heated air may be used in production environments where controlled process temperatures are required.

Industrial Ventilation Air Heating

Finned tube heat exchangers can be integrated into suitable industrial air handling systems to raise supply-air temperature.

Thermal Processing Equipment

The exchanger may serve as an indirect heat source for air heating equipment used in thermal processing operations.

Suitability depends on the operating temperature, required airflow, heating duty, and system configuration.

Technical Selection Requirements

Frequently Asked Questions

Is a steam finned tube heat exchanger the same as a direct-fired heater?

No. A steam heat exchanger transfers heat through metal surfaces, while direct-fired heating uses combustion as the direct heating process.

Why is condensate drainage important?

Condensate accumulation can reduce effective heating performance and contribute to water hammer or other operating problems.

Can one exchanger be used for every steam pressure?

No. The permitted pressure and temperature depend on the mechanical design and approved operating limits of the specific exchanger.

Request a Steam Air Heating Quotation

For an industrial steam heating project, share the steam conditions, air volume, inlet and required outlet temperatures, installation drawings, and condensate return requirements.

Contact Aidear to discuss finned tube heat exchanger selection for your air heating system.
