Product Description

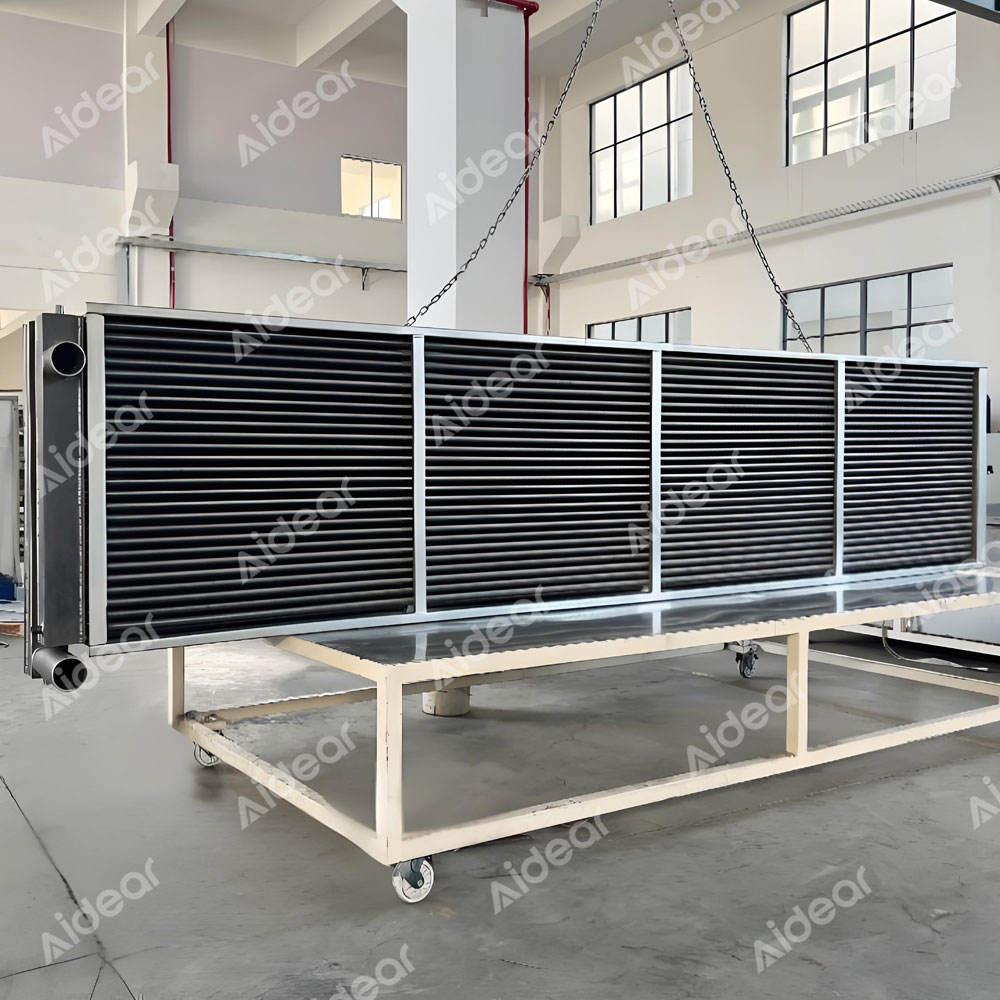

Spiral fin design increases surface area by up to 20 times, ensuring rapid and efficient heating with minimal energy loss.
Compatible with thermal oil (up to 300°C), steam, or hot water, providing flexible operation for various industrial needs.
Made from high-quality seamless steel tubes with electroplated surface treatment for corrosion resistance and extended lifespan.
Available in multiple sizes and configurations to fit specific space constraints and performance requirements.
Weldless wound fin structure reduces fouling and simplifies cleaning, minimizing downtime.
This heat exchanger is ideal for:
Uniform air heating in drying rooms, ovens, and granaries for food, wood, and textile processing.
Efficient steam or oil-based heating for paint baking lines and powder coating systems.
Hot air generation in large-scale ventilation and space heating applications.
Precise temperature control in reactors and drying chambers.
Crop drying and greenhouse heating for optimal yield preservation.
Backed by advanced manufacturing techniques, ensuring high thermal efficiency and reduced operational costs.
Fully customizable to match your exact specifications, from small-scale setups to large industrial installations.
Constructed with premium materials and rigorous testing for safety and reliability in harsh conditions.
Optimized fin design lowers fuel consumption, supporting sustainable operations.
Comprehensive after-sales service, including installation guidance and maintenance recommendations.
Welcome to Aidear Heat Exchanger Help Center This FAQ is tailored for B2B clients in the refrigeration and industrial sectors, based on our finned tube heat exchanger product line (as detailed on our product page). These exchangers enhance heat transfer efficiency for air-to-fluid applications, ideal for HVAC, refrigeration, and process cooling. Use the search bar (e.g., "types" or "installation") for quick navigation. Questions are categorized with expandable answers. If your query isn't covered, submit a support ticket or reach our engineering team.
A: A finned tube heat exchanger uses extended surfaces (fins) on tubes to maximize heat transfer area between fluids (e.g., air and refrigerant/water), reducing size and improving efficiency. Aidear specializes in custom designs for demanding environments.
Types Offered:
Air Cooled Heat Exchangers: For outdoor/indoor air-cooled applications, with forced or induced draft fans.
Shell and Tube with Fins: Integrated fins inside/outside tubes for high-pressure fluids.
Embedded/Integral Finned Tubes: Fins mechanically bonded to tubes for superior durability.
Wound Spiral Finned Tubes: High-density fins for compact, high-performance units. Example: Wound spiral types excel in refrigeration condensers, boosting efficiency by 30%. View Types Diagram →
A: We select materials for corrosion resistance and thermal conductivity:
Tubes: Carbon steel, stainless steel (304/316L), copper, admiralty brass, or titanium.
Fins: Aluminum, copper, or stainless steel (0.1–0.5 mm thick).
Headers/Frames: Carbon steel with epoxy coating or galvanized for harsh conditions. Custom alloys available for ammonia or corrosive refrigerants. All meet ASME/GB standards.
A: Designed for B2B industrial use, they excel in:
Refrigeration Systems: Evaporators/condensers in cold storage, food processing, and pharma freezers (e.g., ammonia/R134a cycles).
HVAC & Process Cooling: Air handling units, chillers, and petrochemical heat recovery.
Other Industries: Power generation (gas turbine cooling), marine (engine cooling), and oil & gas (compressor intercoolers). Case Study: In a 500kW cold warehouse, our units reduced energy use by 25% vs. bare-tube designs.
A:
| Specification | Range/Details |
|---|---|
| Capacity | 5–5,000 kW (customizable) |
| Tube OD | 9.52–50.8 mm (3/8"–2") |
| Fin Density | 8–20 FPI (fins per inch) |
| Rows | 1–12 rows deep |
| Length | Up to 12 m per pass |
| Pressure | Up to 40 bar (design-dependent) |
| Temperature | -196°C to +400°C |
Selection Guide:
Calculate duty: Q = U × A × LMTD (U = overall coefficient, A = area, LMTD = log mean temp diff.).
Specify media, flow rates, and fouling factors.
Use our online configurator or request a free quote. Tip: Multi-row designs for high airflow refrigeration.
A:
Enhanced Efficiency: 2–5× higher heat transfer rates due to extended surfaces (U-values up to 150 W/m²·K).
Compact & Lightweight: 40–60% smaller footprint, easier installation in tight spaces.
Durability: Anti-corrosion coatings and robust fins withstand vibration/harsh environments (lifespan 15+ years).
Cost Savings: Lower refrigerant charge and energy use (up to 30% OPEX reduction).
Customization: Tailored fin geometries for specific duties, with TEMA Class R/C/B compliance. Certified: ISO 9001, PED/CE, API 660.
A:
| Fin Type | Heat Transfer Boost | Best For |
|---|---|---|
| Plain/Straight | +20–30% | Low-velocity air cooling |
| Wavy/Louvered | +50–70% | High-turbulence refrigeration |
| Spiral Wound | +100%+ | Compact condensers |
Tested per AHRI 410 standards; expect <5% degradation over 5 years with proper maintenance.
A: Professional installation recommended (2–6 hours/unit).
Steps:
Site Prep: Level foundation, ensure 1–2 m clearance for airflow. Ambient >0°C for startup.
Mounting: Use vibration isolators; align tubes horizontally for drainage.
Piping: Flanged connections with expansion joints; flow direction per arrow (counterflow optimal).
Commissioning: Hydrotest at 1.5× design pressure; purge air from coils. Precautions: Avoid fin damage—use protective covers during handling. Installation Manual PDF →
A: Seamless with PLC/SCADA via 4–20mA sensors for temp/pressure.
Compatible refrigerants: R410A, R507, NH3, CO2.
Add-ons: Electric defrost for evaporators, VFD fans for variable loads. Example: Retrofit into existing cold rooms—plug-and-play with minimal downtime. Contact for integration drawings.
A: Annual for standard use; quarterly in dusty/corrosive settings.
Routine:
Clean Fins: Low-pressure wash (max 5 bar) or compressed air; every 3–6 months.
Inspect Tubes: Ultrasonic testing for leaks; check fin integrity.
Fan/Bearing Check: Lubricate quarterly; balance rotors.
Chemical Clean: For scaling, use inhibited acids (pH >2). Extends life to 20+ years; we offer preventive service contracts. Maintenance Checklist →
A:
| Issue | Cause | Solution |
|---|---|---|
| Reduced Efficiency | Fin fouling | Clean as above; monitor ∆P (<0.2 kPa rise) |
| Leaks | Corrosion/vibration | Apply epoxy repair or replace section; add supports |
| Frost/Icing | Low temp | Cycle defrost; insulate headers |
| Noise/Vibration | Fan imbalance | Rebalance or upgrade to low-noise models |
99.5% uptime guaranteed under SLA.
A:
Submit specs via quote form.
Review 3D model/prototype (1–2 weeks).
Production: 4–8 weeks (MOQ: 1 unit). Pricing: $2,000–$50,000+ (duty-based); volume discounts. Full customization (e.g., fin pitch, coatings).
A: Warranty: 2 years parts/labor; 5-year extended option. Certifications: ASME Section VIII, TEMA, CE/PED, NACE MR0175 (sour service). Supports global standards (GB, API). Audit reports available.
Product Brochure
Case Studies
Design Calculator
Finned tube heat exchanger.pdf
Submit Ticket (24-hour response)
Email:Aidear_Chen@163.com | Phone: +86-13915061591
Last Updated: November 07, 2025 This FAQ aims for >85% self-resolution. For pharma-grade or cryogenic customizations, share your specs!
