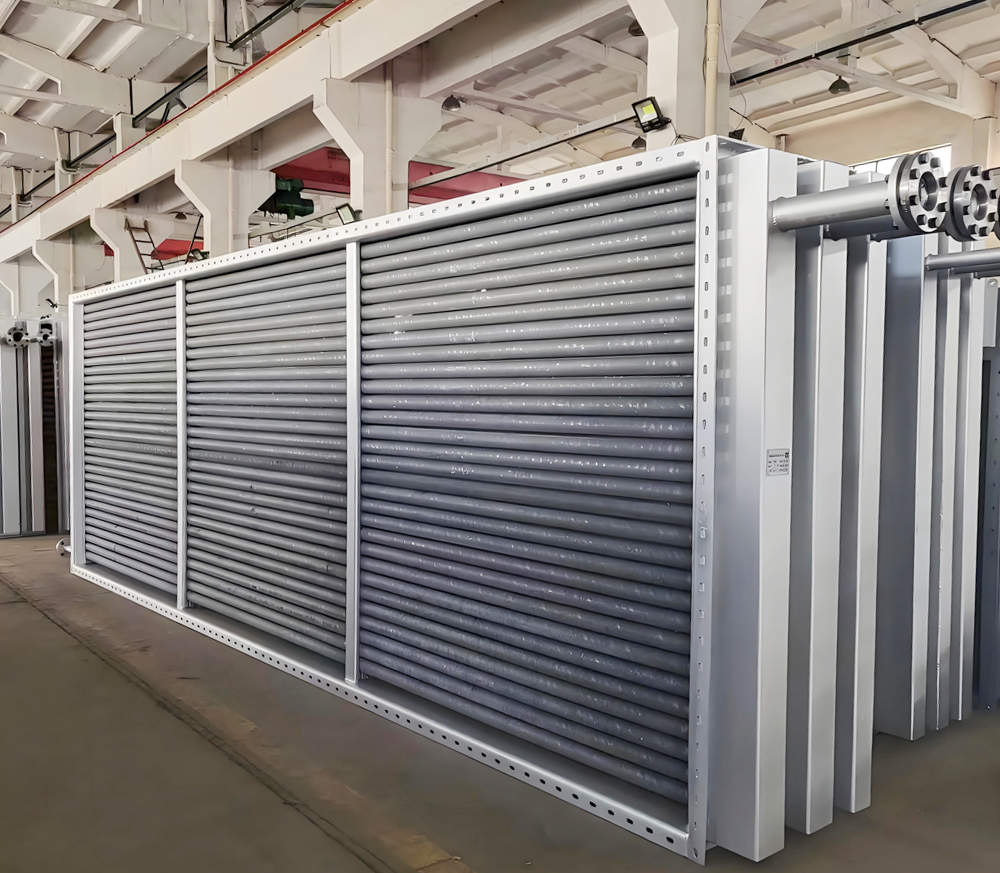

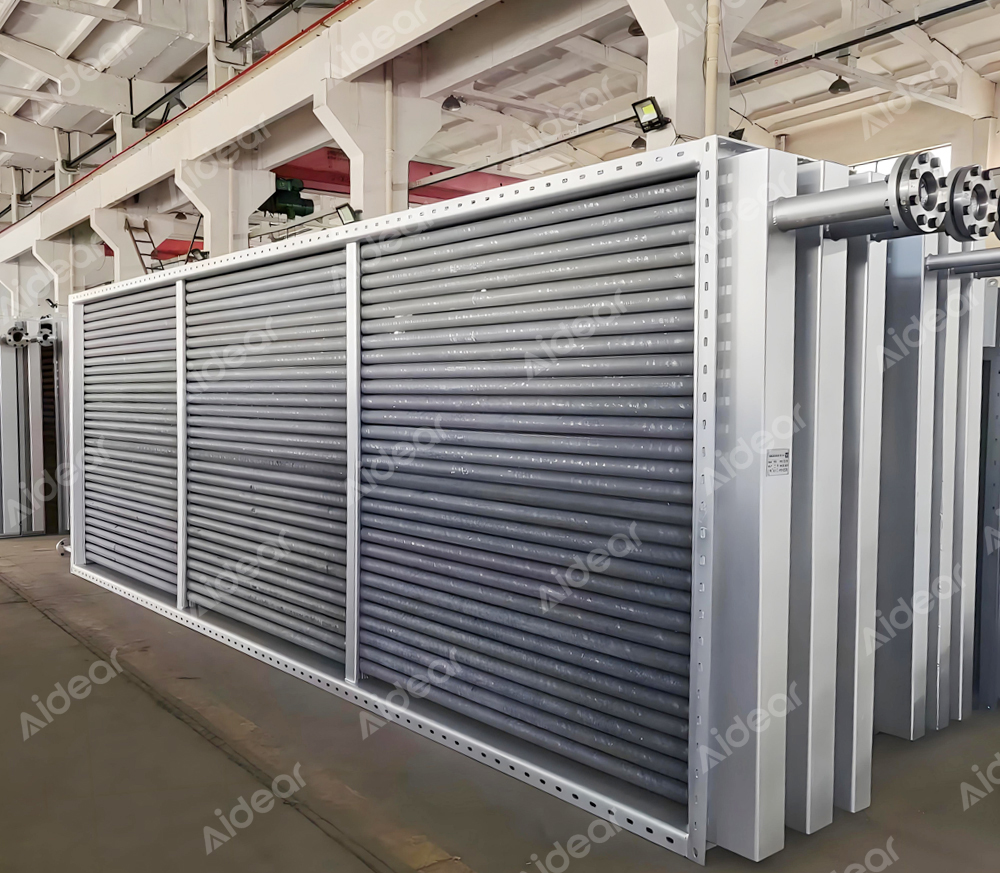

Waste Heat Recovery Finned Tube Heat Exchanger

Product Overview

Aidear offers finned tube heat exchanger solutions for industrial heat recovery applications where useful thermal energy remains in exhaust air or flue gas streams.

In many manufacturing processes, hot exhaust gases leave furnaces, boilers, dryers, and other thermal equipment while still carrying recoverable energy. A properly selected finned tube heat exchanger can transfer part of this energy to a secondary fluid, providing an opportunity to reuse heat within the process.

The extended fin surfaces increase the area available for heat transfer on the gas side. The exchanger configuration must be selected according to exhaust gas characteristics, heat recovery requirements, pressure drop limitations, and operating conditions.

How the Waste Heat Recovery System Works

Hot exhaust gas passes over the finned tube surfaces while the receiving fluid flows through a separate heat transfer circuit. Heat moves across the tube walls without intentionally mixing the two process streams.

The recovered energy may be used for incoming air preheating, water heating, or another suitable thermal process, depending on the approved system design.

Important Design Considerations

Exhaust Gas Composition

Industrial exhaust streams can contain dust, moisture, and corrosive substances. These conditions affect material selection, fin arrangement, inspection access, and cleaning requirements.

Gas-Side Fouling

Particles may accumulate between fins and increase resistance to airflow. Fin spacing and cleaning access should therefore be evaluated when handling contaminated exhaust streams.

Condensation and Corrosion

Some exhaust gases contain components that may form corrosive condensate when surfaces cool below the relevant dew point. Appropriate operating limits and materials must be determined before the exchanger is selected.

Key Features and Engineering Benefits

Extended Heat Transfer Surface

External fins increase the surface area available for transferring heat from exhaust gases to the tube-side fluid.

Application-Specific Configuration

Tube material, fin construction, flow arrangement, and installation dimensions can be evaluated against the actual thermal duty and operating environment.

Heat Recovery Integration

A finned tube exchanger can form part of a wider energy recovery system, provided that the recovered heat matches a useful heating demand.

Maintenance-Oriented Selection

The potential for dust accumulation and corrosion should be considered when determining fin spacing, cleaning methods, and equipment accessibility.

Typical Applications

• Industrial furnace and boiler exhaust heat recovery

• Manufacturing process exhaust heat utilization

• Industrial hot-air energy recovery

• Air or liquid preheating using suitable exhaust heat sources

Each application requires an assessment of exhaust composition and temperature before equipment suitability can be confirmed.

Technical Information Required for Selection

Frequently Asked Questions

Can a finned tube heat exchanger recover heat from boiler flue gas?

It may be suitable for this application, but selection depends on gas composition, temperature, fouling characteristics, corrosion risk, and heat recovery requirements.

Does a waste heat recovery exchanger always reduce fuel consumption?

Not necessarily. Actual savings depend on the amount of recoverable heat, whether that heat can be used, operating schedules, and the performance of the complete system.

What information is needed for a quotation?

Provide the exhaust gas composition, gas flow rate, inlet temperature, desired heat recovery duty, receiving fluid conditions, allowable pressure drop, and installation requirements.

Request a Custom Heat Recovery Solution

Changzhou Aidear Refrigeration Technology Co., Ltd. provides finned tube heat exchanger solutions for industrial heat transfer applications.

Share your exhaust gas conditions, heat recovery objectives, and installation drawings with Aidear to discuss an appropriate exchanger configuration and receive a project-based quotation.
