Research suggests shell and tube heat exchangers are widely used in industries for efficient heat transfer.
It seems likely that their design, with a shell and tubes, allows flexibility for various pressures and temperatures.
The evidence leans toward their importance in petrochemical and power generation sectors.
Shell and tube heat exchangers are essential devices in many industries, known for their ability to transfer heat between two fluids efficiently. This guide will help you understand their basic workings, types, and applications in simple terms.
Imagine a large cylindrical shell with a bunch of tubes inside it. One fluid flows through the tubes, and another flows around them in the shell. Heat moves through the tube walls, warming or cooling the fluids as needed. This setup is great for handling different pressures and temperatures.
These exchangers are commonly used in oil refining, power plants for cooling, and even in HVAC systems for heating and cooling buildings. They’re versatile and found in many industrial settings.
Shell and tube heat exchangers are among the most popular types of heat exchangers, valued for their flexibility in accommodating a wide range of pressures and temperatures. These devices are critical in various industrial applications, facilitating efficient heat transfer between two fluids without mixing them. The design typically involves a cylindrical shell housing a bundle of tubes, where one fluid flows through the tubes and the other flows over them within the shell, enabling heat exchange through the tube walls.
The importance of shell and tube heat exchangers stems from their versatility and reliability, making them a cornerstone in sectors like petrochemicals, power generation, and HVAC systems. This detailed survey note aims to provide a comprehensive overview, drawing from various reliable sources to ensure accuracy and depth.

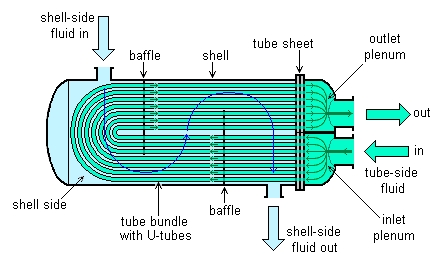

A shell and tube heat exchanger consists of several key components, each playing a vital role in its operation:
Shell: The outer vessel, typically cylindrical, made from materials like carbon steel or stainless steel, containing the tube bundle.
Tubes: A bundle of tubes, which can be straight or U-shaped, through which one fluid flows. These are often made from high thermal conductivity materials like copper or stainless steel.
Tube Sheets: Metal plates that secure the tubes at both ends, separating the shell-side and tube-side fluids.
Baffles: Installed inside the shell to direct the flow of the shell-side fluid, increasing turbulence and enhancing heat transfer efficiency.
Headers: The front and rear headers manage the entry and exit of fluids, ensuring proper flow distribution.
The operation involves heat transfer through the tube walls, with common flow arrangements including parallel flow, counterflow, and crossflow. Counterflow, where fluids flow in opposite directions, is often preferred for its higher thermal efficiency. This design allows shell and tube heat exchangers to handle diverse operating conditions, from low to high pressure and temperature, making them suitable for a broad range of applications.
Shell and tube heat exchangers come in several types, each tailored to specific needs:

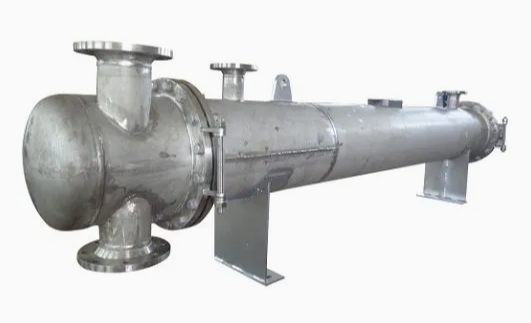

Fixed Tubesheet Exchangers: Here, the tubesheets are welded to the shell, offering a simple and economical design. However, they are less accommodating for large temperature differences due to thermal expansion constraints. They are suitable for applications where the shell side can be chemically cleaned, but the tube outside is less accessible.

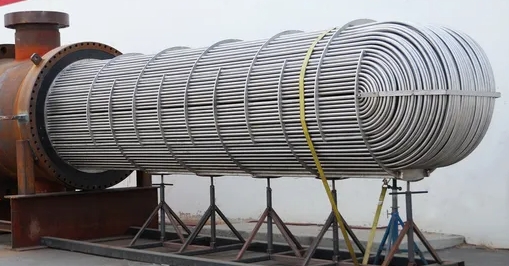

U-Tube Exchangers: Featuring a U-shaped tube bundle, these allow for thermal expansion and have a removable bundle for easier cleaning. They are ideal for clean tube-side fluids but can be challenging for internal mechanical cleaning due to their shape.

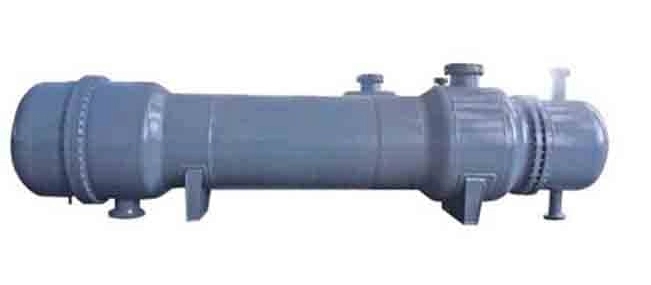

Floating Head Exchangers: With one tubesheet fixed and the other floating, these designs handle significant thermal expansion, making them suitable for high-temperature and high-pressure applications. They are about 25% more expensive than fixed tubesheet designs for carbon steel but offer greater flexibility.
The Tubular Exchanger Manufacturers Association (TEMA) provides standards for classifying these exchangers, using a nomenclature based on the front header, shell, and rear header types. For example, a BEM exchanger has a bonnet front header, a single-pass shell, and a fixed tubesheet rear header, while an AES exchanger features a split-ring floating head.
Shell and tube heat exchangers are versatile, finding applications in numerous sectors:
Petrochemical Industry: Used in refining processes, such as crude oil distillation, where they preheat the crude oil before it enters the distillation column. They are also critical in chemical synthesis, ensuring precise temperature control.
Power Generation: Essential in condensers, where they cool steam from turbines back into water, and in feedwater heaters, improving thermal efficiency. Their robustness makes them ideal for high-pressure environments.
HVAC Systems: Employed in chillers for cooling water in air conditioning systems, ensuring comfortable indoor environments in commercial and residential buildings.
Food and Beverage: Utilized in pasteurization and sterilization processes, maintaining food safety by controlling temperatures effectively.
Pharmaceuticals: Critical for precise temperature control in manufacturing, ensuring product quality and compliance with regulatory standards.
The advantages of shell and tube heat exchangers include:
High Efficiency: Effective heat transfer due to the large surface area provided by the tubes, enhanced by baffle designs that increase turbulence.
Versatility: Can be designed for various pressures, temperatures, and fluid types, making them adaptable to diverse applications.
Ease of Maintenance: Many designs, especially U-tube and floating head, allow for easy cleaning and repair, extending equipment lifespan.
Scalability: Suitable for both small-scale and large-scale industrial applications, offering flexibility in installation.
However, there are also disadvantages to consider:
Size and Weight: These exchangers can be bulky, requiring significant space, which may be a constraint in compact facilities.
Initial Cost: Higher upfront investment compared to some other heat exchanger types, such as plate heat exchangers, due to their complex design.
Fouling: Prone to fouling, where deposits reduce heat transfer efficiency, necessitating regular maintenance to mitigate.
Despite these drawbacks, their benefits often outweigh the costs, particularly in high-stakes industrial environments where reliability is paramount.
Designing a shell and tube heat exchanger involves several critical factors to ensure optimal performance:
Tube Diameter and Length: Typically ranging from 1/4 inch to 1 inch, with 3/4 inch being common, smaller diameters increase heat transfer but also pressure drop. Tube lengths can vary from 6 feet to 20 feet or more, affecting the heat transfer area and space requirements.
Material Selection: Must be compatible with the fluids to prevent corrosion and ensure longevity. Common materials include carbon steel, stainless steel, copper alloys, and titanium for corrosive environments.
Baffle Design: The type and spacing of baffles, such as segmental or disc-and-doughnut, influence flow patterns and heat transfer rates, enhancing efficiency by increasing turbulence.
Thermal Expansion: Accommodations must be made for differential expansion between the shell and tubes to prevent mechanical failure, often addressed by designs like floating heads or U-tubes.
Flow Arrangement: Choosing between parallel, counter, or crossflow based on efficiency requirements, with counterflow often preferred for its superior thermal performance.
These considerations ensure the exchanger meets the specific needs of the application, balancing efficiency, cost, and maintenance requirements.
Regular maintenance is crucial for maintaining the efficiency of shell and tube heat exchangers:
Cleaning: Methods include mechanical cleaning (e.g., brushing), chemical cleaning, or high-pressure water jetting to remove fouling deposits, which can reduce heat transfer efficiency. Regular cleaning schedules are essential.
Inspection: Check for leaks, corrosion, and mechanical wear, ensuring gaskets and seals are intact. Tube wall thinning and corrosion are common issues that can lead to leaks.
Monitoring: Keep an eye on performance indicators like temperature differences and pressure drops. An increase in pressure drop can indicate fouling, signaling the need for cleaning.
Common issues include tube leaks, often caused by corrosion or mechanical damage, fouling from deposit buildup, and vibration, which can lead to tube failure if not addressed. Implementing a proactive maintenance schedule can mitigate these problems, extending the lifespan and reliability of the equipment.
Selecting the right shell and tube heat exchanger involves considering several factors:
Fluid Properties: Compatibility with materials to prevent corrosion and ensure safety.
Temperature and Pressure Requirements: Ensuring the design can handle the operating conditions, such as high pressures in petrochemical applications.
Space Constraints: Assessing the available space for installation, given their potentially large size.
Budget: Balancing initial cost with long-term maintenance and efficiency benefits.
This selection process ensures the exchanger meets the specific needs of the application, optimizing performance and cost-effectiveness.
Shell and tube heat exchangers are indispensable in industrial heat transfer applications, offering efficiency, versatility, and reliability. Their design, with a shell and tube bundle, allows for flexible operation across various pressures and temperatures, making them essential in sectors like petrochemicals, power generation, and HVAC. By understanding their components, types, applications, and maintenance needs, engineers and technicians can ensure optimal performance, contributing to the success of industrial operations. Whether for refining processes, power plant cooling, or building climate control, shell and tube heat exchangers provide a proven solution for thermal management needs.
