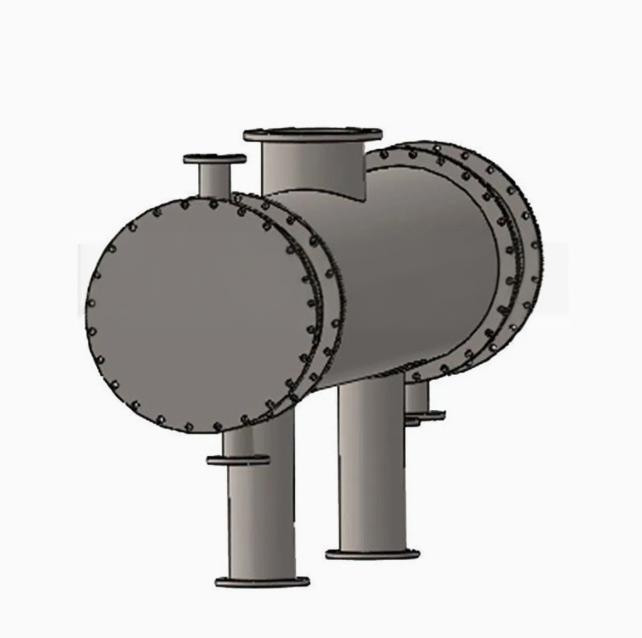

Fixed Tubesheet Tube Bundle Heat Exchanger

The Fixed Tubesheet Tube Bundle Heat Exchanger from Changzhou Aidear Refrigeration Technology Co., Ltd. is engineered for efficient heat transfer in compressor oil cooling applications. Featuring a robust design with straight tubes secured to stationary tube sheets welded to the shell, this heat exchanger ensures reliable performance in demanding industrial environments. Certified with GB/T 151, ASME, PED, and EAC standards, it is ideal for high-pressure applications requiring minimal temperature differences between shell and tube fluids.

Key Features

• High Efficiency: Optimized heat transfer with a large surface area, ranging from 0.5m³ to 300m³, tailored to specific needs.

• Durable Construction: Available in materials like Carbon Steel Q235B/Q345R, Stainless Steel 304/316, Nickel Alloy, Titanium, and Graphite for corrosion resistance and longevity.

• Simple Structure: Fixed tubesheet design minimizes leaks and simplifies cleaning, ensuring low maintenance costs.

• Advanced Design Software: Designed using SW6-2011 and PV Elite for precise thermal rating and pressure vessel calculations.

• Certified Quality: Meets international standards (CE, ISO) with rigorous quality control, including pressure testing and NDT (RT, UT, PT, MT).

Technical Specifications

• Type: Fixed Tubesheet Shell and Tube Heat Exchanger

• Heat Transfer Area: 0.5m³ to 300m³ (customizable)

• Materials: Carbon Steel, Stainless Steel 304/316, Nickel Alloy, Titanium, Graphite

• Applications: Compressor cooling, oil and gas, chemical industry, power generation, HVAC, refrigeration, marine, pulp and paper, metals and mining

• Components: Shell, tubesheet, tube bundle, tie rods, spacer pipes, baffle plates

• Certifications: GB/T 151, ASME, PED, EAC

• Warranty: 1-year machinery warranty with after-sales support

Applications

This fixed tubesheet heat exchanger is widely used in industries requiring efficient heat transfer under high-pressure conditions with small temperature differences between fluids. Key applications include:

• Compressor Oil Cooling: Ensures optimal temperature control for compressor systems, enhancing performance and longevity.

• Chemical Processing: Facilitates precise heating, cooling, and condensation in chemical plants.

• Oil and Gas: Supports reliable heat exchange in refineries and petrochemical facilities.

• Power Generation: Enhances efficiency in power plant cooling systems.

• HVAC and Refrigeration: Provides robust solutions for temperature regulation in commercial and industrial settings.

Why Choose Us?

• Customization: Tailored specifications to meet unique project requirements, supported by advanced design software.

• Quality Assurance: High-quality materials and rigorous testing ensure durability and performance.

• Global Standards: Compliance with international certifications for seamless integration into diverse markets.

• Comprehensive Support: 1-year warranty and dedicated after-sales service, including DDU/DAP delivery options for hassle-free logistics.

• Industry Expertise: Trusted by industries worldwide for reliable, high-performance heat exchange solutions.

For tailored solutions or to request a quote, contact Changzhou Aidear Refrigeration Technology Co., Ltd. today!
