Product Description

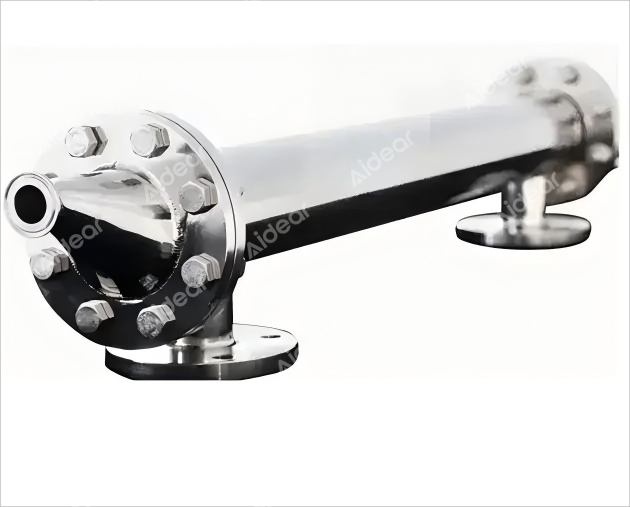

The SS316L Sanitary Shell and Tube Heat Exchanger, designed by Changzhou Aidear Refrigeration Technology Co., Ltd., meets the stringent cleanliness requirements of pharmaceutical, food, and beverage industries. Engineered for high-purity applications, this heat exchanger ensures efficient heat transfer while preventing cross-contamination, making it ideal for processes like purified water cooling, pasteurization, and clean steam condensation.
High Cleanliness Design: Double tube plate design eliminates bidirectional cross-contamination, ensuring compliance with pharmaceutical standards.
Premium Materials: Constructed with SS316L (1.4404) for contact parts and SS304 (1.4301) for non-contact parts, with material inspection reports provided.
Versatile Sealing Options: Sealing materials (NBR, EPDM, Silicone, FKM) comply with FDA 21CFR117.2600 for safety and reliability.
High Efficiency: Heat transfer coefficients range from 1100–1400 W/(m²·°C) for water-water and 2300–5700 W/(m²·°C) for water-steam, ensuring optimal performance.
Customizable Configurations: Available in single or double tube plate designs, with tube sizes from 6mm to 25mm and heat transfer areas from 0.05m² to 3.0m².
Easy Maintenance: Simple design with low pressure drop and minimal fouling, making it easy to inspect and maintain.
Flow Rate: 30–32,000 L
Max Pressure: 10 bar (145 psi)
Working Pressure: 0–6 bar (0–87 psi)
Design Temperature: 14°F to 392°F (-10°C to 200°C)
Internal Surface Finish: Ra < 0.5μm for superior cleanliness
Connection Types: Union, internal thread, tri-clamp, or flange
Tube Sizes: 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 19mm, 25mm
Heat Transfer Area: 0.05m², 1.0m², 1.5m², 2.0m², 2.5m², 3.0m²
Pharmaceutical Industry: Point cooling for water injection, SIP disinfection, and high-purity water cooling.
Food & Beverage: Pasteurization and heating for CIP systems.
Other Industries: Condensation and cooling of clean steam, as well as cooling/heating of high-cleanliness liquids.
Quality Assurance: 100% material inspection with SS304 and SS316L, backed by a one-year warranty (gaskets excluded due to application variability).
Customization: Full customization options to meet specific process requirements.
Proven Expertise: Over a decade of experience in manufacturing high-precision sanitary valves and fittings, with 29 LG Mazak CNC machines and automated machining units.
Global Reach: Trusted by industries worldwide, with a production capacity of 1,000 sets per month.
Reliable Delivery: 7–10 days for standard orders, 15–25 days for bulk orders, with secure packaging for safe transport.
The heat exchanger’s fixed tube sheet design ensures no internal leakage, while the compensation ring accommodates thermal expansion, making it suitable for high-pressure and high-temperature applications. Its robust construction minimizes fouling and ensures long-term reliability.
For inquiries about flow rates, temperature requirements, or connection types, reach out to Changzhou Aidear Refrigeration Technology Co., Ltd. Visit our product page for more details or to request a quote.
