Product Description
Copper Tube Heat Exchanger for Refrigeration | Aidear
High-efficiency copper tube heat exchanger for refrigeration, with aluminum fins and customizable designs. Ideal for commercial cooling systems.
/copper-tube-heat-exchanger-refrigeration

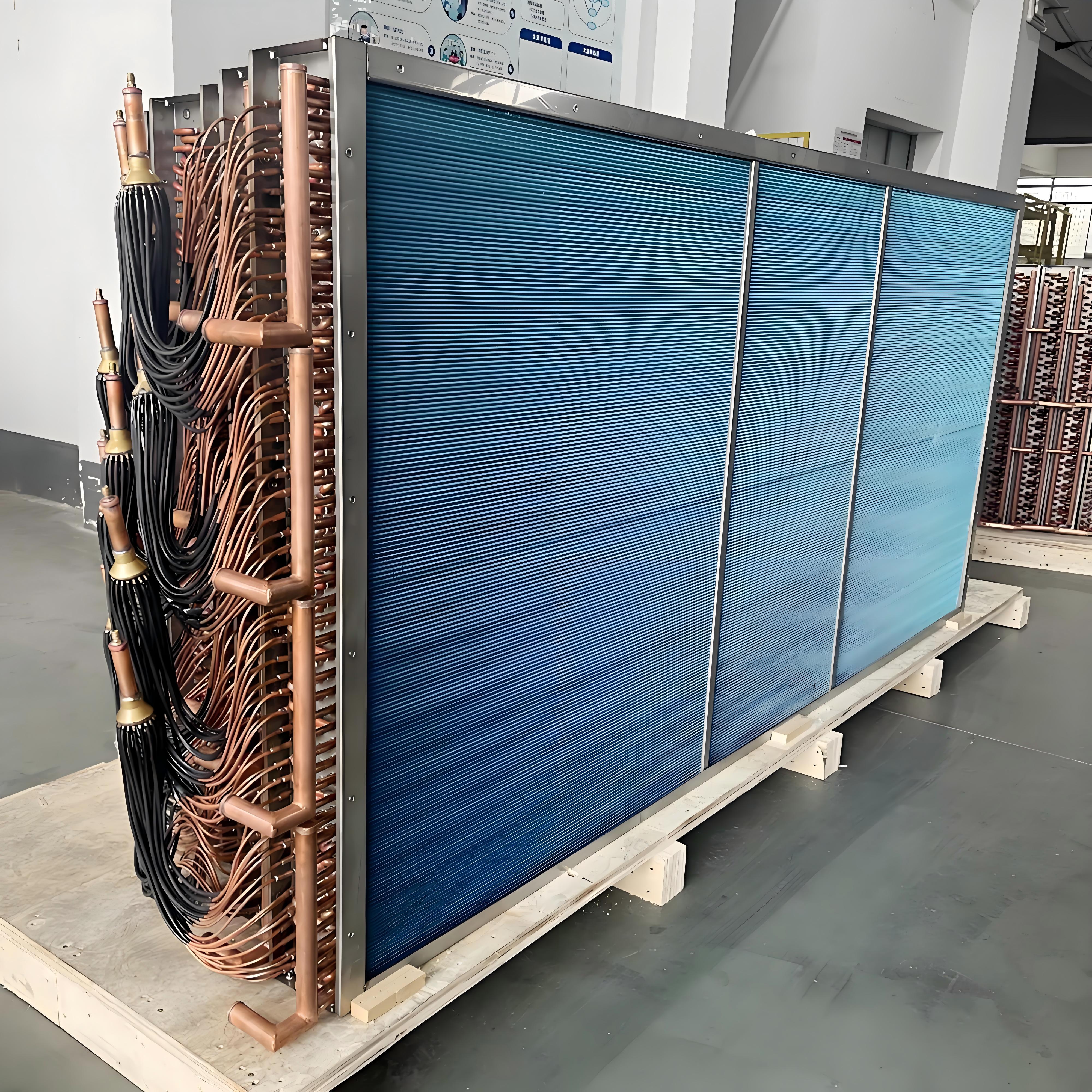

Copper Tube Heat Exchanger
Refrigeration Heat Exchanger
Aluminum Fin Evaporator
The Aidear Copper Tube Heat Exchanger is a high-performance solution designed for refrigeration and heat exchange applications. Engineered with precision, it combines copper tubes and aluminum fins to deliver superior thermal efficiency, durability, and compatibility with various refrigerants, including R134A, R22, R404A, R407C, and CO2.
High Thermal Conductivity: Utilizes copper tubes (Ø5mm to Ø15.88mm) with smooth or internally grooved surfaces for optimal heat transfer.
Customizable Fin Design: Available in louver, flat, corrugated, or slit fin types with thicknesses from 0.1mm to 0.19mm, ensuring flexibility for specific cooling needs.
Robust Construction: Features galvanized steel, stainless steel, or aluminum side plates for enhanced durability.
Hydrophilic or Bare Fins: Choose between hydrophilic aluminum fins for improved moisture management or uncoated fins for cost-efficiency.
Leak-Proof Design: Each unit undergoes rigorous testing, including gas testing at 3.0Mpa and water leakage checks, ensuring reliability.
| Copper Tube Diameter | Hole & Row Pitch | Fin Space | Fin Surface | Fin Edge Type |
|---|---|---|---|---|
| Ø5/8" (15.88mm) | 50x50mm | 4~10mm | Sin-wave, Corrugated | Flat + Wave |
| Ø1/2" (12.7mm) | 31.75x27.5mm | 3~9mm | Sin-wave, Corrugated | Flat + Wave |
| Ø3/8" (9.52mm) | 25x21.65mm | 1.5~6mm | Louver, Flat | Flat |
| Ø5/16" (7.94mm) | 25x21.65mm | 1.5~5mm | Flat | Flat + Wave |
Materials: Copper tubes, aluminum fins, optional galvanized steel or stainless steel brackets.
Refrigerants: Compatible with R134A, R22, R404A, R407C, and CO2.
Expansion Method: Mechanical or high-pressure hydraulic expansion for tight tube-fin contact.
Commercial refrigerators and freezers
Air conditioning systems
Dehumidifiers
Ice makers
Commercial showcase cabinets
Proven Quality: Manufactured by Changzhou Aidear Refrigeration Technology Co., Ltd., a trusted factory with CE and ISO certifications.
Custom Solutions: Tailored designs to meet specific pressure and refrigerant requirements, including natural refrigerants.
Rigorous Testing: Every unit undergoes FQC and OQC, including vacuum drying to eliminate impurities and ensure performance.
Global Reach: Trusted by industries worldwide for reliable, high-efficiency heat exchange solutions.
For more details or to request a sample, contact at our Changzhou , Aidear facility. Elevate your refrigeration systems with our cutting-edge heat exchangers today!
