Product Description
Product Overview

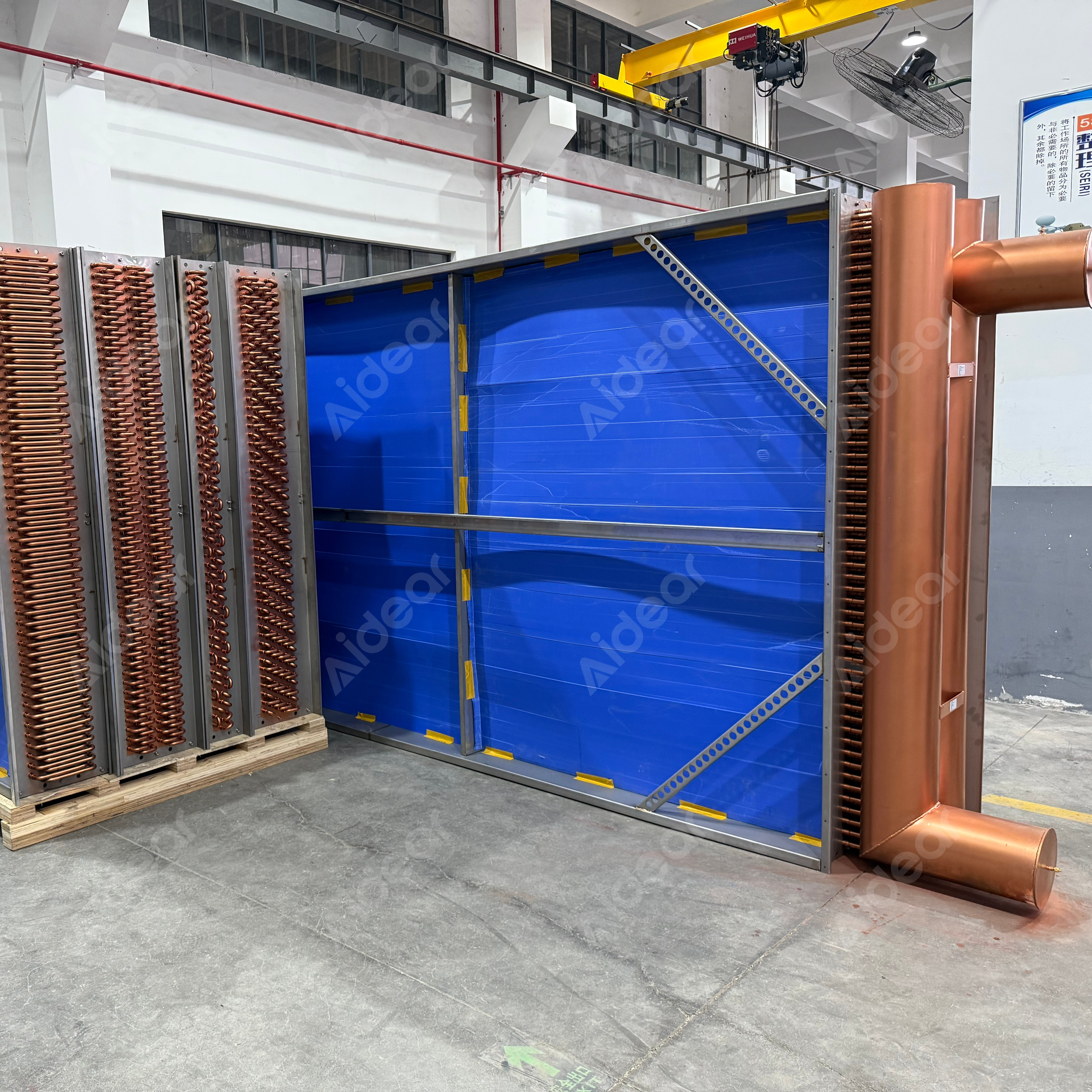

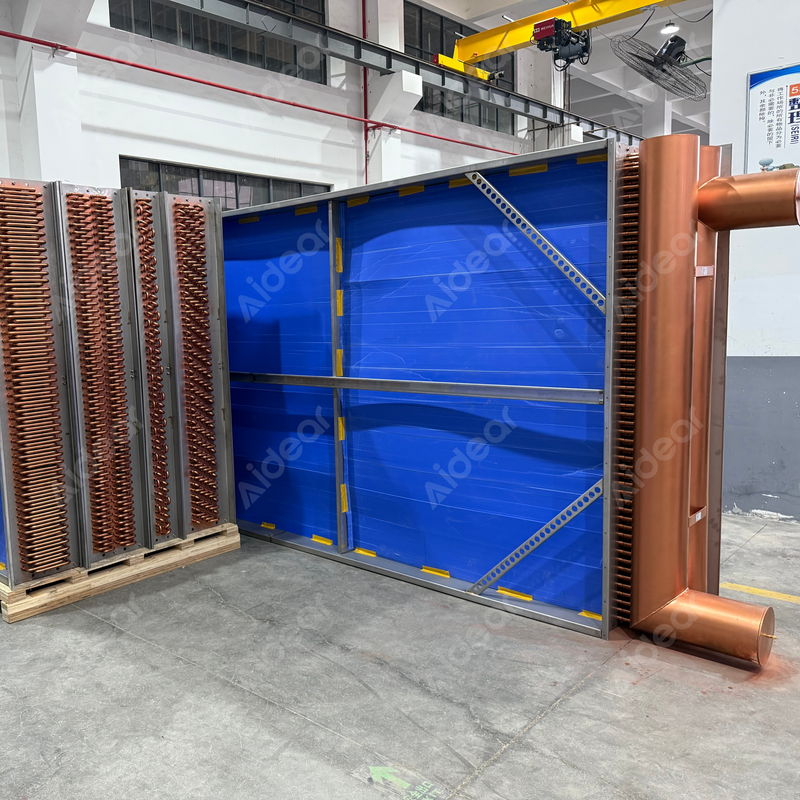

The Large-Scale Copper Tube Fin Heat Exchanger is specifically designed for high-volume air handling and industrial ventilation systems. Built with premium copper tubing and precision-engineered fins, this unit delivers excellent thermal conductivity and rapid heat exchange across large airflow surfaces.
Its modular panel structure and reinforced casing make it suitable for integration into custom air handling units (AHU), drying systems, and process air applications.
Key Features
High Thermal Conductivity
Copper tubes provide exceptional heat transfer efficiency for both heating and cooling processes.
Wide Surface Area Design
Large panel configuration increases contact between air and heat transfer surfaces.
Heavy-Duty Industrial Frame
Reinforced casing ensures structural integrity for large installations.
Optimized Fin Structure
Designed to enhance airflow distribution and minimize pressure loss.
Custom-Built Configurations
Available in multiple sizes, row arrangements, and connection options.
Technical Specifications
Parameter Description
Tube Material Copper
Fin Material Aluminum / Copper
Structure Type Multi-panel / Modular
Application Medium Hot water / Steam / Chilled water
Airflow Direction Crossflow / Custom
Operating Conditions Designed for industrial environments
Connection Type Flanged / Welded
Applications
Industrial air handling units (AHU)
HVAC ventilation systems
Drying and curing processes
Heat recovery systems
Manufacturing and processing plants
Product Advantages
High efficiency heat transfer with reduced energy consumption
Excellent corrosion resistance and long operational life
Suitable for large airflow and high-capacity systems
Flexible design for easy installation and maintenance
Reliable performance under continuous industrial operation
Why Choose This Heat Exchanger
This copper tube fin heat exchanger is ideal for projects requiring large heat exchange capacity and stable airflow performance. Its robust construction and advanced thermal design make it a preferred choice for industrial-scale HVAC and process systems where efficiency and reliability are critical.
