Product Description

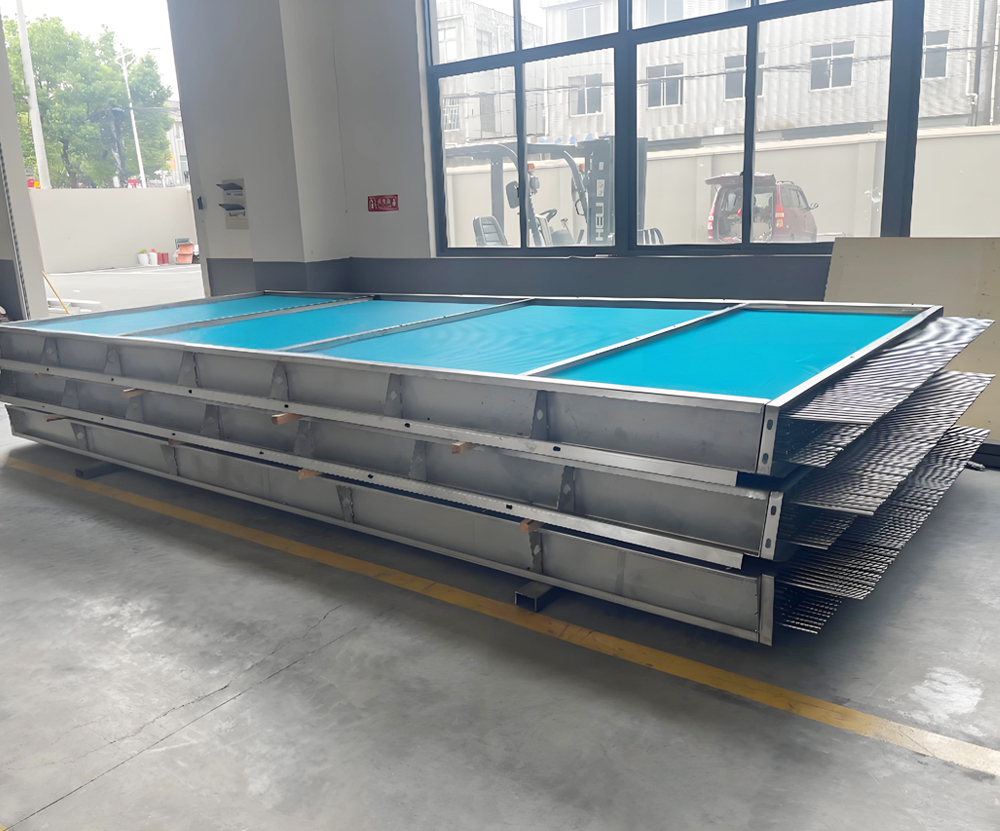

The High-Quality Copper Tube Aluminum Fin Galvanized Steel Casing Heat Exchanger Coil, manufactured by Changzhou Aidear Refrigeration Technology Co., Ltd. is designed for efficient heat transfer in a wide range of applications. Featuring copper tubes and aluminum fins, this customizable coil ensures optimal performance and durability, backed by a 1-year warranty and ISO certification.
Premium Materials: Copper tubes (smooth or rifled) paired with aluminum fins (bare or hydrophilic) for superior heat transfer efficiency.
Customizable Design: Available in L, U, or O-shaped configurations with adjustable fin spacing (2.0–10mm) to meet specific requirements.
Anti-Corrosion Protection: Optional LCE coating or pre-coated epoxy (gold) or hydrophilic (blue) fins for enhanced durability.
Robust Construction: Galvanized steel casing ensures structural integrity in demanding environments.
| Specification | Tube Pitch (mm) | Row Pitch (mm) | Tube Size (mm) | Tube Material | Fin Pitch (mm) | Fin Material |
|---|---|---|---|---|---|---|
| φ7mm | 21 | 18.2 | φ7 | Copper (Smooth/Rifled) | 2.0–4.5 | Aluminum (Bare/Hydrophilic) |
| φ9.52mm | 25 | 21.65 | φ9.52 | Copper (Smooth/Rifled) | 2.0–9.0 | Aluminum (Bare/Hydrophilic) |
| φ12mm | 35 | 30.31/35 | φ12 | Copper (Smooth/Rifled) | 4.0–10.0 | Aluminum (Bare/Hydrophilic) |
| φ15mm | 60 | 30 | φ15 | Copper (Smooth/Rifled) | 4.0–10.0 | Aluminum (Bare/Hydrophilic) |
Warranty: 1 year
Certification: ISO
MOQ: 2 pieces
Delivery Time: 30 days
Production Capacity: 50,000 pieces/year
Packaging: Fumigated wooden box for export or PE film for tight containers
This heat exchanger coil is ideal for:
Oil coolers for hydraulic systems
Water and liquid coolers for industrial and power plant applications
Fan coils and air handling units
Heat pumps, air conditioning, and dehumidifiers
Chillers, cold rooms, condensing units, and display cases
Proven Expertise: Over 20 years of experience in heat exchanger manufacturing since 2008.
Flexible Customization: Tailored designs with detailed drawings provided post-order to meet specific needs.
Quality Assurance: Each coil undergoes video outgoing-inspection and machinery testing for reliability.
Global Reach: Exported to countries including Egypt, Canada, the UK, and the US, with a dedicated team for international trade.
Comprehensive Support: 24/7 customer service via TradeManager, email, WeChat, Skype, or WhatsApp, with sample services available.
For custom designs or further inquiries, contact Changzhou Aidear Refrigeration Technology Co., Ltd. today!
