Product Description

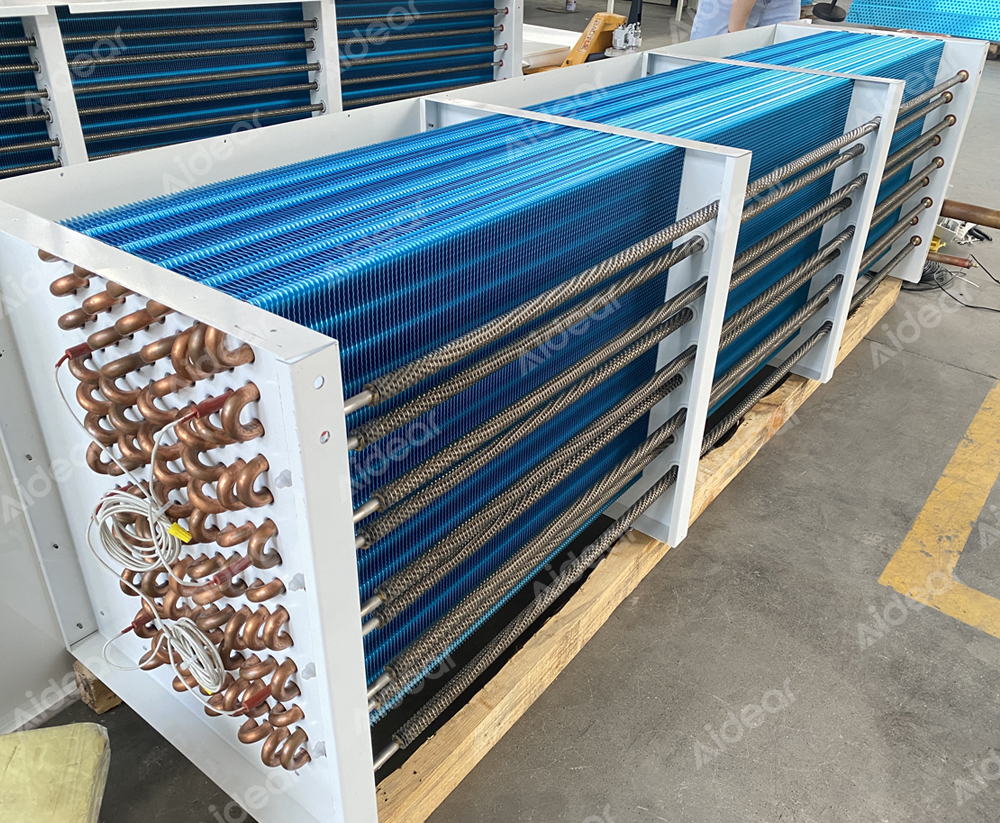

The High-Performance Air Cooled Tube Fin Type Evaporator, manufactured by Flygrow Changzhou Aidear Refrigeration Technology Co., Ltd. is designed for superior cooling efficiency in commercial refrigeration and air conditioning systems. Featuring copper tubes and aluminum fins, this evaporator ensures optimal heat transfer, customizable designs, and compatibility with multiple refrigerants, including R134A, R22, R404A, R407C, and CO2.
Optimized Heat Transfer: Copper tubes (smooth or inner-grooved, Ø5mm to Ø15.88mm) paired with aluminum fins (bare or hydrophilic) for enhanced thermal efficiency.
Customizable Configurations: Available with louver, flat, corrugated, or slit fins and various tube geometries to meet specific cooling needs.
Robust Construction: Galvanized steel, stainless steel, or brass side plates ensure durability, with optional high-quality powder coating for added protection.
Quality Assurance: Each unit undergoes 3.0Mpa gas pressure testing and water leakage testing to ensure reliability.
| No. | Tube Diameter (mm) | Hole/Row Pitch (mm) | Fin Space (mm) | Fin Surface | Fin Edge Type |
|---|---|---|---|---|---|
| 1 | Ø15.88 | 50x50 | 4~10 | Sin-wave & Corrugated | Flat + Wave |
| 2 | Ø15.88 | 38x33 | 2.5~4 | Sin-wave & Corrugated | Flat + Wave |
| 3 | Ø12.7 | 31.75x27.5 | 3~9 | Sin-wave & Corrugated | Flat + Wave |
| 4 | Ø12 | 35x35 | 6~11 | Sin-wave & Corrugated | Flat + Wave |
| 5 | Ø9.52 | 25x21.65 | 1.5~6 | Sin-wave & Corrugated | Flat + Wave |
| 6 | Ø9.52 | 31.75x27.5 | 2.5~7.5 | Sin-wave & Corrugated | Flat + Wave |
| 7 | Ø9.52 | 25x21.65 | 1.5~2.5 | Louver | Flat |
| 8 | Ø9.52 | 25.4x19.05 | 1.8~5 | Louver | Flat |
| 9 | Ø7.94 | 25x21.65 | 1.5~5 | Flat | Flat + Wave |
| 10 | Ø7 | 21x12.7 | 1.3~1.8 | Louver | Flat |
Tube Material: Copper (smooth or inner-grooved)
Fin Material: Aluminum (bare or hydrophilic, 0.1–0.19mm thickness)
Side Plate Material: Galvanized steel, stainless steel, aluminum, or brass
Production Capacity: 2,000 pieces/month
Packaging: Seaworthy carton, pallet, or wooden carton
This evaporator is ideal for:
Commercial refrigerators and freezers
Air conditioning systems
Dehumidifiers and ice makers
Commercial showcase cabinets and display cases
Established Expertise: Aidear, founded in 2008, specializes in high-quality evaporators and condensers for refrigeration and air conditioning.
Flexible Customization: OEM custom designs with detailed drawings to meet specific project requirements.
Global Standards: ISO-certified with rigorous FQC and OQC processes, including pressure and leakage testing.
Responsive Support: 24/7 customer service via TradeManager, email, WeChat, Skype, or WhatsApp, with sample services available (at customer cost).
Reliable Delivery: Production lead time of 10–40 working days, with secure seaworthy packaging for global shipping.
For more details or to request a custom design, contact Aidear today!
