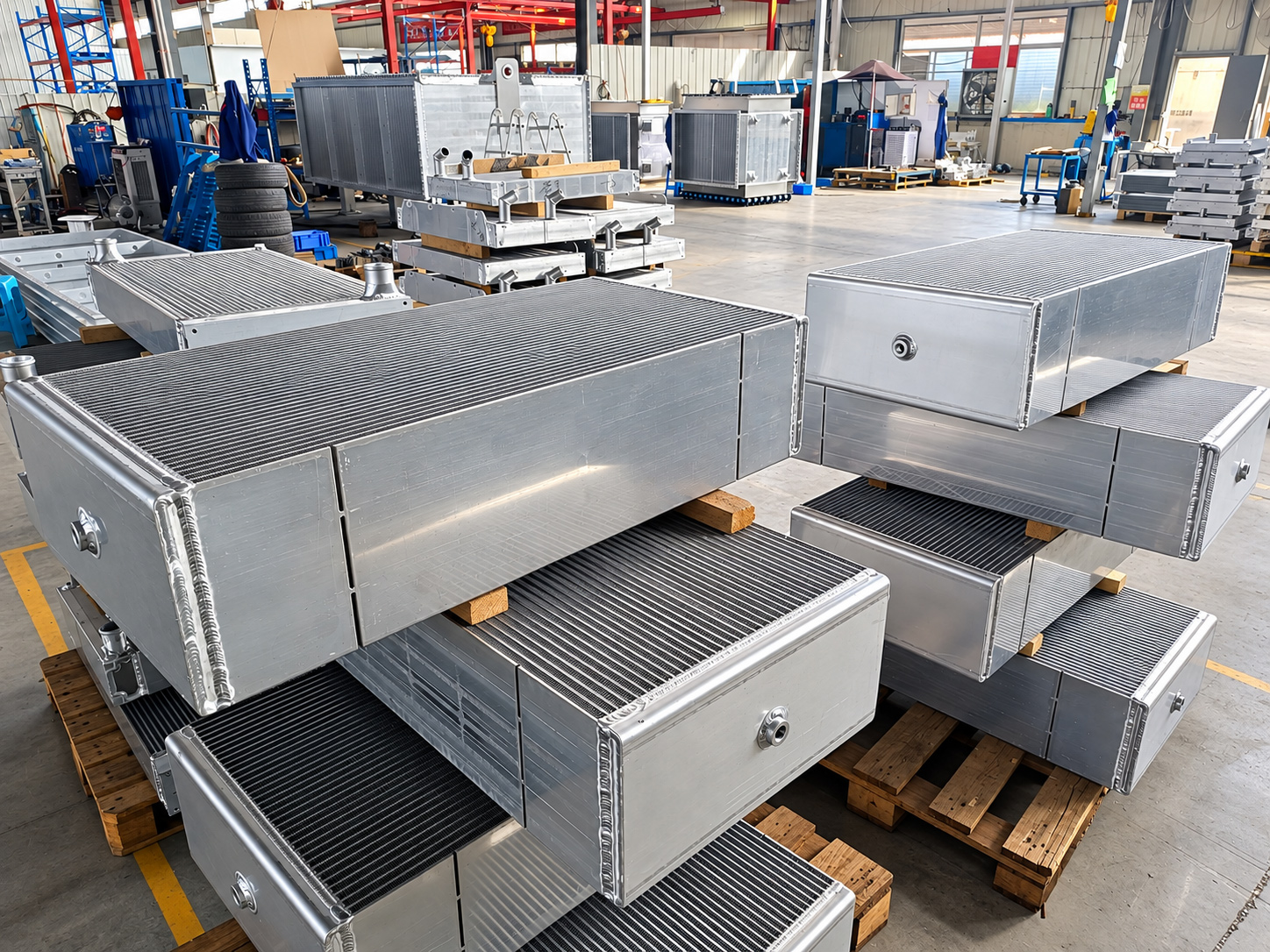

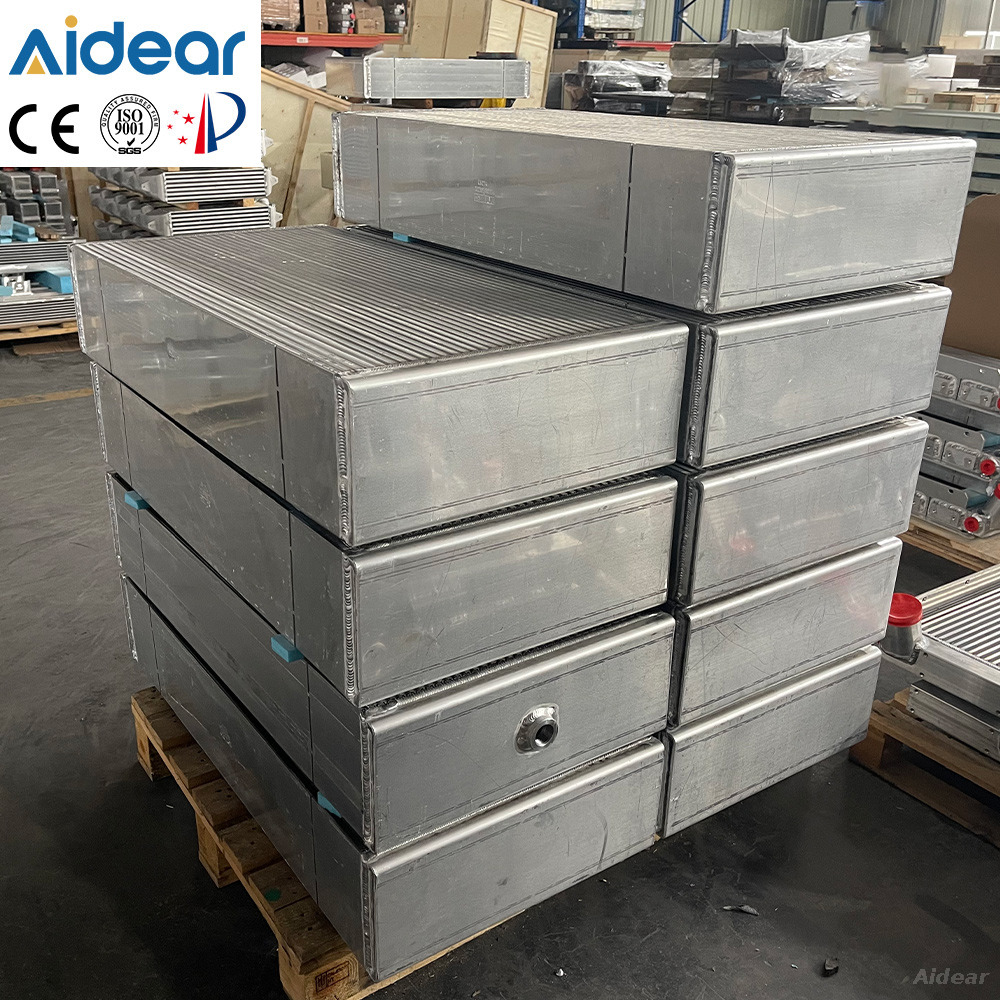

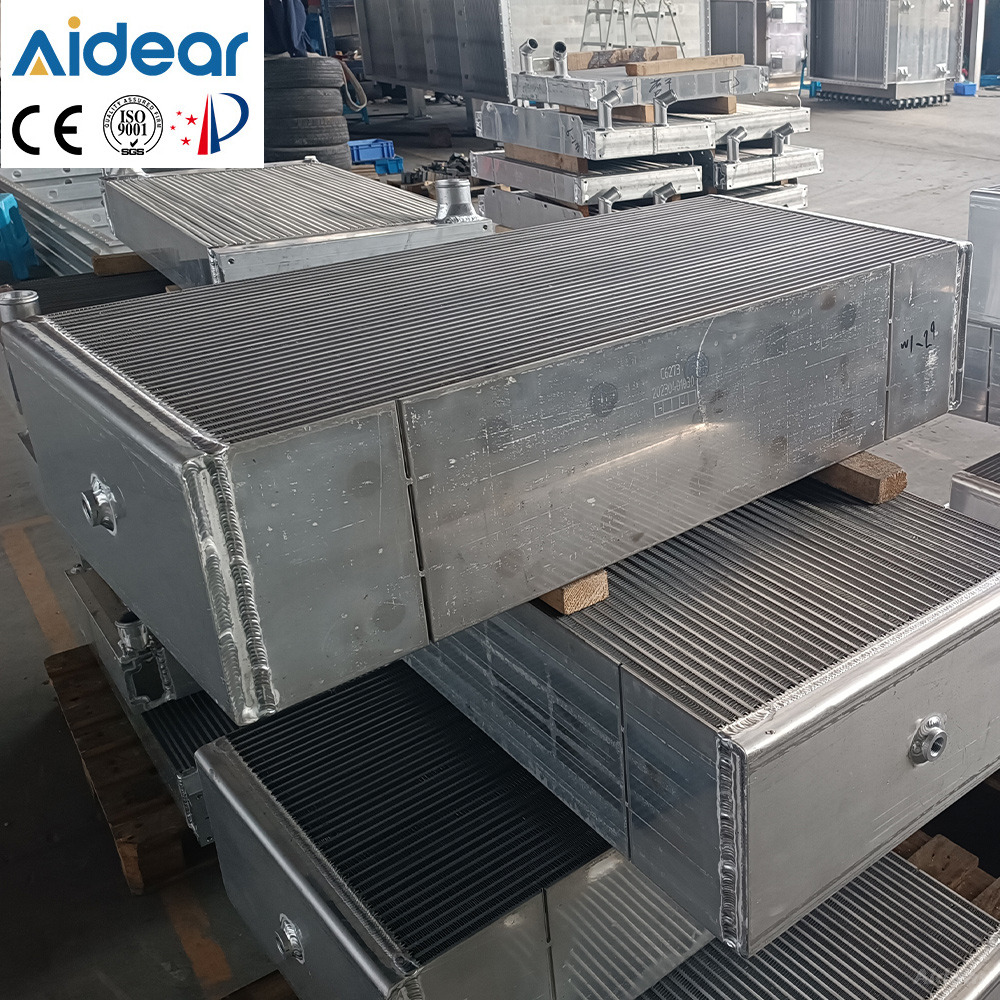

Aluminum Plate Fin Charge Air Cooler for Heavy Commercial Truck

Compact Heat Exchange Cores | Flexible Flow Arrangements | Custom Engineering Solutions

01 | More Heat Transfer Possibilities in Less Space

A Compact Solution for Complex Cooling Requirements

Industrial equipment is becoming more compact, while cooling requirements are becoming increasingly demanding. Limited installation space, multiple operating fluids and pressure-drop restrictions can make conventional heat exchanger selection challenging.

AIDEAR offers aluminum plate fin heat exchanger solutions designed to integrate heat transfer surfaces and flow passages into a compact structure.

By combining thin metal plates with corrugated fins, the exchanger creates multiple heat transfer channels within a single core. This construction supports efficient thermal exchange between compatible fluids while keeping the overall equipment layout compact.

Whether the project involves machinery cooling, compressed-air equipment or industrial thermal management, the heat exchanger configuration can be developed around the specific duty.

What Makes This Design Practical?

• High heat transfer surface area relative to core volume

• Lightweight aluminum construction

• Separate flow passages for different fluids

• Flexible channel and fin configurations

• Options for compact OEM equipment integration

• Engineering flexibility for different thermal loads

AIDEAR | Heat Transfer Solutions Built Around Your System

02 | Inside the Core: Where Heat Exchange Happens

Small Internal Details Make a Difference to Overall Performance

The performance of a plate-fin heat exchanger depends primarily on its internal structure.

Rather than relying on a bundle of round tubes, a plate-fin heat exchanger uses a structure consisting of alternating layers of plates and corrugated fins, creating separate flow channels for the flowing media.

The heat transfer surfaces are assembled into a compact heat exchange core, allowing adjacent flow channels to exchange thermal energy through the metal layers separating them.

Core Components

Parting Sheets — Separating the Fluid Streams

Flat aluminum sheets separate neighboring flow passages and provide conductive surfaces for heat transfer.

Their thickness and material properties are important considerations in both thermal and mechanical design.

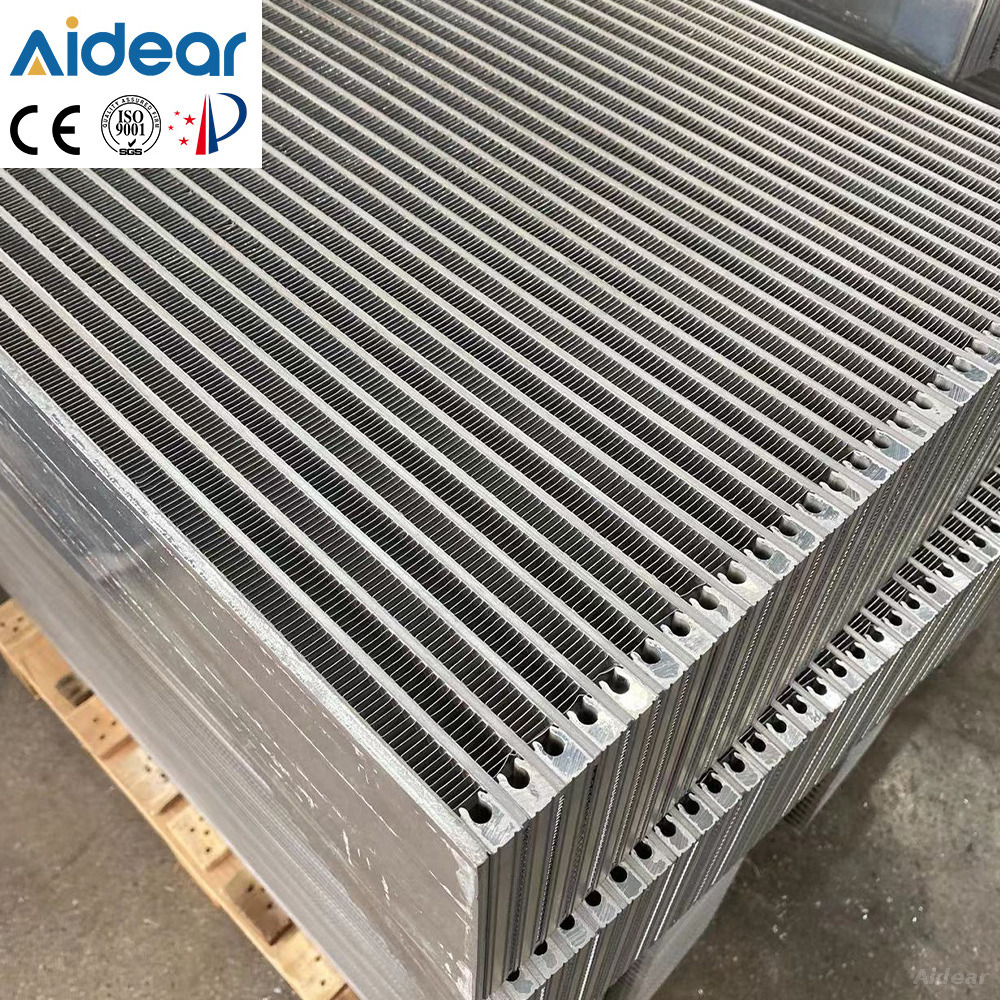

Corrugated Fins — Extending the Heat Transfer Area

Fins are installed between adjacent parting sheets to increase the surface area in contact with the flowing medium.

Their shape, pitch and height influence heat transfer performance and fluid resistance.

Side Bars — Defining the Flow Boundaries

Side bars close the required edges of each passage, support the core structure and help maintain separation between fluid streams.

Distribution Zones — Guiding the Flow

Distribution features direct incoming fluids toward the corresponding heat transfer passages.

Suitable distribution is important for achieving effective use of the available heat transfer surface.

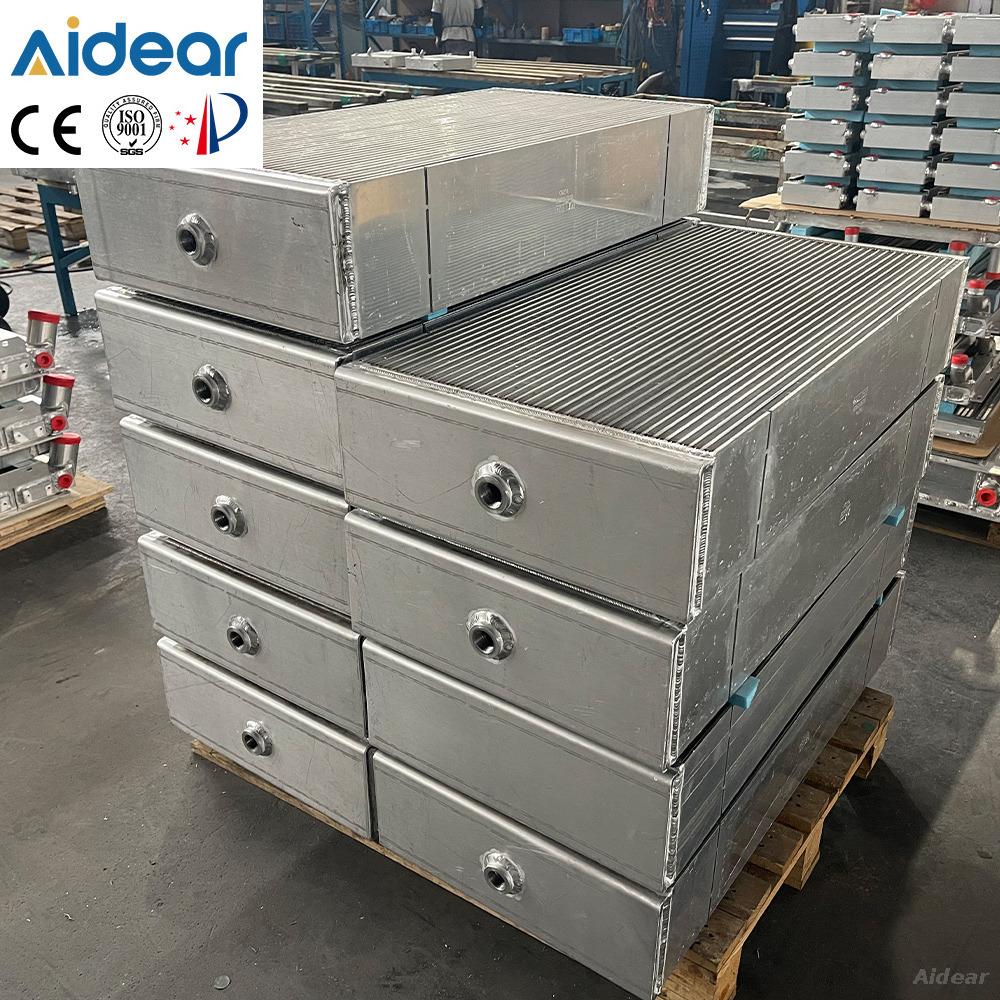

Headers and Connections — Linking the Core to Your System

Headers collect or distribute fluid between the heat exchanger passages and the external piping.

Their configuration must match the approved flow arrangement and installation requirements.

How the Components Work Together

During operation, the hot fluid and the cold fluid flow through separate channels.

Heat is transferred from the higher-temperature fluid to the lower-temperature fluid through a heat-conducting aluminum structure, and there is no intentional mixing between the fluids.

The compact, layered structure allows for the integration of a large heat transfer surface area within a relatively small volume.

03 | The Right Fin Pattern Changes the Result

Fin Geometry Is an Engineering Decision, Not Just a Design Detail

Two aluminum plate-fin heat exchangers with similar external dimensions may exhibit performance differences due to their differing internal channel designs.

The geometry of the fins affects thermal performance, fluid resistance, fluid distribution, and the tendency to form scale.

Therefore, selecting the appropriate fin pattern is a critical aspect of heat exchanger engineering design.

Straight Fins

Straight-wing channels provide a relatively direct flow path.

This design can be useful when flow resistance needs to be controlled, although the final performance depends on the channel dimensions and operating conditions.

Offset or Serrated Fins

An offset fin design interrupts the flow path, thereby promoting fluid mixing.

While this can enhance convective heat transfer, it may also increase the pressure drop.

Wavy Fins

A corrugated channel repeatedly changes the direction of fluid flow.

When properly designed, the resulting flow behavior can improve heat transfer efficiency, but it also has a corresponding effect on fluid resistance.

Choosing the Right Configuration

Fin type should be evaluated together with:

• Fluid properties and viscosity

• Required heating or cooling duty

• Permitted pressure drop

• Operating flow rates

• Channel cleanliness and fouling potential

• Available core dimensions

The objective is not simply to maximize fin density. It is to select a channel design that balances heat transfer performance with hydraulic and operating requirements.

04 | Different Fluids. Different Flow Strategies.

One Heat Exchanger Technology, Multiple Thermal Arrangements

Aluminum plate fin heat exchangers can be engineered for different combinations of compatible fluids.

Their layered construction also provides flexibility in arranging how the individual streams travel through the core.

Liquid-to-Liquid Heat Exchange

Heat is transferred between two separate liquid circuits.

This configuration is particularly useful when the primary and secondary coolants need to remain isolated from one another.

Potential applications may include cooling circuits for relevant equipment and industrial liquid thermal management systems.

Air-to-Liquid Heat Exchange

Heat exchange occurs between the airflow and the liquid flowing through separate channels.

Depending on the airflow conditions and the required heat load, this structure can be integrated into a compact equipment cooling system.

Gas-to-Gas Heat Exchange

Heat is transferred between compatible gas streams.

When selecting a heat exchanger, the pressure drop on the gas side, fluid purity, and channel design are particularly important.

Multi-Stream Heat Exchange

Certain plate-fin designs can accommodate more than one process stream within a single core.

This is useful in integrated heat treatment processes, but requires specialized thermodynamic, mechanical, and flow field engineering design.

Flow Arrangement Options

Depending on the construction and operating duty, flow passages may be arranged in counterflow, crossflow or other suitable configurations.

The appropriate arrangement is determined by the temperature profiles, available pressure difference and system requirements.

AIDEAR supports application-based evaluation of suitable heat exchanger configurations for customized projects.

05 | Evaluate the Whole System, Not Only the Heat Exchanger

Three Factors That Deserve Attention Before Selection

An effective plate fin heat exchanger must satisfy the overall system requirements rather than focusing on heat transfer capacity alone.

Thermal Duty and Temperature Difference

The available temperature difference determines the driving force for heat transfer.

When the temperatures of the hot and cold fluids are close, a larger heat transfer area or a different fluid configuration may be required to achieve the desired heat transfer performance.

To make a reliable selection, the actual inlet temperature and the target outlet temperature should be considered.

Flow Rate and Pressure Drop

Heat transfer performance is closely related to fluid resistance.

Under certain conditions, narrower channels or more complex fin geometries may improve convective performance, but they also increase the energy required for the fluid to flow through the equipment.

An acceptable pressure drop should be determined for each fluid flow path.

Fluid Compatibility and Cleanliness

Compact plate fin cores contain relatively small internal passages.

Particles, deposits and incompatible fluid chemistry can affect performance, create restrictions or damage the heat exchanger.

Fluid filtration, material compatibility and the expected maintenance environment should therefore be evaluated during the selection stage.

A successful design balances thermal performance, pressure loss, material suitability and operating reliability.

06 | Applications Driven by Real Operating Needs

Thermal Management for Industrial Equipment

AIDEAR plate fin heat exchanger solutions can be evaluated for different equipment categories according to the selected construction and operating conditions.

Hydraulic and Lubricating Oil Cooling

Industrial hydraulic equipment and lubrication circuits generate heat during operation.

A suitably designed plate fin cooler can transfer this heat to air or another cooling medium, helping support the required fluid temperature range.

Air Compressors and Compressed-Air Equipment

Compressed-air systems frequently require thermal management after compression or between processing stages.

Plate fin technology can be incorporated into suitable aftercooling, precooling and heat recovery arrangements.

Industrial Refrigeration and Air Drying

Compact heat exchangers may be used in appropriately designed refrigeration and compressed-air drying equipment for cooling, reheating or heat recovery duties.

Engineering and Agricultural Machinery

Mobile equipment often requires compact cooling components that fit within limited installation space.

Aluminum plate fin constructions can be considered for suitable oil, coolant or air cooling systems.

Power and Energy Equipment

Electrical and energy-related systems may require indirect liquid cooling or other thermal management arrangements.

Heat exchanger selection must account for fluid compatibility, temperature limits, installation conditions and system safety requirements.

Industrial Gas Processing

Specially engineered aluminum plate fin exchangers are used in gas-processing and low-temperature applications.

Projects involving cryogenic temperatures, phase changes or multiple process streams require specific engineering assessment. Suitability for such service cannot be assumed from aluminum construction alone.

07 | From Heat Exchanger Core to Equipment-Ready Component

Integration Begins Before the Final Dimensions Are Confirmed

A plate fin heat exchanger is not selected in isolation. Its connection arrangement and mechanical design must fit the surrounding system.

AIDEAR approaches customized projects by considering the heat exchanger and its installation environment together.

Core Dimensions

The available space influences the required core length, width and stacking height.

These dimensions must be coordinated with the heat transfer area and fluid flow requirements.

Inlet and Outlet Arrangement

The position, size and type of connections should be consistent with the external piping or duct arrangement.

Mounting Requirements

Supporting brackets and mechanical interfaces should be evaluated according to the equipment layout and expected operating conditions.

Operating Orientation

The installation orientation may affect drainage, venting, distribution and certain two-phase applications.

The approved equipment design should determine the permitted orientation.

External Flow Conditions

Where air flows through the heat exchanger, fan performance and airflow distribution must be considered as part of the complete system.

Service Accessibility

The installation should allow suitable access for inspection, piping connections and applicable maintenance operations.

Designed to Fit the Larger System

AIDEAR can review the mechanical and thermal requirements together to support a suitable customized configuration.

08 | Reliable Operation Begins With Proper System Conditions

Protect the Core and Maintain the Intended Flow

The compact passages of a plate fin heat exchanger deliver important design advantages, but they also require careful attention to operating conditions.

Control Particulate Contamination

Where appropriate, filtration should be provided to limit particles and deposits entering the flow channels.

Verify Fluid Compatibility

Aluminum compatibility must be evaluated for all process and cleaning fluids.

Fluid chemistry, moisture content and corrosion risks should be considered before operation.

Avoid Uncontrolled Thermal Changes

Rapid or uneven temperature changes can create thermal stresses.

Start-up, shutdown and operating transitions should be evaluated according to the approved design and operating instructions.

Stay Within Design Limits

The allowable pressure and temperature for each stream must be confirmed from the specific heat exchanger documentation.

Maintain the Required Flow Conditions

Changes in flow rate, fluid composition or pressure drop can affect thermal performance and equipment operation.

Plan Maintenance According to the Application

Cleaning methods must be compatible with the core material and construction. Mechanical access to internal passages can be limited in brazed designs.

09 | AIDEAR: Connecting Project Requirements With Heat Exchanger Design

Engineering Support for Customized Industrial Cooling Equipment

Changzhou Aidear Refrigeration Technology Co., Ltd. was established in 2016 and specializes in heat exchangers and refrigeration equipment.

Our product portfolio includes plate fin heat exchangers, finned-tube products, microchannel heat exchangers, dry coolers and other thermal management equipment.

For customized plate fin heat exchanger projects, the engineering review focuses on matching the proposed construction with actual operating requirements.

Our Project-Oriented Approach

Understand the Application

Review the cooling or heating process, working media, flow rates, installation restrictions and operating environment.

Establish the Thermal Requirements

Evaluate the required duty, temperature conditions and allowable pressure losses.

Review the Core Configuration

Assess appropriate fin geometry, layer arrangement, material requirements and connection design.

Confirm the Technical Specification

Coordinate the proposed dimensions, performance requirements and mechanical details before the manufacturing specification is finalized.

Define Inspection Requirements

Dimensional checks, pressure testing, leakage testing and applicable documentation requirements are agreed according to the product design and project specifications.

Prepare the Product for Delivery

Packaging and shipment arrangements are selected with consideration for equipment protection and transportation conditions.

What AIDEAR Brings to Your Project

• Manufacturer-focused technical communication

• Application-specific heat exchanger discussions

• Custom equipment configuration support

• Coordination of design and manufacturing requirements

• International B2B supply experience

AIDEAR — Be Your Idea!

10 | Before You Order: Questions Worth Asking

How is an aluminum plate fin heat exchanger different from a brazed plate heat exchanger?

Both are compact heat exchanger technologies, but their internal constructions differ.

A plate fin heat exchanger incorporates corrugated fin passages between separating plates, while a conventional brazed plate heat exchanger typically uses profiled plates to form flow channels.

Their flow distribution, mechanical construction and application suitability are not interchangeable.

Does a smaller core always mean a more efficient design?

Not necessarily.

Compactness is useful, but the design must also meet thermal requirements without excessive pressure drop or unacceptable operating limitations.

Can one plate fin heat exchanger cool several fluids?

Certain plate fin constructions support multiple fluid streams through separately arranged internal passages.

The required number of streams and their pressure and temperature conditions must be addressed during design.

Can the heat exchanger work at very low temperatures?

Aluminum plate fin technology is widely used in suitably engineered low-temperature applications.

However, the permissible temperature range depends on material selection, mechanical design, manufacturing requirements and the qualification of the specific unit.

Is it suitable for fluids that contain particles or deposits?

Fouling or particulate contamination can be a significant limitation because the internal passages may be narrow and difficult to clean.

The expected fluid cleanliness should be evaluated before selecting a plate fin design.

11 | Send Your Thermal Requirements. Start With the Right Design.

Custom Aluminum Plate Fin Heat Exchanger Solutions From AIDEAR

Choosing the right heat exchanger begins with understanding the system rather than selecting an arbitrary core size.

AIDEAR welcomes inquiries from equipment manufacturers, engineering contractors, system integrators and industrial purchasing teams.

Share your process conditions, drawings or existing equipment requirements to support an engineering review.

Information That Helps Us Evaluate Your Project

Thermal Requirements

• Required heating or cooling capacity

• Inlet and outlet temperatures of each stream

• Normal and maximum operating conditions

Fluid Information

• Fluid name and composition

• Flow rate for each stream

• Density and viscosity information, where available

• Cleanliness and filtration requirements

Mechanical Requirements

• Design pressure and temperature

• Maximum allowable pressure drop

• Installation dimensions

• Connection and mounting requirements

Project Information

• Equipment application

• Installation environment

• Existing drawings or reference specifications

• Expected order quantity

Your Application. Your Flow Conditions. Your Heat Exchanger.

DISCUSS YOUR PLATE FIN HEAT EXCHANGER PROJECT WITH AIDEAR

Custom Aluminum Plate Fin Heat Exchangers

Changzhou Aidear Refrigeration Technology Co., Ltd.

www.aidearheatexchanger.com

AIDEAR — Be Your Idea!
