Shell And Tube Heat Exchangers: Key Application Solutions for Large-Scale Engineering Projects

In large-scale engineering projects, efficient thermal management is critical to operational stability, energy conservation, and cost reduction. Among various heat transfer equipment, shell and tube heat exchangers stand out as the most reliable and versatile solution, widely deployed in oil and gas, power generation, petrochemicals, and renewable energy sectors. Their robust structure, adaptability to extreme conditions, and scalable design make them indispensable for handling high-pressure, high-temperature, and high-flow heat transfer tasks in mega-projects. This article explores their core application scenarios, tailored solutions, and engineering value in large-scale projects.

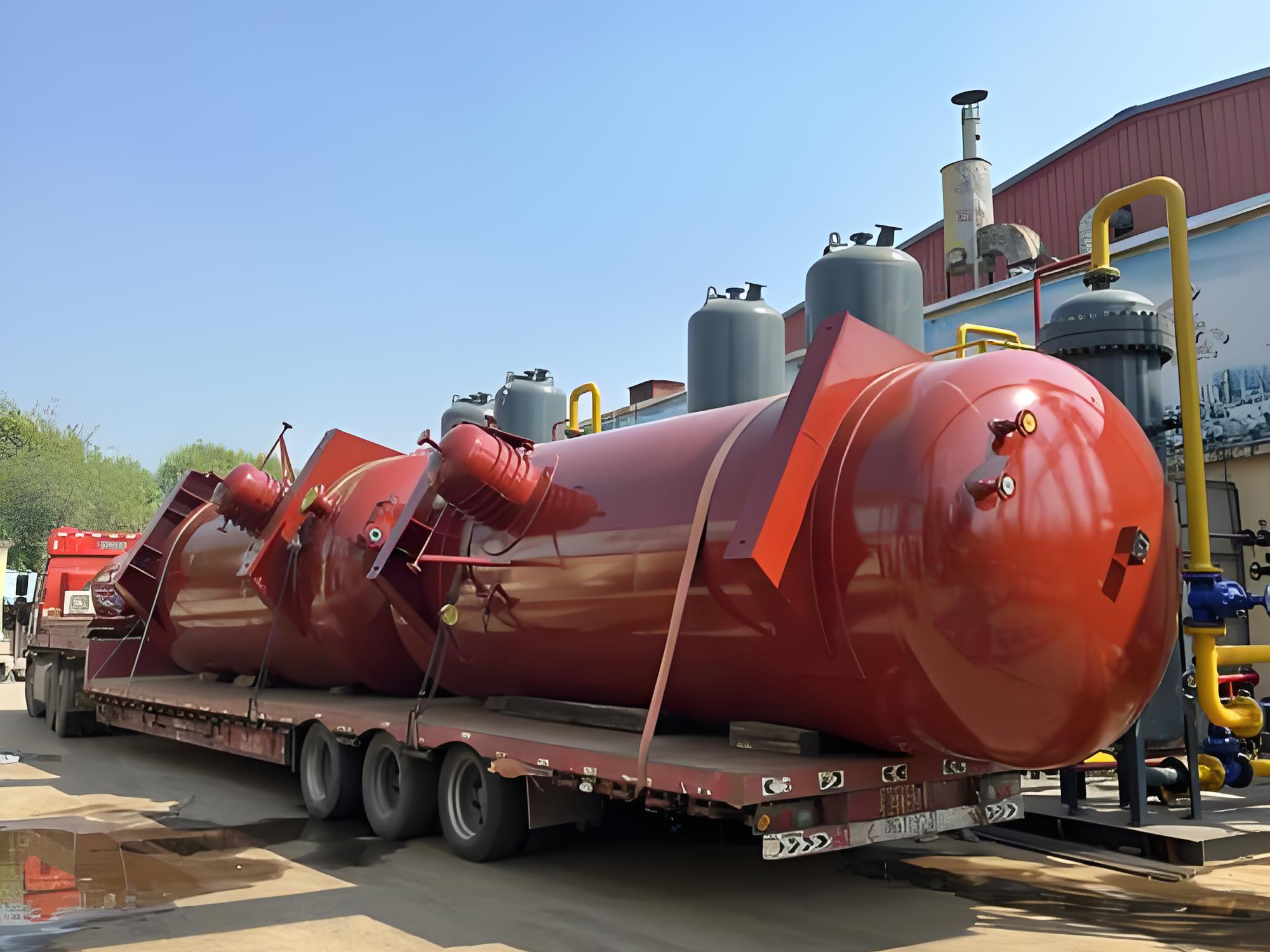

1. Core Advantages of Shell and Tube Heat Exchangers for Large Engineering

Before diving into applications, it is essential to understand why shell and tube exchangers dominate large-scale engineering:

• Extreme Condition Resistance: Withstand pressures up to 15–30 MPa and temperatures ranging from -50°C to 600°C, suitable for harsh industrial environments.

• High Scalability: Single units can reach 27 meters in height, 4.5 meters in diameter, and 650 tons in weight, with heat transfer areas exceeding 10,000 m² to meet mega-project demands.

• Material Versatility: Constructed from carbon steel, stainless steel (316L), titanium, or high-strength alloys (Inconel) to resist corrosion from aggressive fluids like hydrogen sulfide, chlorine, or high-temperature hydrocarbons.

• Low Maintenance & Long Lifespan: Simple structure with easy access for cleaning and repairs; designed for 15+ years of continuous operation, minimizing downtime in critical projects.

2. Key Application Solutions in Large-Scale Engineering Projects

2.1 Oil & Gas Refining: Heat Recovery & Process Stabilization

In large refineries (e.g., 100,000+ barrels per day), shell and tube heat exchangers are the backbone of thermal processes, focusing on waste heat recovery and product temperature control.

• Crude Oil Preheating & Catalytic Cracking: Fixed tube sheet exchangers are used to preheat crude oil using high-temperature product streams (e.g., 500–600°C catalytic cracking gas). This reduces boiler fuel consumption by 20–30% and improves thermal efficiency by 6–8%. For example, a Kuwait National Petroleum Company refinery upgrade deployed 300+ fixed tube sheet exchangers, achieving a 6% efficiency gain.

• Natural Gas Processing: Floating head exchangers handle high-pressure (10–15 MPa) natural gas to remove impurities and recover condensate. Their floating design absorbs thermal stress from temperature fluctuations, preventing tube damage in large-scale gas plants.

2.2 Power Generation: Condensation & Feedwater Heating

Large thermal power plants (600–1000 MW) and nuclear facilities rely on shell and tube exchangers for steam condensation and feedwater preheating, directly boosting power generation efficiency.

• Steam Turbine Condensers: U-tube shell and tube exchangers condense exhaust steam from turbines (30–40°C) into recycled water. A 600 MW unit uses exchangers with 10,000+ m² heat transfer area, saving millions of tons of water annually and improving cycle efficiency by 0.7–1.0%.

• Nuclear Power Plant Cooling: In pressurized water reactors (PWR), U-tube exchangers transfer heat between the primary (radioactive) and secondary (non-radioactive) loops under 15 MPa and 350°C. Their radiation-resistant alloy construction ensures 40+ years of safe operation, a core safety component for nuclear mega-projects.

• Waste Heat Recovery: Exchangers capture flue gas heat (800–1000°C) to preheat boiler feedwater, raising feedwater temperature to 250°C and reducing coal consumption by 12–15%.

2.3 Petrochemicals: High-Pressure Reaction & Corrosive Fluid Handling

Mega petrochemical plants (e.g., 300,000 tons/year ethylene or methanol units) use shell and tube exchangers for high-pressure reaction cooling and corrosive medium processing.

• Ethylene Cracking Units: Double-shell exchangers cool 800–900°C cracking gas to 200°C, recovering heat for raw material preheating. This improves heat recovery efficiency by 30% and saves 500,000 tons of standard coal yearly.

• Synthetic Ammonia/Urea Production: High-pressure (20–30 MPa) shell and tube exchangers condense synthesis gas (450–550°C) in ammonia plants, increasing single-line capacity by 30% and reducing energy consumption by 20%. For urea production, titanium-lined exchangers handle CO₂ and NH₃ mixtures, resisting corrosion and extending service life to 10+ years.

• Methanol Synthesis: In 300,000 tons/year methanol units, shell and tube exchangers cool high-temperature (250–300°C) synthesis gas from reactors, enabling unreacted gas recycling and improving methanol yield by 15%.

2.4 Renewable Energy & Environmental Engineering: Carbon Capture & Waste Heat Utilization

As large projects prioritize sustainability, shell and tube exchangers play a key role in carbon capture, geothermal power, and waste heat recovery.

• Carbon Capture & Storage (CCS): In coal-fired power plant CCS projects, shell and tube exchangers cool flue gas to -55°C, enabling 98% CO₂ liquefaction efficiency. Titanium alloys resist corrosion from flue gas impurities, ensuring stable long-term operation.

• Geothermal Power Generation: High-temperature shell and tube exchangers cool 200–300°C geothermal fluid in binary-cycle plants, boosting power generation efficiency by 10%.

• Hydrogen Energy Projects: In large-scale hydrogen production (e.g., 10,000 Nm³/h electrolyzers), high-pressure (70 MPa) shell and tube exchangers cool hydrogen, with leakage rates below 1×10⁻⁹ Pa·m³/s to meet fuel cell standards.

3. Tailored Design Solutions for Large-Scale Projects

Large engineering projects require customized shell and tube exchanger designs to match specific operating conditions:

• Fixed Tube Sheet: Best for refineries and chemical plants with stable temperatures; low cost, high pressure resistance (1,500+ psi), and easy fabrication.

• U-Tube: Ideal for power plants and nuclear facilities; absorbs thermal stress from extreme temperature differences, suitable for high-temperature (350°C+) fluids.

• Floating Head: Used in natural gas processing and petrochemicals; easy to clean and maintain, suitable for high-fouling fluids.

• Double-Tube Sheet: Deployed in pharmaceutical and nuclear projects; prevents cross-contamination between fluids, critical for sterile or radioactive environments.

4. Conclusion: The Indispensable Thermal Solution for Mega-Projects

Shell and tube heat exchangers are not just equipment but core thermal management solutions for large-scale engineering projects. Their adaptability to extreme conditions, scalability, and reliability make them the top choice for oil and gas, power generation, petrochemicals, and renewable energy mega-projects. By selecting the right design (fixed tube sheet, U-tube, floating head) and materials, engineers can optimize heat transfer efficiency, reduce energy consumption, and ensure long-term stable operation.

As large projects evolve toward higher efficiency and sustainability, shell and tube heat exchangers will remain critical, driving innovation in material science and design to meet future challenges.
